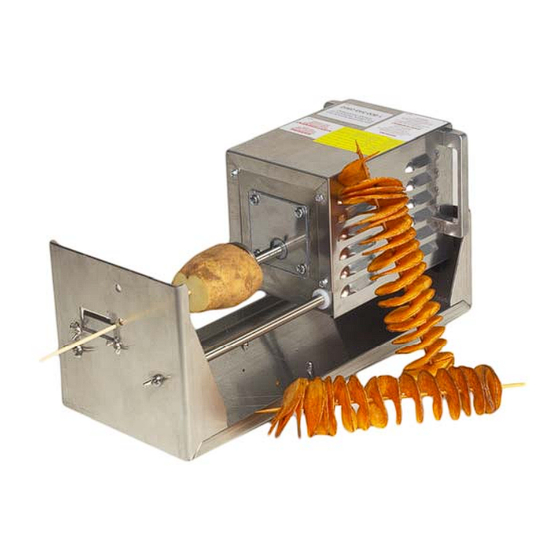

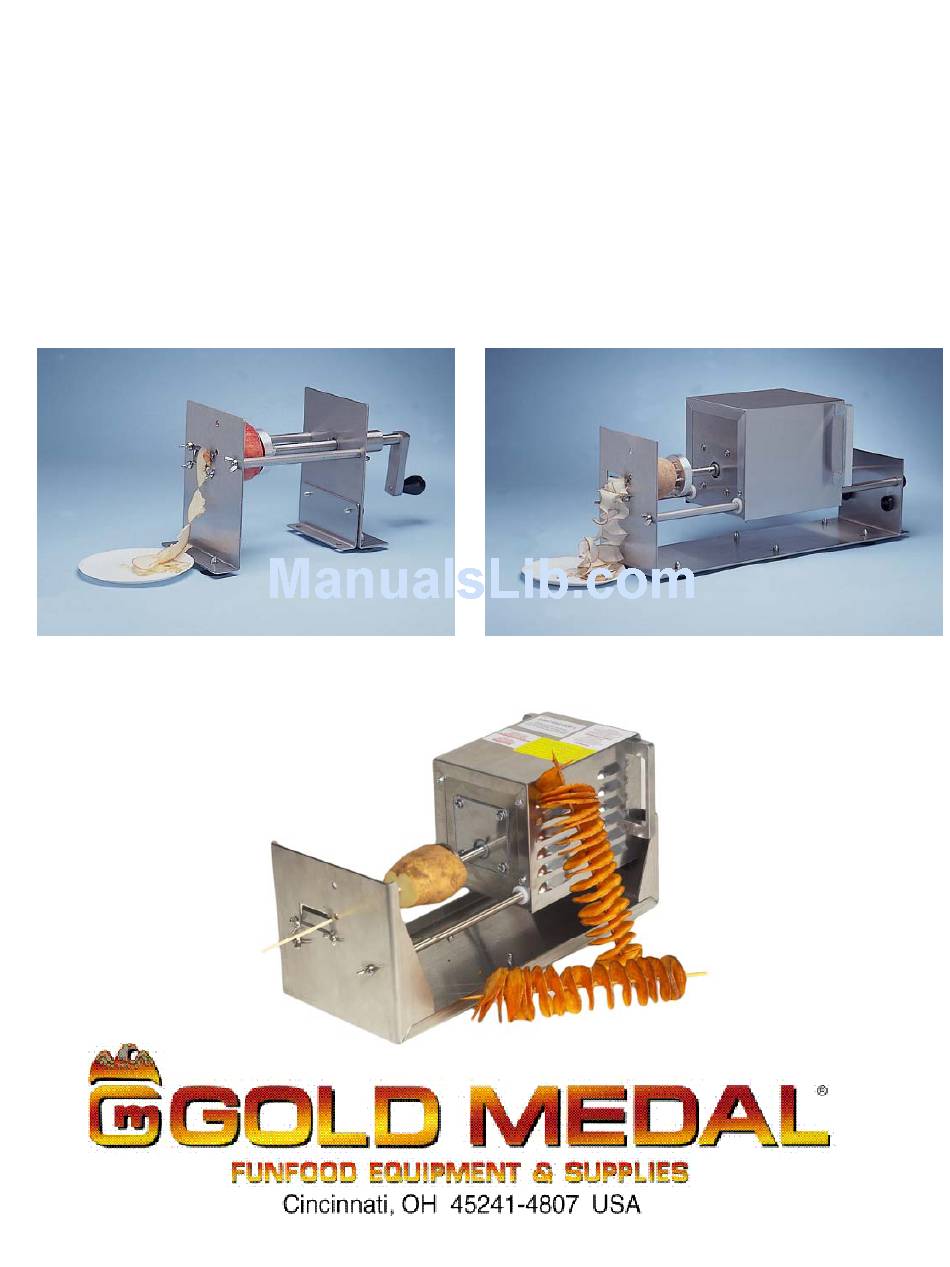

- Page 1 Part No. 82876 Revised Feb. 2010 SPIRAL SLICER Instruction Manual Model #5280 & 5280M...
-
Page 2: Safety Precautions
SAFETY PRECAUTIONS... -
Page 3: Installation Instructions
Unpack all cartons and check thoroughly for any damage that may have occurred during transit. Damage claims should be filed immediately with the transportation company. Gold Medal Products is not responsible for damage that occurs in transit. Setup: Your new is completely assembled and tested at the factory. - Page 4 Spiral Slicer Operation Instructions 1. The spiral slicer kit contains (3) slicing blades, (2) shredding blades, and (1) slicer pin weldment. The slicing blades are used as follows: a. A thin slicing blade for ribbon fries or Saratoga swirls stamped ‘T’. This blade has a slight bend in it and will make slices approximately 1/8 inch thick.
- Page 5 3. Using the Gold Medal Spiral Slicer. Adjust the stop collar to allow the drive plate pins to come close but not touch the cutting blades. For Saratoga Swirls Remove the shredding blade and slicer pin weldment. The slicing blade must be positioned to the high side of the blade mounting holes for proper cutting of Saratoga Swirls.
- Page 6 Do not push too hard. Push with a steady motion letting the machine and blades do the work. 5. Mounting Instructions For the Gold Medal Spiral Slicer The Gold Medal 5280 and 5280M Spiral Slicers are capable of being mounted three different ways. a. Suction cup mounting: Both models 5280 and 5280M are supplied with suction cups.
-
Page 7: Cleaning Instructions
Cleaning Instructions 5280 1. Disassemble unit 2. Clean as needed 3. Reassemble unit 5280M (Motorized) 1. Unplug unit 2. Remove large wing nuts and carefully remove slides 3. Clean power unit with damp cloth 4. Clean base pan as needed... -
Page 11: Ordering Spare Parts
3. Please include your model name, serial number, and date of manufacture (located on the machine nameplate) with your order. 4. Address all parts orders to: Parts Department Gold Medal Products Co. 10700 Medallion Drive Cincinnati, Ohio 45241-4807 (800) 543-0862... - Page 12 5280 SPIRAL SLICER.
- Page 13 PARTS LIST – 5280 ASSEMBLY Item No. Part No. Description Quantity . 82864 Clamping knob 82859 Stop angle 44017 Suction cup feet 12385 Acorn nut 82810 Support stand weldment 82805 Front support rod 82827 Thin slicing blade weldment 82826 Medium slicing blade weldment...
- Page 14 5280M MOTORIZED SPIRAL SLICER...
- Page 15 PARTS LIST – 5280M ASSEMBLY Item No. Part No. Description Quantity 82859 Stop angle 82864 Clamping knob 82866 Base pan weldment 82861 Slide 44017 Suction cup feet 82863 Bushing 82861 Slide 12385 Acorn nut 82827 Thin slicing blade weldment 82826 Medium slicing blade weldment 82825 Coarse slicing blade weldment...
- Page 16 5280M MOTORIZED SPIRAL SLICER.
-
Page 17: Warranty
WARRANTY WE WARRANT to the original purchaser the Gold Medal equipment sold by us to be free from defects in material or workmanship under normal use and service. Our obligation under this warranty shall be limited to the repair or replacement of any...
