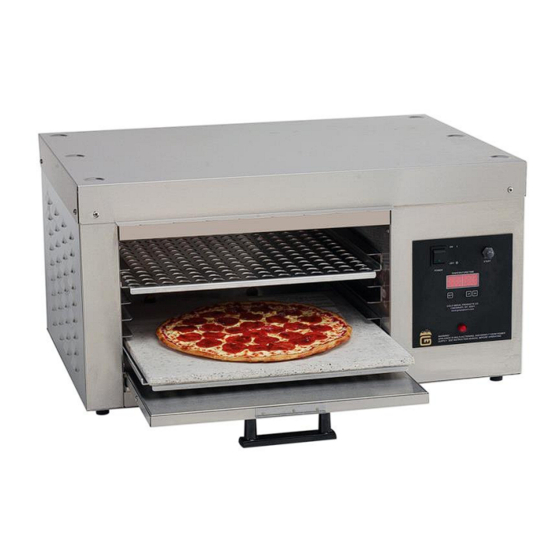

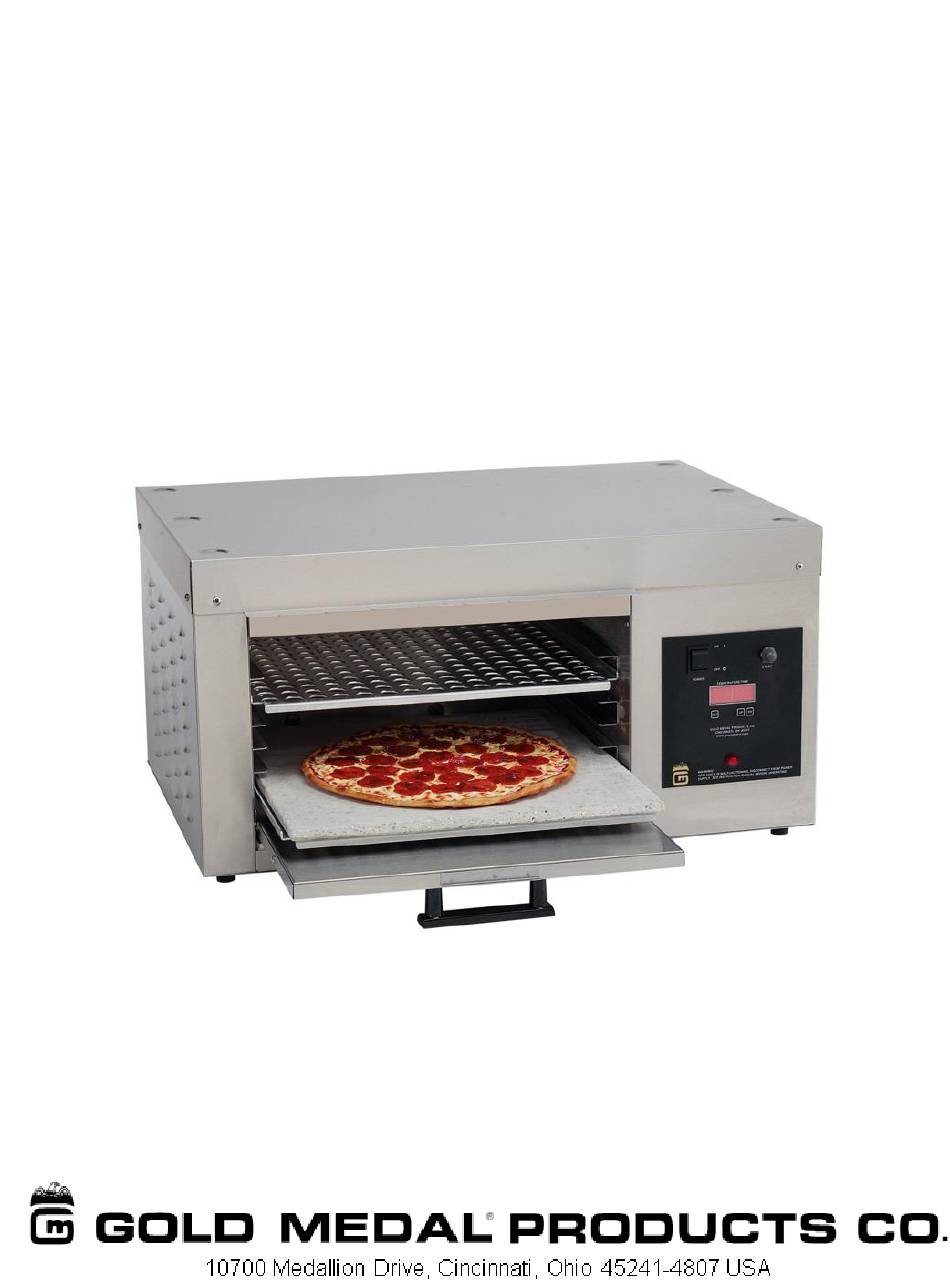

- Page 1 Part No. 39792 Pizza Oven Models 5554 & 5554EX Instruction Manual...
-
Page 2: Safety Precautions
Read and understand operator’s manual and all other safety instructions before using this equipment. To order copies of the operator’s manual go to gmpopcorn.com or write to Gold Medal Products Co., 10700 Medallion Drive, Cincinnati, OH 45241 USA 1-(800)-543-0862 022_060215... - Page 3 This machine is NOT to be operated by minors. 007_010914 CAUTION If the supply cord is damaged, it must be replaced by Gold Medal Products Co., its service agent or similarly qualified persons in order to avoid a hazard. 039_080614...
- Page 4 We recommend this equipment be on a dedicated and protected circuit. Failure to wire properly will void the warranty and may result in damage to the machine. It is Gold Medal Products Co.’s recommendation that this machine be plugged directly into a wall outlet. The use of extension cords is not recommended due to safety concerns, and may cause sacrificed and/or reduced performance.
- Page 5 Changes the mode from time setting, to temperature setting, to viewing the current temperature. Up Button Depressing the button increases the time or temperature accordingly. Down Button Depressing the button decreases the time or temperature accordingly On/Off Start Switch Button Mode Up and Down Button Buttons Malfunction Light Model 5554 & 5554EX...
- Page 6 Repeat steps F thru H for additional cycles. DO NOT BAKE FROZEN PRODUCTS ON THE PIZZA STONE. DOING SO MAY CAUSE THE STONE TO SHATTER! FOR FROZEN PRODUCTS, PLEASE REMOVE THE STONE AND USE THE ALUMINUM BAKING PAN ONLY. Model 5554 & 5554EX...
- Page 7 The stainless steel body of the Warmer can be kept clean with cleaner designed for stainless steel and a clean cloth. We recommend Gold Medal Products Company’s Watchdog Stainless Steel Polish (P/N 2088.)
-
Page 8: Maintenance Instructions
No user serviceable parts inside. Refer servicing to qualified service personnel. 011_051514 CAUTION THE FOLLOWING SECTIONS OF THIS MANUAL ARE INTENDED ONLY FOR QUALIFIED SERVICE PERSONNEL WHO ARE FAMILIAR WITH ELECTRICAL EQUIPMENT. THESE ARE NOT INTENDED FOR THE OPERATOR. 027_010914 Model 5554 & 5554EX... -
Page 9: Ordering Spare Parts
4. Please include your model number, serial number, and date of manufacture (located on the machine nameplate/data plate) with your order. 5. Address all parts orders to Parts Department, Gold Medal Products Co., 10700 Medallion Drive, Cincinnati, Ohio 45241-4807 or place orders by phone or online:... - Page 10 41031 Switch, Oil Pump 41033 Pilot Light, 125V Red 47155 Rubber Feet 3/4" High 76540A Digital Baker Control 39794 Baking Pan 43288 Bottom Element (500 Watts) 50017 Top Element (900 Watts) 39790 Pizza Stone (Not Shown) Model 5554 & 5554EX...
- Page 11 Item Part No. Description 76542 Relay, 20A 76346 Thermocouple 76540A Digital Control Model 5554 & 5554EX...
- Page 12 Item Part No. Description 55195 Thermostat 40721 Axial Fan 47199 Blower Plug and Cord 79058 High Limit Thermostat Model 5554 & 5554EX...
- Page 13 Spacer, .280 x .250 OD 87163 Strain Relief 39794 Baking Pan *CAUTION: If supply cord is damaged, it must be replaced by Gold Medal Products Co., its service agent, or similarly qualified persons in order to avoid a hazard. Model 5554 & 5554EX...
-
Page 14: Wire Diagram
WIRE DIAGRAM Model 5554 Model 5554 & 5554EX... - Page 15 Model 5554EX Model 5554 & 5554EX...
-
Page 16: Warranty
© 2023 – The text, descriptions, graphics, layout, and other material in this publication are the exclusive property of Gold Medal Products Co. and shall not be used, copied, reproduced, or published in any fashion, including website display, without its express written consent.
