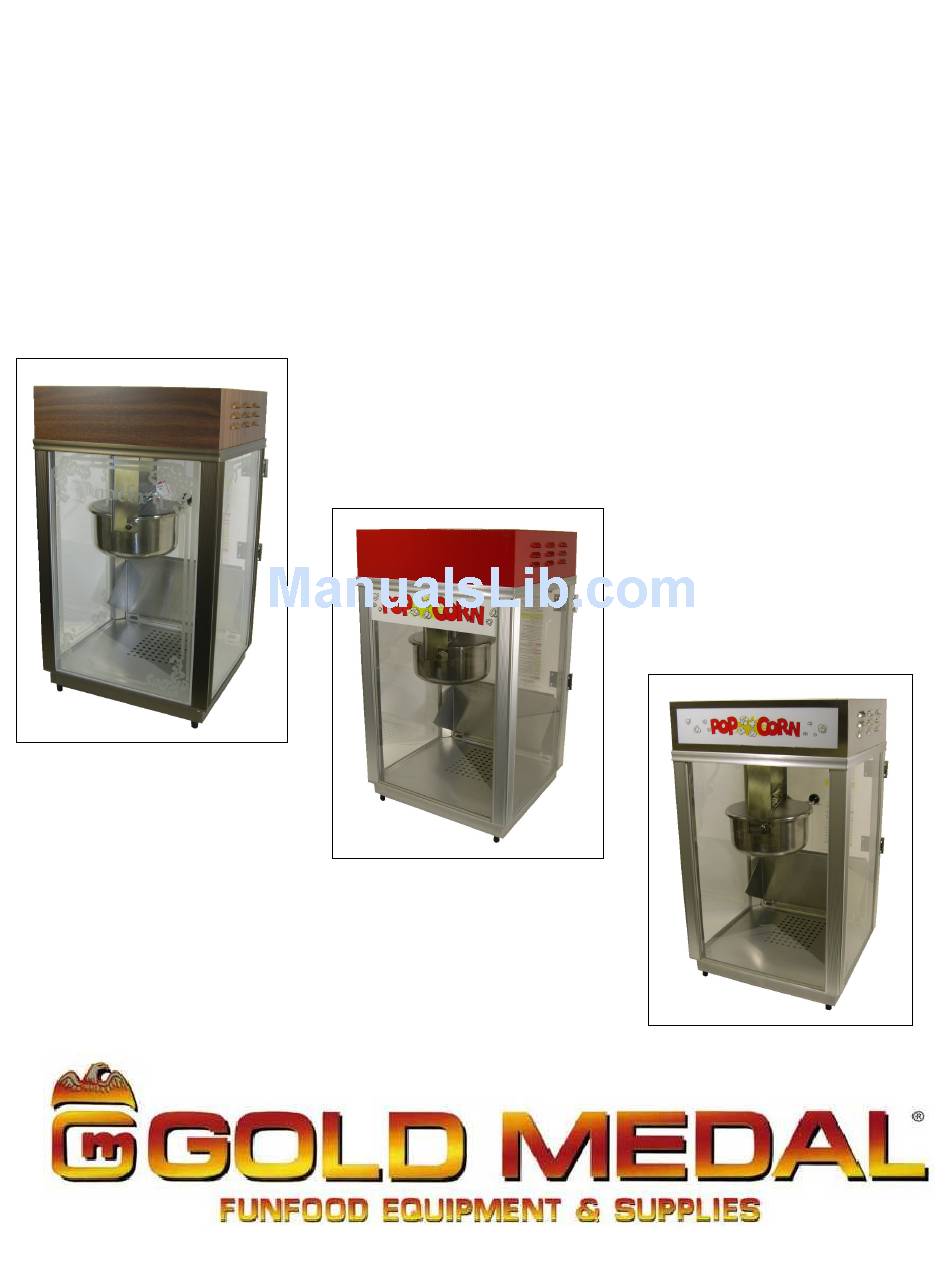

- Page 1 Part No. 49217 Revised: June 2004 6 oz. Poppers Kettle With / Love My Popper Kettle Popcorn Machine Instruction Manual Models: 1871,2660,2661 Cincinnati, OH 45241-4807 USA...
-
Page 2: Safety Precautions
6 oz. Kettle Poppers SAFETY PRECAUTIONS Models: 1871,2660,2661... -
Page 3: Installation Instructions
2. Make test pop by putting 3 kernels of corn and 1 oz. (30 ml) of oil into the kettle. 3. When the 3 kernels have popped, load kettle with corn and oil charge. 4. When corn has popped, dump kettle. 5. Repeat cycle starting with Item #3; always pop 3-5 batches for best popcorn. Models: 1871,2660,2661... -
Page 4: Care And Cleaning
Cleaning the cabinet of your machine is easy. Take a clean cloth and wipe excess grease from the glass. Wipe the outside of the machine also. NOTE: Never use a glass or plastic cleaner that contains ammonia. It will crack the plastic on the machine. Models: 1871,2660,2661... -
Page 5: Maintenance Instructions
6 oz. Kettle Poppers MAINTENANCE INSTRUCTIONS ACCESSORIES Description Part Number Shipping Carton 49026 Corn Measure Cup 49049 Scoop 2071 Flavacol Cup 47678 Rubber Crutch Tips 49123 Models: 1871,2660,2661... -
Page 6: Ordering Spare Parts
3. Please include your model name, machine serial number, and date of manufacture, (located on the machine nameplate) with your order. 4. Address all parts orders to: Parts Department Gold Medal Products Co. 10700 Medallion Drive Cincinnati, Ohio 45241-4807 or, place orders at:... - Page 7 6 oz. Kettle Poppers 1871 Cabinet Assembly – Front View Models: 1871,2660,2661...
- Page 8 6 oz. Kettle Poppers 2660 Cabinet Assembly – Front View Models: 1871,2660,2661...
- Page 9 6 oz. Kettle Poppers 2661 Cabinet Assembly – Front View Models: 1871,2660,2661...
- Page 10 6 oz. Kettle Poppers 1871 Cabinet Assembly – Rear View Hinge components Shown on page 12. Models: 1871,2660,2661...
- Page 11 6 oz. Kettle Poppers 2660 Cabinet Assembly – Rear View Hinge components Shown on page 12. Models: 1871,2660,2661...
- Page 12 6 oz. Kettle Poppers 2661 Cabinet Assembly – Rear View Hinge components Shown on page 12. Models: 1871,2660,2661...
- Page 13 6 oz. Kettle Poppers 1871, 2660, 2661 Inside Cabinet – Top View See diagram below for switch box assembly. Operating Switches – Close up 26,27 Models: 1871,2660,2661...
- Page 14 6 oz. Kettle Poppers 1871, 2660, 2661 Inside Cabinet – Bottom View Warmer Assembly Models: 1871,2660,2661...
- Page 15 6 oz. Kettle Poppers 1871, 2660, 2661 Roof Components Models: 1871,2660,2661...
- Page 16 6 oz. Kettle Poppers Door Hardware Kit – P/N 61380 The parts below are all included in kit part #61380, but are also sold separately. Models: 1871,2660,2661...
- Page 17 6 oz. Kettle Poppers Parts List – Cabinet Assembly Part Number Item # Model 1871 Model 2660 Model 2661 Description 49454 49456 48055 Dome 49247 49193 49193 Right Front Corner Post 49247 49193 49193 Left Front Corner Post 49246 49345 49345 Bottom Frame Assy.
-
Page 18: Parts List - 6 Oz. Kettle Assembly
6 oz. Kettle Poppers 6 oz. KETTLE ASSEMBLY PARTS LIST - 6 oz. KETTLE ASSEMBLY Models: 1871,2660,2661... - Page 19 6 oz. Kettle Poppers PARTS LIST – 6 oz. KETTLE ASSEMBLY Models: 1871, 2660, 2661 Item No. Part No. Description 49434 6 Oz. Kettle Complete 49435 6 Oz. Lid & Agitator Assembly 49433 6 Oz. Kettle Bottom Only 49701 External Snap Ring...
-
Page 20: Electrical Schematic
6 oz. Kettle Poppers ELECTRICAL SCHEMATIC Models: 1871, 2660, 2661 Models: 1871,2660,2661... -
Page 21: Warranty
6 oz. Kettle Poppers WARRANTY WE WARRANT to the original purchaser the Gold Medal equipment sold by us to be free from defects in material or workmanship under normal use and service. Our obligation under this warranty shall be limited to the repair or replacement of any...
