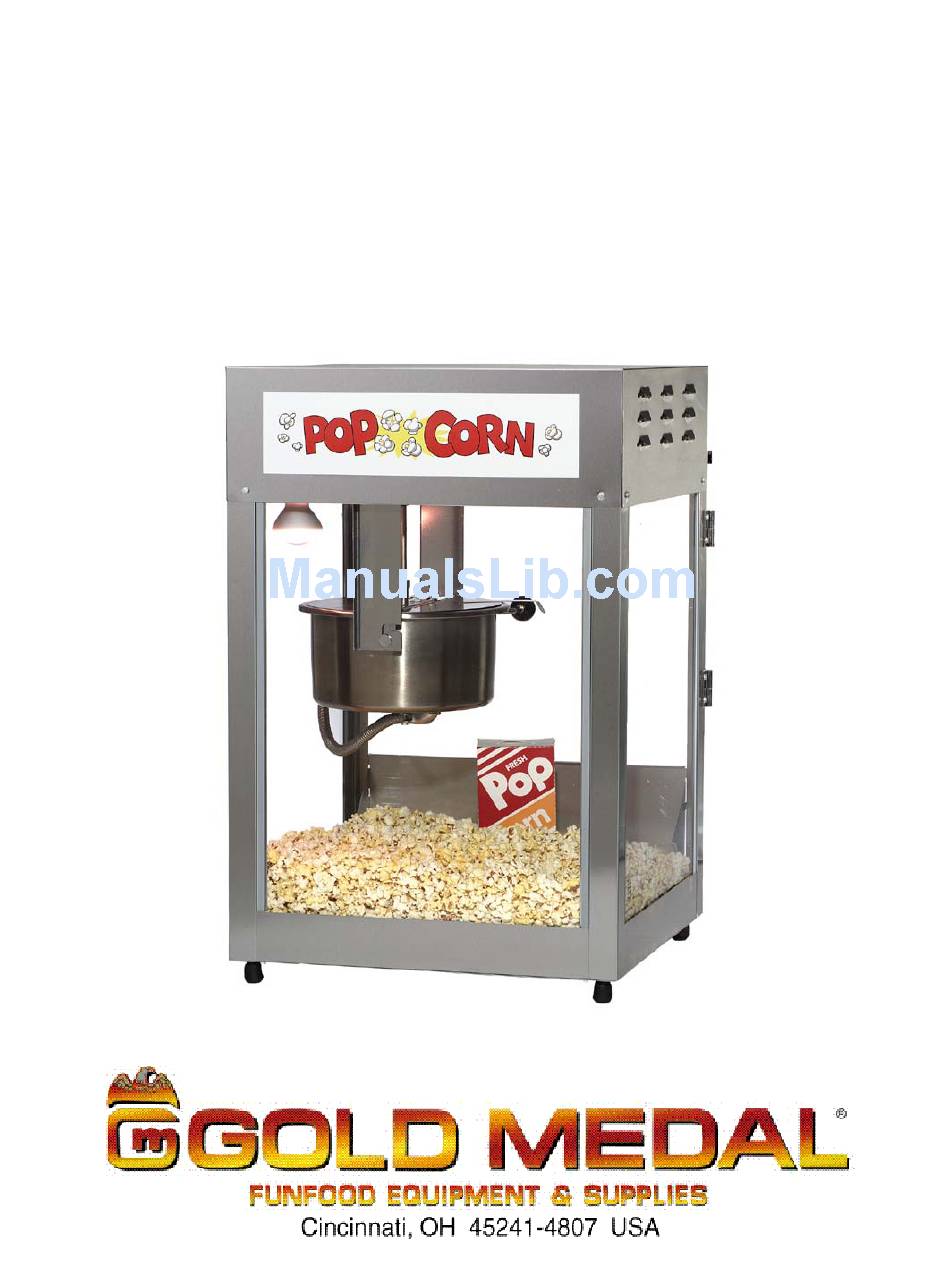

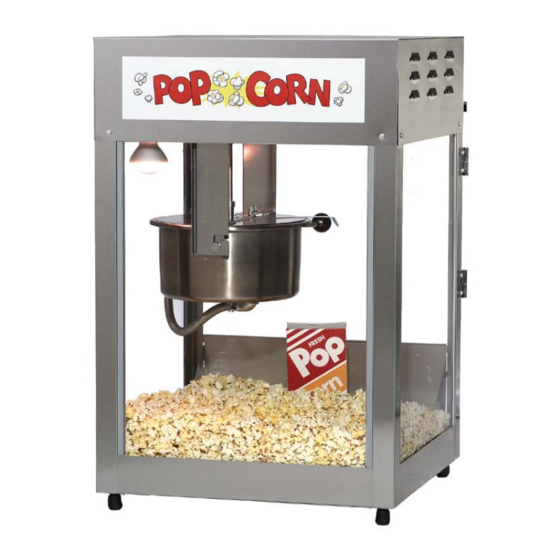

- Page 1 Part No. 49749 Revised April 2002 Pop Maxx Instruction Manual Model #2552, #2552C, #2552EX, #2552XJ...
-
Page 2: Safety Precautions
Pop Maxx 12/14 Oz. Popcorn Machine Safety Precautions All Models #2552, #2552C, #2552EX, #2552JX... -
Page 3: Inspection Of Shipment
The 2552C has a 20 Amp NEMA 5-20P plug on the power supply cord. The 2552C is intended for use in Canada. The 2552, 2552 EX, and 2552XJ have a 15 Amp NEMA 5-15P plug on the power supply cord. -
Page 4: Controls And Their Functions
C. Kettle Heat Switch: This switch turns on the heat element located in the popcorn kettle. Amount of Popcorn and Oil: The Pop Maxx is equipped with a twelve ounce (355 ml) corn measure cup. Gold Medal Products Company recommends the use of flavored and colored coconut oil. Coconut oil does not leave black deposits in the kettle like other oils. -
Page 5: Care And Cleaning
DO NOT immerse the kettle in water or any other cleaning solution, this will void the warranty. It is recommended as a routine maintenance procedure to use authentic Gold Medal Products Company 2095 Heat’n Kleen inside kettle cooking surface cleaner. Heat’n Kleen will remove any oily build-up and helps maintain a clean cooking surface if used on a routine basis. -
Page 6: Cabinet Parts List
Pop Maxx 12/14 Oz. Popcorn Machine Cabinet Parts List For Models #2552 and #2552C. Item No. Part No. Description Special Notes 40557 Corn Deck Freshener Heat Element * 20 Watt Foil 41349 Hinge, Male, Short Left (2) 41350 Hinge, Male, Short Right (2) - Page 7 87085 Power Supply Cord 15 Amp 42222 42222 Tinnerman Clip 8-32 75267 75267 Tee Bolt 40589 40589 Light Shield Conical 41314 41314 Screw 10-24 x 3/4" (4) 49777 Popcorn Decal * 49777 * Not Shown All Models #2552, #2552C, #2552EX, #2552JX...
-
Page 8: Cabinet Assembly
Pop Maxx 12/14 Oz. Popcorn Machine Cabinet Assembly All Models #2552, #2552C, #2552EX, #2552JX... - Page 9 Pop Maxx 12/14 Oz. Popcorn Machine Dome All Models #2552, #2552C, #2552EX, #2552JX...
- Page 10 Pop Maxx 12/14 Oz. Popcorn Machine Kettle Parts List For Models #2552 and #2552C. Item No. Part No. Description Special Notes 49739 Lid and Agitator Assembly (Item 1-15) 47110 Knob Dump Handle 49701 Retaining Ring 47060 Spur Gear 47106 Neddle Bearing 61059 1/4"-20 Thumb Screw (2 Req.)
- Page 11 76702 76702 Thermostat L525 F (2) 61017 61017 Kettle Shell 8-32 x 1/2" Countersunk Screw * 20066 20066 Threaded Block 8-32 x 1" Countersunk Screw * 20068 20068 Dump Handle/Threaded Block * Not Shown All Models #2552, #2552C, #2552EX, #2552JX...
- Page 12 Pop Maxx 12/14 Oz. Popcorn Machine Kettle Complete All Models #2552, #2552C, #2552EX, #2552JX...
- Page 13 Pop Maxx 12/14 Oz. Popcorn Machine Open Kettle All Models #2552, #2552C, #2552EX, #2552JX...
-
Page 14: Electrical Schematic
Pop Maxx 12/14 Oz. Popcorn Machine ELECTRICAL SCHEMATIC Wiring diagram for #2552 and #2552C. All Models #2552, #2552C, #2552EX, #2552JX... - Page 15 Pop Maxx 12/14 Oz. Popcorn Machine ELECTRICAL SCHEMATIC Wiring diagram for #2552EX. All Models #2552, #2552C, #2552EX, #2552JX...
- Page 16 Pop Maxx 12/14 Oz. Popcorn Machine ELECTRICAL SCHEMATIC Wiring diagram for #2552JX. All Models #2552, #2552C, #2552EX, #2552JX...
-
Page 17: Warranty
Pop Maxx 12/14 Oz. Popcorn Machine WARRANTY WE WARRANT to the original purchaser the Gold Medal equipment sold by us to be free from defects in material or workmanship under normal use and service. Our obligation under this warranty shall be limited to the repair or replacement of any...
