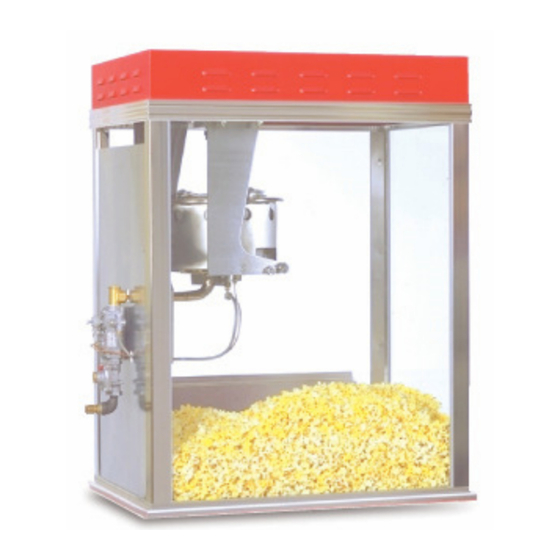

- Page 1 Instruction Manual G-Whiz Gas Popper Model No. 5908, 5908GGT Model 5908 shown 10700 Medallion Drive, Cincinnati, Ohio 45241-4807 USA © 2016 Gold Medal Products Co. Part No. 74874...
-
Page 2: Safety Precautions
G-Whiz Gas Popper Model No. 5908 and 5908GGT SAFETY PRECAUTIONS DANGER Gas is safe when used properly, but can be very dangerous when used improperly. We suggest that installation be carefully made by qualified personnel only. Gas companies have competent service personnel to provide safe installation. - Page 3 Read and understand operator’s manual and all other safety instructions before using this equipment. To order copies of the operator’s manual go to gmpopcorn.com or write to Gold Medal Products Co., 10700 Medallion Drive, Cincinnati, OH 45241 USA 1-(800)-543-0862 022_060215 gmpopcorn.com...
- Page 4 Gold Medal’s Technical Service Department at 1-800-543-0862 for any questions about your machine operations, replacement parts, or any service questions. (Gold Medal Products Co. does not assume any liability for injury due to careless handling and/or reckless operation of this equipment.) gmpopcorn.com...
-
Page 5: Installation Instructions
G-Whiz Gas Popper Model No. 5908 and 5908GGT INSTALLATION INSTRUCTIONS Inspection of Shipment After unpacking, check thoroughly for any damage which may have occurred in transit. Claims should be filed immediately with the transportation company. The warranty does not cover damage that occurs in transit, or damage caused by abuse, or consequential damage due to the operation of this machine, since it is beyond our control (reference warranty in back of manual). - Page 6 G-Whiz Gas Popper Model No. 5908 and 5908GGT Setup This unit has been tested at the factory. 1. Remove all packaging and tape prior to operation. 2. This unit is for outdoor use only. 3. Place popper on a level, sufficiently stable base or counter that is strong enough to safely support it when in use.
-
Page 7: Gas Requirements
G-Whiz Gas Popper Model No. 5908 and 5908GGT Gas Installation Instructions DO NOT connect the unit to a power source before gas connection is complete. Gas Requirements The 5908 and 5908GGT are designed for Propane only. Converting the unit to an alternate fuel source will void the warranty and may cause a dangerous condition. -
Page 8: Checking For Gas Leaks
Stop using the appliance immediately if damage is found, and contact a qualified professional to inspect and correct any issue. 3. Securely route all gas lines away from flames and high temperature areas. 4. Contact Gold Medal Technical Support, or a qualified Gas Service Technician with any questions. Gas Pressure We have determined that optimum popping occurs when the gas pressure is adequate. - Page 9 G-Whiz Gas Popper Model No. 5908 and 5908GGT gmpopcorn.com Page 9...
- Page 10 G-Whiz Gas Popper Model No. 5908 and 5908GGT gmpopcorn.com Page 10...
- Page 11 G-Whiz Gas Popper Model No. 5908 and 5908GGT gmpopcorn.com Page 11...
- Page 12 G-Whiz Gas Popper Model No. 5908 and 5908GGT gmpopcorn.com Page 12...
- Page 13 G-Whiz Gas Popper Model No. 5908 and 5908GGT gmpopcorn.com Page 13...
-
Page 14: Electrical Installation Instructions
G-Whiz Gas Popper Model No. 5908 and 5908GGT Electrical Installation Instructions DO NOT connect this unit to a power source until gas installation is complete (reference the Gas Installation Instructions section of this manual). Electrical Requirements This unit must be wired in accordance with local electric and building code requirements by a qualified technician. - Page 15 G-Whiz Gas Popper Model No. 5908 and 5908GGT OPERATING INSTRUCTIONS Controls and Their Functions GAS SAFETY VALVE The Gas Safety Valve has three settings used to control gas flow; PILOT, ON, and OFF positions. (Reference image below and the Lighting and Shutdown Instructions in the Operating Instruction section of this manual.) PILOT position - When the Gas Safety Valve is in the PILOT position, the Safety Valve Button may be pressed to provide gas for lighting the pilot.
- Page 16 G-Whiz Gas Popper Model No. 5908 and 5908GGT KETTLE MOTOR SWITCH Two position, ON/OFF rocker switch - supplies power to the kettle agitator motor. The Kettle Motor Switch MUST be ON at all times when there is popcorn (popped or un- popped) in the kettle.
-
Page 17: Lighting And Shutdown Instructions
G-Whiz Gas Popper Model No. 5908 and 5908GGT Lighting and Shutdown Instructions Steps to Light the Pilot and Burner: 1. Turn the Gas Safety Valve to the PILOT position. 2. Depress the Safety Valve Button next to the safety valve handle. Hold this button down for 30-45 seconds. - Page 18 G-Whiz Gas Popper Model No. 5908 and 5908GGT If the Flame Goes Out If the flame goes out, a five minute shutdown period is required before attempting to re-light. 1. Check to see if you are out of gas. 2. Check to see if the thermocouple is in the proper position. WARNING AT NO TIME during a power failure should an attempt be made to operate this unit.
- Page 19 G-Whiz Gas Popper Model No. 5908 and 5908GGT Popping Corn This section describes popping instructions for Standard (Salted) Popcorn using a gas popper. Amount of Popcorn and Oil The popper is equipped with a corn, salt, and oil measure. We recommend flavored and colored coconut oil.
-
Page 20: Care And Cleaning
1. When cool, wipe outside of kettle with a clean, soft cloth. DO NOT use oven cleaners or abrasive materials as they will damage the kettle. 2. Every night, mix Gold Medal’s Heat’n Kleen solution (Item No. 2095), 2 tablespoons per gallon of water. It is not necessary to use the entire gallon at once; only use enough to fill the kettle 1/2 inch deep. - Page 21 Gold Medal Watchdog Stainless Cleaner (Item No. 2088). DO NOT use oven cleaners or abrasive materials as they will damage parts of machine. 5. Clean glass panels with glass cleaner. Gold Medal Watchdog Glass Cleaner (Item No. 2588) is recommended.
-
Page 22: Troubleshooting
G-Whiz Gas Popper Model No. 5908 and 5908GGT Troubleshooting Issue Possible Cause Solution Gas Issues A. For gas issues refer to the initial Gas Setup Instructions. Long Popping Cycles A. Inferior Corn A. Inferior quality corn would result in longer (Longer than 4 minutes) popping cycles. -
Page 23: Maintenance Instructions
G-Whiz Gas Popper Model No. 5908 and 5908GGT MAINTENANCE INSTRUCTIONS DANGER Machine must be properly grounded to prevent electrical shock to personnel. Failure to do so could result in serious injury, or death. DO NOT immerse any part of this equipment in water. DO NOT use excessive water when cleaning. -
Page 24: Ordering Spare Parts
4. Please include your model number, serial number, and date of manufacture (located on the machine nameplate/data plate) with your order. 5. Address all parts orders to: Parts Department Gold Medal Products Co. 10700 Medallion Drive Cincinnati, Ohio 45241-4807 Or, place orders by phone or online:... -
Page 25: Replacing Broken Glass
Model No. 5908 and 5908GGT Replacing Broken Glass Broken glass panels can be easily replaced. Gold Medal Products Co. does not ship glass. It can be obtained from a local glass shop and always purchase tempered glass. 1. Remove all loose pieces of glass. - Page 26 G-Whiz Gas Popper Model No. 5908 and 5908GGT Kettle Assembly – Parts Breakdown *See Parts 9*, 10 List note. 12, 13 gmpopcorn.com Page 26...
- Page 27 G-Whiz Gas Popper Model No. 5908 and 5908GGT Kettle Assembly – Parts List Item Part Description Part No. 10-24 X 2 PHIL/SLT PAN MS 42041 KETTLE WELDMENT 74865 KETTLE STOP ROD 74859 KETTLE PIVOT ROD 74863 KETTLE HEAT SHROUD 74852 AGITATOR &...
- Page 28 G-Whiz Gas Popper Model No. 5908 and 5908GGT Gas Line Breakdown 2, 3 Item Part Description Part No. BURNER FOR 16OZ BG POPPER 67903 PILOT BURNER 74032 PILOT ORIFICE .010 LP 74050 THERMOCOUPLE 57030 ADAPTER, GAS LINE 3/8 NPT (Flare Pipe Fitting, 74595 use with Gas Hose P/N 109000) PRESSURE REGULATOR...
- Page 29 G-Whiz Gas Popper Model No. 5908 and 5908GGT Cabinet Assembly – Parts Breakdown 25, 26 See Replacing Glass Section. Glass and Glass Channel View 7, 8 10, 11 See Gas Line Breakdown Model 5908 shown for general, parts image reference. gmpopcorn.com Page 29...
- Page 30 G-Whiz Gas Popper Model No. 5908 and 5908GGT Cabinet Breakdown – Parts List Part Number Item Part Description 5908 5908GGT PAINTED DOME, RED 74866 TOP FRAME EXTRUSION GOLD 67453 TOP INSPECTION COVER 74891 ROCKER SWITCH BOX 2 C/O 74887 74887 ROCKER SWITCH LABEL 74888 74888...
- Page 31 G-Whiz Gas Popper Model No. 5908 and 5908GGT Accessories Item Part Description Part No. STAMPED ALUMINUM SCOOP 2071 MEASURE 14.7CC 47679 MEASURE 1/2 CUP 47149 12 OZ (VOL) CORN MEASURE 47148 TANK REGULATOR 89920 GAS HOSE (has a Flared Hose Fitting) 109000 gmpopcorn.com Page 31...
-
Page 32: Wiring Diagram
G-Whiz Gas Popper Model No. 5908 and 5908GGT Wiring Diagram Model No. 5908 and 5908GGT gmpopcorn.com Page 32... -
Page 33: Warranty
© 2016 – The text, descriptions, graphics, layout, and other material in this publication are the exclusive property of Gold Medal Products Co. and shall not be used, copied, reproduced, or published in any fashion, including website display, without its express written consent.
