Part No. 76098

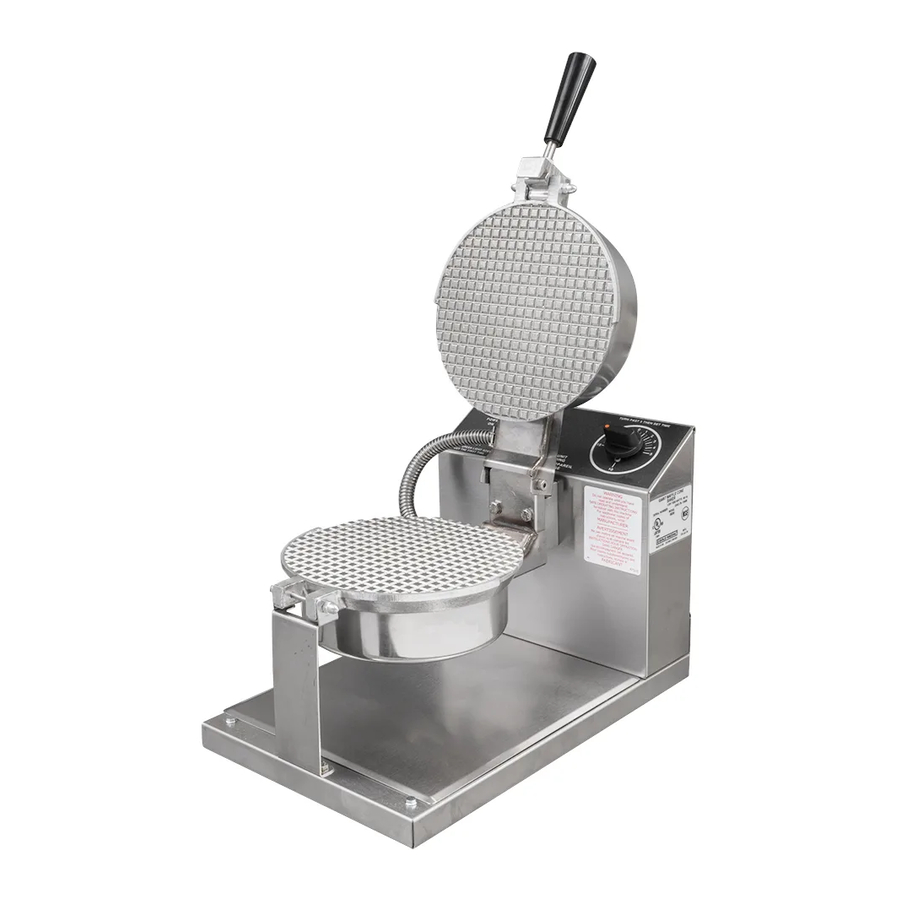

Countertop Baker Unit
Instruction Manual
Domestic and Export
Mechanical and Digital 5020 and 5023 Models
Cincinnati, OH 45241-4807 USA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 5020 and is the answer not in the manual?

Questions and answers

Related Manuals for Gold Medal 5020

Summary of Contents for Gold Medal 5020

  • Page 1 Part No. 76098 Countertop Baker Unit Instruction Manual Domestic and Export Mechanical and Digital 5020 and 5023 Models Cincinnati, OH 45241-4807 USA...

  • Page 2: Safety Precautions

    Countertop Baker Unit Model No. 5020, 5020T, 5020E, 5020ET, 5020EX, 5020XE 5020ETX, 5023, 5023E, 5023EX SAFETY PRECAUTIONS DANGER Machine must be properly grounded to prevent electrical shock to personnel. Failure to do so could result in serious injury, or death.
  • Page 3 Countertop Baker Unit Model No. 5020, 5020T, 5020E, 5020ET, 5020EX, 5020XE 5020ETX, 5023, 5023E, 5023EX SAFETY PRECAUTIONS (continued) WARNING DO NOT allow direct contact of this equipment by the public when used in food service locations. Only personnel trained and experienced in the equipment operation may operate this equipment.

  • Page 4: Installation Instructions

    Read and understand the operator’s manual and all other safety instructions before using this equipment. To order copies of the operator’s manual go to gmpopcorn.com or write to Gold Medal Products Co., 10700 Medallion Drive, Cincinnati, OH 45241 USA 1-(800)-543-0862.

  • Page 5: Electrical Requirements

    We recommend this equipment be on a dedicated and protected circuit. Failure to wire properly will void the warranty and may result in damage to the machine. It is Gold Medal Products Co.’s recommendation that this machine be plugged directly into a wall outlet. The use of extension cords is not recommended due to safety concerns, and may cause sacrificed and/or reduced performance.
  • Page 6 1. Flip the Power Switch to the ON position and allow the baker to pre-heat. 2. Open grids and lightly spray Seas'n-Kleen (Gold Medal Item No. 5524CN) on the grid surfaces. 3. Close the baker, set timer to 3 minutes, and allow the grids to season through one cook cycle without product.
  • Page 7 Model No. 5020, 5020T, 5020E, 5020ET, 5020EX, 5020XE 5020ETX, 5023, 5023E, 5023EX Batter Preparation While the baker is preheating, prepare the Waf-A-Cone Mix (Gold Medal Item No. 8212, six 5 lb. bags per case) or Old Fashion Waf-A-Cone Mix (Gold Medal Item No. 8209) according to the instructions below.
  • Page 8 Countertop Baker Unit Model No. 5020, 5020T, 5020E, 5020ET, 5020EX, 5020XE 5020ETX, 5023, 5023E, 5023EX OPERATING INSTRUCTIONS (For Digital Bakers) For standard (non-digital) baker operating instructions, see Mechanical Baker section. General Operating Instructions 1. Always use fresh batter and do not allow it to warm up too much.
  • Page 9 4. If sticking occurs during baker operation, lightly re-spray Seas'n-Kleen on the grid surfaces. Batter Preparation While the baker is pre-heating, prepare the Waf-A-Cone Mix (Gold Medal Item No. 8212, six 5 lb. bags per case) or Old Fashion Waf-A-Cone Mix (Gold Medal Item No. 8209) according to the instructions below.
  • Page 10 Countertop Baker Unit Model No. 5020, 5020T, 5020E, 5020ET, 5020EX, 5020XE 5020ETX, 5023, 5023E, 5023EX Changing Cook Time and Temperature Set Point (for DIGITAL Bakers Only) The cook time (1 minute) and temperature set point 385°F (196°C) for this electronic baker are preset at the factory.

  • Page 11: Care And Cleaning

    5. Re-season grids as described in Grid Seasoning section. For EXTREME purposes only, to clean extra dirty grids, use a LIGHT coating of Kleen-Sweep (Gold Medal Item No. 2173CN) on grids ONLY (DO NOT USE ON NON-STICK COATED GRIDS), then completely remove any Kleen-Sweep using a clean cloth dampened with hot water.
  • Page 12 3. Open top grid, then wipe down both grid surfaces to clean, using a clean cloth dampened with hot water. A soft PLASTIC bristle brush may be used if needed. 4. Use a cloth sprayed with concession equipment cleaner (Gold Medal Item #2580 Watchdog Concession Equipment Cleaner) to wipe down the rest of the baker.

  • Page 13: Maintenance Instructions

    Countertop Baker Unit Model No. 5020, 5020T, 5020E, 5020ET, 5020EX, 5020XE 5020ETX, 5023, 5023E, 5023EX MAINTENANCE INSTRUCTIONS DANGER Machine must be properly grounded to prevent electrical shock to personnel. Failure to do so could result in serious injury, or death.

  • Page 14: Ordering Spare Parts

    Countertop Baker Unit Model No. 5020, 5020T, 5020E, 5020ET, 5020EX, 5020XE 5020ETX, 5023, 5023E, 5023EX ORDERING SPARE PARTS 1. Identify the needed part by checking it against the photos, illustrations, and/or parts list. 2. Use only approved replacement parts when servicing this unit.

  • Page 15: Parts Breakdown

    Countertop Baker Unit Model No. 5020, 5020T, 5020E, 5020ET, 5020EX, 5020XE 5020ETX, 5023, 5023E, 5023EX PARTS BREAKDOWN (Pg. 10-14) Exterior View - Mechanical Timer Models Toggle Switch (1) P.N. 47201 Toggle Switch Boot (1) Red Pilot Light (1) P.N. 41033 Switch Panel Decal (1) P.N.
  • Page 16 Countertop Baker Unit Model No. 5020, 5020T, 5020E, 5020ET, 5020EX, 5020XE 5020ETX, 5023, 5023E, 5023EX PARTS BREAKDOWN (Continued) Hinge Components Cage Nut (4) Part No: 76081 Wire Clip (2) Part No: 76216 Top Support (1) Conduit Clamp Set (2) Part No: 68729 Part No: 87319 11”...
  • Page 17 Countertop Baker Unit Model No. 5020, 5020T, 5020E, 5020ET, 5020EX, 5020XE 5020ETX, 5023, 5023E, 5023EX PARTS BREAKDOWN (Continued) Interior and Handle Parts for Mechanical Timer Models and Digital Baker Models 500W Tubular Element (1) P.N. 76552 Export Models (500W Tubular Element) Cone Iron Grid (2) P.N.
  • Page 18 Countertop Baker Unit Model No. 5020, 5020T, 5020E, 5020ET, 5020EX, 5020XE 5020ETX, 5023, 5023E, 5023EX PARTS BREAKDOWN (Continued) Mechanical Timer Models – Control Interior, Bottom View Strain Relief (1) P.N. 76026 Bottom Glide (4) P.N 47328 Crutch Tip (4) Power Supply Cord (1) P.N 49123...
  • Page 19 Countertop Baker Unit Model No. 5020, 5020T, 5020E, 5020ET, 5020EX, 5020XE 5020ETX, 5023, 5023E, 5023EX PARTS BREAKDOWN (Continued) Digital Baker Models - Exterior View and Control Interior View Overlay (1) Rocker Switch (1) Digital Baker Control (1) P.N. 76540A P.N. 76549 P.N.

  • Page 20: Wiring Diagram

    Countertop Baker Unit Model No. 5020, 5020T, 5020E, 5020ET, 5020EX, 5020XE 5020ETX, 5023, 5023E, 5023EX Wiring Diagram Domestic Mechanical Timer Models http://www.gmpopcorn.com Page 20...
  • Page 21 Countertop Baker Unit Model No. 5020, 5020T, 5020E, 5020ET, 5020EX, 5020XE 5020ETX, 5023, 5023E, 5023EX Wiring Diagram Domestic Digital Baker Models http://www.gmpopcorn.com Page 21...
  • Page 22 Countertop Baker Unit Model No. 5020, 5020T, 5020E, 5020ET, 5020EX, 5020XE 5020ETX, 5023, 5023E, 5023EX Wiring Diagram Export Mechanical Timer Models http://www.gmpopcorn.com Page 22...
  • Page 23 Countertop Baker Unit Model No. 5020, 5020T, 5020E, 5020ET, 5020EX, 5020XE 5020ETX, 5023, 5023E, 5023EX Wiring Diagram Export Digital Baker Models http://www.gmpopcorn.com Page 23...
  • Page 24 © 2017 – The text, descriptions, graphics, layout, and other material in this publication are the exclusive property of Gold Medal Products Co. and shall not be used, copied, reproduced, or published in any fashion, including website display, without its express written consent.
