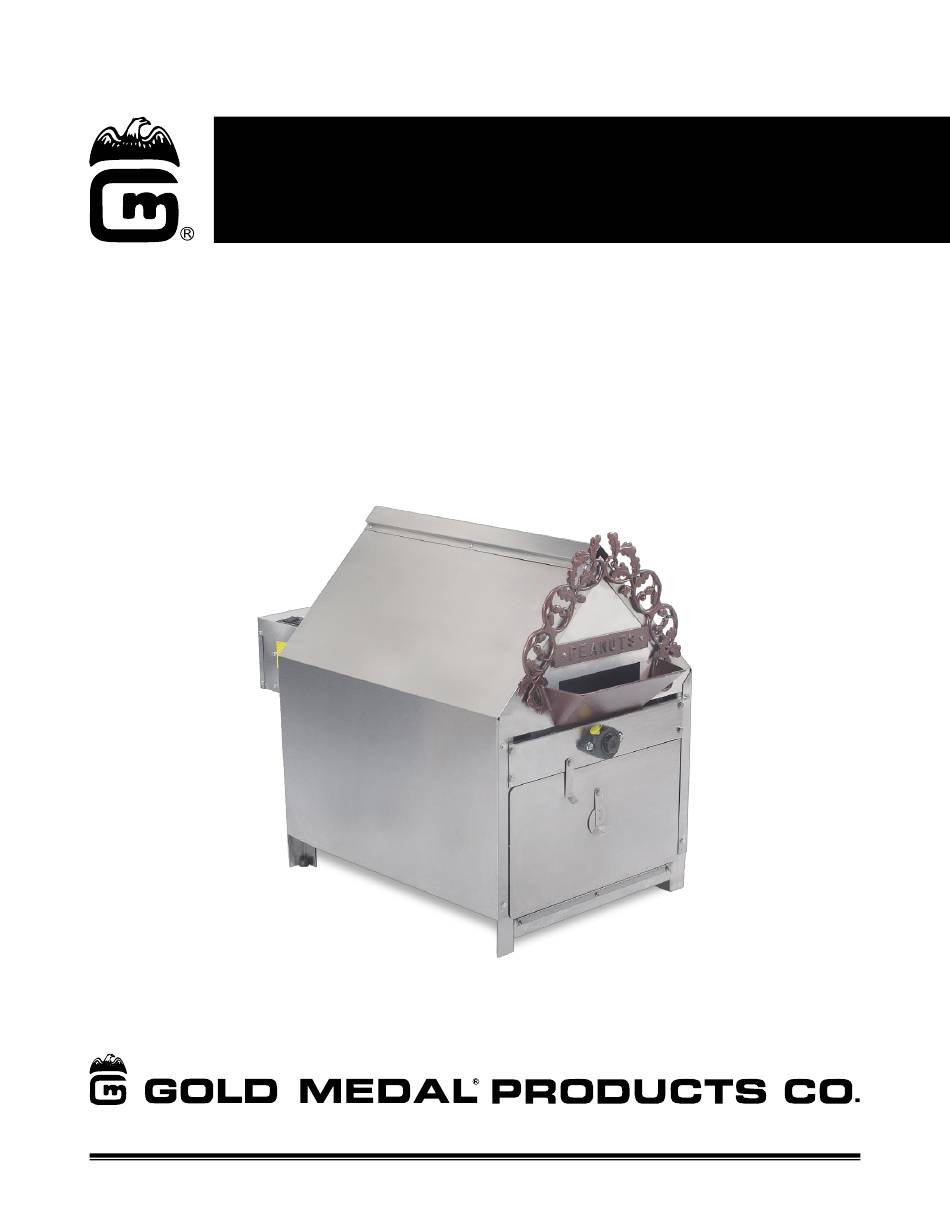

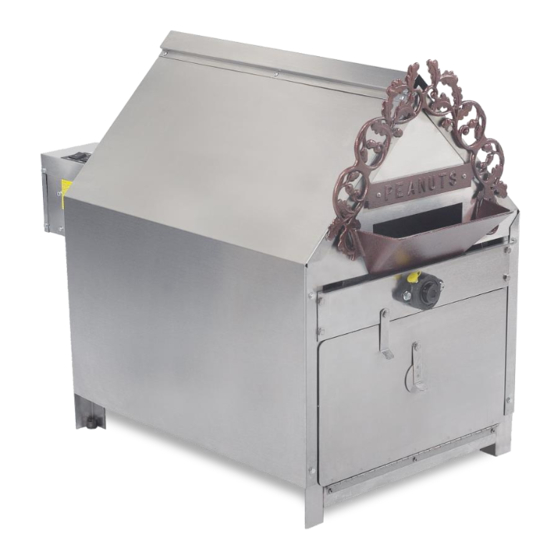

- Page 1 Instruction Manual Peanut Roaster Model No. 5081 10700 Medallion Drive, Cincinnati, Ohio 45241-4807 USA © 2023 Gold Medal Products Co. Part No. 46355...
-
Page 2: Table Of Contents
Peanut Roaster Model No. 5081 Table of Contents SAFETY PRECAUTIONS ........................... 3 INSTALLATION INSTRUCTIONS ........................5 Inspection of Shipment ............................5 Manual ..................................5 Model Description ..............................5 Setup ................................... 5 Electrical Requirements ............................. 5 Before You Plug In Machine ..........................6 OPERATING INSTRUCTIONS ......................... -
Page 3: Safety Precautions
Read and understand operator’s manual and all other safety instructions before using this equipment. To order copies of the operator’s manual go to gmpopcorn.com or write to Gold Medal Products Co., 10700 Medallion Drive, Cincinnati, OH 45241 USA 1-(800)-543-0862 022_060215 gmpopcorn.com... - Page 4 039_080614 Note: Improvements are always being made to Gold Medal’s equipment. This information may not be the latest available for your purposes. It is critical that you call Gold Medal’s Technical Service Department at 1-800-543-0862 for any questions about your machine operations, replacement parts, or any service questions.
-
Page 5: Installation Instructions
We recommend this equipment be on a dedicated and protected circuit. Failure to wire properly will void the warranty and may result in damage to the machine. It is Gold Medal Products Co.’s recommendation that this machine be plugged directly into a wall outlet. The use of gmpopcorn.com... -
Page 6: Before You Plug In Machine
4. DO NOT use a grounded to un-grounded receptacle adapter (where applicable). 5. Install unit in a level position. CAUTION If the supply cord is damaged, it must be replaced by Gold Medal Products Co., its service agent or similarly qualified persons in order to avoid a hazard. 039_080614 gmpopcorn.com... -
Page 7: Operating Instructions
Peanut Roaster Model No. 5081 OPERATING INSTRUCTIONS Controls and Their Functions POWER SWITCH: ON/OFF lighted rocker switch - supplies power to the Motor and Heat Switch. HEAT SWITCH: ON/OFF lighted rocker switch - supplies power to the heating elements. POWER SWITCH: Interval timer (0–60 min.) -
Page 8: Care And Cleaning
Peanut Roaster Model No. 5081 Care and Cleaning DANGER Machine must be properly grounded to prevent electrical shock to personnel. DO NOT immerse in water. DO NOT clean appliance with a water jet or steam cleaner. Always unplug the equipment before cleaning or servicing. -
Page 9: The Following Sections Are For Qualified Service Personnel Only
Peanut Roaster Model No. 5081 THE FOLLOWING SECTIONS ARE FOR QUALIFIED SERVICE PERSONNEL ONLY MAINTENANCE INSTRUCTIONS DANGER Machine must be properly grounded to prevent electrical shock to personnel. Failure to do so could result in serious injury, or death. Make sure all machine switches are in the OFF position before plugging the equipment into the receptacle. -
Page 10: Ordering Spare Parts
4. Please include your model number, serial number, and date of manufacture (located on the machine nameplate/data plate) with your order. 5. Address all parts orders to Parts Department, Gold Medal Products Co., 10700 Medallion Drive, Cincinnati, Ohio 45241-4807 or place orders by phone or online:... -
Page 11: Cabinet Front And Interior
Peanut Roaster Model No. 5081 Cabinet Front and Interior Element View General images shown for parts reference only (actual parts view may vary). Part Number Item Part Description 5081 ROOF CAP 46583 ORNAMENT 46406 DRUM BEARING 46404 SAMPLING DOOR 46436... -
Page 12: Cabinet Rear And Motor View
Timer Label, Knob 4, 5 (not shown) 7a, 7b *CAUTION: If supply cord is damaged, it must be replaced by Gold Medal Products Co., its service agent, or similarly qualified persons in order to avoid a hazard. L14-20 Receptacle General images shown for parts reference only (actual parts view may vary). -
Page 13: Wiring Diagram
Peanut Roaster Model No. 5081 Wiring Diagram Model No. 5081 gmpopcorn.com Page 13... -
Page 14: Warranty
No claim under this warranty shall be honored in the event that components in the unit at the time of the claim were not supplied or approved by Gold Medal Products Co. This warranty is effective only when electrical items have been properly attached to city utility lines only at proper voltages.
