Summary of Contents for Gold Medal 5021

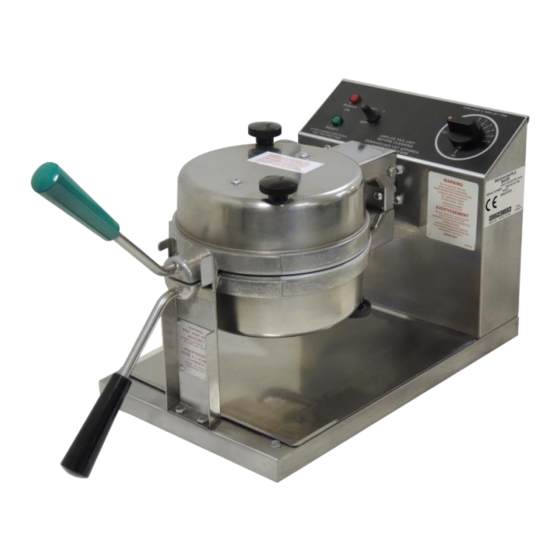

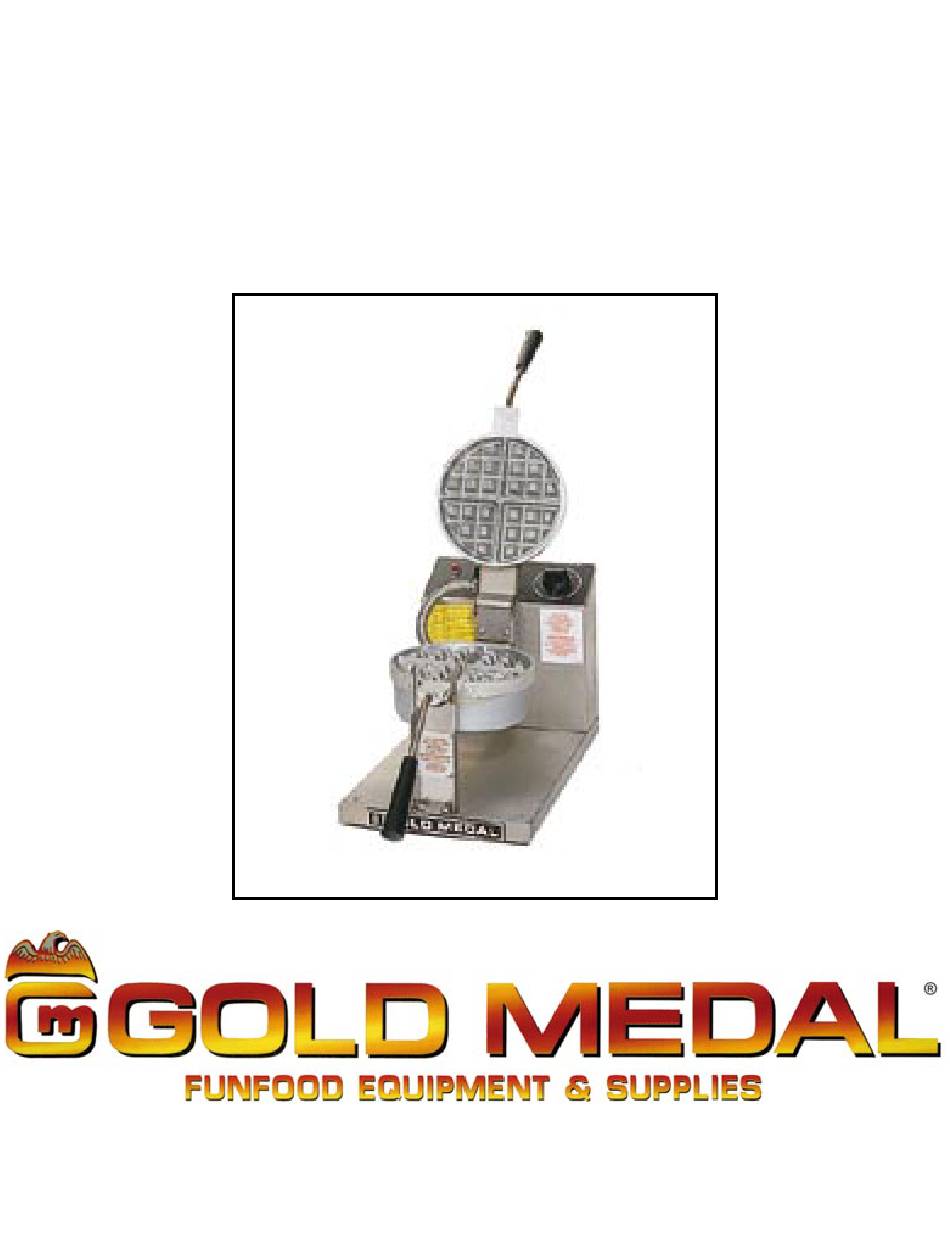

- Page 1 Countertop Baker Unit Part No. 76023 Revised June 1996 Instruction Manual Model #5021 Cincinnati, OH 45241-4807 USA...
-
Page 2: Safety Precautions
Always unplug the equipment before cleaning or servicing. NOTE The information, specifications and illustrations contained in this manual represent the latest data available at time of publication. Right is reserved to make changes as required at the discretion of Gold Medal Products Company without notice. -
Page 3: Installation
Countertop Baker Unit INSTALLATION CHECKING SHIPMENT Unpack shipping carton and check thoroughly for any damage which may have occurred during transit. Claims should be filed immediately with the transportation company. ELECTRICAL REQUIREMENTS Your Baker is 120 volts, 60 cycle. A standard 15 amp grounded wall receptacle is required. (NEMA 5-15R or equivalent) We recommend a Ground Fault Circuit Interrupter (GFCI) receptacle. - Page 4 Countertop Baker Unit BELGIAN WAFFLE BAKER OPERATION 1. Pre-heat the grids by turning the timer to 6 minutes, turn the power switch to the “ON” position and press the start button. Keep the grids closed and allow the unit to heat untill the buzzer sounds.
-
Page 5: Operating Hints
Countertop Baker Unit OPERATING HINTS 1. Always use fresh batter and do not allow it to warm up too much. 2. Frequent cleaning with a soft bristled brush and re-seasoning the grid as needed during operation will ensure a great tasting product. 3. -
Page 6: Maintenance Instructions
3. Please include your model name and machine serial number (located on the machine nameplate) with your order. 4. Address all parts orders to: Parts Department Gold Medal Products Co. 10700 Medallion Drive Cincinnati, Ohio 45241-4807 or, place orders at:... -
Page 7: Cabinet Exploded View
Countertop Baker Unit CABINET EXPLODED VIEW ODELS... - Page 8 Countertop Baker Unit PARTS LIST – CABINET EXPLODED VIEW Round Grid Square Grid Models Models Item No. Part No. Part No. Description 22038 87085 Lead-in Cord, 15 Amp 41033 41033 Pilot Light, 120V Red 41469 41469 Pilot Light, 120V Green See Table on Page 8 Waffle Grid w/ Stop See Table on Page 8...
- Page 9 Countertop Baker Unit PARTS LIST – CABINET EXPLODED VIEW ( continued ) Round Grid Square Grid Models Models Item No. Part No. Part No. Description 76346 76346 Sensor Assembly 76356 76044 Control Box 76358 76358 Thermostat Bracket 82107-10 82107-9 Stainless Conduit 82135 82135 Conduit Bushing...
- Page 10 Countertop Baker Unit SPECIFIC MODEL PARTS Waffle Grid Heat Element Model No. Waffle Grid Data Plate Grid Cover with Stop Element Support 76043 76042 76123 76049 #5021 76161 76159 76154 76189 76156 76137 #5024 76176 #5025 76374 76375 76161 76189 76376 76137...
-
Page 11: Electrical Schematics
Countertop Baker Unit ELECTRICAL SCHEMATICS ODELS... -
Page 12: Warranty
WARRANTY WE WARRANT to the original purchaser the Gold Medal equipment sold by us to be free from defects in material or workmanship under normal use and service. Our obligation under this warranty shall be limited to the repair or replacement of any...
