Summary of Contents for Gold Medal 4008

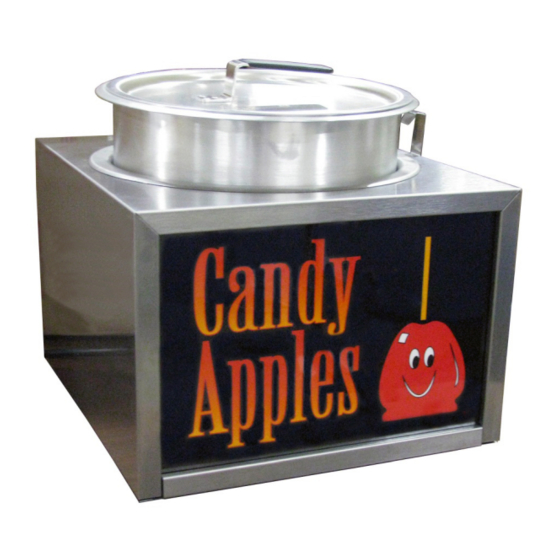

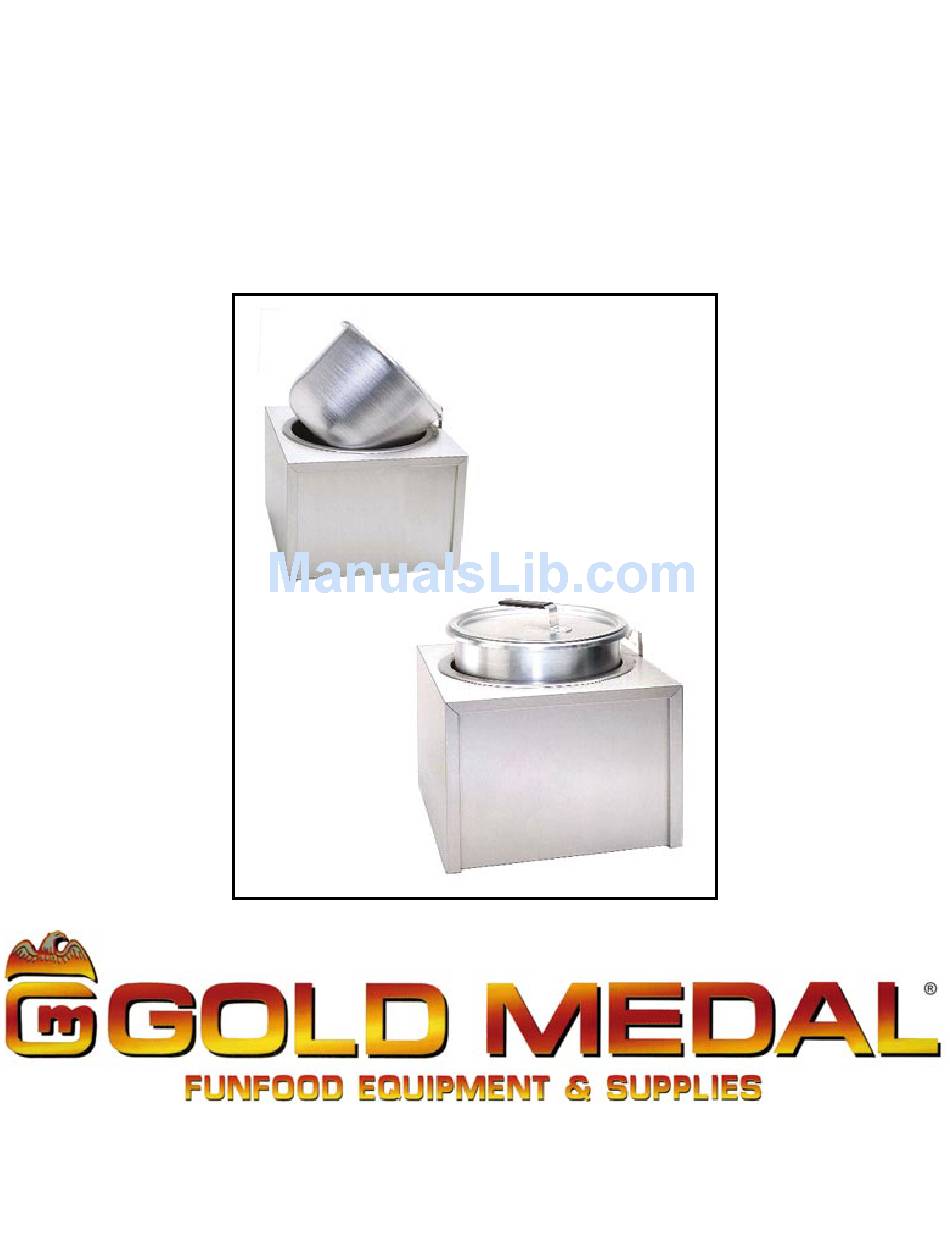

- Page 1 Apple Cooker Pot Part No. 38251EX Revised June 1996 Instruction Manual Model #4008EX and Model #4016EX Model #4008EX Model #4016EX Cincinnati, OH 45241-4807 USA...
-
Page 2: Safety Precautions
Always unplug the equipment before cleaning or servicing. NOTE The information, specifications and illustrations contained in this manual represent the latest data available at time of publication. Right is reserved to make changes as required at the discretion of Gold Medal Products Company without notice. -
Page 3: Electrical Requirements
1. Plug unit into a 120 Volt outlet. 2. Mix one package of Gold Medal REDDY APPLE MIX (Catalog #4146) and 6 ounces of water into the apple cooker pot. Stir the mix until it is completely saturated with water. - Page 4 1. Plug unit into an appropriate 120 or 230 Volt outlet. 2. Mix two packages of Gold Medal REDDY APPLE MIX (Catalog #4146) and 12 ounces of water into the apple cooker pot. Stir the mix until it is completely saturated with water. Or use Gold Medal’s APPL–EZ, following instruction on the bag.
-
Page 5: Maintenance Instructions
6. Replace with new element installing all pieces correctly. 7. Replace new heat control by removing knob and loosing nut. 8. Refer to wiring diagram for proper wiring of unit. 9. Replace insulation so that cabinet will remain cool during cooking. #4008 #4016 ODELS... -
Page 6: Ordering Spare Parts
3. Please include your model name and machine serial number (located on the machine nameplate) with your order. 4. Address all parts orders to: Parts Department Gold Medal Products Co. 10700 Medallion Drive Cincinnati, Ohio 45241-4807 or, place orders at:... -
Page 7: Reddy Apple Cooker Assembly
Apple Cooker Pot REDDY APPLE COOKER ASSEMBLY #4008 #4016 ODELS... -
Page 8: Parts List - Reddy Apple Cooker Assembly
Apple Cooker Pot PARTS LIST - REDDY APPLE COOKER ASSEMBLY Model 4008 Model 4016 Item No. Part No. Part No. Description 38236 38236 Pot, Apple Cooker Copper Washer, Supplied w/ Element 38109 38109 High Limit Thermostat 87085 87085 Lead-in Cord, 120 Volt... -
Page 9: Electrical Schematic
Apple Cooker Pot ELECTRICAL SCHEMATIC #4008 #4016 ODELS... -
Page 10: Warranty
WARRANTY WE WARRANT to the original purchaser the Gold Medal equipment sold by us to be free from defects in material or workmanship under normal use and service. Our obligation under this warranty shall be limited to the repair or replacement of any...
