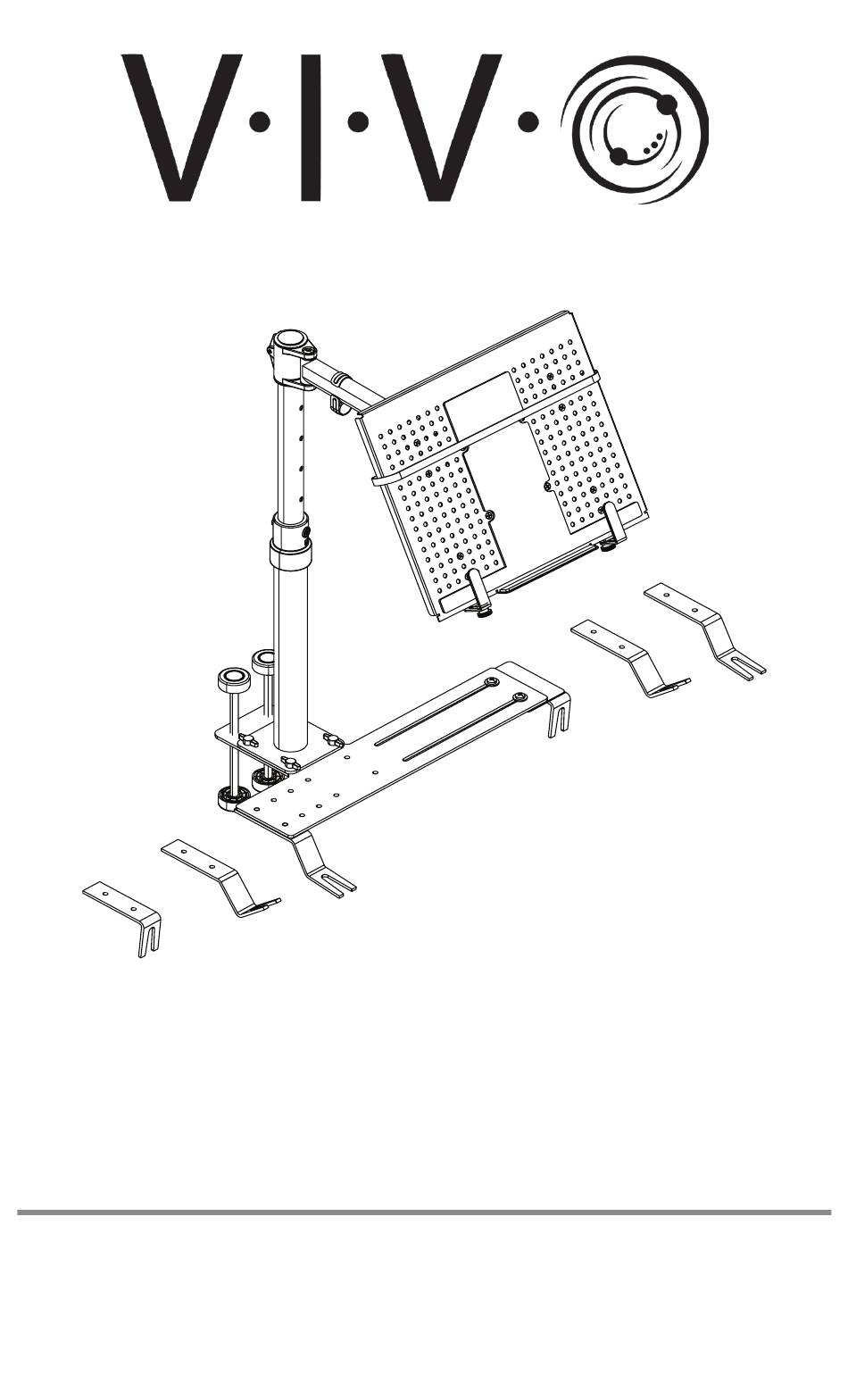

  • Page 1 Car Laptop Mount MOUNT-CAR01 Assembly Manual...
  • Page 2 Better Products for a Better Workspace Experience We are dedicated to creating high-end ergonomic solutions for the office with top of the industry support. Explore Endless Workspace Solutions www.vivo-us.com...
  • Page 3 If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts. Failure to report missing parts within 30 days may result in denial of free replacement.
  • Page 4: Package Contents

    Package Contents A (x1) B (x2) C (x2) D (x2) Base 0° Foot 90° Foot 45° Foot E (x1) F (x1) G (x1) H (x4) Pole Laptop Tray Knob I (x2) J (x2) K (x1) L (x2) Cable Clips Support Screw Connecting Strap Brackets Bracket...
  • Page 5: Included Hardware & Tools

    Included Hardware & Tools S-A (x4) S-B (x8) S-C (x2) S-D (x4) M6x10mm M6 Washer M6 Nut M5x10mm Screw Screw S-E (x4) S-F (x8) S-G (x2) S-H (x2) M5 Nut M5x6mm M4x5mm M4 Washer Screw Thumbscrew S-I (x1) S-J (x1) T-A (x1) T-B (x1) M6 Flanged...
  • Page 6 Identify Foot Style Check the angle of the seat feet in your vehicle's front seat. My Bolt's are Different Some vehicles may have different bolt styles on the same seat. Begin by following instructions for the angle of your Left seat bolt. Left Right...
  • Page 7: Assembly Steps

    Assembly Steps STEP 1 - Option 1 - 0° Seat Foot Attach the 0° Foot (B) to the left underside of Base (A) using M6x10mm Screws (S-A), M6 Washers (S-B), and a Phillips screwdriver. This foot will align with the bolt nearest to the driver's side. Install the compatible Foot (B, C, or D) onto the Connecting Bracket (L) using M6 Nuts (S-C), M6 Washers, and Wrench (T-B).
  • Page 8 - Option 2 - 90° Seat Foot Attach the 0° Foot (B) to the left underside of Base (A) using M6x10mm Screws (S-A), M6 Washers (S-B), and a Phillips screwdriver. This foot will align with the bolt nearest to the driver's side. Install the compatible Foot (B, C, or D) onto the Connecting Bracket (L) using M6 Nuts (S-C), M6 Washers, and Wrench (T-B).
  • Page 9 - Option 3 - 45° Seat Foot Attach the 0° Foot (B) to the left underside of Base (A) using M6x10mm Screws (S-A), M6 Washers (S-B), and a Phillips screwdriver. This foot will align with the bolt nearest to the driver's side. Install the compatible Foot (B, C, or D) onto the Connecting Bracket (L) using M6 Nuts (S-C), M6 Washers, and Wrench (T-B).
  • Page 10 STEP 2 Measure the distance between the front passenger seat bolts using a tape measure. Using your measurement from above, loosely attach the right foot assembly to Base (A) using M6x10mm Screws (S-A), M6 Washers (S-B), and a Phillips screwdriver.
  • Page 11 STEP 3 Attach the Pole (F) to Base (A) using Knobs (I), adjusting to the appropriate distance for your vehicle. Option 1 will be followed for the remainder of the manual. - Option 1 - Small Car Dashboard For vehicles with smaller interiors and flatter dashboards (e.g., compact cars).
  • Page 12 STEP 4 Thread Support Screws (K) onto Base (A) and place Screw Caps (P) onto the ends once threaded.
  • Page 13 STEP 5 Slide Arm (G) onto Pole (F) with the adjustment bolt facing up, and tighten using the 5mm Allen Wrench (T-A). Adjust the swivel as needed. Set the desired Pole height, insert M6x45mm Screw (S-J) into the slot, and secure with M6 Flanged Nut (S-I), ensuring the flange faces outward and the hex side fits into the indentation on Pole.
  • Page 14 STEP 6 Secure Strap Brackets (M) to Laptop Tray (H) using M5x6mm Screws (S-F) and a Phillips Screwdriver.
  • Page 15 STEP 7 Assembly by Laptop Type See Page 16 for Thinner Laptops Standard Laptops (0.5" to 1.25" Thick) Attach Lower Laptop Arms (N) to the underside of Laptop Tray (H) with the Tab up, using M5x6mm Screws (S-F). Install Laptop Arms (N) facing up. Connect Upper Laptop Arms (O) to the front tabs of Lower Arms with M4 Washers (S-H) and M4x5mm Thumbscrews (S-G).
  • Page 16 STEP 8 Assembly by Laptop Type See Page 15 for Standard Laptops Thin Laptops (0.1" to 0.5" Thick) Attach Lower Laptop Arms (N) to the underside of Laptop Tray (H) with the Tab down, using M5x6mm Screws (S-F). Install Laptop Arms (N) facing down. Connect Upper Laptop Arms (O) to the front tabs of Lower Arms with M4 Washers (S-H) and M4x5mm Thumbscrews (S-G).
  • Page 17 STEP 9 Secure Laptop Tray (H) with M5x10mm Screws (S-D) and M5 Nuts (S-E) using a Phillips screwdriver. Feed Velcro Strap (Q) through Strap Brackets (M). Use to secure laptop to tray.
  • Page 18 STEP 10 Loosen front seat bolts on the passenger seat using a socket wrench. Slide the left foot under the left seat bolt and the right foot under the right seat bolt. Adjust the placement as needed, tighten M6x10mm Screws (S-A) with a Phillips screwdriver, and then re-tighten the seat bolts.
  • Page 19: Cable Management

    Adjustments To adjust the vertical tilt, loosen the side screw behind the Laptop Tray using 5mm Allen Wrench (T-A), adjust as desired then re-tighten. To adjust the horizontal swivel, loosen the top screw behind the Laptop Tray using 5mm Allen Wrench, adjust as desired then re-tighten. Cable Management Place Cable Clips (J) on Arm (G) to manage cables.
  • Page 20 Need Help? We’re Here For You Monday-Friday from 7am-7pm CST Saturday 8am-4pm CST Email Us Chat with Live Agent Give Us a Call help@vivo-us.com www.vivo-us.com 309-278-5303 ext. 1 FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us @VIVOus VIVO...
