Car Laptop Mount
MOUNT-CAR01
Assembly Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MOUNT-CAR01 and is the answer not in the manual?

Questions and answers

Summary of Contents for Vivo MOUNT-CAR01

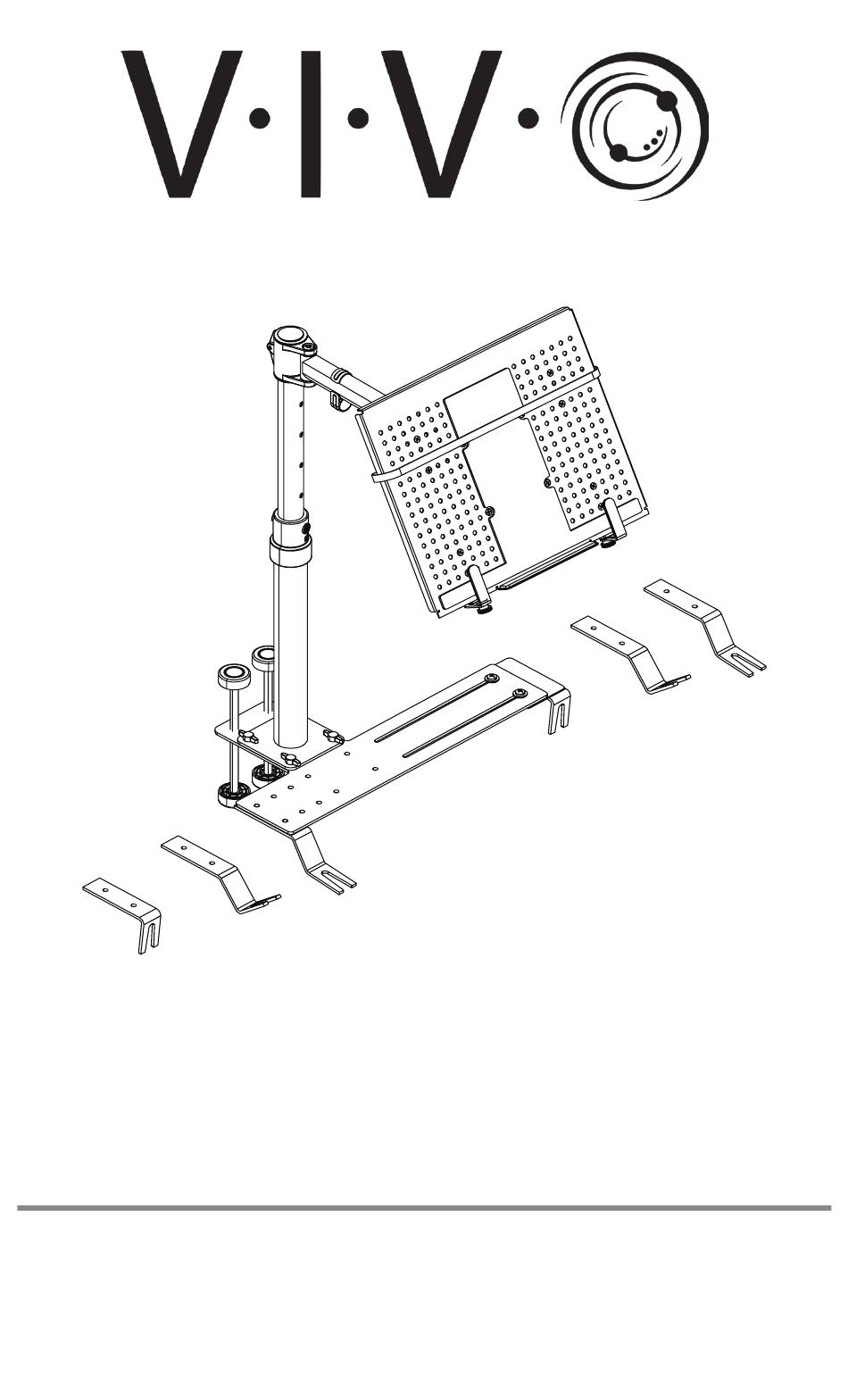

  • Page 1 Car Laptop Mount MOUNT-CAR01 Assembly Manual...
  • Page 2 If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts. Failure to report missing parts within 30 days may result in denial of free replacement.
  • Page 3: Package Contents

    Package Contents A (x1) B (x2) C (x2) D (x2) Base 0° Foot 90° Foot 45° Foot E (x1) F (x1) G (x1) H (x4) Pole Laptop Tray Knob I (x2) J (x2) K (x1) L (x2) Cable Clips Support Screw Connecting Strap Brackets Bracket...
  • Page 4: Included Hardware & Tools

    Included Hardware & Tools S-A (x4) S-B (x8) S-C (x2) S-D (x4) M6x10mm M6 Washer M6 Nut M5x10mm Screw Screw S-E (x4) S-F (x8) S-G (x2) S-H (x2) M5 Nut M5x6mm M4x5mm M4 Washer Screw Thumbscrew S-I (x1) S-J (x1) T-A (x1) T-B (x1) M6 Flanged...
  • Page 5 Identify Foot Style Check the angle of the seat feet in your vehicle's front seat. FOOT STYLE VARIATIONS Some vehicles may have different bolt styles on the same seat.
  • Page 6: Assembly Steps

    Assembly Steps STEP 1 - Option 1 - 0° Seat Foot Attach the 0° Foot (B) to the left underside of Base (A) using M6x10mm Screws (S-A), M6 Washers (S-B), and a Phillips screwdriver. Install the compatible Foot (B, C, or D) onto the Connecting Bracket (L) using M6 Nuts (S-C), M6 Washers (S-B), and Wrench (T-B).
  • Page 7 - Option 2 - 90° Seat Foot Attach the 0° Foot (B) to the left underside of Base (A) using M6x10mm Screws (S-A), M6 Washers (S-B), and a Phillips screwdriver. Install the compatible Foot (B, C, or D) onto the Connecting Bracket (L) using M6 Nuts (S-C), M6 Washers (S-B), and Wrench (T-B).
  • Page 8 - Option 3 - 45° Seat Foot Attach the 0° Foot (B) to the left underside of Base (A) using M6x10mm Screws (S-A), M6 Washers (S-B), and a Phillips screwdriver. Install the compatible Foot (B, C, or D) onto the Connecting Bracket (L) using M6 Nuts (S-C), M6 Washers (S-B), and Wrench (T-B).
  • Page 9 STEP 2 Loosely attach the right foot assembly to Base (A) using M6x10mm Screws (S-A), M6 Washers (S-B), and a Phillips screwdriver.
  • Page 10 STEP 3 Attach Pole (F) to Base (A) using Knobs (I). Option 1: Small Car Dashboard For vehicles with smaller interiors Option 2: Large Car Dashboard For vehicles with larger interiors...
  • Page 11 STEP 4 Loosely attach the right foot assembly to Base (A) using M6x10mm Screws (S-A), M6 Washers (S-B), and a Phillips screwdriver.
  • Page 12 STEP 5 Loosely attach the right foot assembly to Base (A) using M6x10mm Screws (S-A), M6 Washers (S-B), and a Phillips screwdriver.
  • Page 13 STEP 6 Loosely attach the right foot assembly to Base (A) using M6x10mm Screws (S-A), M6 Washers (S-B), and a Phillips screwdriver.
  • Page 14 Need Help? We’re Here For You Monday-Friday from 7am-7pm CST Saturday 8am-4pm CST Email Us Chat with Live Agent Give Us a Call help@vivo-us.com www.vivo-us.com 309-278-5303 ext. 1 FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us @VIVOus VIVO...
