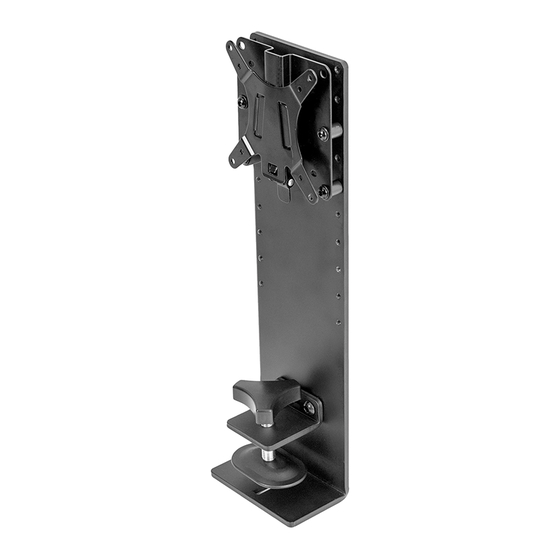

Cubicle Monitor Mount
Instruction Manual
SKU: MOUNT-CUB2D
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/mount-cub2d
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vivo MOUNT-CUB2D
Summary of Contents for Vivo MOUNT-CUB2D
- Page 1 Cubicle Monitor Mount Instruction Manual SKU: MOUNT-CUB2D Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/mount-cub2d GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com 309-278-5303...
- Page 2 WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
- Page 3 TOOLS NEEDED DO NOT EXCEED WEIGHT CAPACITY. 22lbs Failure to do so may result in serious injury. (9.98kg) Phillips Screwdriver ASSEMBLY STEPS - OPTION A: DESK MOUNT STEP 1 Screw the Clamp Knob (K) into the Clamp Plate (B). For a desk thickness of 1/2” to 2”, the plastic handle is on the same side as the mounting lip on the plate, and for a desk thickness of 1-1/2”...
- Page 4 STEP 4 Mount the VESA Support Plate (C) to the Main Plate at the desired height using M6x22 Bolts (E) and M6 Washers (F), and tighten with the 4mm Allen Key (H). If the monitor will be removed frequently or the back of the stand must be flush, use M4/M6 Spacers (G) between the VESA Support Plate and Main Plate.
- Page 5 STEP 7 To remove the monitor, pull the release lever on the VESA Support Plate forward and lift the monitor. switch switch ASSEMBLY STEPS - OPTION B: CUBICLE MOUNT STEP 1 OPTION A For a cubicle wall thickness of up to 1-3/8”, install the Clamp Plate (B) to the Main Plate (A) with the long side facing in.
- Page 6 STEP 2 Mount the VESA Support Plate (C) to the Main Plate at the desired height using M6x22 Bolts (E) and M6 Washers (F), and tighten with the 4mm Allen Key (H). If the monitor will be removed frequently or the back of the stand must be flush, use M4/M6 Spacers (G) between the VESA Support Plate and Main Plate.
- Page 7 STEP 4 Slide monitor with VESA Plate onto the VESA Support Plate. There will be a “click” when the monitor is fully seated and locked. STEP 5 To remove the monitor, pull the release lever on the VESA Support Plate forward and lift the monitor. switch...
- Page 8 - 92% within < 3hr www.vivo-us.com : < 15 M AVG. RESOLUTION TIME (within office hrs) Chat live with an agent! : 5M 4S 309-278-5303 AVG. RESOLUTION TIME (within office hrs) FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
