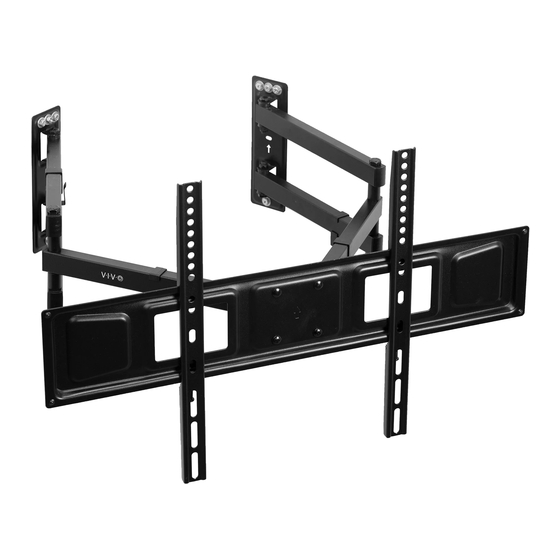

Corner TV Wall Mount
Instruction Manual
SKU: MOUNT-CR70C
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/mount-cr70c
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Vivo MOUNT-CR70C
Summary of Contents for Vivo MOUNT-CR70C

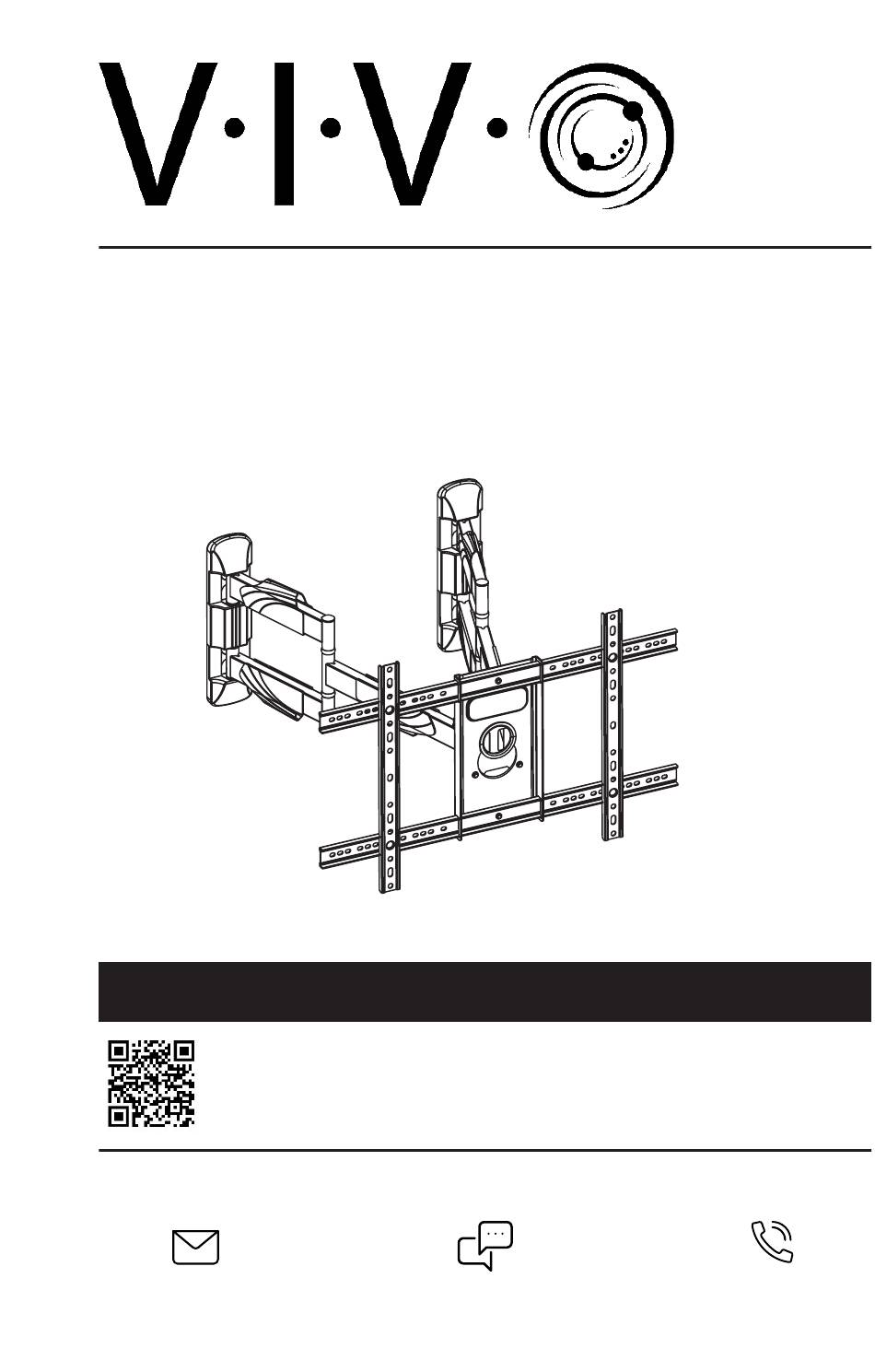

- Page 1 Corner TV Wall Mount Instruction Manual SKU: MOUNT-CR70C Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/mount-cr70c GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com...
-
Page 2: Package Contents
CAUTION! DO NOT INSTALL INTO DRYWALL ALONE. VERIFY YOUR WALL CONSTRUCTION. USE WOOD STUDS TO MOUNT. We include mounting for brick and concrete walls. If unsure, please contact us at vivo-us. com, email at help@vivo-us.com, or call us at 309-278-5303. -
Page 3: Assembly Steps
ASSEMBLY STEPS STEP 1 Remove hex bolts from the TV plate on the mount (A) using the wrench (G), then lift the TV plate off the mount. STEP 2 OPTION A: Wood Stud Wall Installation Use the mount (A) to mark mounting holes on the wall where studs are located. Use of a stud finder is highly recommended. - Page 4 STEP 2 (Continued) OPTION B: Concrete/Brick Wall Installation Use the mount (A) to mark mounting holes on the wall. Using a 3/8” (10mm) drill bit, drill holes at least 2.4” (60mm) deep into marked locations. Press anchors (W-B) into holes, then attach mount to wall using screws (W-A) with washers (W-C).
- Page 5 STEP 4 Assemble the VESA brackets (B) to the TV plate using carriage bolts (E) and nuts (F), and tighten with the wrench (G). 600m m 400m m 300m m 200m m STEP 5 OPTION A: Flat Back Monitor With TV face down on a flat surface, secure TV plate with VESA brackets to the TV using bolts (M-A, M-B) and washers (M-F, M-G).
- Page 6 STEP 5 (Continued) OPTION B: Curved Back Monitor With TV face down on a flat surface, secure TV plate with VESA brackets to the TV using bolts (M-C, M-D, M-E), spacers (M-H, M-I) and washers (M-F, M-G). Ensure the square cutout in the plate is positioned towards the top of the TV.
- Page 7 STEP 7 Spread the sides of the cable covers on the arms to remove the covers. Use the covers to organize cables. STEP 8 Adjust the TV to the desired position. Use the wrench (G) to adjust the tilt angle and rotation.
- Page 8 - 92% within < 3hr www.vivo-us.com : < 15 M AVG. RESOLUTION TIME (within office hrs) Chat live with an agent! : 5M 4S 309-278-5303 AVG. RESOLUTION TIME (within office hrs) FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
