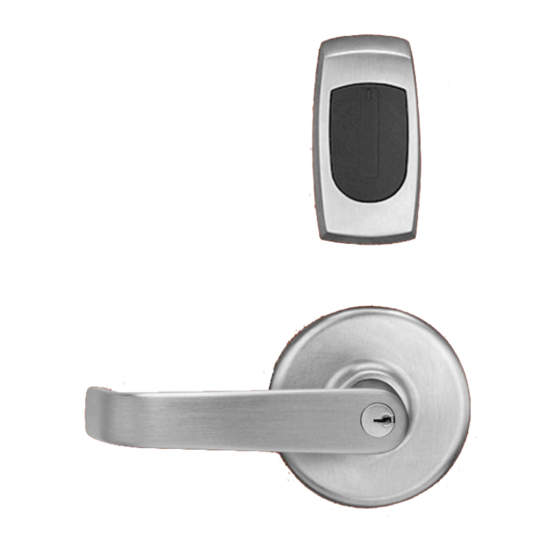

Cylindrical lockset m812 - iclass se reader option
Hide thumbs Also See for Corbin Russwin Access 600 CL33600 TCRNE1 Series:

Advertisement

Quick Links

Download this manual
Please read these instructions carefully to prevent missing important steps.
Please Note: Improper installations may result in damage to the lock and void the factory warranty.
Important: The accuracy of the door preparation is critical for proper functioning and security of this lock.
Misalignment can cause premature wear and a lessening of security.
WARNING
This product can expose
you to lead which is
known to the state of
California to cause cancer
and birth defects or other
reproductive harm. For
more information go to
www.P65warnings.ca.gov.
08/2018
For Technical Assistance call Corbin Russwin at 1-800-810-WIRE (9473)
Copyright © 2017 Corbin Russwin, Inc., an ASSA ABLOY Group company.
All rights reserved. Reproduction in whole or in part without the
express written permission of Corbin Russwin, Inc. is prohibited.
Cylindrical Lockset Installation Instructions
CL33600 TCRNE1 Series
M812 - iCLASS SE
Attention Installer
Reader Option
®
FM313 10/18

Advertisement

loading
Need help?

Need help?

Do you have a question about the Corbin Russwin Access 600 CL33600 TCRNE1 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Assa Abloy Corbin Russwin Access 600 CL33600 TCRNE1 Series

Summary of Contents for Assa Abloy Corbin Russwin Access 600 CL33600 TCRNE1 Series

  • Page 1 08/2018 For Technical Assistance call Corbin Russwin at 1-800-810-WIRE (9473) Copyright © 2017 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited.

  • Page 3: Table Of Contents

    CL33600 Series Cylindrical Lock Table of Contents 1) Warning .................... 3 2) General Description ................. 4 3) Features ..................4 4) Regulatory Specifications ...............4 5) Product Illustrations ................ 5 6) Wiring Diagrams ................6 7) Installation Instructions ..............8 8) Operational Check ................. 15 1) Warning Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

  • Page 4: General Description

    Wiring methods shall be in accordance with the National Electrical Code (ANSI/NFPA70), CSA 22.1, Canadian Electrical Code (CEC), Part I, Safety Standard for Electrical Installations, local codes, and the authorities having jurisdiction. Copyright © 2017 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the...

  • Page 5: Product Illustrations

    CL33603 Removable Core 12V 785F598 CL33605 Removable Core 12V Copyright © 2017 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited.

  • Page 6: Wiring Diagrams

    — — 1,500 — — — — — — Copyright © 2017 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited.
  • Page 7 *IMPORTANT: Pin 7 must be tied to earth ground in the access control panel. Failure to follow proper ESD safe grounding procedures could lead to equipment failure. Copyright © 2017 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the...

  • Page 8: Installation Instructions

    Outside Face of Door Outside Face of Door Fig. 2 Copyright © 2017 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited.
  • Page 9 Install Strike Plate using two #12 x 1” combination screws (Fig. 4a): Optional Strike Box Fig. 4 Copyright © 2017 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited.
  • Page 10 REX Wires Ground Wire Spring Cassette Fig. 6b Fig. 6a Copyright © 2017 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited.
  • Page 11 7) Installation Instructions (Continued) Installation and Removal of Lever and Standard Cylinder: Copyright © 2017 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited.
  • Page 12 Fig. 9 Copyright © 2017 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited.
  • Page 13 PWR POS DATA 0 RX (COM) Solenoid (-) 4-pin ElectroLynx Copyright © 2017 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited.
  • Page 14 #8-32 x 5/8” Long Phillips Flat Head Escutcheon Screws Fig. 14 Copyright © 2017 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited.

  • Page 15: Operational Check

    Displays measured end- of-line resistor values (if applicable) Copyright © 2017 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited.
  • Page 16 Phone: 800-543-3658 Fax: 800-447-6714 corbinrusswin.com Copyright © 2017 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited. Patent pending and/or patent - www.assaabloydss.com/patents.
