INSTALLATION INSTRUCTIONS FOR TJ-38 & 68 TOP JAM KIT
Inswinging Door Configuration Lock Mount Kit
1. DESCRIPTION

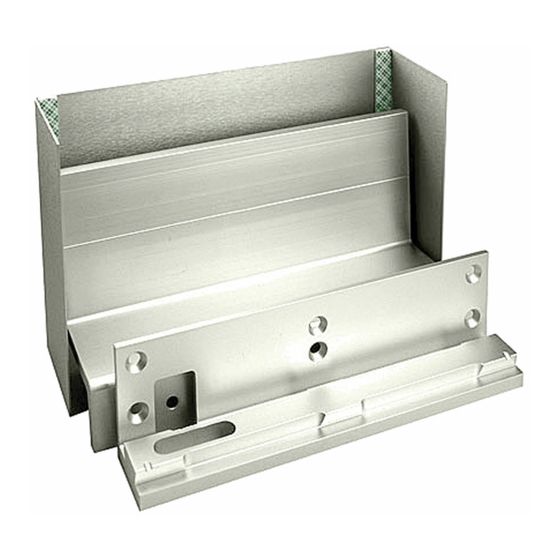

Securitron's TJ-38 & 68 Top Jam Kits are bracket accessory kits that provide the necessary
hardware required for the inswinging door mount configuration for the Model M38 or M68
Magnalocks. Each kit is used to mount either an M38 or M68 on the secure side of a door that
swings into a secured area. The kit includes a TJ-Bracket to mount the lock at or above the door
frame (header), a Z-Bracket for mounting the strike to the door, and a Dress Cover to conceal
the assembly and provide an attractive finished appearance.
2. PRODUCT OVERVIEW
Upon unpacking, an inventory should be made
to ensure that all the required components and
hardware have been included.
these instructions, the Top Jam Kit package
should contain the following items:
TJ-Bracket
INCLUDED HARDWARE:
6X
Phillips Flat Head
#12 X 1-1/2" Type "A"
6X
Blind Nut
1/4-20
© Copyright, 2011, all rights reserved
Securitron Magnalock Corp.
Tel 800.624.5625
For Model M38 and M68 Magnalocks
Along with
Dress Cover
Z-Bracket
Hardware
Item #1
6X
#14 X 4" Type "A"
Item #4
2X
#14 X 1-1/4" Type "A"
www.securitron.com
techsupport@securitron.com
This
manual
installation of an M38 or M68 on an inswinging
door using the TJ-38 or TJ-68 Top Jam Kit.

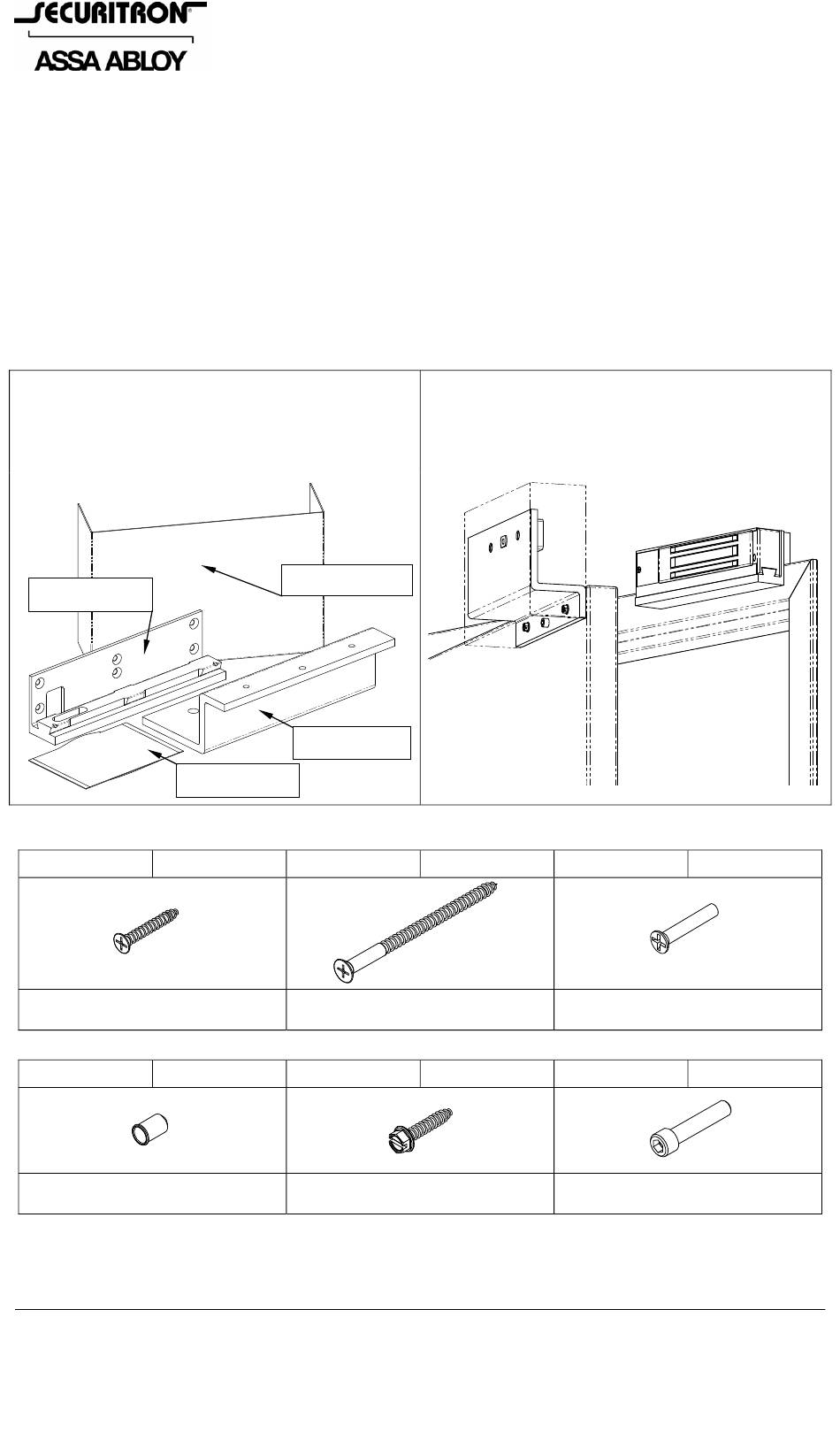

The following illustration shows the basic
mounting arrangement (TJ-38 shown):
Item #2
Phillips Flat Head
Item #5
Slotted Hex Head
Page 1
ASSA ABLOY, the global leader
in door opening solutions
will
address
in
6X
Item #3
Phillips Flat Head
1/4-20 X 1-1/2"
1X
Item #6
Socket Head Cap
5/16-18 X 1-1/2"
PN# 500-19900
Rev. F, 04/11
detail
the
Advertisement
Table of Contents
Related Manuals for Assa Abloy Securitron TJ-38 TOP JAM KIT
Summary of Contents for Assa Abloy Securitron TJ-38 TOP JAM KIT
- Page 1 Securitron Magnalock Corp. www.securitron.com ASSA ABLOY, the global leader Tel 800.624.5625 techsupport@securitron.com in door opening solutions INSTALLATION INSTRUCTIONS FOR TJ-38 & 68 TOP JAM KIT Inswinging Door Configuration Lock Mount Kit For Model M38 and M68 Magnalocks 1. DESCRIPTION Securitron’s TJ-38 & 68 Top Jam Kits are bracket accessory kits that provide the necessary hardware required for the inswinging door mount configuration for the Model M38 or M68 Magnalocks.
- Page 2 Item #7 Item #8 Item #9 Socket Flat Head Washer, Neoprene, 1/8” Thick T-Nut 5/16-18 X 1” 1” O.D. X 11/32” I.D 5/16-18 Item #10 Item #11 Roll Pin Roll Pin 1/4” Diameter X 3/4” 1/4” Diameter X 1” This kit provides only the brackets and additional hardware that are required to install a single M38 or M68 unit in the inswinging door mounting configuration.
- Page 3 TJ-BRACKET MOUNTING HARDWARE: INSTALLER (6X) #14 X 4" Long FABRICATED SHIM Flat Head Type "A" - OR (As Required) (6X) #12 X 1-1/2" Long STRIKE PLATE Flat Head Type "A" - OR (M38 Shown) (6X) 1/4-20 X 1-1/2" Long TJ-BRACKET Flat Head Machine Screw STRIKE BUSHING (With 1/4-20 Blind Nuts)
- Page 4 After establishing the position for the mounting of the lock/TJ-Bracket, use Figure 4 above and the following step-by-step installation sequence to mount the lock onto the door frame/header. (The TJ-Bracket may be used as a template to mark the required mounting hole locations). After marking the desired mounting holes on the door frame mounting surface, center punch ...
- Page 5 6. STRIKE INSTALLATION 10 (X2) or 11 (X2) 13 (X2) (REF. - EXISTING) STRIKE PLATE, SEX BOLT, MOUNTING BUSHING, ROLL PIN BUSHINGS & NEOPRENE WASHERS (Provided with Original Lock Installation Hardware) (REF.) (Door Hinge) Z-BRACKET (M38 Shown) 5 (X2) DRESS COVER (M38 Shown) Figure 5 *Note: Items #12 and #13 are not included with this kit.
- Page 6 Drill one 3/8” [9.5mm] diameter hole through the Z-Bracket at the center (strike mounting) hole. Drill two (2) 1/2” [12.7mm] diameter holes through the Z-Bracket at the marks to each side of the center hole. Door Position Actuator Installation: For locks that include the “D” (Door Position) option, install the actuator block by performing the following: a.
- Page 7 After proper strike spacing has been established, determine the correct roll pins to use. If 1- 2 washers are utilized, use the 3/4” [19.1mm] long roll pins (Item #10). For 3-4 washers, use the 1” long roll pins (Item #11). Remove the strike plate from the Z-Bracket and place on a clean, flat surface.
