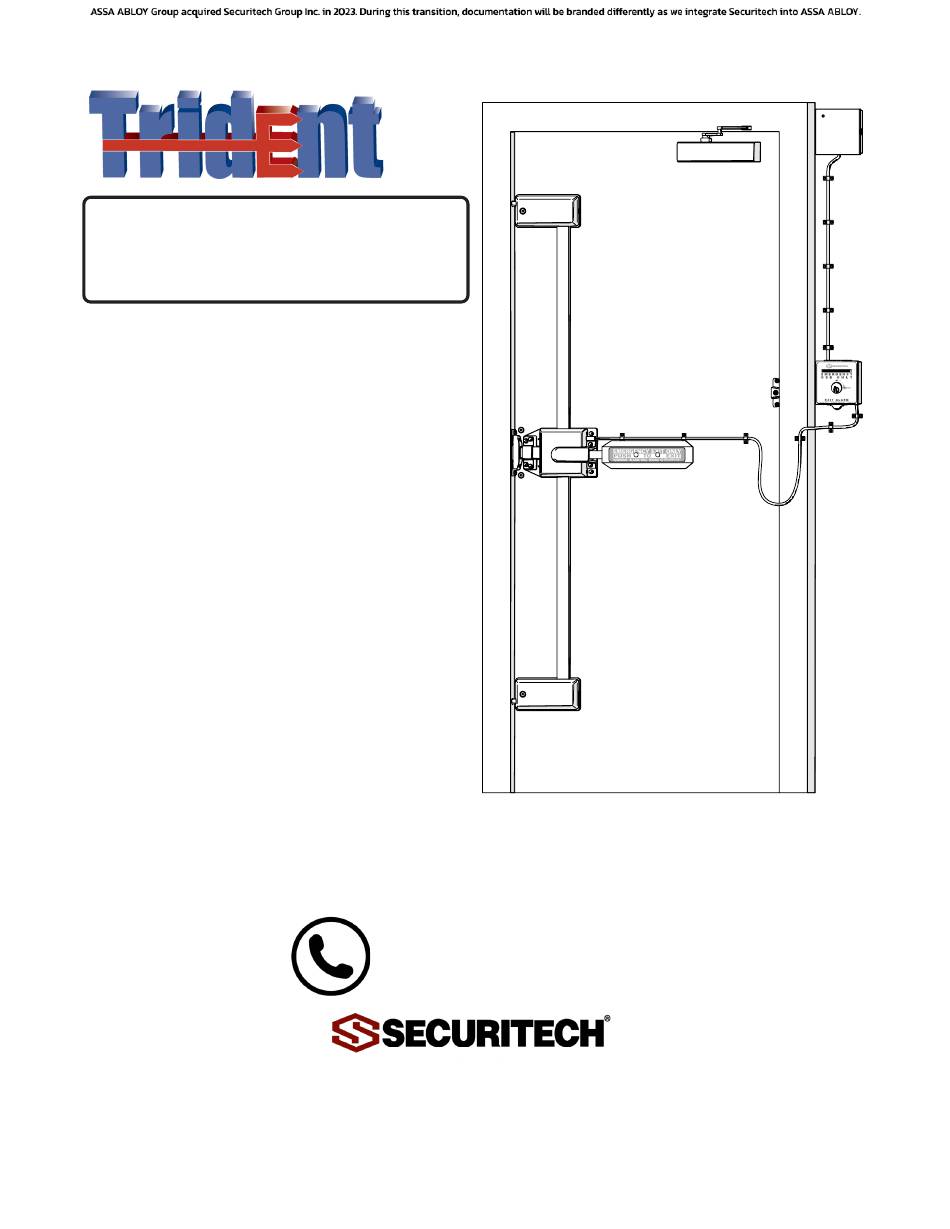

INSTALLATION INSTRUCTIONS:
TEL-220
Use with Series:
TRIDENT SERIES MODELS
Tool(s) Required:
Hex key (#5mm)
Phillips head screw drivers
Nut drivers
Drill with drill bits*
*see templates for all sizes of
drill bits needed
Water level
Marking putty (or lipstick)
Damage caused by misuse of power tools is not
covered under Warranty.
Before beginning the installation:
• Check that everything in the parts list was received.
Parts received may be slightly different from parts
shown in instructions. Please refer to packing list for
details on parts and fasteners received.
• Read all of the installation instruction steps.
INS-00094.indd — Rev: A Date: 02-15-23
Questions? Please call Tech Support
718-392-9000
54-60 46th St., Maspeth, NY 11378
www.securitech.com
718-392-9000
Call Tech Support for questions: 718-392-9000
TEL-220 INSTALLATION INSTRUCTIONS
SELF‑RELOCKING
WITH DIRECT
POWER ALARM
Page 1 of 28
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Assa Abloy Securitech Trident Seies
Summary of Contents for Assa Abloy Securitech Trident Seies
- Page 1 TEL-220 INSTALLATION INSTRUCTIONS SELF‑RELOCKING INSTALLATION INSTRUCTIONS: WITH DIRECT TEL-220 POWER ALARM Use with Series: TRIDENT SERIES MODELS Tool(s) Required: Hex key (#5mm) Phillips head screw drivers Nut drivers Drill with drill bits* *see templates for all sizes of drill bits needed Water level Marking putty (or lipstick) Damage caused by misuse of power tools is not...
-
Page 2: Packing List
TEL-220 INSTALLATION INSTRUCTIONS PACKING LIST SECURITECH GROUP, INC. TEL-220 54-60 46TH STREET MASPETH NY, 11378 11.2 11.3 6.5 6.2 6.3 6.4 11.1 10.4 10.1 5.2 5.1 3.1 10.5 10.3 10.2 10.1 NOTE: FOR MODELS WITH KEYED LEVER TRIM, ITEMS 7 AND 12 ARE REPLACED BY TRIM ANTI-PRY PLATE AND FASTENERS Call Tech Support for questions: 718-392-9000 Page 2 of 28... - Page 3 TEL-220 INSTALLATION INSTRUCTIONS SECURITECH GROUP, INC. DOC: A00057-09-689 54-60 46TH STREET MASPETH NY, 11378 ITEM PART NUMBER DESCRIPTION QTY. 100798-01-000 WIRE CHANNEL, TRIDENT 102850-10-000 HARDWARE KIT J, ARMORED CABLE BRACKETS AND SCREWS 102830-01-102 MOUNTING BRACKET FOR ARMORED CABLE #8 X 5/8", SELF DRILLING, HEX WASHER, HEX, CLEAR CHROMATE ZINC PLATED, LOW CARBON 102592-01-102 STEEL 102850-11-000...
- Page 4 TEL-220 INSTALLATION INSTRUCTIONS PACKING LIST SECURITECH GROUP, INC. TEL-220 54-60 46TH STREET MASPETH NY, 11378 DOC: A00057-09-689 ITEM PART NUMBER DESCRIPTION QTY. 101821-01-000 LABEL, TRIDENT METAL MARKING TEMPLATE 102609-01-102 #8 X 5/8", SHEET METAL, TYPE AB, PAN, PHILLIPS, ZINC PLATED, LOW CARBON STEEL 102867-01-000 TEL A20 SHIPPING ASSEMBLY, TEL 100/200 10.1...
-

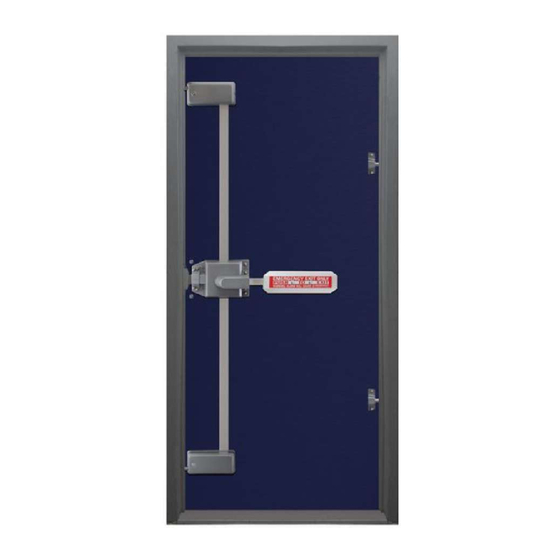

Page 5: Tel-220 Overview
TEL-220 INSTALLATION INSTRUCTIONS TEL-220 OVERVIEW Exterior view Interior view SELF‑RELOCKING Highest Level of Protection Against Forced Entry for Exit Trident TEL‑220 Features: Doors • 4 standard locking points located at pry points Securitech’s Trident™ has been protecting America’s • Automatic self‑locking: hitting the trigger in the main bolt pharmaceutical and high end retail market since 2005 with extends all bolts, relocking the door each time it closes thousands installed across the country offering the highest... -
Page 6: Table Of Contents
TEL-220 INSTALLATION INSTRUCTIONS TABLE OF CONTENTS A. TEL-220 Overview ..................5 B. - Page 7 TEL-220 INSTALLATION INSTRUCTIONS Draw a vertical line Align the top edge along the entire length of the template with of the frame stop on the horizontal line then TRIDENT MARKING TEMPLATE - LHR DOORS LHR DOOR DIAGRAM BEFORE USING TEMPLATE: the interior side of the mark 6 holes on lock 1.
-
Page 8: Exterior Trim Installation (Optional)
TEL-220 INSTALLATION INSTRUCTIONS Remove the Drill 1-5/16” template. Drill ten holes diameter hole through 3/8” diameter through the door for exterior the door. trim spindle or for future use even if not NOTE: Make sure drill installing exterior is level when drilling trim at this time. -
Page 9: Mechanism Installation
TEL-220 INSTALLATION INSTRUCTIONS MECHANISM INSTALLATION Fasten the anti-pry Fasten mechanism plate with (2) T-nuts. Do with (2) 2-3/4” long not tighten completely. carriage bolts, (2) flat washers, (2) K-lock nuts and (2) acorn caps on lockside holes. Align the top of the Fasten mechanism mechanism with the with (2) 2-1/2”... -
Page 10: Main Strike Installation
TEL-220 INSTALLATION INSTRUCTIONS Secure module Repeat steps for with (1) self-drilling bottom module. screw. Check for smooth operation by pressing trigger and pushing paddle arm. Make sure bolts extend past vertical reference line. MAIN STRIKE INSTALLATION Retract the bolt Mark centers of by pressing the paddle oval mounting holes arm. -
Page 11: Marking & Drilling Frame For Top & Bottom Bolts
TEL-220 INSTALLATION INSTRUCTIONS MARKING & DRILLING FRAME FOR TOP & BOTTOM BOLTS Close the door and Drill 7/8” hole, extend the bolts until starting with 1/8” and horizontal bolts hit the working up. Smooth frame stop. Keeping the hole and remove the door pulled against any burrs. -
Page 12: Hinge Side Bolt Installation
TEL-220 INSTALLATION INSTRUCTIONS Place cover over Insert (1) T-nut module and channel. and fasten until secure. Make sure tail fits into Repeat steps to install cover slot. channel and cover for Tail lower bolt module. Test operation, all bolts Cover slot must operate smoothly. -
Page 13: Connecting Power Supply To Alarm Box
TEL-220 INSTALLATION INSTRUCTIONS CONNECTING POWER SUPPLY TO ALARM BOX The power supply may Insert stripped already be installed on wires into the screw received unit. If so, skip terminal indicated and this section and move screw down to secure. onto instructions for Polarity does not installing the cylinder. -
Page 14: Connecting Alarm Cable To Alarm Box
TEL-220 INSTALLATION INSTRUCTIONS CONNECTING ALARM CABLE TO ALARM BOX The alarm cable may Insert stripped already be installed on wires into screw received unit. If so, skip terminal indicated and this section and move screw down to secure. onto instructions for Polarity does not fastening the armored matter. -
Page 15: Mounting The Power Supply To The Wall
TEL-220 INSTALLATION INSTRUCTIONS MOUNTING THE POWER SUPPLY TO THE WALL Directly above the Mount the power mounted alarm box, supply using the position the power hardware appropriate supply box so that it is for the installation as high as the armored surface. -
Page 16: Powering Up & Arming
TEL-220 INSTALLATION INSTRUCTIONS POWERING UP & ARMING Insert the key and Close the lid and turn clockwise until it screw the anti-tamper stops. Leave the key screw all the way in. Do inserted and open not overtighten. the lid (Unscrew the anti-tamper screw on the bottom of the lid until it spins freely if it’s... -
Page 17: Operating Instructions - Disarming The Alarm
TEL-220 INSTALLATION INSTRUCTIONS OPERATING INSTRUCTIONS - DISARMING THE ALARM To disarm the If the alarm sounds alarm, insert the key when disarming, and turn clockwise the battery voltage until it stops. The key may be critically low. must remain in this Follow instructions for position while the changing the batteries. -
Page 18: Operating Instructions - Changing The Batteries
TEL-220 INSTALLATION INSTRUCTIONS OPERATING INSTRUCTIONS - CHANGING THE BATTERIES The alarm will chirp Replace with two twice every 40 seconds Alkaline 9 volt batteries when the battery (newly purchased voltage is low, and will Duracell batteries are continuously sound recommended). Attach when the battery the battery terminals voltage is critically low. -
Page 19: Troubleshooting - Alarm Cannot Be Armed
TEL-220 INSTALLATION INSTRUCTIONS If the alarm continues to sound more than 2 times, insert the key and turn clockwise to disarm and see the troubleshooting section. If it stops then the alarm is armed and ready to use and the key can be removed. - Page 20 TEL-220 INSTALLATION INSTRUCTIONS Remove the Loosen the small aluminum channel screws at the right connecting the bolt terminal on the circuit cover that was just board and disconnect removed, sliding out the wires. of the hole in the main lock and bringing the cable through the slot in the back of the channel.
-
Page 21: Installation Checklist
TEL-220 INSTALLATION INSTRUCTIONS INSTALLATION CHECKLIST Is the hinge side bolt installed? Door closer Is there a 3/16” space between the strike Interior view and mechanism edge? Are the bolts rubbing on the frame? Holes should be large and smooth. Hinge side bolt Does the door relock automatically when the door closes? -
Page 22: Operating Instructions
TEL-220 INSTALLATION INSTRUCTIONS OPERATING INSTRUCTIONS USAGE INSTRUCTIONS Push emergency paddle fully to unlock the door. Door closer Wait for door closer to completely close door. If the door closer is not working properly, call a locksmith for repair. The Trident lock will relock automatically once the door Aluminum channel is fully closed. -
Page 23: Aa. Maintenance Information
TEL-220 INSTALLATION INSTRUCTIONS A. MAINTENANCE INFORMATION AA. MAINTENANCE INFORMATION MAINTENANCE: All products must be installed in accordance with the instructions and templates and by employing professional good trade practices or the warranty shall be void. RECOMMENDED METHOD FOR CLEANING: Use a mild soap and water with a soft cloth or brush to clean powder-coated or anodized aluminum surfaces. -
Page 24: Ab. Reinforcement Templates
TEL-220 INSTALLATION INSTRUCTIONS AB. REINFORCEMENT TEMPLATES SECURITECH GROUP, INC. TMP TRIDENT REINFORCEMENTS 54-60 46TH STREET MASPETH, NY 11378 PH: 718.392.9000 FAX: 718.392.8944 REFERENCE TEMPLATE FOR DOOR WWW.SECURITECH.COM REINFORCEMENTS AND FRAME GROUT GUARDS PREPARATION ALL METAL GROUT GUARDS SHALL BE INSTALLED IN FRAME PRIOR TO DOOR TYPE SHIPPING TO THE JOBSITE. - Page 25 TEL-220 INSTALLATION INSTRUCTIONS SECURITECH GROUP, INC. TMP TRIDENT REINFORCEMENTS 54-60 46TH STREET MASPETH, NY 11378 PH: 718.392.9000 FAX: 718.392.8944 REFERENCE TEMPLATE FOR DOOR WWW.SECURITECH.COM REINFORCEMENTS AND FRAME GROUT GUARDS PREPARATION DOOR TYPE PAIR OF DOORS HOLLOW METAL 4-1/2" APPLIES TO: FROM DOOR EDGE TRIDENT MODELS - TEL-IAL/IAT ALL METAL GROUT GUARDS...
- Page 26 TEL-220 INSTALLATION INSTRUCTIONS Call Tech Support for questions: 718-392-9000 Page 26 of 28 INS-00094.indd — Rev: A Date: 02-15-23...
- Page 27 TEL-220 INSTALLATION INSTRUCTIONS Call Tech Support for questions: 718-392-9000 Page 27 of 28 INS-00094.indd — Rev: A Date: 02-15-23...
- Page 28 TEL-220 INSTALLATION INSTRUCTIONS Questions? Please call Tech Support 718-392-9000 54-60 46th St., Maspeth, NY 11378 www.securitech.com 718-392-9000 Call Tech Support for questions: 718-392-9000 Page 28 of 28 INS-00094.indd — Rev: A Date: 02-15-23...
