I/O Outlets

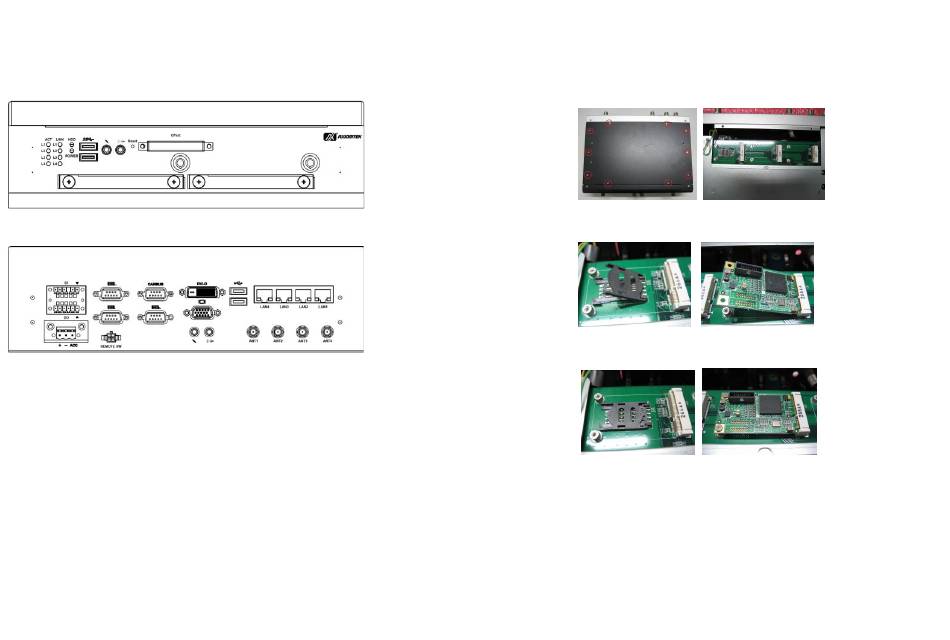

The following figures show you I/O outlets on front and rear panels of
the tBOX312-870-FL Series.
Front View
Rear View
2 9416N312010E
©
Copyright 2014 Axiomtek Co., Ltd.
Version A1 March 2014
Printed in Taiwan

Installing the PCI Express Mini Card

Step 1 Turn off the system, and unplug the power cord.
Step 2 Turn the system upside down to locate screws at the
bottom, loosen screws to remove the bottom cover.
Step 3 Slide SIM or Mini card into slot cautiously.
Step 4 Fasten screw of Express Mini Card.
Step 5 Close the cover to the chassis, and fasten all screws.
