Safety Light Curtain SLCS
Appendix
9.8.2

Mounting Aid OMH-SLCT-02

Model number: OMH-SLCT-02
The OMH-SLCT-02 mounting aid is used as a fixed bearing and secures the
position of the light curtain in the event of thermal expansion, vibration, or shock.
Figure 9.7
9.8.3

Mounting Aids OMH-SLCT-03 and OMH-SLCT-04

Model number (fixed bearing): OMH-SLCT-03
Model number (moveable bearing): OMH-SLCT-04
The longer mounting aid OMH-SLCT-03 has a higher clamping force than the
shorter mounting aid OMH-SLCT-04 and is therefore the preferred option for
assuming the function of the fixed bearing. A minimum of one fixed bearing and
one moveable bearing is required to mount the device. If more than two mounting
aids are required for reasons of stability, the use of further moveable bearings is
recommended. If vibrations or shocks are expected, we recommend attaching
mounting aids at intervals of 500 mm.
The mounting aid OMH-SLCT-03 can also be used to connect two light grids. If
the mounting aid is to be used for this application, the metal bracket should be
removed.
OMH-SLCT-02
OMH-SLCT-01
ø 4.3
8.3
16

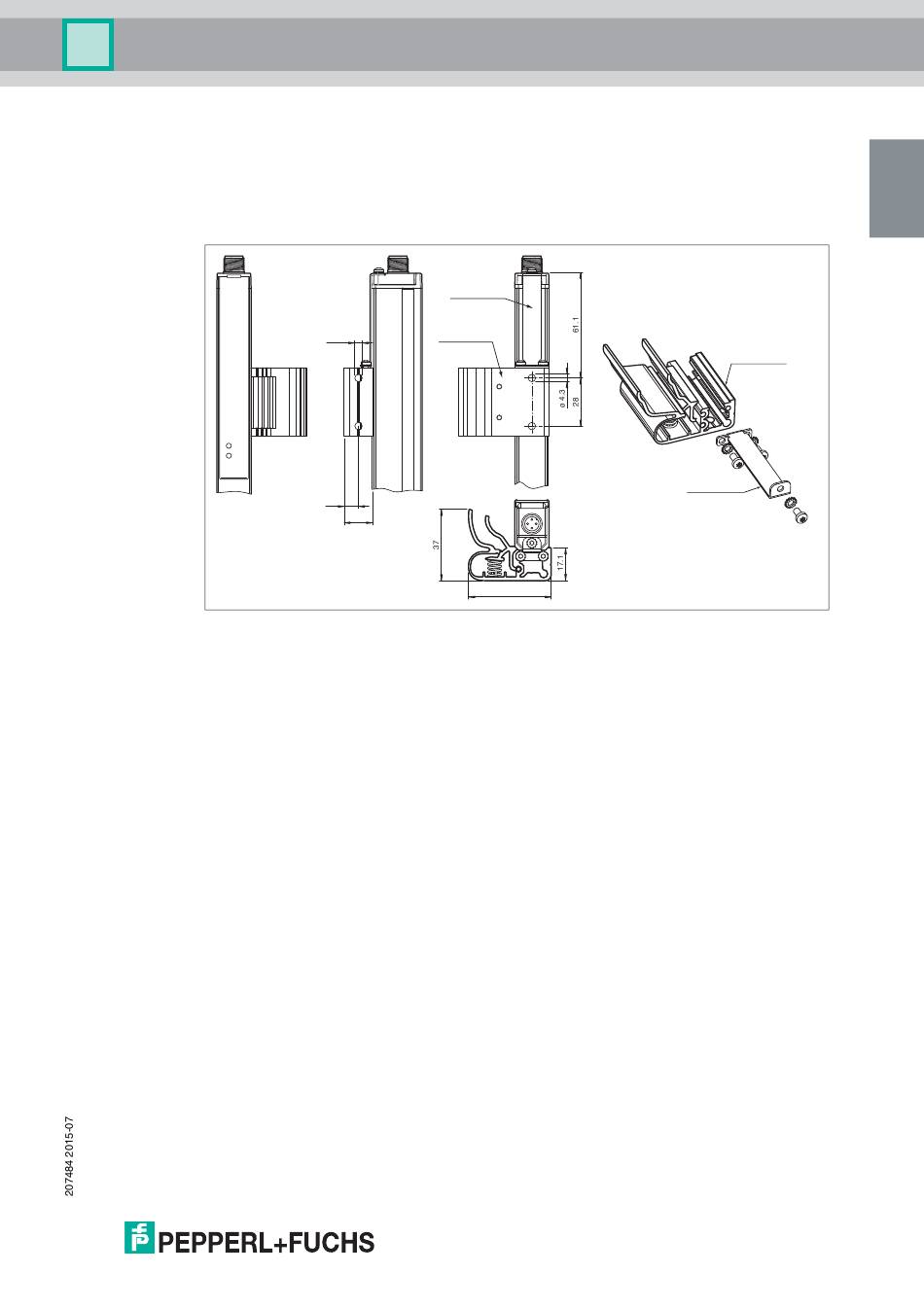

Dimensional drawing and assembly of the mounting aid OMH-SLCT-02
42.8
OMH-SLCT-01
OMH-SLCT-02
