Safety Light Curtain SLCS
Installation
5.3

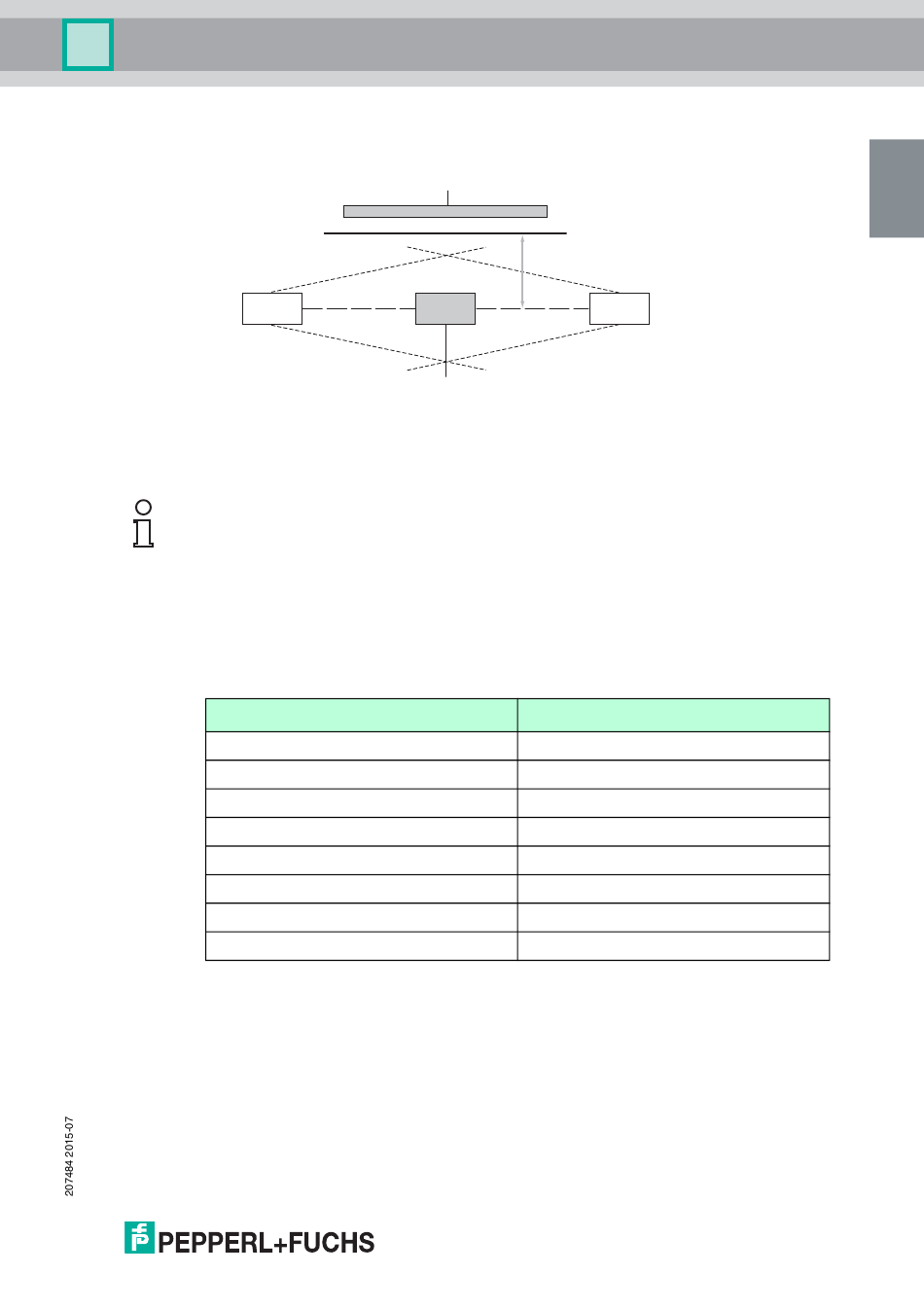

Reflection

Sending unit
Ensure that there are no reflective objects within the transmitter or receiver path
that could deflect the beams around an obstruction (EN 61496-2).
Note!
When positioning the light grid, ensure that a minimum distance to reflecting
objects or surfaces is maintained. This distance from the protection field must be
maintained on all sides.
Only in this way can you ensure that an object will be reliably detected by a beam
in the light grid. The minimum distances are listed in the table.
Minimum Distance Between Protection Field and Reflective Surfaces
Protection field width/range [m]
0,2 - 3,0
4,0
5,0
6,0
8,0
10
15
20
Reflecting object outside beam area
Obstacle
Minimum interval a
Receiving unit
Minimum distance [mm]
135
175
220
265
350
450
660
880
