Delivery Package - Pepperl+Fuchs SLCS Original Instructions Manual

Safety Light Curtain SLCS
Product Description
EN
4.4
10 - EN
Receiver:
1
8
7
2 6
3 5
4

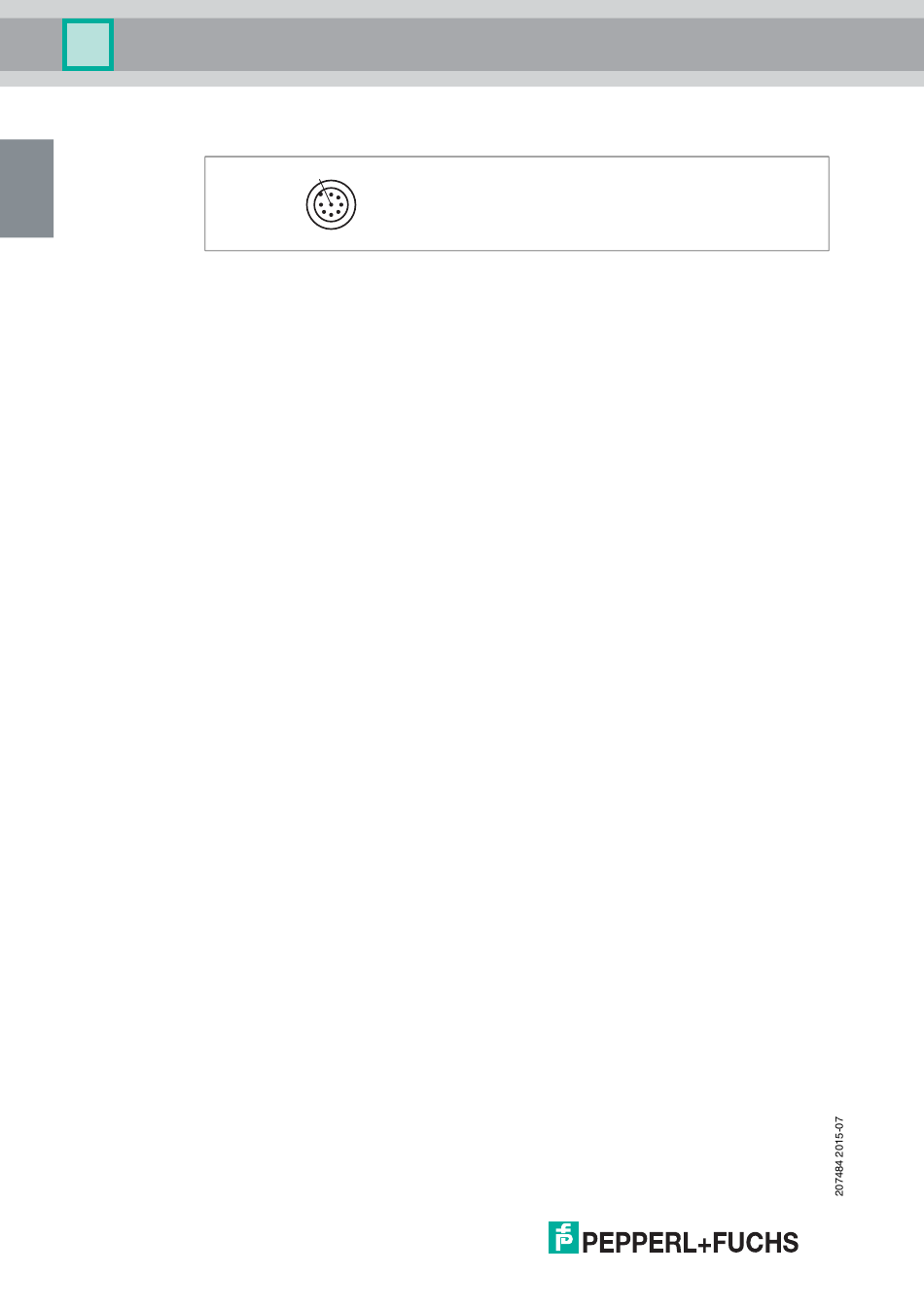

Figure 4.4 Pin assignment receiver unit
1 Restart Interlock (RI)
2 24 V DC
3 Relaismonitor (RM)
4 Status / Select RI-RM
5 OSSD 1
6 OSSD 2
7 0 V DC
8 Mode A/B

Delivery package

The delivery package contains:
Packaging unit 1: Transmitter
■
Packaging unit 2: Receiver
■
Operating instructions
■
Test rod
■
Bracket and cable are not included in the delivery package. Visit
http:\\www.pepperl-fuchs.com for a selection of compatible mounting brackets
and recommended cables.
