Levelflex FMP53 PROFIBUS PA
6.2.4

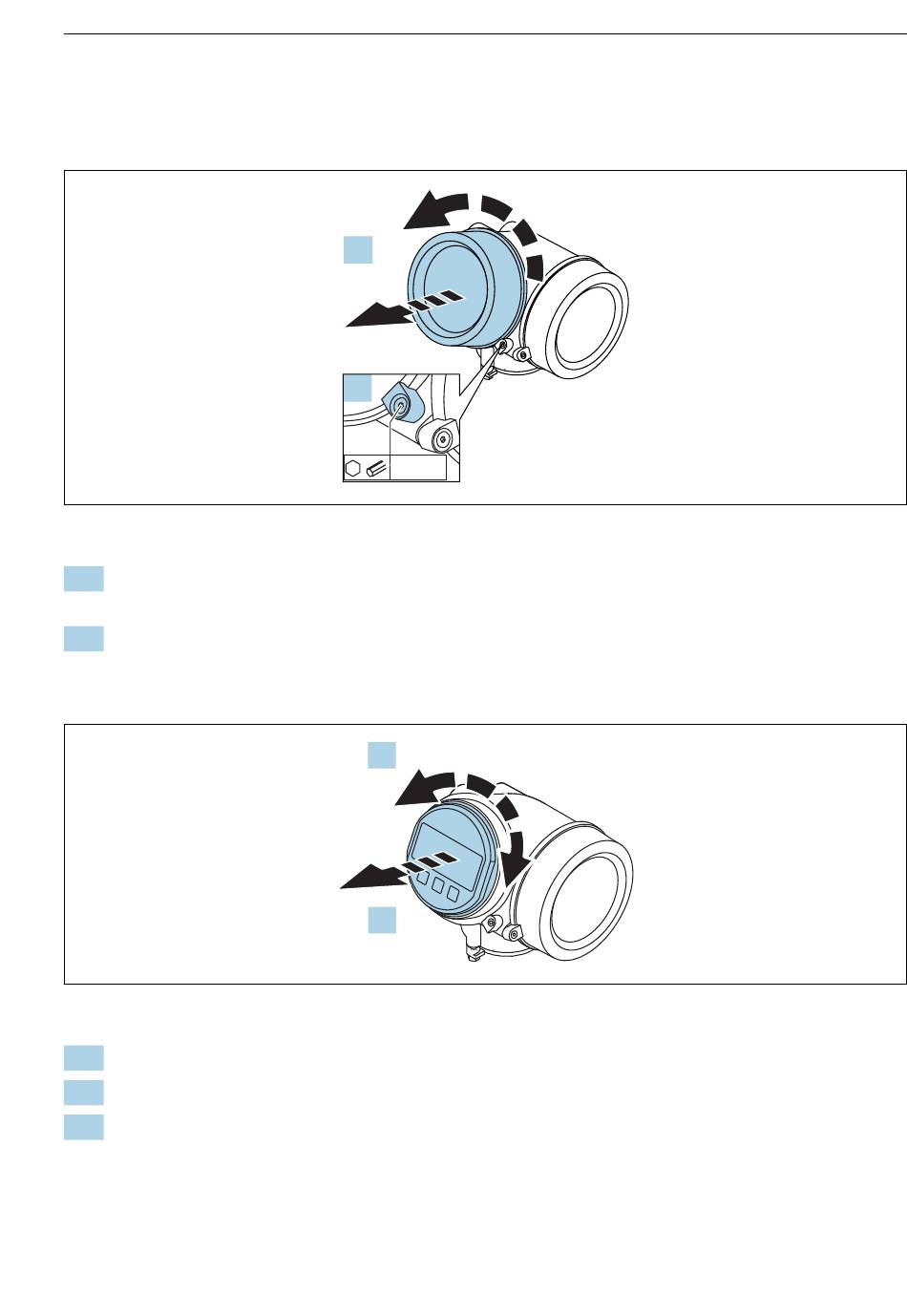

Turning the display
Opening cover
1.
Loosen the screw of the securing clamp of the electronics compartment cover using an
Allen key (3 mm) and turn the clamp 90 ° counterclockwise.
2.
Unscrew cover and check lid gasket, replace if necessary.
Turning the display module
1.
Pull out the display module with a gentle rotational movement.
2.
Rotate the display module to the desired position: max. 8 × 45 ° in each direction.
3.
Feed the coiled cable into the gap between the housing and main electronics module
and plug the display module into the electronics compartment until it engages.
Endress+Hauser
2.
1.
3 mm
2.
1.
Mounting
A0021430
A0036401
17
