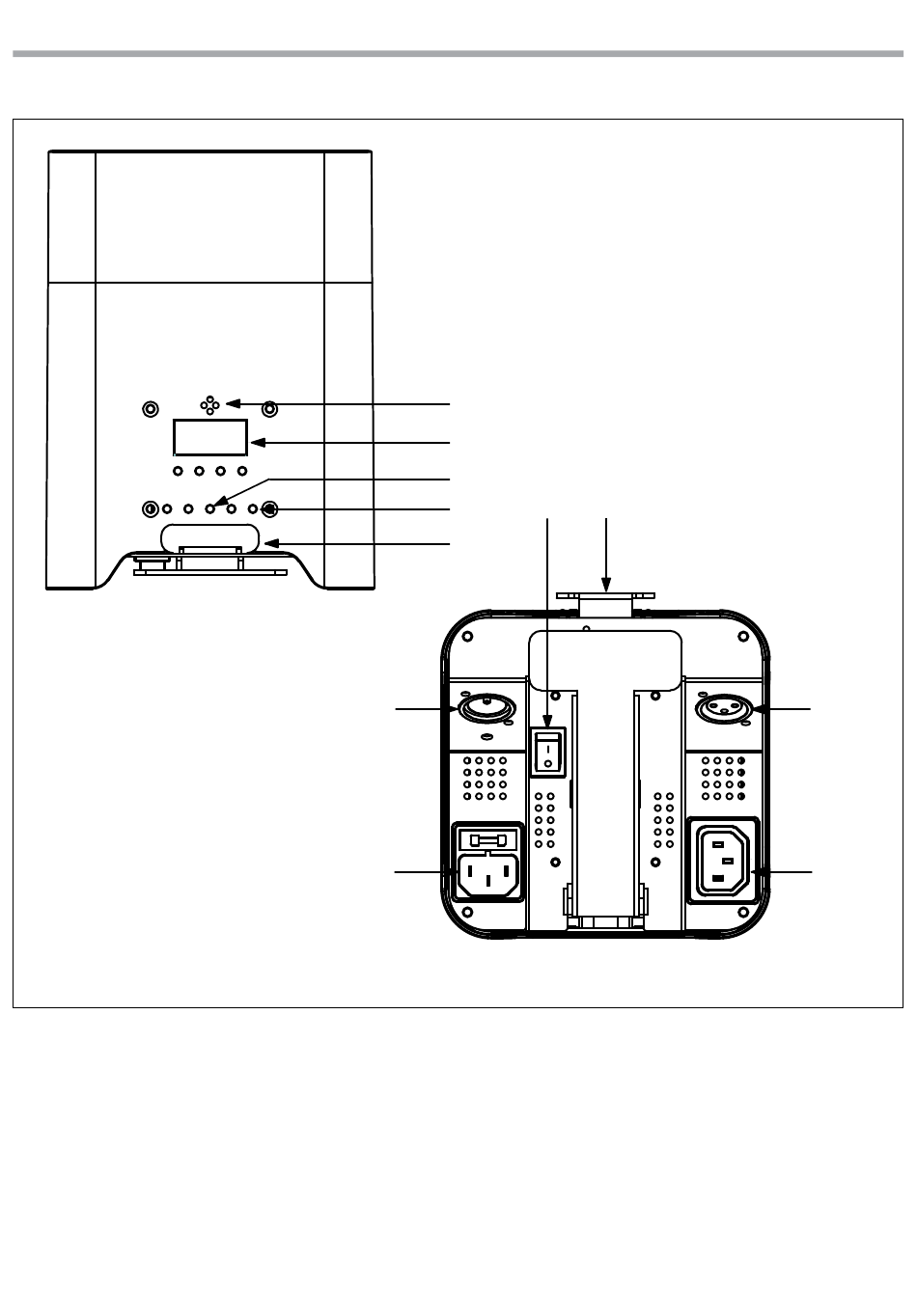

1.2 OPERATING ELEMENTS AND CONNECTIONS

Side panel
1. MICROPHONE to control the show by the
external audio signal.
2. CONTROL PANEL with display and 4 button
used to access the control panel functions
and manage them.
3. AUTO SYNC/ CLEAR button for WiFi mode
4. CHARGE BATTERY LED
5. Adjustable foot support for tilt regulation
6. ON/OFF SWITCH
7. DMX IN (3-pole XLR):
1 = ground, 2 = DMX -, 3 = DMX +
SMARTBATHEX
1
2
3
4
5
7
8
8. POWER IN mains plug for connection to a
9. DMX OUT (3-pole XLR):
10. POWER OUT: connect to supply power to the
6 5
Bottom panel
socket (100-240V 50/60Hz) via the supplied
mains cable. The support for the mains fuse
is located near the mains plug. Only replace a
blown fuse by one of the same type.
1= ground, 2 = DMX -, 3 = DMX +
next unit.
9
10
Fig.2
