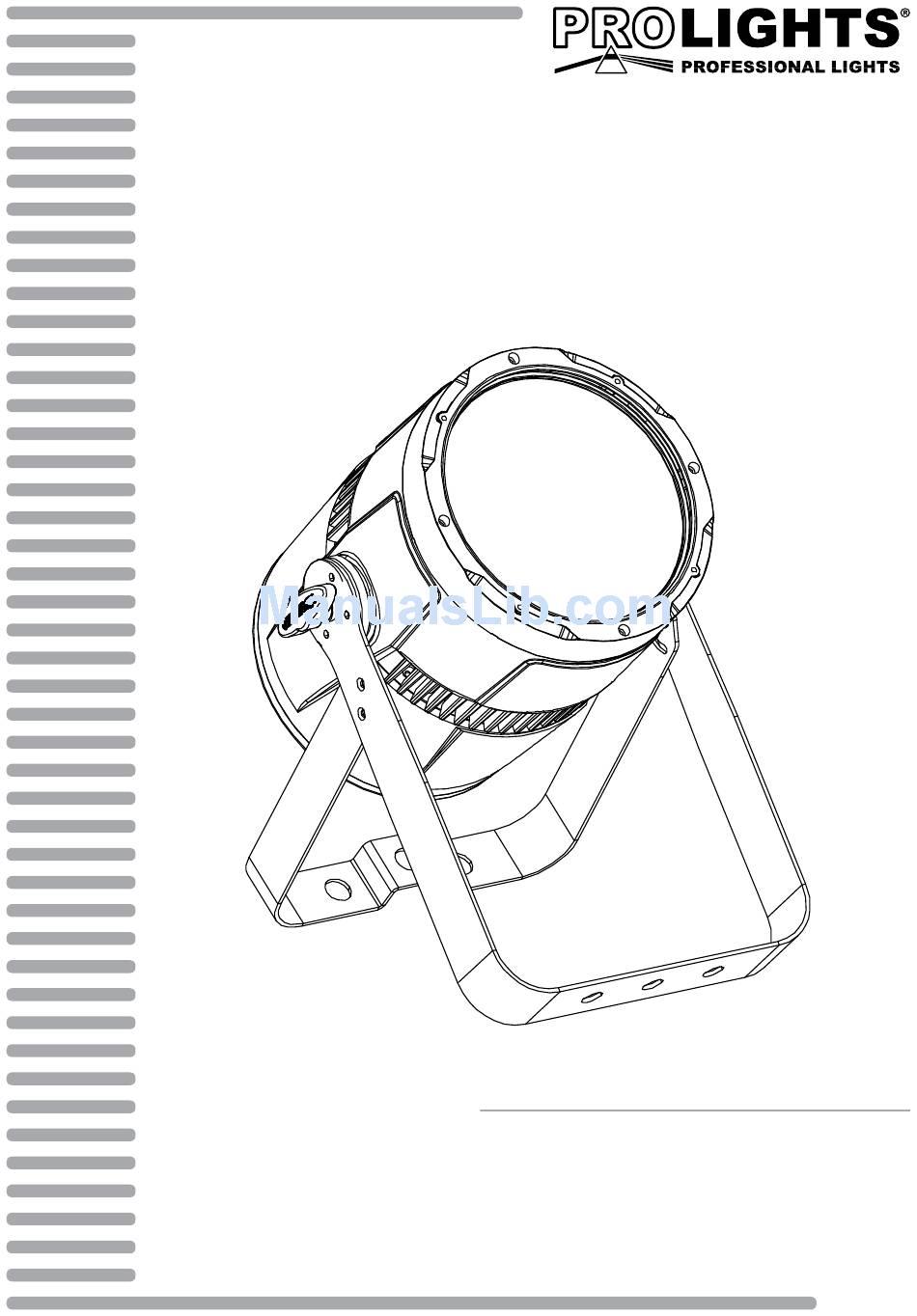

  • Page 1 STUDIOCOBFC diffUSEd LighT pRojEcToR MANUALE UTENTE USER MANUAL IT - EN...
  • Page 2 Music & Lights S.r.l. si riserva ogni diritto di elaborazione in qualsiasi forma delle presenti istruzioni per l’uso. La riproduzione - anche parziale - per propri scopi commerciali è vietata. Al fine di migliorare la qualità dei prodotti, la Music&Lights S.r.l. si riserva la facoltà di modificare, in qualunque momento e senza preavviso, le specifiche menzionate nel presente manuale di istruzioni.
  • Page 3: Table Of Contents

    3. 16 Bilanciamento biannco 4 Manutenzione 4. 1 Manutenzione e pulizia del sistema ottico 4. 2 Sostituzione fusibile 4. 3 Risoluzione dei problemi Certificato di garanzia Contenuto dell'imballo: • STUDIOCOBFC • Staffa di fissaggio (2pz.) • Cavo di alimentazione • Manuale utente...
  • Page 4: Sicurezza

    STUdiocoBfc ATTENZIONE! Prima di effettuare qualsiasi operazione con l’unità, leggere con attenzione questo manuale e conservarlo accuratamente per riferimenti futuri. Contiene informazioni importanti riguardo l’installazione, l’uso e la manutenzione dell’unità. SICUREZZA Avvertenze generali • I prodotti a cui questo manuale si riferisce sono conformi alle Direttive della Comunità Europea e per- tanto recano la sigla .
  • Page 5: Informazioni Generali

    STUdiocoBfc INFORMAZIONI GENERALI Spedizioni e reclami Le merci sono vendute “franco nostra sede” e viaggiano sempre a rischio e pericolo del distributore/clien- te. Eventuali avarie e danni dovranno essere contestati al vettore. Ogni reclamo per imballi manomessi dovrà essere inoltrato entro 8 giorni dal ricevimento della merce.
  • Page 6: Introduzione

    Chip On Board con una nuova soluzione ottica studiata per massimizzare l’efficienza e garantire performance senza precedenti in questa categoria. STUDIOCOBFC ospita una sorgente COB CREE da 150W RGB/FullColor che in combinazione ad uno speciale riflettore parabolico in alluminio sviluppa una proiezione a 60°...
  • Page 7 STUdiocoBfc Corpo e alimentazione • Raffreddamento ad aria filtrata forzata con ventole silenziate, non produce calore e rumore • Corpo in alluminio ad alta resistenza progettato per facilitare la dissipazione termica • Grado di isolamento: IP20 • Connessioni di alimentazione Input/Output: Neutrik NAC3MPA/NAC3MPB • Connessioni di segnale Input/output: XLR3p/5p...
  • Page 8: Elementi Di Comando E Di Collegamento

    STUdiocoBfc 1.3 ELEMENTI DI COMANDO E COLLEGAMENTI 10 11 12 Pannello Posteriore Fig.2 1. MANOPOLA DI FISSAGGIO per la staffa di 7. DMX OUT (XLR a 5 poli): montaggio 1= massa, 2 = DMX -, 3 = DMX +, 4 N/C, 5 N/C 2.
  • Page 9: Montaggio

    - 2 - INSTALLAZIONE 2.1 MONTAGGIO Lo STUDIOCOBFC può essere collocato su un piano solido. Inoltre, grazie alle possibilità di fissaggio sulla doppia staffa (fig.3), l’unità può essere montata anche a testa in giù, su una traversa. Per il fissaggio oc- corrono dei supporti robusti per il montaggio.
  • Page 10: Funzioni E Impostazioni

    Per maggiore comodità è consigliabile collegare l’unità con una presa comandata da un interruttore. 3.2 IMPOSTAZIONE BASE Lo STUDIOCOBFC dispone di un black OLED display e 4 pulsanti per accesso alle funzioni del pannello di controllo (fig.4). MENU UP DOWN ENTER...
  • Page 11: Struttura Menu

    STUdiocoBfc 3.3 STRUTTURA MENU MENU ð ð Auto Show Auto 1 Speed (0-100) ð Auto 2 Speed (0-100) ð Auto 3 Speed (0-100) ð Auto 4 Speed (0-100) ð ð Static Fixed Color ð ð ð ð ð ð ð...
  • Page 12: Modalità Automatica

    STUdiocoBfc ð ð 10 White Balance R = 255 R = 255 ð ð G = 255 G = 255 ð ð B = 255 B = 255 ð 11 LED Frequency 600 Hz 1200 Hz 2000 Hz 4000 Hz 25 kHz ð...
  • Page 13: Modalità Master/Slave

    • Sull’unità MASTER selezionare il programma desiderato come indicato nel paragrafo 3.4 • Servirsi dei connettori DMX dello STUDIOCOBFC e di un cavo XLR per formare una catena di unità. In certe condizioni e lunghezze si consiglia di effettuare una terminazione come mostrato a pagina 15.
  • Page 14 STUdiocoBfc DMX Address: 33 DMX Address: 36 DMX Address: 39 DMX Address: 42 ... . DMX512 Controller Fig.5 - Esempio di configurazione a 3 canali DMX...
  • Page 15: Collegamenti Della Linea Dmx

    STUdiocoBfc 3.11 COLLEGAMENTI DELLA LINEA DMX La connessione DMX è realizzata con connettori standard XLR. Utilizzare cavi schermati, 2 poli ritorti, con impedenza 120Ω e bassa capacità. Per il collegamento fare riferimento allo schema di connessione riportato di seguito: DMX - INPUT...
  • Page 16: Canali Dmx

    STUdiocoBfc 3.13 CANALI DMX 3 CANALI 8 CANALI MODE MODE FUNCTION FUNCTION Value Value 3 Ch 8 Ch DIMMER 0~100% 000 - 255 0~100% 000 - 255 GREEN 0~100% 000 - 255 0~100% 000 - 255 BLUE GREEN 0~100% 000 - 255...
  • Page 17: Funzioni Dispositivo

    STUdiocoBfc 3.14 FUNZIONI DISPOSITIVO Per lo STUDIOCOBFC è possibile accedere alle seguenti funzioni dispositivo: Dimmer • Per entrare nella modalità dimmer e scegliere e simulare diverse curve dimming, premere il tasto MENU ripetutamente fino a quando sul display non compare Dimmer Mode, quindi premere il tasto ENTER.
  • Page 18: Bilanciamento Biannco

    STUdiocoBfc • Premere ENTER per confermare. • Selezionare attraverso i tasti UP/DOWN Fixture Hours, quindi premere ENTER per confermare. • Il display indicherà le ore di funzionamento. • Premere il tasto MENU per tornare indietro o attendere alcuni secondi per uscire dal menu di im- postazione.
  • Page 19: Manutenzione

    STUdiocoBfc - 4 - MANUTENZIONE 4.1 MANUTENZIONE E PULIZIA DEL SISTEMA OTTICO • Durante gli interventi, assicurarsi che l’area sotto il luogo di installazione sia libera da personale non qualificato. • Spegnere l’unità, scollegare il cavo di alimentazione ed aspettare finché l’unità non si sia raffreddata.
  • Page 20 All rights reserved by Music & Lights S.r.l. No part of this instruction manual may be reproduced in any form or by any means for any commercial use. In order to improve the quality of products, Music&Lights S.r.l. reserves the right to modify the characteristics stated in this instruction manual at any time and without prior notice.
  • Page 21 STUdiocoBfc TABLE OF CONTENTS Safety General instructions Warnings and installation precautions General information 1 Introduction 1. 1 Description 1. 2 Technical specifications 1. 3 Operating elements and connections 2 Installation 2. 1 Mounting 3 Functions and settings 3. 1 Operation 3.
  • Page 22: Safety

    STUdiocoBfc WARNING! Before carrying out any operations with the unit, carefully read this instruction manual and keep it with cure for future reference. It contains important information about the installation, usage and maintenance of the unit. SAFETY General instruction • The products referred to in this manual conform to the European Community Directives and are there- fore marked with .
  • Page 23: General Information

    STUdiocoBfc GENERAL INFORMATION Shipments and claims The goods are sold “ex works” and always travel at the risk and danger of the distributor. Eventual dam- age will have to be claimed to the freight forwarder. Any claim for broken packs will have to be forwarded within 8 days from the reception of the goods.
  • Page 24: Introduction

    Chip On Board technology and a new optical solution to maximize efficiency and ensure unprecedented performance in its category.STUDIOCOBFC employs a 150W COB CREE LED source RGB/FullColor, combined with a special parabolic reflector built in aluminium which develops an extreme- ly bright and homogeneous 60°...
  • Page 25 STUdiocoBfc Structure and Power supply • Cooling: forced ventilation with noiseless fans, no heat generation • Sturdy die-cast aluminum body conceived for long-time durability and demanding applications • Internal protection: IP20 • Power connections Input/Output: Neutrik NAC3MPA/NAC3MPB • Signal connections Input/Output: XLR 3p/5p • Compatible with multiple accessories: 30°...
  • Page 26: Operating Elements And Connections

    STUdiocoBfc 1.3 OPERATING ELEMENTS AND CONNECTIONS 10 11 12 Rear panel Fig.2 1. LOCKING KNOB for the mounting bracket 7. DMX OUT (5-pole XLR): 2. MOUNTING BRACKET 1 = ground, 2 = DMX-, 3 = DMX+, 4 N/C, 5 N/C 3.
  • Page 27: Installation

    2.1 MOUNTING STUDIOCOBFC may be set up on a solid and even surface. The unit can also be mounted upside down to a cross arm. For fixing, stable mounting clips are required. The mounting place must be of sufficient stability and be able to support a weight of 10 times of the unit’s weight.
  • Page 28: Functions And Settings

    STUdiocoBfc - 3 - FUNCTIONS AND SETTINGS 3.1 OPERATION Connect the supplied main cable to a socket (100-240V~/50-60Hz). Then the unit is ready for operation and can be operated via a DMX controller or it independently performs its show program in succession.
  • Page 29: Menu Structure

    STUdiocoBfc 3.3 MENU STRUCTURE MENU ð ð Auto Show Auto 1 Speed (0-100) ð Auto 2 Speed (0-100) ð Auto 3 Speed (0-100) ð Auto 4 Speed (0-100) ð ð Static Fixed Color ð ð ð ð ð ð ð...
  • Page 30: Auto Show

    STUdiocoBfc ð ð 10 White Balance R = 255 R = 255 ð ð G = 255 G = 255 ð ð B = 255 B = 255 ð 11 LED Frequency 600 Hz 1200 Hz 2000 Hz 4000 Hz 25 KHz ð...
  • Page 31: Master/Slave Mode

    • Press the MENU button to go back or to meet the waiting time to exit the setup menu. To able to operate the STUDIOCOBFC with a light controller, adjust the DMX start address for the first a DMX channel. If e. g. address 33 on the controller is provided for controlling the function of the first DMX channel, adjust the start address 33 on the STUDIOCOBFC.
  • Page 32 STUdiocoBfc DMX Address: 33 DMX Address: 36 DMX Address: 39 DMX Address: 42 ... . DMX512 Controller Fig.5 - Example 3 DMX channels configuration...
  • Page 33: Connection Of The Dmx Line

    STUdiocoBfc 3.11 CONNECTION OF THE DMX LINE DMX connection employs standard XLR connectors. Use shielded pair-twisted cables with 120Ω imped- ance and low capacity. The following diagram shows the connection mode: DMX - INPUT DMX - OUTPUT XLR plug XLR socket...
  • Page 34: Dmx Control

    STUdiocoBfc 3.13 DMX CONTROL 3 CHANNELS 8 CANALI MODE MODE FUNCTION FUNCTION Value Value 3 Ch 8 Ch DIMMER 0~100% 000 - 255 0~100% 000 - 255 GREEN 0~100% 000 - 255 0~100% 000 - 255 BLUE GREEN 0~100% 000 - 255...
  • Page 35: Fixture Settings

    STUdiocoBfc 3.14 FIXTURE SETTINGS It is possible to change the parameter value in the following way: Dimmer • Enter in Dimmer mode to select specific dimming curve, press the button MENU so many times until shows Dimmer Mode, and press the button ENTER to confirm.
  • Page 36: White Balance

    STUdiocoBfc Version Show the fixture firmware version. • Press the button MENU so many times until shows Information • Select through the button UP/DOWN the Version menu voice. • The display will show the firmware data. • Press the MENU button to go back or to meet the waiting time to exit from the setup menu automatically.
  • Page 37: Maintenance

    STUdiocoBfc - 4 - MAINTENANCE 4.1 MAINTENANCE AND CLEANING THE UNIT • Make sure the area below the installation place is free from unwanted persons during setup. • Switch off the unit, unplug the main cable and wait until the unit has cooled down.
  • Page 39 Place Stamp Here Affrancare Spett.le Music&Lights S.r.l. Via Appia Km 136.200 04020 Itri (LT) Italy "...
  • Page 44 MUSIC & LIGHTS S.r.l. Via Appia, km 136,200 - 04020 Itri (LT) - ITALY Phone +39 0771 72190 - Fax +39 0771 721955 www.musiclights.it - email: info@musiclights.it ISO 9001:2008 Certified Company...
