6.5.2

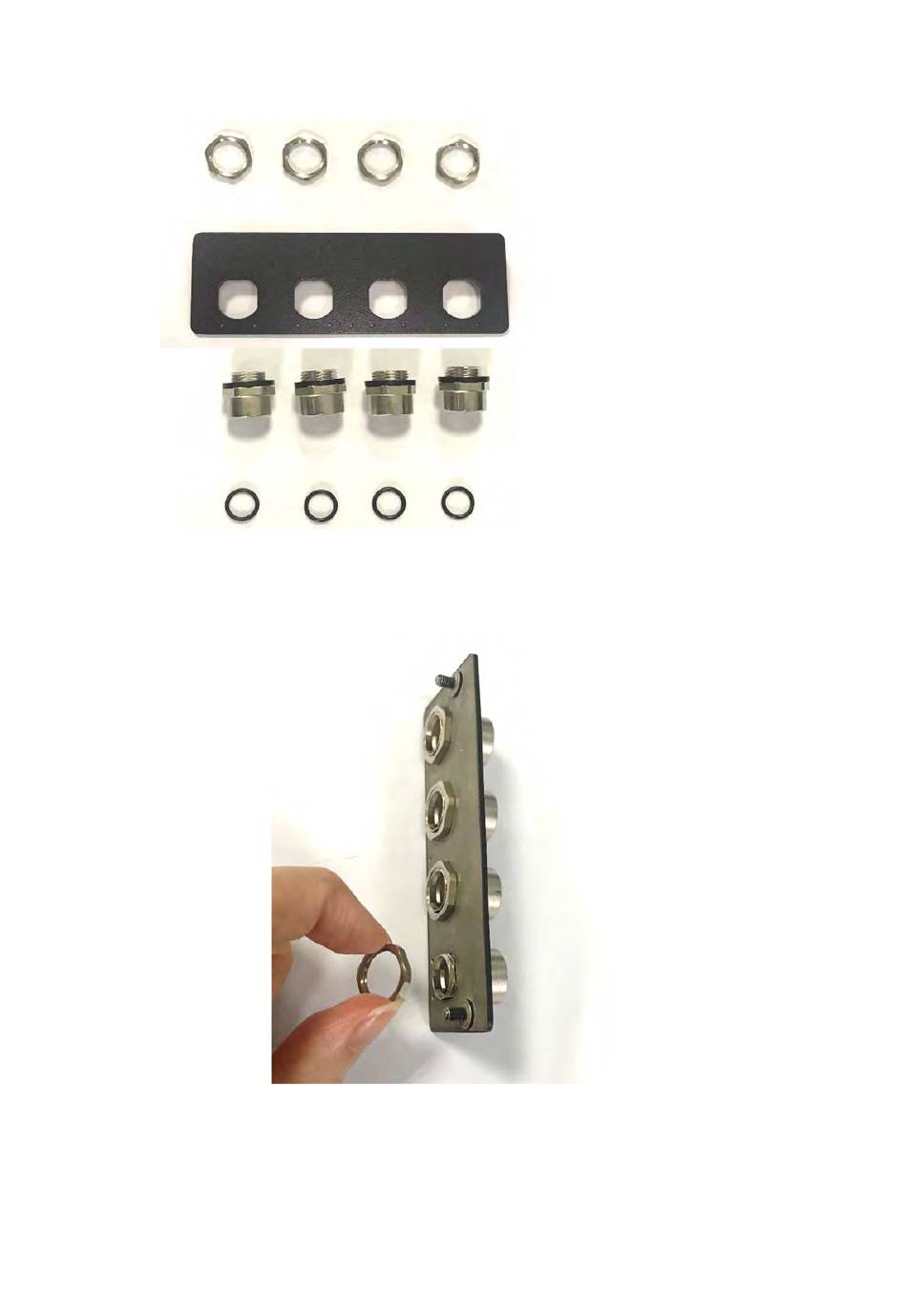

PB-3000C-LAN-xM12 Module
Hex washers
M12 I/O bracket
Hex rings
Rubber rings
1. Assemble the hex rings, M12 I/O bracket and hex washers together as indicated below:
Penetrate hex rings through the M12 I/O bracket holes, and fix them with hex washers.
Spectra GmbH & Co. KG
User Manual
sales@spectra.de
Spectra PowerBox 3000C
118
