Spectra POWERBOX 3000C SERIES User Manual

Hide thumbs Also See for POWERBOX 3000C SERIES:
Table of Contents

Advertisement

Quick Links

Download this manual

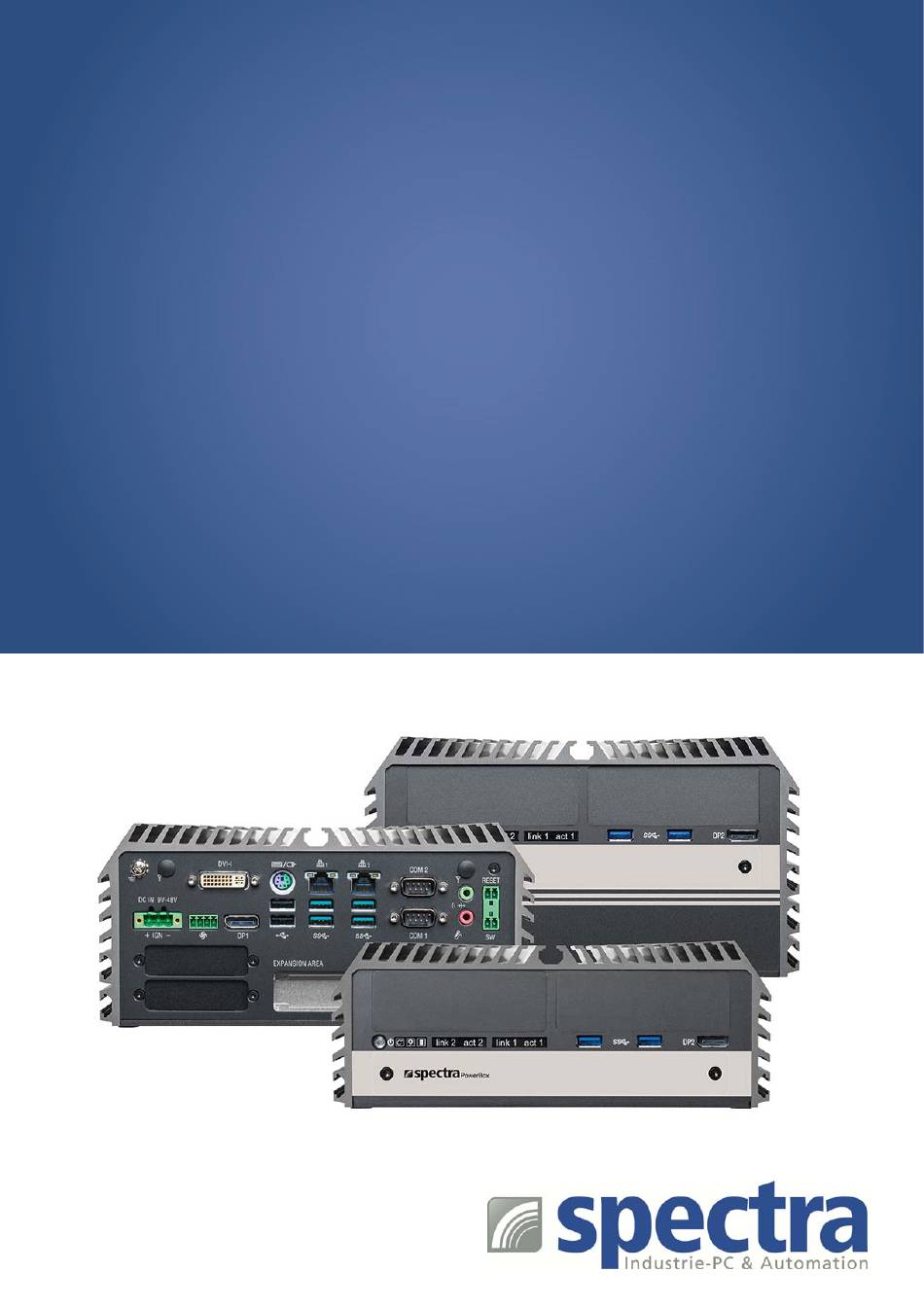

SPECTRA POWERBOX 3000C
SERIES
USER MANUAL
Version 1.0 – November 2018

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the POWERBOX 3000C SERIES and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Spectra POWERBOX 3000C SERIES

Summary of Contents for Spectra POWERBOX 3000C SERIES

  • Page 1 SPECTRA POWERBOX 3000C SERIES USER MANUAL Version 1.0 – November 2018...

  • Page 2: Table Of Contents

    3.11 Installing a SATA Hard Drive at Front Side ..….………………..…... 63 3.12 Installing SIM Card …...…………………….………..….……………... 66 3.13 Installing the CMOS Battery ………………………..….……………..67 3.14 Fasten the Cover …………..……..……….…..….…………………... 69 3.15 Wall Mount Brackets ……..……..……….…..….…………….……... 70 Spectra GmbH & Co. KG User Manual Version 1.0 vertrieb@spectra.de Spectra PowerBox 3000C Series November 2018...
  • Page 3 6.5 Installing a High Speed CMI Module …………..……….…….……….. 123 6.6 Installing a PB-3000C-PoE Module ..…………..……….…….………..127 6.7 Installing a PB-3000A-IGN Power Ignition Module ………….………..132 6.8 Installing an External Fan …..…………………..……….…….……….. 133 6.9 Installing an Internal Fan .…..…………………..……….…….……….. 135 Spectra GmbH & Co. KG User Manual Version 1.0 vertrieb@spectra.de Spectra PowerBox 3000C Series November 2018...

  • Page 4: Revision

    2018/11/07 Copyright Notice © 2018 by Spectra GmbH & Co. KG. All rights are reserved. No parts of this manual may be copied, modified, or reproduced in any form or by any means for commercial use without the prior written permission of Spectra GmbH &...

  • Page 5: Declaration Of Conformity

    Europe. It is necessary to confirm whether a particular country has accepted (signed) the application of an ECE-regulation; as the application it is not mandatory for the countries. Spectra GmbH & Co. KG User Manual Version 1.0 vertrieb@spectra.de Spectra PowerBox 3000C Series November 2018...

  • Page 6: Product Warranty Statement

    (such as a fuse, battery, etc.), are not warranted. Before sending your product in, you will need to fill in a Spectra RMA Request Form and obtain a RMA number from us. Please go to www.spectra.de/RMA...

  • Page 7: Technical Support And Assistance

    This indication alerts operators to an operation that, if not strictly observed, may result in safety hazards to personnel or damage to equipment. This indication provides additional information to complete a task easily. Spectra GmbH & Co. KG User Manual Version 1.0 vertrieb@spectra.de Spectra PowerBox 3000C Series November 2018...

  • Page 8: Safety Precaution

     The equipment has been dropped and damaged.  The equipment has obvious signs of breakage. 14. CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Spectra GmbH & Co. KG User Manual Version 1.0 vertrieb@spectra.de Spectra PowerBox 3000C Series November 2018...

  • Page 9: Package Contents

    Wall Mounting Kit Power Terminal Block Connector Remote Power On/Off Terminal Block Connector Remote Power Reset Terminal Block Connector Fan Terminal Block Connector DVI‐I to VGA Adaptor Note: Notify your sales representative if any of the above items are missing or damaged. Ordering Information Model No. Product Description 8th Generation Intel® Core™ Series Processors, High Performance,  Spectra PowerBox 30C0 Expandable and Modular Rugged Embedded Computer 8th Generation Intel® Core™ Series Processors, High Performance,  Spectra PowerBox 31C0 Expandable and Modular Rugged Embedded Computer with 1x PCI/PCIe  Expansion Slots 8th Generation Intel® Core™ Series Processors, High Performance,  Spectra PowerBox 32C0 Expandable and Modular Rugged Embedded Computer with 2x PCI/PCIe  Expansion Slots Spectra GmbH & Co. KG User Manual...

  • Page 10: Optional Modules & Accessories

    Optional Modules & Accessories Model No. Description PB‐3000C‐PoE  CFM Module with PoE Control Function, Individual Port 25.5W Daughterboard CFM Module with Power Ignition Sensing Function, 12V/24V Selectable for  PB‐3000A‐IGN Spectra PowerBox 3000C/Spectra PowerBox 3000A CMI Module with 4x Intel I210‐AT GbE LAN, RJ45 Port / 1x Universal Bracket  PB‐3000C‐LAN with 4x RJ45 Cutout for Spectra PowerBox 3000C Series CMI Module with M12 Connector, 4x Intel GbE LAN / 1x Universal Bracket  PB‐3000C‐LAN‐M12 with 4x M12 Cutout for Spectra PowerBox 3000C Series CMI Module with 16DIO (8in 8out), 1x Universal Bracket with DIO Cutout for  PB‐3000C‐DIO Spectra PowerBox 3000C Series CMI Module with 4 x RS232/422/485 (Support 5V/12V), 1x Universal Bracket  PB‐3000C‐COM with 4x DB9 Cutout for Spectra PowerBox 3000C Series CMI Module with 4 x isolated RS232/422/485 (Support 5V/12V), 1x Universal  PB‐3000C‐ICOM Bracket with 4x DB9 Cutout for Spectra PowerBox 3000C Series Mini‐PCIe Module with 2x COM Ports, 1x Standard DB9 Cable, 2x Universal  MEC‐COM‐KIT‐3000A Bracket each with 1x DB9 Cutout for Spectra PowerBox 3000 Series Mini‐PCIe Module with 2x USB 3.0 Ports, 1x 30cm cable, 1xUniversal Bracket ...
  • Page 11 TUBES, level VI Adapter AC/DC 24V 9.2A 220W with 3pin Terminal Block Plug 5.0mm Pitch, with  PB‐3000‐PoE‐Netzteil V.2 TUBES, level VI PB‐NH‐3000‐120 PSU Power Adapter Holder for PB‐3000‐Netzteil  PB‐NH‐3000‐220 PSU Power Adapter Holder for PB‐3000‐PoE‐Netzteil  External Fan with 4pin Terminal Block Plug, Mounting Bracket,  PB‐3000 ext. Fan Support Smart Fan PB‐32A0‐FAN Exhaling Fan with 4pin Connector, Universal Bracket PB‐32A0‐FAN1 Inhaling Fan with 4pin Connector, Universal Bracket RSC‐P Riser Card with 1x PCI Slot for Spectra PowerBox 31xx RSC‐E16 Riser Card with 1x PCIex16 Slot for Spectra PowerBox 31xx RSC‐E8E8 Riser Card with 2x PCIex8 Slots for Spectra PowerBox 32xx RSC‐E1E16 Riser Card with 1x PCIex16 and 1x PCIex1 Slots for Spectra PowerBox 32xx RSC‐E16PI Riser Card with 1x PCIex16 and 1x PCI Slots for Spectra PowerBox 32xx RSC‐PIPI Riser Card with 2x PCI Slots for Spectra PowerBox 32xx Spectra GmbH & Co. KG User Manual Version 1.0 vertrieb@spectra.de Spectra PowerBox 3000C Series...

  • Page 12: Chapter 1 Product Introductions

    Chapter 1 Product Introductions...

  • Page 13: Overview

    EN50155 (EN50121-3-2) and EN60950-1 to fulfill industrial applications such as rolling stock. Besides, Spectra PowerBox 3000C series features with wide operating temperature (-40°C to 70°C), wide range DC power input (from 9V to 48V), high tolerance of shock/vibration (5G/50G), and industrial-grade protections (OVP, OCP, ESD Surge, ...etc).

  • Page 14: Product Pictures

    1.3 Product Pictures Front Rear Spectra PowerBox 30C0 Spectra PowerBox 31C0 Spectra PowerBox 32C0 1.4 Key Features • Supports 8th Gen Intel® Core™ / Pentium® / Celeron® Hexa Cores 35W/65W LGA 1151 Processors •  2x DDR4 SO‐DIMM Socket, Supports Up to 2666MHz, 32GB •  Triple Independent Displays: 1x DVI‐I and 2x DP (4K Resolution) •  1x M.2 2280 M Key Socket, Auto‐detection for PCIex4 NVMe SSD or SATA Gen3 SSD •  2x Front Accessible SIM Card Slots for Signal Redundancy •  2x PCI/PCIe Slots for Add‐on Cards (Maximum Length: 235mm)  (For SPB 31Cx & SPB 32Cx only) •  4x CMI Slots for Modular I/O Expansions •  1x CFM Slot for Power Ignition Sensing Function •  Wide Operating Temperature (‐40°C to 70°C ) •  EN50155 (EN50121‐3‐2) / EN60950‐1 Certified Spectra GmbH & Co. KG User Manual Version 1.0 vertrieb@spectra.de Spectra PowerBox 3000C Series November 2018...

  • Page 15: Hardware Specification

    (Un-buffered and Non-ECC Type) • Dimensions(WxDxH): * DDR4 2666MHz memory modules are only for Core™ i7/i5 Processors 227 x 261 x 88 mm (Spectra PowerBox 30Cx) Graphics 227 x 261 x 108 mm (Spectra PowerBox 31Cx) • Integrated Intel® UHD Graphics 630: Core™ i7/i5/i3 227 x 261 x 126 mm (Spectra PowerBox 32Cx) •...

  • Page 16: System I/O

    Indicates the status of the hard drive Used to insert a SIM card, CMOS battery, and 2.5” HDD Digital I/O LED Indicates the working status of digital input/ output Spectra PowerBox 30C0 Spectra PowerBox 31C0 Spectra GmbH & Co. KG User Manual Version 1.0 vertrieb@spectra.de Spectra PowerBox 3000C Series...

  • Page 17: Rear

    Spectra PowerBox 32C0 1.6.2 Rear DC IN Terminal Block Antenna Hole Used to plug a DC power input with terminal Used to install an antenna jack block COM Port COM 1 ~ COM 2 support RS232/422/485 External Fan Terminal Block...
  • Page 18 Spectra PowerBox 30Cx Spectra PowerBox 31Cx Spectra PowerBox 32Cx Spectra GmbH & Co. KG User Manual Version 1.0 vertrieb@spectra.de Spectra PowerBox 3000C Series November 2018...

  • Page 19: Mechanical Dimension

    1.7 Mechanical Dimension Spectra PowerBox 30Cx Unit: mm Spectra PowerBox 31Cx Unit: mm Spectra GmbH & Co. KG User Manual Version 1.0 vertrieb@spectra.de Spectra PowerBox 3000C Series November 2018...
  • Page 20 Spectra PowerBox 32Cx Unit: mm Spectra GmbH & Co. KG User Manual Version 1.0 vertrieb@spectra.de Spectra PowerBox 3000C Series November 2018...

  • Page 21: Chapter 2 Pin Definitions And Settings

    Chapter 2 Pin Definitions and Settings...

  • Page 22: Location Of Connectors And Switches

    2.1 Location of the Connectors and Switches 2.1.1 Top View Spectra GmbH & Co. KG User Manual Version 1.0 vertrieb@spectra.de Spectra PowerBox 3000C Series November 2018...

  • Page 23: Bottom View

    2.1.2 Bottom View Spectra GmbH & Co. KG User Manual Version 1.0 vertrieb@spectra.de Spectra PowerBox 3000C Series November 2018...

  • Page 24: Connector / Switch Definition

    Mini PCI-Express Socket + mSATA + 4G Module CN3, CN4 Mini PCI-Express / mSATA Socket M.2 PCIE / SATA SSD USB2_13_1 Internal USB 2.0 Ports PCIE1 PCI-Express X16 Socket PCIE2 PCI-Express X1 Socket SODIMM1, SODIMM2 DDR4 SODIMM Socket Spectra GmbH & Co. KG User Manual Version 1.0 vertrieb@spectra.de Spectra PowerBox 3000C Series November 2018...

  • Page 25: Definition Of Switches

    COM1/2 Voltage Function Setting : Pin Define SW1 Switch Switch mode Function 0V(RI) ON / ON (Default) COM1 ON / OFF OFF / OFF 0V(RI) ON / ON (Default) COM2 ON / OFF OFF / OFF Spectra GmbH & Co. KG User Manual Version 1.0 vertrieb@spectra.de Spectra PowerBox 3000C Series November 2018...

  • Page 26: Definition Of Connectors

    Definition Definition Definition WAKE# SIM_DATA2 RESERVED 3.3V 3.3V USB_D+ RESERVED PERST# PERN/SATARP 3.3V 1.5V 3.3V UIM_RST2 PERP/SATARN SIM_PWR1 SIM_DATA1 +1.5V REFCLK- SIM_CLK SMB_CLK +1.5V PETN/SATATN REFCLK+/SIM_PWR2 SIM_Reset1 SMB_DATA PETP/SATAPN SIM_VPP1 +3.3V SIM_CLK2 USB_D- Spectra GmbH & Co. KG User Manual Version 1.0 vertrieb@spectra.de Spectra PowerBox 3000C Series November 2018...
  • Page 27 CN4 : Mini PCI-Express Socket (Support mSATA feature) Definition Definition Definition WAKE# 3.3V 3.3V USB_D+ 3.3V PERST# PERN/SATARXP 3.3V 1.5V 3.3V PERPSATARXN +1.5V SMB_CLK +1.5V PETN/SATATXN SMB_DATA PETP/SATATXP +3.3V USB_D- Spectra GmbH & Co. KG User Manual Version 1.0 vertrieb@spectra.de Spectra PowerBox 3000C Series November 2018...
  • Page 28 CN3 : Mini PCI-Express Socket (Support mSATA feature) Definition Definition Definition WAKE# 3.3V 3.3V USB_D+ 3.3V PERST# PERN/SATARP 3.3V 1.5V +3.3VAUX CLKREQ# PERP/SATARN +1.5V REFCLK- SMB_CLK +1.5V REFCLK+ PETN/SATATN SMB_DATA PETP/SATATP +3.3V USB_D- Spectra GmbH & Co. KG User Manual Version 1.0 vertrieb@spectra.de Spectra PowerBox 3000C Series November 2018...
  • Page 29 REFCLKP +3.3V PERN3 PERP1 PERP3 PETN1 PETN3 PETP1 +3.3V DEVSLP PETP3 +3.3V SMB_CLK PERN0/SATARP0 +3.3V SMD_DATA SUSCLK PERN2 PERP0/SATARN0 PEDET +3.3V ALERT# +3.3V PERP2 +3.3V CFG0 PETN0/SATATN0 +3.3V PETN2 PETP0/SATATP0 CFG2 RESET# PETP2 Spectra GmbH & Co. KG User Manual Version 1.0 vertrieb@spectra.de Spectra PowerBox 3000C Series November 2018...
  • Page 30 SATA3 : SATA Connector (SATA DOM) Definition Definition RX2- TX2+ RX2+ TX2- NC/+5V POWER1, POWER2, POWER3, POWER4: Power Connector Connector Type: 1X4-pin Wafer, 2.54mm pitch Definition +12V Spectra GmbH & Co. KG User Manual Version 1.0 vertrieb@spectra.de Spectra PowerBox 3000C Series November 2018...
  • Page 31 GPIO LED LAN LED Status Defines Act LED Status Definition Link LED Status Definition Blinking Yellow Data Activity Steady Green 1Gbps Network Link No Activity Steady Orange 100Mbps Network Link 10Mbps Network Link Spectra GmbH & Co. KG User Manual Version 1.0 vertrieb@spectra.de Spectra PowerBox 3000C Series November 2018...
  • Page 32 FAN1: External PWM Fan Connector Connector Type: Terminal Block 1X4 4-pin, 3.5mm pitch Definition +12V SENSE Control CN7 : Remote Power On/Off, Reset Connector Connector Type: Terminal Block 2X2 4-pin, 3.5mm pitch Definition PWR_SW RESET_SW Spectra GmbH & Co. KG User Manual Version 1.0 vertrieb@spectra.de Spectra PowerBox 3000C Series November 2018...
  • Page 33 COM1_2_1: RS232 / RS422 / RS485 Connector Connector Type: 9-pin D-Sub COM1 / COM2 RS232 RS422 / 485 RS485 DB9 Pin Definition Full Duplex Half Duplex Definition Definition DATA- DATA+ Spectra GmbH & Co. KG User Manual Version 1.0 vertrieb@spectra.de Spectra PowerBox 3000C Series November 2018...

  • Page 34: Chapter 3 System Setup

    Chapter 3 System Setup...

  • Page 35: Disassembling The System For Installation

    1. Turn over the unit to have the bottom side face up, unscrew the 6 screws of bottom cover and place them aside for later use. 2. Remove the bottom cover from the chassis. Spectra GmbH & Co. KG User Manual Version 1.0 vertrieb@spectra.de Spectra PowerBox 3000C Series November 2018...
  • Page 36 3. Unscrew the 2 screws at rear panel as marked on photo and place them aside for later use. 4. Loosen the 4 screws. Pull out 4 latches as marked on photo. Spectra GmbH & Co. KG User Manual Version 1.0 vertrieb@spectra.de Spectra PowerBox 3000C Series November 2018...
  • Page 37 5. Lift up the unit vertically by holding the front and rear panel. 6. Turn over the body of the unit and place it gently. Spectra GmbH & Co. KG User Manual Version 1.0 vertrieb@spectra.de Spectra PowerBox 3000C Series November 2018...

  • Page 38: Installing The Cpu

    1. Locate the CPU socket , remove the protection cover on it. 2. Press the CPU socket lever and pull it aside away from the socket to unlock it. Pull back the lever to open the socket. Spectra GmbH & Co. KG User Manual Version 1.0 vertrieb@spectra.de Spectra PowerBox 3000C Series November 2018...
  • Page 39 3. Align the notches on CPU with the alignment post on socket. 4. The notches of socket provide the space for fingers while lowering the CPU, hold the CPU by the edges toward the notches and insert the CPU gently. Spectra GmbH & Co. KG User Manual Version 1.0 vertrieb@spectra.de Spectra PowerBox 3000C Series November 2018...
  • Page 40 5. Place the thermal pad on the CPU heat spreader. Press down the socket lever to lock the CPU. Thermal pad 6. Align mounting holes of heat sink with the nut studs and fasten the heat sink with provided 4 screws. Spectra GmbH & Co. KG User Manual Version 1.0 vertrieb@spectra.de Spectra PowerBox 3000C Series November 2018...
  • Page 41 7. Place thermal pad on the top of CPU heatsink in order to provide a seamless contact with the body of chassis to create a efficient heat dissipation. Thermal pad Spectra GmbH & Co. KG User Manual Version 1.0 vertrieb@spectra.de Spectra PowerBox 3000C Series November 2018...

  • Page 42: Installing A Mini-Pcie / Msata Card On Top Side

    1. Locate the Mini PCIe slot on top side of system. 2. Use provided two screws fasten the half size module and adapter bracket together as shown in Fig (a) below. (b) Full Size Mini-PCIe Card (a) Half Size Mini-PCIe Card Spectra GmbH & Co. KG User Manual Version 1.0 vertrieb@spectra.de Spectra PowerBox 3000C Series November 2018...
  • Page 43 3. Tilt the Mini PCIe module at a 45 degree angle and insert it to the slot until the gold-pated connector of module contacted firmly with the slot. 45° 4. Press down the module and fasten two screws to secure the module. Spectra GmbH & Co. KG User Manual Version 1.0 vertrieb@spectra.de Spectra PowerBox 3000C Series November 2018...

  • Page 44: Installing Antennas

    1. Remove the antenna hole covers at rear panel. 2. Have antenna jack penetrate through the hole. 3. Put on washer and fasten the nut with antenna jack. Spectra GmbH & Co. KG User Manual Version 1.0 vertrieb@spectra.de Spectra PowerBox 3000C Series November 2018...
  • Page 45 4. Assemble the antenna and antenna jack together. 5. Attach the RF connector at another end of cable onto the module. Spectra GmbH & Co. KG User Manual Version 1.0 vertrieb@spectra.de Spectra PowerBox 3000C Series November 2018...

  • Page 46: Installing A Sata Hard Drive On Top Side

    2. Make the PCB side of the HDD face up, place the HDD bracket on it. Ensure the direction of bracket is correct and use 4 provided screws to assemble HDD and HDD bracket together. Spectra GmbH & Co. KG User Manual Version 1.0 vertrieb@spectra.de Spectra PowerBox 3000C Series November 2018...
  • Page 47 3. Turn over the HDD bracket. Connect the HDD bracket to the SATA connector and fasten the 3 screws . Spectra GmbH & Co. KG User Manual Version 1.0 vertrieb@spectra.de Spectra PowerBox 3000C Series November 2018...

  • Page 48: Installing A Mini-Pcie / Msata Card On Bottom Side

    1. Turn over the body of the unit. Locate Mini-PCIe (mSATA) slots at the bottom. 2. Tilt the Mini-PCIe module at a 45 degree angle and insert it to the slot until the gold-pated connector of module contacted firmly with the slot. 45° Spectra GmbH & Co. KG User Manual Version 1.0 vertrieb@spectra.de Spectra PowerBox 3000C Series November 2018...
  • Page 49 3. Press down the module and use previous two screws to fix the module. Spectra GmbH & Co. KG User Manual Version 1.0 vertrieb@spectra.de Spectra PowerBox 3000C Series November 2018...

  • Page 50: Installing A M.2 Card

    1. Turn over the body of the unit. Locate M.2 slots at the bottom. 2. Tilt the Mini-PCIe module at a 45 degree angle and insert it to the slot until the gold-pated connector of module contacted firmly with the slot. Spectra GmbH & Co. KG User Manual Version 1.0 vertrieb@spectra.de Spectra PowerBox 3000C Series November 2018...
  • Page 51 3. Press down the module and use previous one screw to fix the module. Spectra GmbH & Co. KG User Manual Version 1.0 vertrieb@spectra.de Spectra PowerBox 3000C Series November 2018...

  • Page 52: Installing So-Dimm Memory

    3.8 Installing SO-DIMM Memory 1. Locate the SO-DIMM sockets at the bottom side of system. Unscrews the 4 screws and remove the bracket. 2. Locate two SO-DIMM sockets at the bottom. Spectra GmbH & Co. KG User Manual Version 1.0 vertrieb@spectra.de Spectra PowerBox 3000C Series November 2018...
  • Page 53 3. Tilt the SO-DIMM module at a 45 degree angle and insert it to SO-DIMM socket until the gold-pated connector of module contacted firmly with the socket. 45° 45° Upper socket Lower socket 4. Press the modules down until it’s fixed firmly by the two locking latches on the sides. Spectra GmbH & Co. KG User Manual Version 1.0 vertrieb@spectra.de Spectra PowerBox 3000C Series November 2018...
  • Page 54 5. Put the cover back and fix the cover with 4 screws. Spectra GmbH & Co. KG User Manual Version 1.0 vertrieb@spectra.de Spectra PowerBox 3000C Series November 2018...

  • Page 55: Installing A Pci / Pcie Add-On Card

    3.9 Installing a PCI / PCIe Add-on Card (For Spectra PowerBox 31Cx and Spectra PowerBox 32Cx only) The applicable riser cards for Spectra PowerBox 3000C series are listed in the following table. Model No. Description Compatible Model RSC-E16 Riser Card 1 x PCIex16...
  • Page 56 1. Unscrew the 4 screws to remove the extension bracket. 2. Remove the extension bracket from the system. Spectra GmbH & Co. KG User Manual Version 1.0 vertrieb@spectra.de Spectra PowerBox 3000C Series November 2018...
  • Page 57 3. Assemble the riser card with extension bracket together and fasten with the 4 screws. Extension Bracket 4. (1) Loosen the screw to remove I/O bracket. (2) Loosen the 2 screws halfway to allow the card retainer to be adjustable. Spectra GmbH & Co. KG User Manual Version 1.0 vertrieb@spectra.de Spectra PowerBox 3000C Series November 2018...
  • Page 58 5. (1) Insert a PCI(e) add-on card to the slot. (2) Fasten the screw to secure it (3) Push the card retainer forward to against the edge of the add-on card. (4) Tighten the screw to fix the card retainer. 6. Locate the riser card slot on bottom side of system. Spectra GmbH & Co. KG User Manual Version 1.0 vertrieb@spectra.de Spectra PowerBox 3000C Series November 2018...
  • Page 59 7. Install the module assembled in step 4 into the riser card slot, and fasten the 4 screws to secure it. Spectra GmbH & Co. KG User Manual Version 1.0 vertrieb@spectra.de Spectra PowerBox 3000C Series November 2018...

  • Page 60: Assembling The System

    1. Make sure the notch on chassis and the front bezel of body are at the same side. 2. Lift up the body of unit. Make sure that both front and rear panels are in the chassis groves and assemble the body on to chassis firmly. Spectra GmbH & Co. KG User Manual Version 1.0 vertrieb@spectra.de Spectra PowerBox 3000C Series November 2018...
  • Page 61 3. Push into the 4 latches as indicated and fasten the 4 screws. 4. Fasten the 2 screws at rear panel. Spectra GmbH & Co. KG User Manual Version 1.0 vertrieb@spectra.de Spectra PowerBox 3000C Series November 2018...
  • Page 62 5. Be sure to align the grooves with front and ear panels. Put the cover back on and fasten the 6 screws to fix the cover. Spectra GmbH & Co. KG User Manual Version 1.0 vertrieb@spectra.de Spectra PowerBox 3000C Series November 2018...

  • Page 63: Installing A Sata Hard Drive At Front Side

    3.11 Installing a SATA Hard Drive at Front Side 1. Loosen the screws in order to remove the front expansion plate. 2. Locate the removable HDD bay and loosen the screw. Spectra GmbH & Co. KG User Manual Version 1.0 vertrieb@spectra.de Spectra PowerBox 3000C Series November 2018...
  • Page 64 4. Make the PCB side of the HDD face up, place the HDD bracket into it. Ensure the direction of bracket is correct and use 4 provided screws to assemble HDD and HDD bracket together. Spectra GmbH & Co. KG User Manual Version 1.0 vertrieb@spectra.de Spectra PowerBox 3000C Series November 2018...
  • Page 65 5. Align the HDD bracket with the entrance of HDD bay. Holding the rotating arm and insert the HDD bracket until the connector of HDD contact the SATA connector firmly. 6. Place the rotating arm back and fasten the screw. Spectra GmbH & Co. KG User Manual Version 1.0 vertrieb@spectra.de Spectra PowerBox 3000C Series November 2018...

  • Page 66: Installing Sim Card

    3.12 Installing SIM Card 1. Locate SIM card slots on top of HDD bay. 2. Insert the SIM card according to the icon instruction aside. SIM 1 SIM 2 Spectra GmbH & Co. KG User Manual Version 1.0 vertrieb@spectra.de Spectra PowerBox 3000C Series November 2018...

  • Page 67: Installing The Cmos Battery

    3.13 Installing the CMOS Battery 1. Locate the removable CMOS Battery and loosen the screw. 2. Pull out the CMOS battery bracket with assistance of a tweezer. Spectra GmbH & Co. KG User Manual Version 1.0 vertrieb@spectra.de Spectra PowerBox 3000C Series November 2018...
  • Page 68 3. Insert a CMOS battery in the battery slot. 4. Insert the battery bracket firmly and fasten the screw. Spectra GmbH & Co. KG User Manual Version 1.0 vertrieb@spectra.de Spectra PowerBox 3000C Series November 2018...

  • Page 69: Fasten The Cover

    3.14 Fasten the Cover 1. Fasten the cover by using the two screws. Spectra GmbH & Co. KG User Manual Version 1.0 vertrieb@spectra.de Spectra PowerBox 3000C Series November 2018...

  • Page 70: Wall Mount Brackets

    3.15 Wall Mount Brackets Spectra PowerBox 3000C series offers wall mount that customers can install system on the wall in convenient and economical ways. 1. The mounting holes are at the bottom of system. Use provided 8 screws to fasten the bracket with each side of system together.
  • Page 71 2. Fasten the screws through the bracket mounting hole to mount system on the wall. Spectra GmbH & Co. KG User Manual Version 1.0 vertrieb@spectra.de Spectra PowerBox 3000C Series November 2018...

  • Page 72: Chapter 4 Bios Setup

    Chapter 4 BIOS Setup...

  • Page 73: Bios Introduction

    ( ↑↓ ) to highlight the field and press <Enter> to call up the sub-menu. Then you can use the control keys to enter values and move from field to field within a sub-menu. If you want to return to the main menu, just press the <Esc >. Spectra GmbH & Co. KG User Manual Version 1.0 vertrieb@spectra.de Spectra PowerBox 3000C Series November 2018...

  • Page 74: Main Setup

    Use arrow keys to move among the items and press <Enter> to accept or enter a sub-menu. ■ System Date Set the date. Please use <Tab> to switch between date elements. ■ System Time Set the time. Please use <Tab> to switch between time elements. Spectra GmbH & Co. KG User Manual Version 1.0 vertrieb@spectra.de Spectra PowerBox 3000C Series November 2018...

  • Page 75: Advanced Setup

    4.3 Advanced Setup This section allows you to configure and improve your system and allows you to set up some system features according to your preference. 4.3.1 CPU Configuration Spectra GmbH & Co. KG User Manual Version 1.0 vertrieb@spectra.de Spectra PowerBox 3000C Series November 2018...

  • Page 76: Sata Configuration

    Enables or disables for Hyper-Threading Technology. 4.3.2 SATA Configuration ■ SATA Controller(s) [Enabled] Enables or disables SATA device. ■ SATA Mode Selection [AHCI] Allows you to select which mode SATA controller will operates. Configuration options: [AHCI], [RAID] Spectra GmbH & Co. KG User Manual Version 1.0 vertrieb@spectra.de Spectra PowerBox 3000C Series November 2018...
  • Page 77 Enables or disables SATA Port 3. ■ Serial ATA Port 4  Port 4 [Enabled] Enables or disables SATA Port 4. ■ Serial ATA Port 5  Port 5 [Enabled] Enables or disables SATA Port 5. Spectra GmbH & Co. KG User Manual Version 1.0 vertrieb@spectra.de Spectra PowerBox 3000C Series November 2018...

  • Page 78: Pch-Fw Configuration

    4.3.3 PCH-FW Configuration ■ Firmware Update Configuration Configure Management Engine Parameters. ■ Me FW Image Re-Flash Enables or disables ME firmware Image Re-Flash function. Spectra GmbH & Co. KG User Manual Version 1.0 vertrieb@spectra.de Spectra PowerBox 3000C Series November 2018...

  • Page 79: Trusted Computing

    ■ Storage Hierarchy [Enabled] Enables or disables storage hierarchy. ■ Endorsement Hierarchy [Enabled] Enables or disables endorsement hierarchy. ■ Physical Presence Spec Version [1.3] Select the physical presence spec version. Configuration options: [1.2] [1.3] Spectra GmbH & Co. KG User Manual Version 1.0 vertrieb@spectra.de Spectra PowerBox 3000C Series November 2018...

  • Page 80: Acpi Setting

    Allows users to select the highest Advanced Configuration Power Interface® (ACPI) sleep state that system will enter when suspend button is pressed. [Suspend Disabled]: Disables entering suspend state. [S3 (suspend to RAM)]: Enables suspend to RAM state. Spectra GmbH & Co. KG User Manual Version 1.0 vertrieb@spectra.de Spectra PowerBox 3000C Series November 2018...

  • Page 81: F81866 Super Io Configuration

    4.3.6 F81866 Super IO Configuration Set Parameters of Serial Ports. User can Enable/Disable the serial port and Select an optimal settings for the Super IO Device ■ Serial Port 1~6 Configuration. Spectra GmbH & Co. KG User Manual Version 1.0 vertrieb@spectra.de Spectra PowerBox 3000C Series November 2018...
  • Page 82 ■ Watch Dog Mode [Sec] Allows to set watchdog timer unit <Sec> or <Min>. ■ Watch Dog Timer [0] Allows you to set watchdog timer’s value in the range of 0 to 255. Spectra GmbH & Co. KG User Manual Version 1.0 vertrieb@spectra.de Spectra PowerBox 3000C Series November 2018...

  • Page 83: Hardware Monitor

    Allows users to setting external smart fan parameters. ■ Internal Smart Fan Function [Enabled] Enables or disables internal smart fan function. ■ Internal Smart Fan Configuration Allows users to setting internal smart fan parameters. Spectra GmbH & Co. KG User Manual Version 1.0 vertrieb@spectra.de Spectra PowerBox 3000C Series November 2018...

  • Page 84: S5 Rtc Wake Settings

    Enables or disables wake system from S5 (soft-off state). [Disabled]: Disables wake system from S5. [Fixed Time]: Sets a fixed time (HH:MM:SS) to wake system from S5. [Dynamic Time]: Sets a increase minute(s) from current time to wake system from Spectra GmbH & Co. KG User Manual Version 1.0 vertrieb@spectra.de Spectra PowerBox 3000C Series November 2018...

  • Page 85: Serial Port Console Redirection

    COM0 = Serial Port 1 COM1 = Serial Port 2 COM2 = Serial Port 3 COM3 = Serial Port 4 COM4 = Serial Port 5 COM5 = Serial Port 6 Spectra GmbH & Co. KG User Manual Version 1.0 vertrieb@spectra.de Spectra PowerBox 3000C Series November 2018...

  • Page 86: Usb Configuration

    Enables or disables XHCI (USB3.0) hand-off function. Use this feature as a workaround for operating systems without XHCI hand-off support. ■ USB Mass Storage Driver Support [Enabled] Enables or disables USB mass storage driver support. Spectra GmbH & Co. KG User Manual Version 1.0 vertrieb@spectra.de Spectra PowerBox 3000C Series November 2018...

  • Page 87: Network Stack Configuration

    4.3.11 Network Stack Configuration ■ Network Stack [Disabled] Enables or disables UEFI Network Stack. 4.3.12 CSM Configuration This option controls legacy/UEFI ROMs priority. Spectra GmbH & Co. KG User Manual Version 1.0 vertrieb@spectra.de Spectra PowerBox 3000C Series November 2018...
  • Page 88 [UEFI]: Enables UEFI option ROM only. [Legacy]: Enables legacy option ROM only. ■ Other PCI devices [Do not launch] Allows users to determine option ROM execution policy for devise other than network, storage, or video. Spectra GmbH & Co. KG User Manual Version 1.0 vertrieb@spectra.de Spectra PowerBox 3000C Series November 2018...

  • Page 89: Nvme Configuration

    4.3.13 NVMe Configuration This screen displays the current NVMe device information. Spectra GmbH & Co. KG User Manual Version 1.0 vertrieb@spectra.de Spectra PowerBox 3000C Series November 2018...

  • Page 90: Chipset Setup

    4.4 Chipset Setup This section allows you to configure chipset related settings according to user’s preference. 4.4.1 System Agent (SA) Configuration Spectra GmbH & Co. KG User Manual Version 1.0 vertrieb@spectra.de Spectra PowerBox 3000C Series November 2018...
  • Page 91 Configuration options: [Auto] [IGFX] [PEG] [PCIe]  Internal Graphics [Auto] Allows users to enable or disable Internal Graphics. Configuration options: [Auto] [Disabled] [Enabled] ■ VT-d [Enabled] Enables or disables Intel® Virtualization Technology for Directed I/O (VT-d) capability. Spectra GmbH & Co. KG User Manual Version 1.0 vertrieb@spectra.de Spectra PowerBox 3000C Series November 2018...

  • Page 92: Pch-Io Configuration

    4.4.2 PCH-IO Configuration ■ PCI Express Configuration Spectra GmbH & Co. KG User Manual Version 1.0 vertrieb@spectra.de Spectra PowerBox 3000C Series November 2018...
  • Page 93 ■ LAN i210AT Controller [Enabled] Enables or disables i210AT LAN Controller. ■ Wake# event (PCIe) [Enabled] Enables or disables integrated LAN i210AT Wake On LAN function. ■ M.2 function Switch [PCIe] Select PCIe/SATA for M.2 connector. Spectra GmbH & Co. KG User Manual Version 1.0 vertrieb@spectra.de Spectra PowerBox 3000C Series November 2018...
  • Page 94 Allows you to specify which power state system will enter when power is resumed after a power failure (G3 state). [Always on]: Enters to power on state. [Always off]: Enters to power off state. [Keep last state]: Enters to the last power state before a power failure. Spectra GmbH & Co. KG User Manual Version 1.0 vertrieb@spectra.de Spectra PowerBox 3000C Series November 2018...

  • Page 95: Security Setup

    Allows you to set Administrator Password to control access to the BIOS Setup utility. ■ User Password Allows you to set User Password to control access to the system at boot and to the BIOS Setup utility. Spectra GmbH & Co. KG User Manual Version 1.0 vertrieb@spectra.de Spectra PowerBox 3000C Series November 2018...

  • Page 96: Boot Setup

    Allows you to enable or disable Fast Boot function. If enabled, system boots with initialization of a minimal set of devices required to launch active boot option. ■ Hard Drive BBS Priority Allows you to set the order of the legacy devices in this group. Spectra GmbH & Co. KG User Manual Version 1.0 vertrieb@spectra.de Spectra PowerBox 3000C Series November 2018...

  • Page 97: Save & Exit

    ■ Save as User Defaults This item allows you to save the changes done so far as user defaults. ■ Restore User Defaults This item allows you to restore the user defaults to all the setup options. Spectra GmbH & Co. KG User Manual Version 1.0 vertrieb@spectra.de Spectra PowerBox 3000C Series November 2018...

  • Page 98: Chapter 5 Product Application

    Chapter 5 Product Application (For DIO only)

  • Page 99: Digital I/O (Dio) Application

    GPIO42 (PIN 46) GPIO33 (PIN 39) GPIO43 (PIN 47) GPIO34 (PIN 40) GPIO44 (PIN 48) GPIO35 (PIN 41) GPIO45 (PIN 49) GPIO36 (PIN 42) GPIO46 (PIN 50) GPIO37 (PIN 43) GPIO47 (PIN 51) Spectra GmbH & Co. KG User Manual Version 1.0 vertrieb@spectra.de Spectra PowerBox 3000C Series November 2018...
  • Page 100 Following is an example to enable configuration and disable configuration by using debug. -o 4e 87 -o 4e 87 (enable configuration) -o 4e aa (disable configuration) 5.1.1.4 Relative Registers To program the F81866A configuration registers, the following configuration procedures. Spectra GmbH & Co. KG User Manual Version 1.0 vertrieb@spectra.de Spectra PowerBox 3000C Series November 2018...
  • Page 101 Spectra GmbH & Co. KG User Manual Version 1.0 vertrieb@spectra.de Spectra PowerBox 3000C Series November 2018...
  • Page 102 Spectra GmbH & Co. KG User Manual Version 1.0 vertrieb@spectra.de Spectra PowerBox 3000C Series November 2018...
  • Page 103 Spectra GmbH & Co. KG User Manual Version 1.0 vertrieb@spectra.de Spectra PowerBox 3000C Series November 2018...
  • Page 104 // Set (bit 0~7) = 1 to select GP 80~87 as Output mode <Output Value> WriteByte(AddrPort, 0x89) // Select configuration register 89h WriteByte(DataPort, Value) // Set bit 0~7=(0/1) to output GP 80~87 as Low or High <Leave the Extended Function Mode> WriteByte(AddrPort, 0xAA) Spectra GmbH & Co. KG User Manual Version 1.0 vertrieb@spectra.de Spectra PowerBox 3000C Series November 2018...
  • Page 105 ReadByte(DataPort, Value) // Read bit 0~7(0xFx)= GP70~77 as High <input Value> WriteByte(AddrPort, 0xC2) // Select configuration register C2h ReadByte(DataPort, Value) // Read bit 0~7(0xFx)= GP30~37 as High <Leave the Extended Function Mode> WriteByte(AddrPort, 0xAA) Spectra GmbH & Co. KG User Manual Version 1.0 vertrieb@spectra.de Spectra PowerBox 3000C Series November 2018...
  • Page 106 // Select configuration register 60h (High Byte address) WriteByte(DataPort, ( 0x0A)) WriteByte(AddrPort, 0x61) // Select configuration register 61h (Low Byte address) WriteByte(DataPort, ( 0x00)) <Leave the Extended Function Mode> WriteByte(AddrPort, 0xAA) default DIO Port base address is set to 0x0A00h Spectra GmbH & Co. KG User Manual Version 1.0 vertrieb@spectra.de Spectra PowerBox 3000C Series November 2018...
  • Page 107 0 1 0 0 0 0 0 0 Value (Base address + 3) (0xA03) 7 6 5 4 3 2 1 0 = DI8 1 0 0 0 0 0 0 0 Value (Base address + 3) (0xA03) Spectra GmbH & Co. KG User Manual Version 1.0 vertrieb@spectra.de Spectra PowerBox 3000C Series November 2018...
  • Page 108 0 1 0 0 0 0 0 0 Value (Base address + 2) (0xA02) 7 6 5 4 3 2 1 0 = DO8 1 0 0 0 0 0 0 0 Value (Base address + 2) (0xA02) Spectra GmbH & Co. KG User Manual Version 1.0 vertrieb@spectra.de Spectra PowerBox 3000C Series November 2018...
  • Page 109 0 1 0 0 0 0 0 0 Value (Base address +9) (0xA09) 7 6 5 4 3 2 1 0 = DI16 1 0 0 0 0 0 0 0 Value (Base address +9) (0xA09) Spectra GmbH & Co. KG User Manual Version 1.0 vertrieb@spectra.de Spectra PowerBox 3000C Series November 2018...
  • Page 110 0 1 0 0 0 0 0 0 Value (Base address +10) (0xA10) 7 6 5 4 3 2 1 0 = DO16 1 0 0 0 0 0 0 0 Value (Base address +10) (0xA10) Spectra GmbH & Co. KG User Manual Version 1.0 vertrieb@spectra.de Spectra PowerBox 3000C Series November 2018...
  • Page 111 Digital Input I/O Port Address 0xA03 Pin Definition Data Bits Digital Output I/O Port Address 0xA02 Pin Definition DI16 DI15 DI14 DI13 DI12 DI11 DI10 Data Bits Digital Input I/O Port Address 0xA09 Pin Definition DO16 DO15 DO14 DO13 DO12 DO11 DO10 DO9 Data Bits Digital Output I/O Port Address 0xA010 Spectra GmbH & Co. KG User Manual Version 1.0 vertrieb@spectra.de Spectra PowerBox 3000C Series November 2018...

  • Page 112: Digital I/O (Dio) Hardware Specification

    - DO Signal have to pull up resistor to XCOM+ for external device, the resistance will affect the pull up current - Signal High Level : Pull up resistor to XCOM+ - Signal Low Level : = XCOM- - Sink Current: 1A (Max) Spectra GmbH & Co. KG User Manual Version 1.0 vertrieb@spectra.de Spectra PowerBox 3000C Series November 2018...

  • Page 113: Digital I/O Dio Connector Definitions

    DIO1: Digital Input / Output Connector Connector Type: Terminal Block 2X5 10-pin, 3.5mm pitch Definition Definition 11 12 13 14 15 XCOM+ XCOM- Definition Definition 16 17 18 19 20 2XCOM+ 2XCOM- 9 10 Spectra GmbH & Co. KG User Manual Version 1.0 vertrieb@spectra.de Spectra PowerBox 3000C Series November 2018...
  • Page 114 11 12 13 14 15 (DI9) (DO9) (DI10) (DO10) (DI11) (DO11) (DI12) (DO12) XCOM+ XCOM- Definition Definition 16 17 18 19 20 (DI13) (DO13) (DI14) (DO14) (DI15) (DO15) (DI16) (DO16) 2XCOM+ 2XCOM- 9 10 Spectra GmbH & Co. KG User Manual Version 1.0 vertrieb@spectra.de Spectra PowerBox 3000C Series November 2018...

  • Page 115: Chapter 6 Optional Module Pin Definitions And Settings

    Chapter 6 Optional Module Pin Definitions and Settings...

  • Page 116: Pb-3000C-Com Module Connector Definition And Settings

    4x DB9 Cutout for Spectra PowerBox 3000C Series CMI Module with 4x Electrical Isolated RS-232/422/485 Serial Ports, PB-3000C-ICOM 1x Universal Bracket with 4x DB9 Cutout for Spectra PowerBox 3000C Series COM3_4_1 / COM5_6_1 : RS232 / RS422 / RS485 Connector...
  • Page 117 COM3 / 4 / 5 / 6 Voltage Function Setting : Pin Define SW1 Switch Function Definition 0V(RI) ON/ON (Default) COM3 ON/OFF OFF/OFF 0V(RI) ON/ON (Default) COM4 ON/OFF OFF/OFF 0V(RI) ON/ON (Default) COM5 ON/OFF OFF/OFF 0V(RI) ON/ON (Default) COM6 ON/OFF OFF/OFF Spectra GmbH & Co. KG User Manual Version 1.0 vertrieb@spectra.de Spectra PowerBox 3000C Series November 2018...

  • Page 118: Pb-3000C-Lan-M12 Module Connector Definition And Settings

    6.2 CMI-M12 Module Connector Definition Model No. Description CMI Module with M12 Connector, 4x Intel GbE LAN, 1x Universal PB-3000C-LAN-M12 Bracket with 4x M12 Cutout for Spectra PowerBox 3000C Series PB-3000C-LAN-M12 Connector PB-3000C-LAN-M12 Module Pin Definitions Connector Type: M12 A coded 8pin connector Definition...

  • Page 119: Pb-3000A-Ign Module Connector Definition And Settings

    5 minutes 10 minutes 30 minutes 1 hour 2 hours Reserved (0 second) 24V_12V_1: 12V / 24V Car Battery Switch Definition 1-2 (Right) 24V Car Battery Input 2-3 (Left) 12V Car Battery Input Spectra GmbH & Co. KG User Manual Version 1.0 vertrieb@spectra.de Spectra PowerBox 3000C Series November 2018...

  • Page 120: Installing A Low Speed Cmi Module

    6.4 Installing a Low Speed CMI Module The applicable low speed CMI modules for Spectra PowerBox 3000C series are listed in the following table. Model No. Description CMI Module with 4x RS232/422/485 Serial Ports, 1x Universal Bracket PB-3000C-COM with 4x DB9 Cutout for Spectra PowerBox 3000C Series...
  • Page 121 2. Locate the connector of CMI-module on top side of system. 3. Insert the CMI module carefully into the CMI connector on main board. Fix it with 2 screws. Spectra GmbH & Co. KG User Manual Version 1.0 vertrieb@spectra.de Spectra PowerBox 3000C Series November 2018...
  • Page 122 4. Fasten the 2 hex nuts from the back side of front bezel. 5. Fasten the 8 D-Sub jack screws as marked on photo. Spectra GmbH & Co. KG User Manual Version 1.0 vertrieb@spectra.de Spectra PowerBox 3000C Series November 2018...

  • Page 123: Installing A High Speed Cmi Module

    6.5 Installing a High Speed CMI Module The applicable high speed CMI modules for Spectra PowerBox 3000C series are listed in the following table. Model No. Description CMI Module with 4x Intel I210-AT GbE LAN, RJ45 Port, 1x Universal PB-3000C-LAN...
  • Page 124 2. Locate the connector of CMI module on top side of system. 3. Remove the 4 ring nuts from M12 jack before attempting to install the module. Spectra GmbH & Co. KG User Manual Version 1.0 vertrieb@spectra.de Spectra PowerBox 3000C Series November 2018...
  • Page 125 4. Insert the CMI module vertically into the female connector on system’s mainboard until it’s connected firmly and fasten 4 screws to fix it. 4. Attach the M12 I/O bracket. M12 I/O bracket Spectra GmbH & Co. KG User Manual Version 1.0 vertrieb@spectra.de Spectra PowerBox 3000C Series November 2018...
  • Page 126 5. Fasten 2 hex nuts from the back side of the bracket. 6.Fasten the 4 ring nuts onto M12 jacks. Spectra GmbH & Co. KG User Manual Version 1.0 vertrieb@spectra.de Spectra PowerBox 3000C Series November 2018...

  • Page 127: Installing A Pb-3000C-Poe Module

    6.6 Installing a CFM-PoE Module The applicable high speed CMI modules for Spectra PowerBox 3000C series are listed in the following table. Model No. Description PB-3000C-PoE PoE Control Function Module, Power Boost 44-57V Daughterboard CMI-M12 PoE Module Pin Definitions Connector Type: M12 A coded 8pin connector POE type: Midspan Please note that the M12 Pin Definitions will change as the following table when the PB- 3000C-PoE module is inserted onto the PB-3000C-LAN Module.
  • Page 128 1. Insert the CMI module vertically into the female connector on system’s mainboard until it’s connected firmly and fasten 4 copper pillars to fix it. 2. Insert the PB-3000C-PoE module vertically into the female connector on CMI module until it’s connected firmly. Spectra GmbH & Co. KG User Manual Version 1.0 vertrieb@spectra.de Spectra PowerBox 3000C Series November 2018...
  • Page 129 3. Turn over the heatsink and locate the two places which were marked by red circles. 4. Please paste the 2 thermal pads onto the heatsink carefully. Spectra GmbH & Co. KG User Manual Version 1.0 vertrieb@spectra.de Spectra PowerBox 3000C Series November 2018...
  • Page 130 5. Please paste the 1 thermal pad onto the coil of the PB-3000C-PoE module carefully. 6. Please paste the heatsink onto the PB-3000C-PoE module carefully. Spectra GmbH & Co. KG User Manual Version 1.0 vertrieb@spectra.de Spectra PowerBox 3000C Series November 2018...
  • Page 131 7. Fasten 4 screws to fix it. 6. Please paste the thermal pad onto the heatsink carefully. Spectra GmbH & Co. KG User Manual Version 1.0 vertrieb@spectra.de Spectra PowerBox 3000C Series November 2018...

  • Page 132: Installing A Pb-3000A-Ign Power Ignition Module

    6.7 Installing a PB-3000A-IGN Power Ignition Module 1. Locate power ignition connector on main board. 2. Insert the power ignition module carefully into the connector on main board. Fasten 2 screws to fix it. Spectra GmbH & Co. KG User Manual Version 1.0 vertrieb@spectra.de Spectra PowerBox 3000C Series November 2018...

  • Page 133: Installing An External Fan

    1. Prepare an external fan. Loosen the 2 screws halfway on mounting frame before attempting to install it. 2. Slide the FAN into the middle groove of chassis as illustrated. Tighten the 2 screws to fix it onto chassis. Spectra GmbH & Co. KG User Manual Version 1.0 vertrieb@spectra.de Spectra PowerBox 3000C Series November 2018...
  • Page 134 3. Move the fan to the center of chassis. Tighten the 2 screws marked on photo to secure it. 4. Connect the FAN cable to external fan power connector at rear panel. Spectra GmbH & Co. KG User Manual Version 1.0 vertrieb@spectra.de Spectra PowerBox 3000C Series November 2018...

  • Page 135: Installing An Internal Fan

    6.9 Installing an Internal FAN (For Spectra PowerBox 32Cx only) Model No. Description PB-32A0-FAN Exhaling Fan with 4pin Connector, Universal Bracket Inhaling Fan with 4pin Connector, Universal Bracket PB-32A0-FAN1 1. Unscrew 6 screws to remove 3 I/O brackets from rear panel.
  • Page 136 3. Connect the FAN power cable to the power connector on main board.as marked on photo. Spectra GmbH & Co. KG User Manual Version 1.0 vertrieb@spectra.de Spectra PowerBox 3000C Series November 2018...
  • Page 137 Spectra GmbH & Co. KG Spectra GmbH & Co. KG Spectra (Schweiz) AG Mahdenstr. 3 Gewerbepark Ost 1 Flugplatzstr. 5 72768 Reutlingen 4621 Sipbachzell (Wels) 8404 Winterthur Germany Austria Switzerland Phone Phone +49 (0) 7121 1432-10 +43 (0) 7240 20190...
