5.2.1 DIO Connector Definition

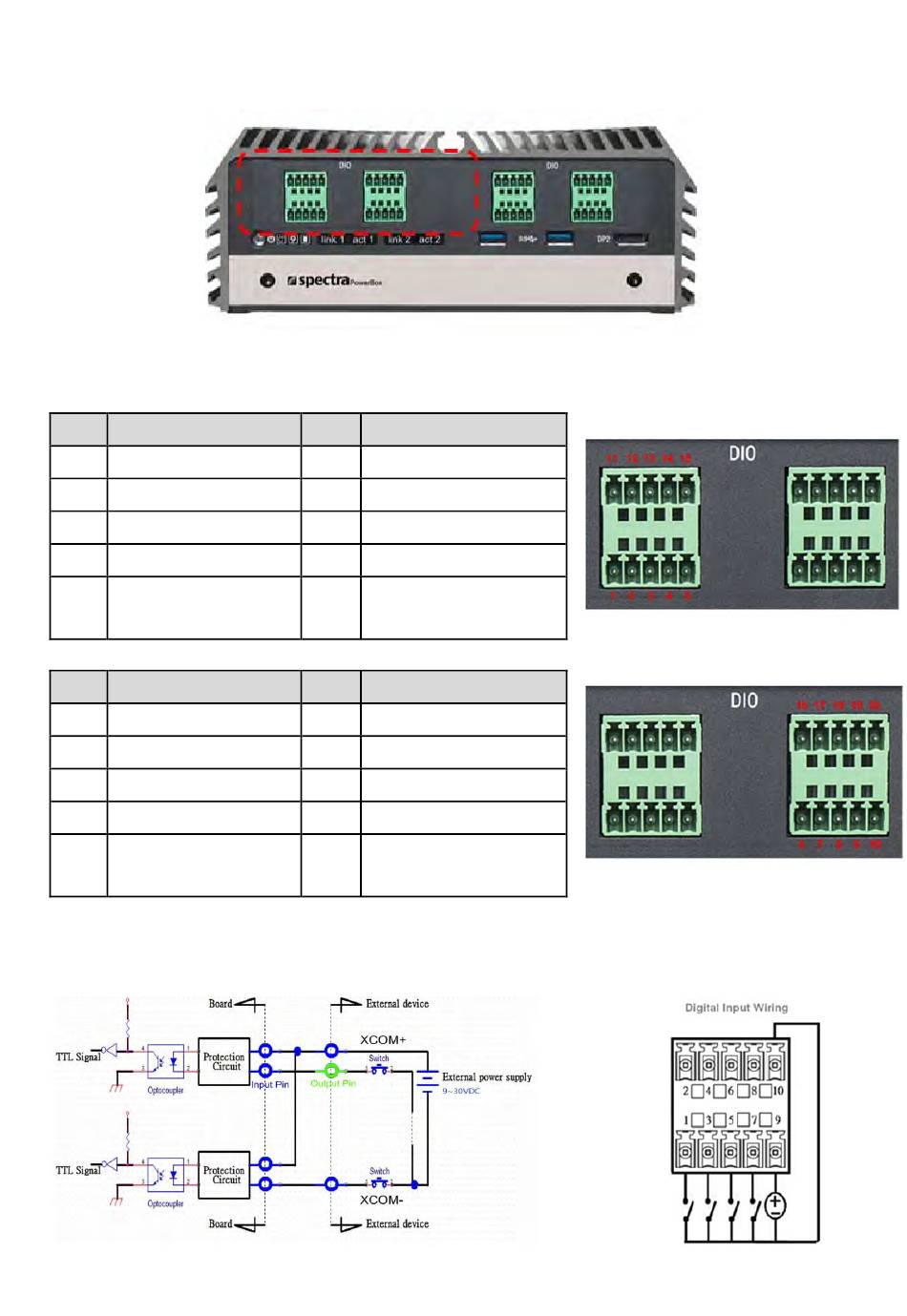

DIO1: Digital Input / Output Connector
Connector Type: Terminal Block 2X5 10-pin, 3.5mm pitch
Pin Definition
1 DI1
2 DI2
3 DI3
4 DI4
XCOM+
5
(DC INPUT)
Pin Definition
6 DI5
7 DI6
8 DI7
9 DI8
2XCOM+
10
(DC INPUT)
Reference Input Circuit
Spectra GmbH & Co. KG
sales@spectra.de
Pin Definition
11 DO1
12 DO2
13 DO3
14 DO4
XCOM-
15
(GND)
Pin Definition
16 DO5
17 DO6
18 DO7
19 DO8
2XCOM-
20
(GND)
