6.0 Digital Audio Interface

The CS18101, CS18102, and CM-2 support four bi-directional synchronous serial
interfaces. The CS18100 supports one bi-directional synchronous serial interface. All
interfaces operate in master mode with DAO1_SCLK as the bit clock and FS1 as the
frame clock. A sample period worth of synchronous serial data includes two (or four)
audio channels. CobraNet supports two synchronous serial bit rates: 48 Khz and 96 KHz.
However, 96 kHz sample rate is not available when using CS18102 with 16X16 channels.
Bit rate is selected by the modeRateControl variable. All synchronous serial interfaces
operate from a common clock at the same bit rate.
D A O 1 _ D A T A 0 / D A I1 _ D A T A 0
*D A O 1 _ D A T A 1 / D A I1 _ D A T A 1
*D A O 1 _ D A T A 2 / D A I1 _ D A T A 2
*D A O 1 _ D A T A 3 / D A I1 _ D A T A 3
* N o t p re s e n t in C S 1 8 1 0 0 .

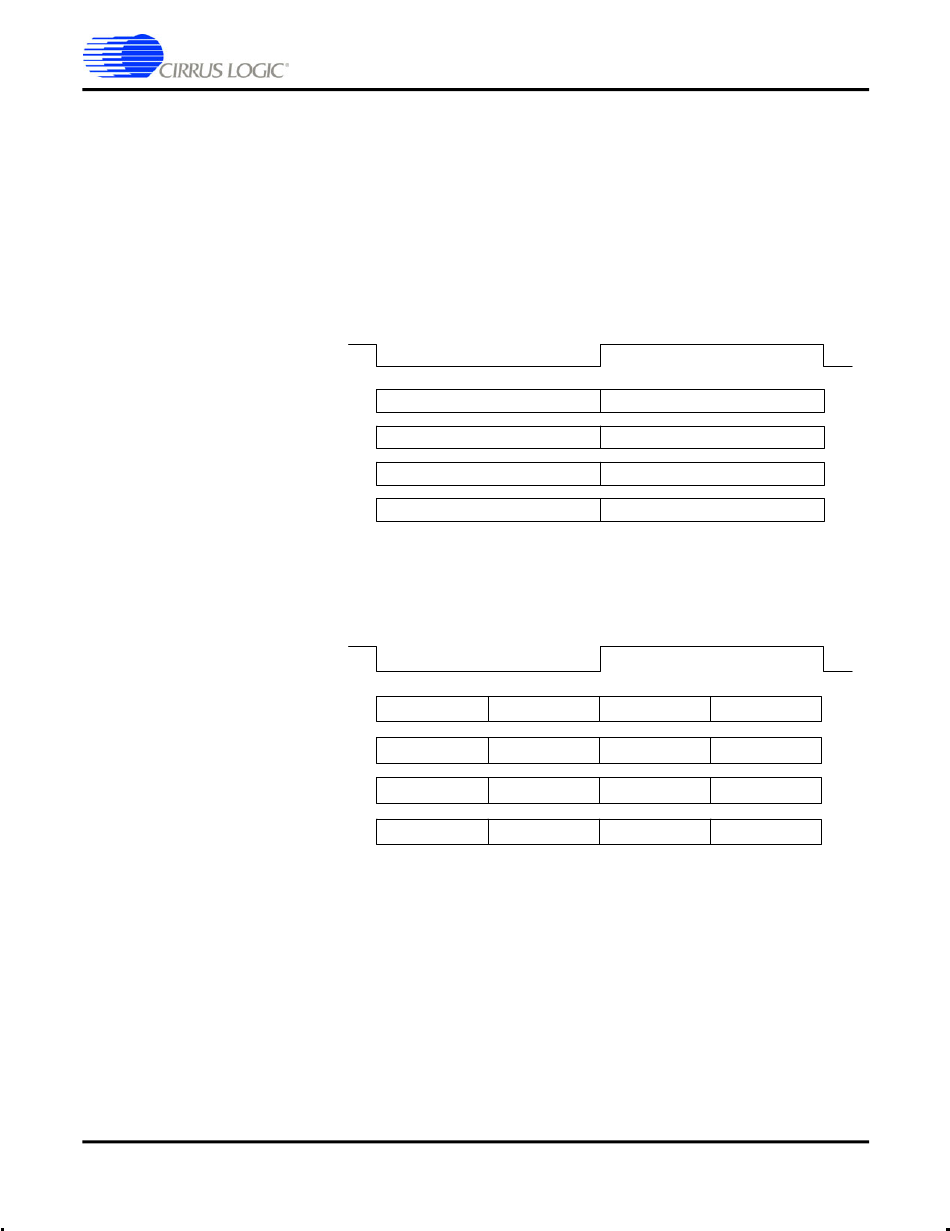

Figure 4. Channel Structure for Synchronous Serial Audio at 64FS (One Sample Period) - CS18100 & CS18101
DAO1_DATA0 / DAI1_DATA0
DAO1_DATA1 / DAI1_DATA1
DAO1_DATA2 / DAI1_DATA2
DAO1_DATA3 / DAI1_DATA3

Figure 5. Channel Structure for Synchronous Serial Audio at 128FS (One Sample Period) - CS18102

Default channel ordering is shown above. Note that the first channel always begins after
the rising or falling edge of FS1 (depending on the mode).
DAI1_SCLK period depends on the sample rate selected. Up to 32 significant bits are
received and buffered by the DSP for synchronous inputs. Up to 32 significant bits are
transmitted by the DSP for synchronous outputs. Bit 31 is always the most significant
(sign) bit. A 16-bit audio source must drive to bit periods 31-16 with audio data and bits
15-0 should be actively driven with either a dither signal or zeros. Cirrus Logic
recommends driving unused LS bits to zero.
