Synchronization

5.0 Synchronization
Figure 3
circuitry allows the synchronization modes documented below to be achieved. Modes are
distinguished by different settings of the multiplexors and software elements.
VCXO
DAC
24.576 MHz
±100 PPM
MCLK_IN
MCLK_SEL
RefClkEnable
RefClkPolarity
REFCLK
BeatReceived
5.1

Synchronization Modes

Clock synchronization mode for conductor and performer roles is independently
selectable via management interface variables syncConductorClock and
syncPerformerClock. The role (conductor or performer) is determined by the network
environment including the conductor priority setting of the device and the other devices on
the network. It is possible to ensure you will never assume the conductor role by selecting
a conductor priority of zero. However, it is not reasonable to assume that by setting a high
conductor priority, you will always assume the conductor role. For more information, refer
to CobraNet Programmer's Reference Manual.
16

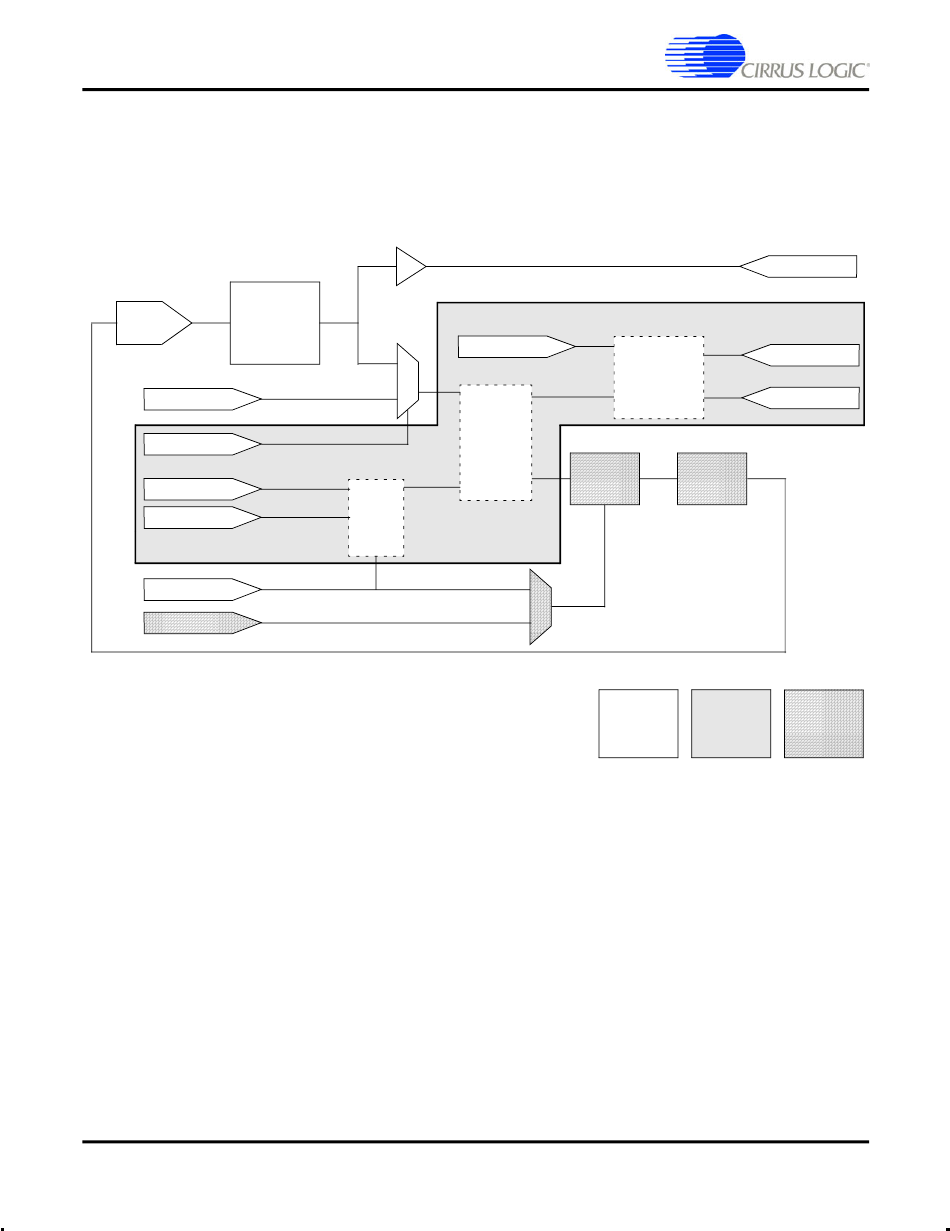

shows clock related circuits for the CS181xx and board design (CM-2). This
