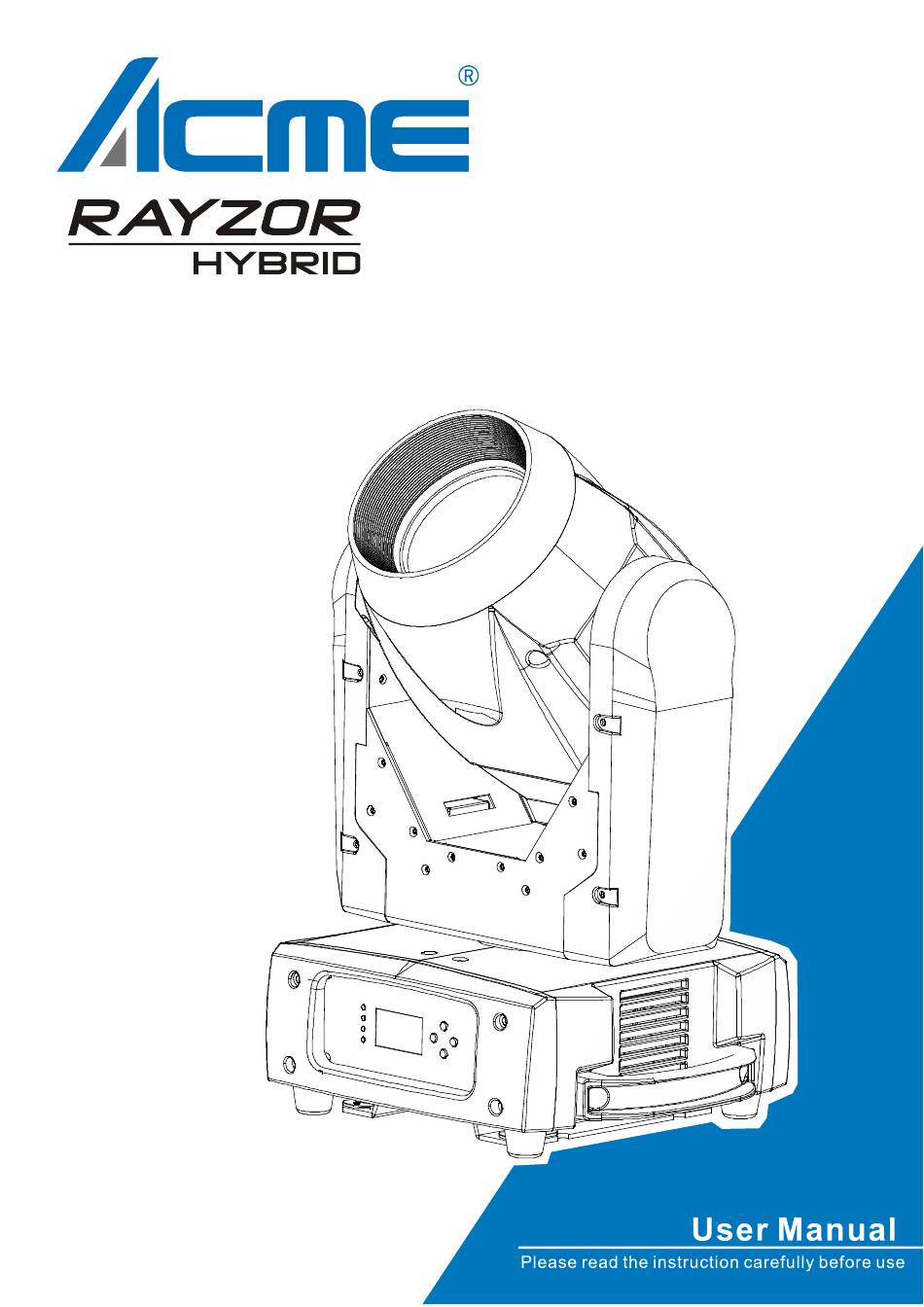

ACME RAYZOR HYBRID User Manual
  1. Manuals
  2. Brands
  3. ACME Manuals
  4. Lighting Equipment
  5. RAYZOR HYBRID
  6. User manual

ACME RAYZOR HYBRID User Manual

Hide thumbs Also See for RAYZOR HYBRID:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading

Related Manuals for ACME RAYZOR HYBRID

Summary of Contents for ACME RAYZOR HYBRID

  • Page 2: Table Of Contents

    CONTENTS 1. Safety Instructions ..................2 2. Technical Specifications ................. 4 3. Control Panel ....................6 4. Color Wheel/Gobo Wheels ................7 5. How To Set The Unit ..................7 5.1 Main Function ..................7 5.2 Home Position Adjustment ..............14 6.

  • Page 3: Safety Instructions

    1. Safety Instructions Please read the instruction carefully which includes important information about the installation, usage and maintenance. WARNING Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that they also receive this instruction manual. Important: Damages caused by the disregard of this user manual are not subject to warranty.
  • Page 4 Avoid entanglement of the power cord with other wires.  The minimum distance to objects/surface must be more than 2 meters.  Disconnect mains power before fuse replacement or servicing.  Replace fuse only with the same type.  In the event of serious operating problem, stop using the unit immediately. ...

  • Page 5: Technical Specifications

    2. Technical Specifications Power Voltage: 100-240V~, 50/60Hz Power Consumption: 190W Light Source: PU55-90FWL Angle: Beam Angle: 2°/4°/6°/8°/10° 3°/6°/9°/12°/15°/19°(with zoom lens) Spot Angle: Static Gobo: 10°15°(with zoom lens) Rotating Gobo: 10°17°(with zoom lens) Wash Angle: 15°28° Movement: Pan: 540° Tilt: 270° Pan/Tilt Resolution: 16 bit Dimmer/Shutter: Smooth dimming from 0-100%;...
  • Page 6 Construction: Display: LCD display Data In/Out: 3-pin & 5-pin XLR Power in/out: Power Connector in/out Protection Rating: IP20 Features: Motorized focus 1 x prism: 3-facets prism, rotating in both directions Outstanding color macro effect Independent frost effect Integrated three features: beam, spot, and wash Dimensions/Weight: 312x256x452mm, 13.2kgs 12.3”x10.1”x17.8”in, 29.1lbs...

  • Page 7: Control Panel

    3. Control Panel 1. LED: DMX input present PRIMARY Primary mode SECONDARY Secondary mode SOUND Sound activation 2. DISPLAY: To show the various menus and the selected function 3. Button: MENU To enter into move backward or leave the menu To go backward to move up in the menu DOWN To go forward to move down in the menu...

  • Page 8: Color Wheel/Gobo Wheels

    4. Color Wheel/Gobo Wheels DANGER! Install the color wheel/gobo wheels with the device switched off only. Unplug from mains before changing color wheel/gobo wheels! CAUTION: Never unscrew the screws of the rotating gobo as the ball bearing will otherwise be opened! 5.
  • Page 10 DMX Functions To select DMX Functions, press the ENTER button to confirm, use the UP/DOWN button to select DMX Address, DMX Channel Mode or DMX State. DMX Address To select DMX Address, press the ENTER button to confirm. Use the UP/DOWN button to adjust the address from 001 to 512, press the ENTER button to store.
  • Page 11 P/T Feedback To select P/T Feedback, press the ENTER button to confirm. Use the UP/DOWN button to select No (Pan or tilt’s position will not feedback while out of step) or Yes (Feedback while pan/tilt out of step), press the ENTER button to store. Press the MENU button back to the last menu or let the unit idle 30 seconds to exit menu mode.
  • Page 12 Pri./Sec. Mode To select Pri./Sec. Mode, press the ENTER button to confirm. Use the UP/DOWN button to select Primary, Secondary 1 or Secondary 2, press the ENTER button to store. Press the MENU button back to the last menu or let the unit idle 30 seconds to exit menu mode. Sound Sense To select Sound Sense, press the ENTER button to confirm.
  • Page 13 Fixture Test To select Fixture Test, press the ENTER button to confirm, use the UP/DOWN button to select Auto Test or Manual Test. Auto Test Select Auto Test, press the ENTER button to confirm, the unit will run built-in programs to automatically test pan, tilt, color, gobo, gobo rotation, prism, prism rotation, focus, etc.
  • Page 14 Pan/Tilt Select Pan/Tilt, press the ENTER button to confirm, use the UP/DOWN button to select No(normal) or Yes (the unit will run built-in program to reset pan and tilt to their home positions), press the ENTER button to store. Press the MENU button to exit. Effect Select Effect, press the ENTER button to confirm, use the UP/DOWN button to select No(normal) or Yes (the unit will run built-in program to reset effect to their home positions), press the ENTER...

  • Page 15: Home Position Adjustment

    Select the PAN INVERT menu and the fixture will run the pan invert mode. Select the TILT INVERT menu and the fixture will run the tilt invert mode. Select the RESET DEVICE menu, the WARM RESET/COLD RESET option will be displayed. When WARM RESET is selected, the fixture will start a warm reset, and exit when COLD RESET is selected.
  • Page 16 Color Enter offset mode, Select Color, press the ENTER button to confirm, the present position will blink on the display, use the UP/DOWN button to offset the value from -128 to 127, press the ENTER button to store. Press the MENU button to exit. Gobo 1 Enter offset mode, Select Gobo 1, press the ENTER button to confirm, the present position will blink on the display, use the UP/DOWN button to offset the value from -128 to 127, press the ENTER...

  • Page 17: Control By Universal Dmx Controller

    6. Control By Universal DMX Controller 6.1 DMX512 Connection 1. At last unit, the DMX cable has to be terminated with a terminator. Solder a 120-ohm 1/4W resistor between pin 2(DMX-) and pin 3(DMX+) into a 3-pin XLR-plug and plug it in the DMX-output of the last unit.

  • Page 18: Address Setting

    6.2 Address Setting If you use a universal DMX controller to control the units, you have to set DMX address from 1 to 512 so that the units can receive DMX signal. Press the MENU button to enter menu mode, select DMX Functions, press the ENTER button to confirm, use the UP/DOWN button to select DMX Address, press the ENTER button to confirm, the present address will blink on the display, use the UP/DOWN button to adjust the address from 001 to 512, press the ENTER button to store.
  • Page 19 192-255 Show 4 PAN/TILT MACRO 000-007 Null 008-015 Macro 1 016-023 Macro 2 024-031 Macro 3 032-039 Macro 4 040-047 Macro 5 048-055 Macro 6 056-063 Macro 7 064-071 Macro 8 072-079 Macro 9 080-087 Macro 10 088-095 Macro 11 096-103 Macro 12 104-111...
  • Page 20 040-042 Color4+Color5 043-045 Color5 046-048 Color5+Color6 049-051 Color6 052-054 Color6+Color7 055-057 Color7 058-060 Color7+Color8 061-063 Color8 064-127 Color Wheel Indexing 128-189 Counter-Clockwise Rotation, Fast to Slow 190-193 Stop 194-255 Clockwise Rotation, Slow to Fast GOBO WHEEL 1 000-007 Open 008-016 Gobo1 017-025 Gobo2...
  • Page 21 194-255 Clockwise Rotation, Slow to Fast R-GOBO 2 000-127 Index 128-189 Clockwise Rotation, Fast to Slow 190-193 Stop 194-255 Counter-Clockwise Rotation, Slow to Fast ANGLE/FROST 000-007 008-128 Angle 129-255 Frost PRISM 000-007 No Effect 008-255 Prism Effect R-PRISM Index 000-127 Counter-Clockwise Rotation, Fast to Slow 128-191 Clockwise Rotation, Slow to Fast...
  • Page 22 210-219 Enable Blackout while Pan/Tilt Color Gobo Moving 220-229 Disable Blackout while Pan/Tilt Color Gobo Moving 230-255 No Function 20 Channels (Mode 2): CHANNEL VALUE FUNCTION 000-255 0°540° 000-255 PAN FINE TILT 000-255 0°270° 000-255 TILT FINE PAN/TILT SPEED 000-255 Fast to Slow SHOW MODE 000-015...
  • Page 23 168-175 Macro 21 176-183 Macro 22 184-191 Macro 23 192-199 Macro 24 200-207 Macro 25 208-215 Macro 26 216-223 Macro 27 224-231 Macro 28 232-239 Macro 29 240-247 Macro 30 248-255 Macro 31 PAN/TILT MACRO SPEED 000-255 Fast to Slow COLOR 000-015 Open...
  • Page 24 086-094 Gobo3 Shaking 095-103 Gobo4 Shaking 104-112 Gobo5 Shaking 113-121 Gobo6 Shaking 122-127 Gobo7 Shaking 128-189 Clockwise Rotation, Fast to Slow 190-193 Stop 194-255 Counter-Clockwise Rotation, Slow to Fast GOBO WHEEL 2 000-007 Open 008-016 Gobo1 017-025 Gobo2 026-034 Gobo3 035-043 Gobo4 044-052...
  • Page 25 016-131 Strobe from Slow to Fast 132-139 Open 140-181 Fast Close Slow Open 182-189 Open 190-231 Fast Open Slow Close 232-239 Open 240-247 Random Strobe 248-255 Open DIMMER 000-255 0%100% 000-255 DIMMER FINE FUNCTION 000-069 No Function 070-079 Enable Blackout while Pan/Tilt Moving 080-089 Disable Blackout while Pan/Tilt Moving 090-099...

  • Page 26: Troubleshooting

    7. Troubleshooting Following are a few common problems that may occur during operation. Here are some suggestions for easy troubleshooting: A. The unit does not work, no light and the fan does not work 1. Check the connect power and main fuse. 2.
  • Page 28 Innovation, Quality, Performance...
