Description of PROFIBUS PA interface

The documentation is only complete when it is used in combination with the relevant

documentation of the level meter.

Supplementary instructions

Table of Contents

Need help?

Do you have a question about the OPTIWAVE 5200 C and is the answer not in the manual?

Questions and answers

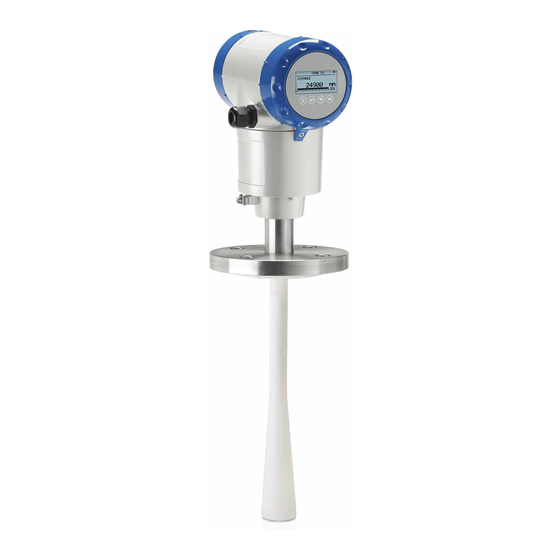

Summary of Contents for KROHNE OPTIWAVE 5200 C

Page 1 Description of PROFIBUS PA interface Description of PROFIBUS PA interface Description of PROFIBUS PA interface The documentation is only complete when it is used in combination with the relevant documentation of the level meter. © KROHNE 10/2013 - 4003066901 - MA OPTIWAVE5200C-PA-R01-en-AD...
Page 2: Table Of Contents
CONTENTS OPTIWAVE 5200 C 1 Safety instructions 1.1 Installation........................3 1.2 Scope of the document..................... 3 1.3 Scope of delivery....................... 3 2 PROFIBUS PA 2.1 Software history ....................... 4 2.2 Device description ......................4 2.3 Function blocks and the PROFIBUS PA Profile ............... 4 2.4 Technical data........................
Page 3: Safety Instructions
SAFETY INSTRUCTIONS OPTIWAVE 5200 C 1.1 Installation Install the GSD files in your system. If it is necessary to use the process control system to change the settings of the device, install the DD files. If it is necessary to use PACTware™ to change the settings of the device, install PACTware™...
Page 4: Profibus Pa
PROFIBUS PA OPTIWAVE 5200 C 2.1 Software history Issued Signal converter Application program System integration Mth./ Hardware Firmware Hardware Software Driver Version Model name year 08/13 PROFIBUS PA V2.42.0.42 Simatic HW Config GSD (device KR014554.GSD OPTIWAVE module Ident. PCS7 specific)
Page 5: Technical Data
PROFIBUS PA OPTIWAVE 5200 C The device has 4 slots. The Analog Input Function Blocks use slot 1 (as a virtual module). The user cannot change this setting. But the user can change the measurement name and unit for each Function Block. Refer to the table that follows:...
Page 6: Electrical Connection
ELECTRICAL CONNECTION OPTIWAVE 5200 C 3.1 Topology of a PROFIBUS PA network The following diagram shows a typical network configuration with PROFIBUS PA devices in hazardous and non-hazardous areas, as well as the connection of conventional non-PROFIBUS devices (e.g. with 4 … 20 mA signals) to a PROFIBUS network.
Page 7: Electrical Connection For Signal Converter
ELECTRICAL CONNECTION OPTIWAVE 5200 C 3.2 Electrical connection for signal converter Bus cable - Shielding and grounding The statements of the FISCO model only apply if the used bus cable meets the required specifications. In order to ensure optimum electromagnetic compatibility of systems it is important that the system components, and in particular the bus cables, are shielded.
Page 8: Commissioning / Operation
COMMISSIONING / OPERATION OPTIWAVE 5200 C 4.1 Hardware settings There is a DIP switch block with 8 switches on the level transmitter module to set the PROFIBUS device address and prevent changes to the station address from the network. Figure 4-1: How to use the DIP switches to change the station address...
Page 9 COMMISSIONING / OPERATION OPTIWAVE 5200 C Station address: DIP switch positions Function DIP switch positions Value ("OFF") Value ("ON") Hardware Station address + 64 + 32 + 16 1 If this DIP switch is set to "ON", you cannot use the network bus to change the station address The station address is calculated by adding the "ON"...
Page 10: Gsd Files
Follow the instructions in the manual of the host supplier when installing GSD file and supplementary files. The GSD files of all KROHNE devices with PROFIBUS PA interface are available at the KROHNE internet site for download. INFORMATION!
Page 11: Configuration Of Cyclic Data Transfer
COMMISSIONING / OPERATION OPTIWAVE 5200 C Profile specific Ident. Number (9700hex) Profile specific Ident. Number (9700hex) Profile specific Ident. Number (9700hex) Profile specific Ident. Number (9700hex) The 4 AI-FB are available only for cyclic data transfer. Cyclic PROFIBUS services cannot supply device-specific diagnosis data.
Page 12: Cyclic Data
COMMISSIONING / OPERATION OPTIWAVE 5200 C 4.5 Cyclic data In a PROFIBUS network cyclic data is described from the point of view of the master. Therefore input data is transferred from the slave to the master while output data is transferred from the master to the slave.
Page 13 COMMISSIONING / OPERATION OPTIWAVE 5200 C Status value Status value Status value Status value The PROFIBUS interface of the level transmitter supports the PROFIBUS-PA Profile Version 3.02. In this Profile the Condensed Status and Diagnosis has replaced by default the Classic Status and Diagnosis of the PROFIBUS-PA Profile Version 3.0.
Page 14 COMMISSIONING / OPERATION OPTIWAVE 5200 C Status = bad Quality Quality substatus Limits = non-specific (not provided by the device) = passivated (diagnostic alerts inhibited) = maintenance alarm, more diagnosis available = process related, no maintenance = function check / local override; value not usable...
Page 15 COMMISSIONING / OPERATION OPTIWAVE 5200 C Status = Limits Quality Quality substatus Limits = ok = low limited = high limited = constant Check the first two quality bits in order to get the quality information of the measurement value: •...
Page 16 COMMISSIONING / OPERATION OPTIWAVE 5200 C Status = bad Quality Quality substatus Limits = non-specific = configuration error = not connected = device failure = sensor failure = no communication (last usable value) = no communication (no usable value) = out of service...
Page 17: Diagnosis
COMMISSIONING / OPERATION OPTIWAVE 5200 C Status = Limits Quality Quality substatus Limits = ok = low limited = high limited = constant Check the first two quality bits in order to get the quality information of the measurement value: •...
Page 18 COMMISSIONING / OPERATION OPTIWAVE 5200 C Error appears Error disappears Hardware failure electronics Restart the device. If the error occurs again: send the device back to the manufacturer with an indication of the error. Electronic temperature too low Electronic temperature below -40°C. Comply with the application limits with regard to temperature of the medium and ambient temperature.
Page 19 COMMISSIONING / OPERATION OPTIWAVE 5200 C Converter ROM Error Replace the signal converter. For more data, refer to the handbook. Sensor EEPROM Error Replace the signal converter. For more data, refer to the handbook. Sensor RAM Error Replace the signal converter. For more data, refer to the handbook.
Page 20 COMMISSIONING / OPERATION OPTIWAVE 5200 C Temperature Below -35°C Measure the ambient temperature. De-energize the device until the ambient temperature is back in the given range. If the temperature does not stay in the correct range, make sure that there is insulation around the signal converter.
Page 21: Notes
NOTES OPTIWAVE 5200 C 10/2013 - 4003066901 - MA OPTIWAVE5200C-PA-R01-en- www.krohne.com...
Page 22 NOTES OPTIWAVE 5200 C www.krohne.com 10/2013 - 4003066901 - MA OPTIWAVE5200C-PA-R01-en-...
Page 23 NOTES OPTIWAVE 5200 C 10/2013 - 4003066901 - MA OPTIWAVE5200C-PA-R01-en- www.krohne.com...
Page 24 • Measuring systems for the marine industry Head Office KROHNE Messtechnik GmbH Ludwig-Krohne-Str. 5 47058 Duisburg (Germany) Tel.:+49 (0)203 301 0 Fax:+49 (0)203 301 10389 info@krohne.de The current list of all KROHNE contacts and addresses can be found at: www.krohne.com...
