Decon wheel Netti I Assembly Instructions

Download this manual

Assembly instructions for Netti I, II, III

1. Remove wheels and brakes.

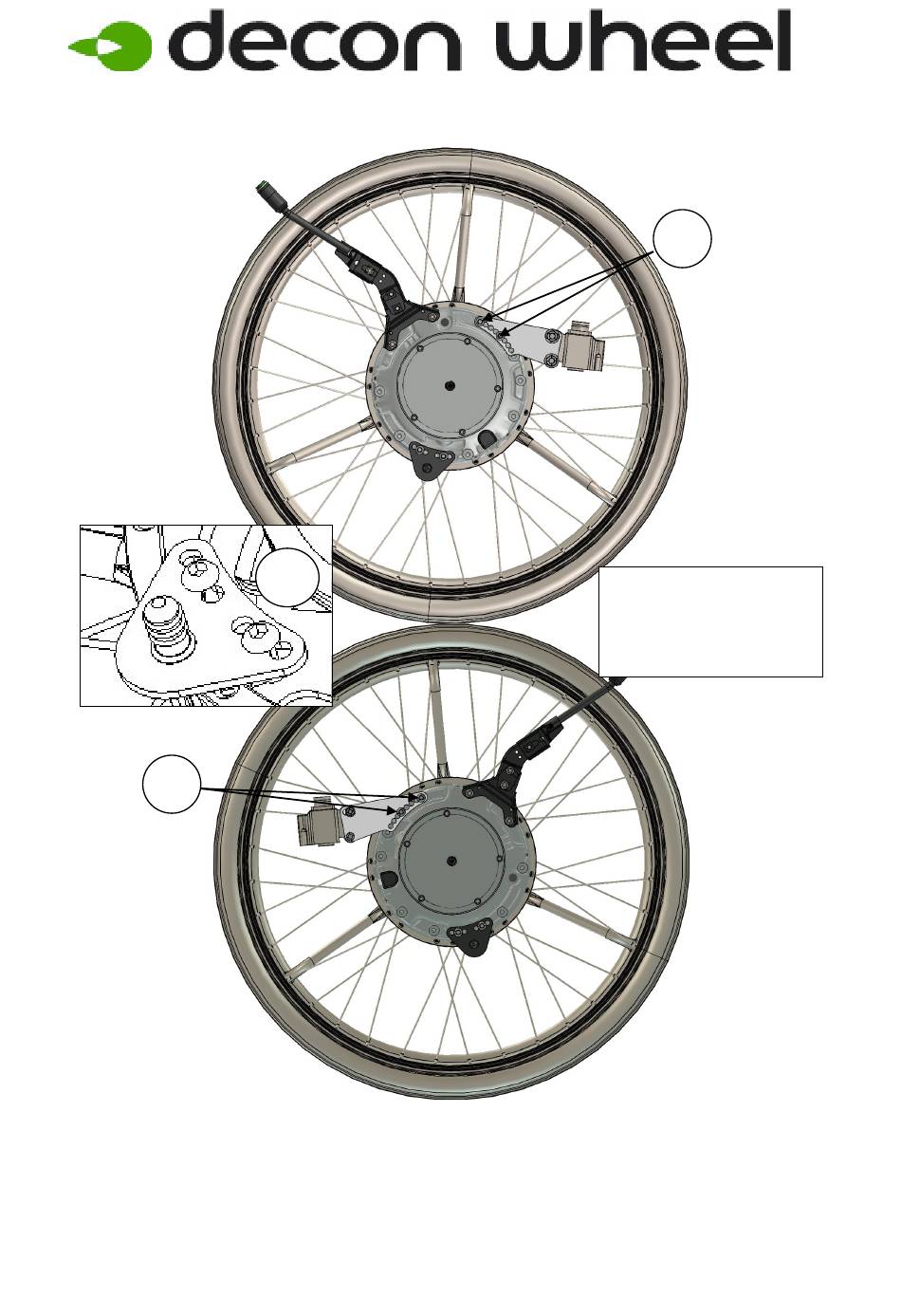

2. Check the correct placement for the eMove, and that it is axle Ø12,7 x 55,5 with

Part Number: XOE-2530E-A0 and Bracket with Part Number: 300052 and that the

Stop pin is assembled with Part Numbers: 320003.

MEM6037P and MEM6038P

Note! Do not forget to

mount M6 washers (11)

between eMove and the

bracket.

4/15/2021

Need help?

Do you have a question about the Netti I and is the answer not in the manual?

Page 1 Assembly instructions for Netti I, II, III MEM6037P and MEM6038P 1. Remove wheels and brakes. Note! Do not forget to mount M6 washers (11) between eMove and the bracket. 2. Check the correct placement for the eMove, and that it is axle Ø12,7 x 55,5 with Part Number: XOE-2530E-A0 and Bracket with Part Number: 300052 and that the Stop pin is assembled with Part Numbers: 320003.
Page 2 3. Assembly the plates according to pictures. Parts for right side mounting: Item No. Part Number Description 405239 Nordlock Washer XSM16M Nut M16X1 Low 100 400 008 Spacer XSM8X45 Screw Round M8 x 45 XSM8ML Lock Nut M8 HW085 Hub Sleeve 12,7 x 55,5 XSM16FJ Single Coil Washer M16 100 400 077...
Page 3 Åtdragningsmoment / Tightening torque Metriska grovgängor, stål. Metric coarse threads, steel. Gänga / Thread Åtdragningsmoment / Tightening torque 1,2 Nm 3 Nm 6 Nm 10 Nm 25 Nm 50 Nm 85 Nm Navhylsa. Sleeve. Gänga / Thread Åtdragningsmoment / Tightening torque M16x1 30 Nm M18x1...

Netti iiNetti iiiMem6037pMem6038p
