Handle Installation; Caster Installation - Extreme Tools EX4106TCS Manual

ASSEMBLY

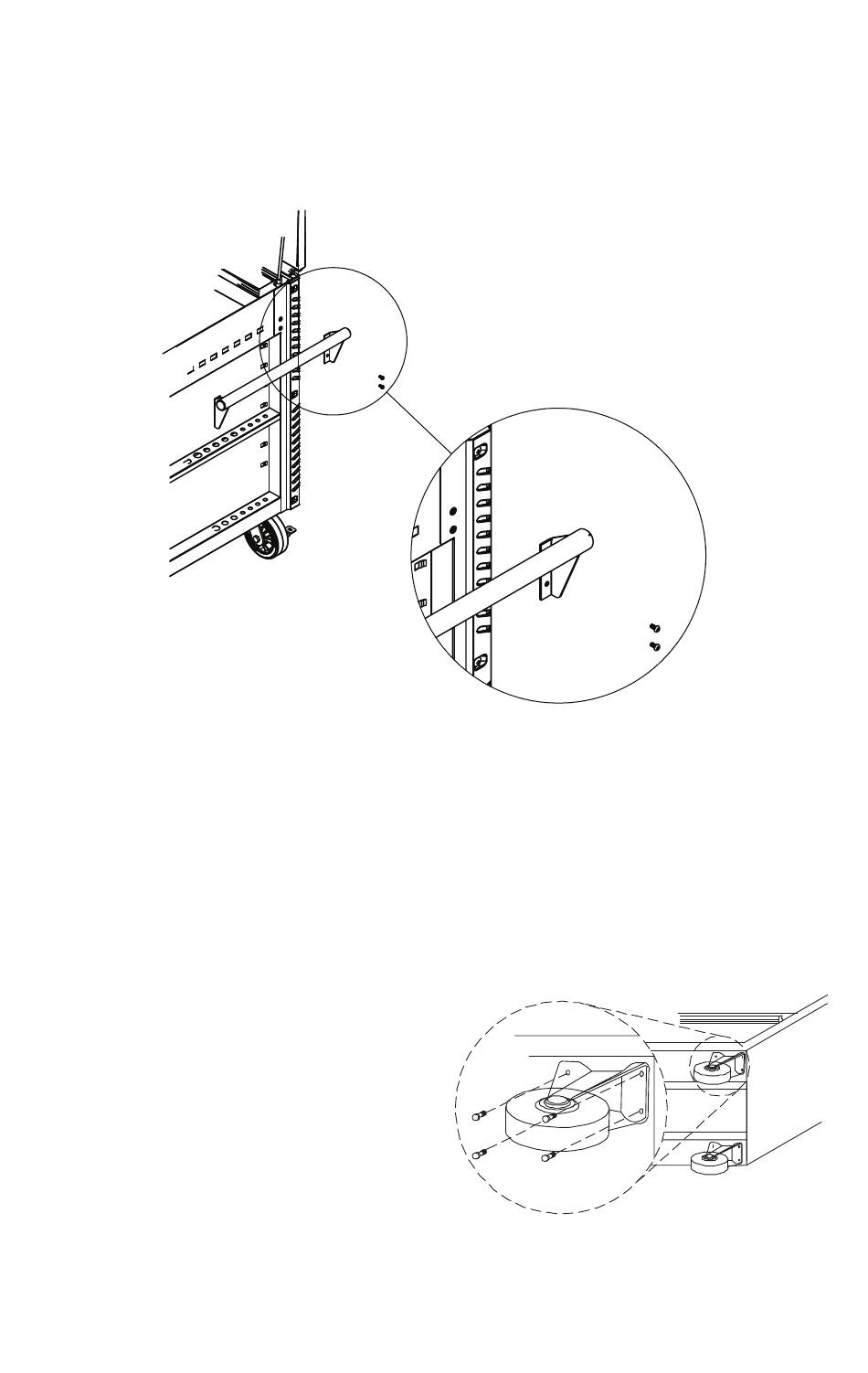

Handle Installation

NOTE: Install the handle first to make it easier to move the tool cabinet.
Position the handle over the holes in the cabinet and attach with the provided
(4) M6 Socket Head Screws. Tighten securely.

Caster Installation

NOTE: Lock the lid / sliding top and
drawers BEFORE proceeding!
Tool Cart is heavy. Installation requires
assistance of another adult to complete
this step.
With assistance, carefully lay the cabinet
on its back onto a soft surface such as a
mat to protect the cabinet finish.
Position each swivel casters on the bottom
of the cabinet.
Use (4) M10 hex bolts to install each
caster. (Please note: M10 hex bolts have
built-in washers and do not require an
additional washers.) Insert M10 Hex Bolts
through the bottom of the caster and then
insert the end of the bolts into the holes
in the bottom of the Cabinet. Tighten all 4
bolts securely. LOCK CASTER!
Repeat instructions above for installing all
casters. LOCK ALL CASTERS BEFORE
lifting cart to upright postion!
