Extreme Tools EX7215CHBK Quick Start Manual

Painted steel chest

Advertisement

Quick Links

R

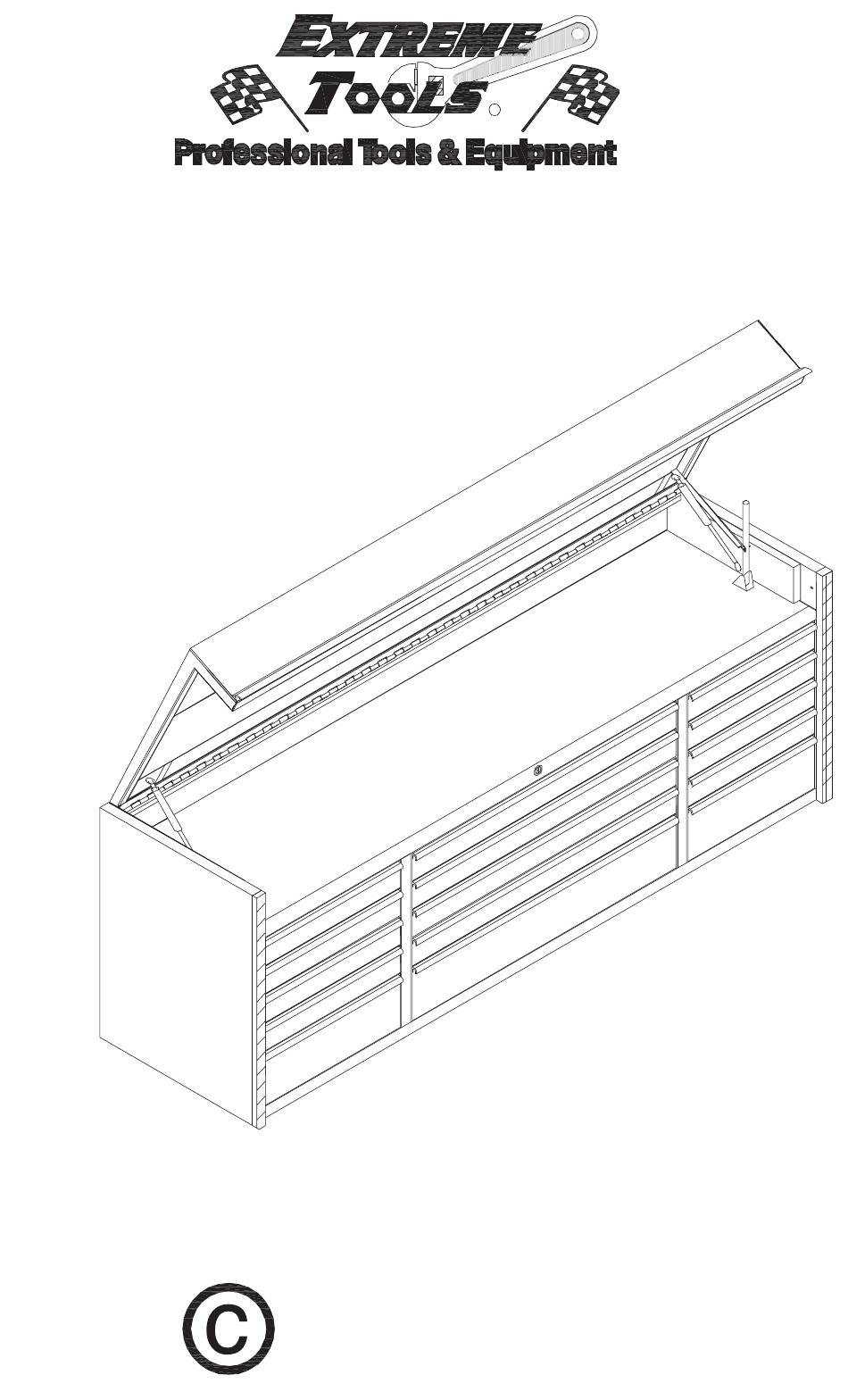

Painted Steel Chest Manual
EX7215CHBK
EX7215CHBL
EX7215CHRD
Extreme Tools Inc.
740 Frontenac Road
Naperville, IL 60563
630-369-9303

Advertisement

loading
Need help?

Need help?

Do you have a question about the EX7215CHBK and is the answer not in the manual?

Questions and answers

Summary of Contents for Extreme Tools EX7215CHBK

  • Page 1 Painted Steel Chest Manual EX7215CHBK EX7215CHBL EX7215CHRD Extreme Tools Inc. 740 Frontenac Road Naperville, IL 60563 630-369-9303...
  • Page 2 Parts List Ref # Description Part # Rubber Bumper 314002 The keys are taped Detent 314059 to the top storage Gas Strut 303081 area of the chest. Trim 315003 Replacement keys may Drawer 229615 be ordered using the code Slide Set 300012-300013 that appears on the face Drawer...
  • Page 3 Operation Drawer Removal Pull the drawer out so that it’s Push up (one side) almost fully extended. Push up on the black release lever on one side, while pulling down on the black release lever on the other side. While holding the levers in the positions as instructed above, pull the drawer outward until it is released from the drawer slide.
  • Page 4 Safety WARNING Do not attempt to lift the chest by its side handles using chains, ropes or lifting devices, if two people cannot lift the chest. Use a forklift placed under the bottom of the chest if this situation occurs. The side handle may fail, which may cause personal injury or damage to the product.

This manual is also suitable for:

Ex7215chblEx7215chrd
