User's Manual | ACOM 700S | 1.8-54 MHz Linear Amplifier

Menu CAT/AUX SETTINGS (Selection of CAT/AUX interface)

5.3.
After a CAT cable is connected to both the transceiver and amplifier, the correct settings for the transceiver
have to be entered via this menu. If there is no CAT connection, OFF has to be selected as Interface type.
The CAT settings are accessible only in RX mode (see and
Figure 5-1 MENU SELECTION Figure 5-4 Menu
). An item is selected by the ITEM buttons (up and down). Values are selected by the
CAT/AUX SETTINGS
SELECT buttons (left or right).
If the amplifier CAT port is connected either to the transceiver BCD Band Data or Band VOLTAGE output,
select the respective interface type and push EXIT. The other items and values will not be taken into
account.
If the CAT cable is plugged into the transceiver's serial port, select the interface and command set according
to . The baud rate has to be set to the same value as the transceiver's. The byte
Table 5-1 Transceiver interface
spacing and polling time may be left unchanged.
Last select the interface type (RS-232 or TTL) according to the and used
Table 5-1 Transceiver interface
connection, then push EXIT.

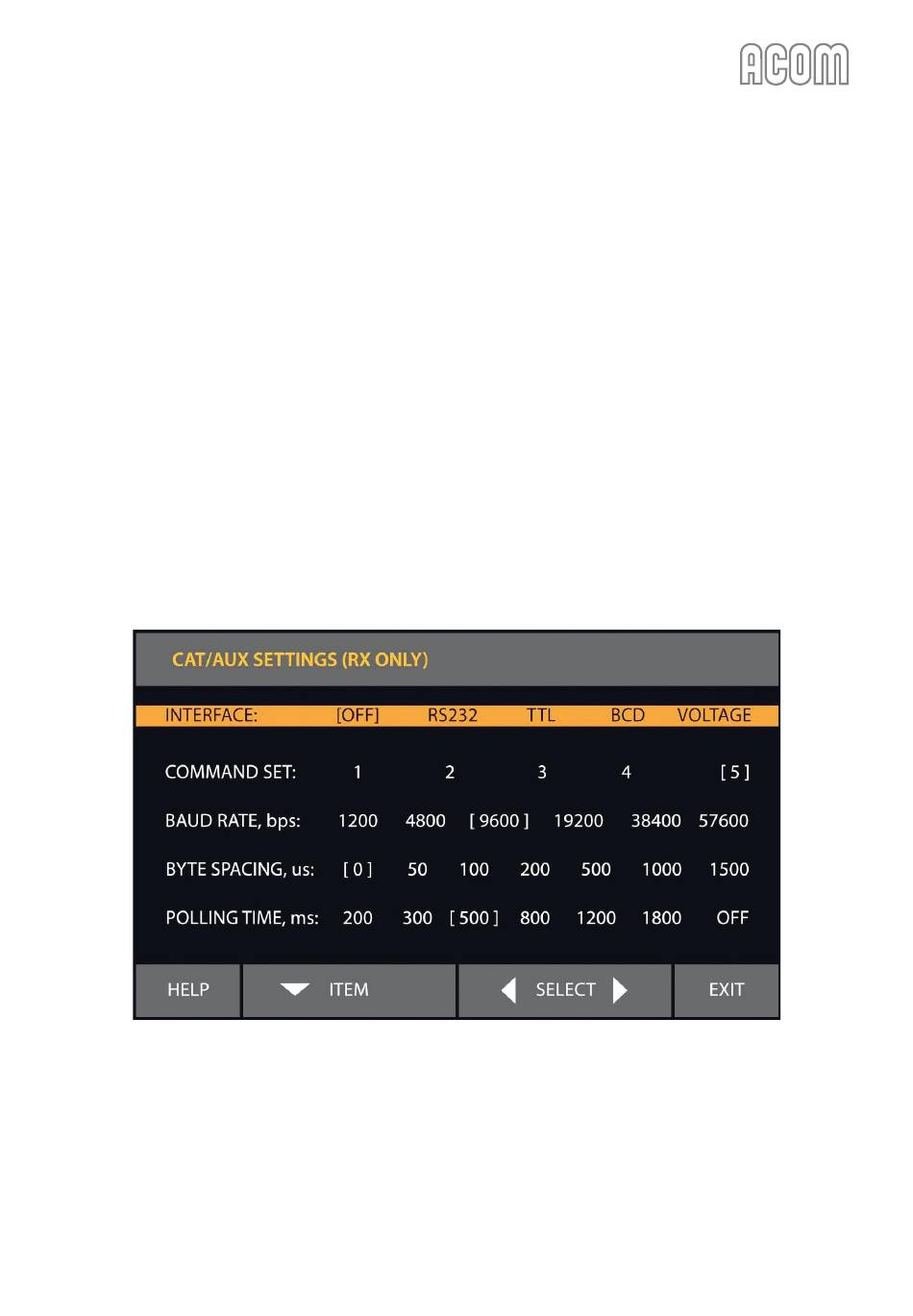

Figure 5-4 Menu CAT/AUX SETTINGS

May 2021 S e c t i o n MENUS - SETTINGS AND OPTIONS | Page 35 of 52
