Menu AMP MEASURE (Amplifier measurements)

5.1.
The menu AMP MEASURE (see ) is accessible from the MENU SELECTION

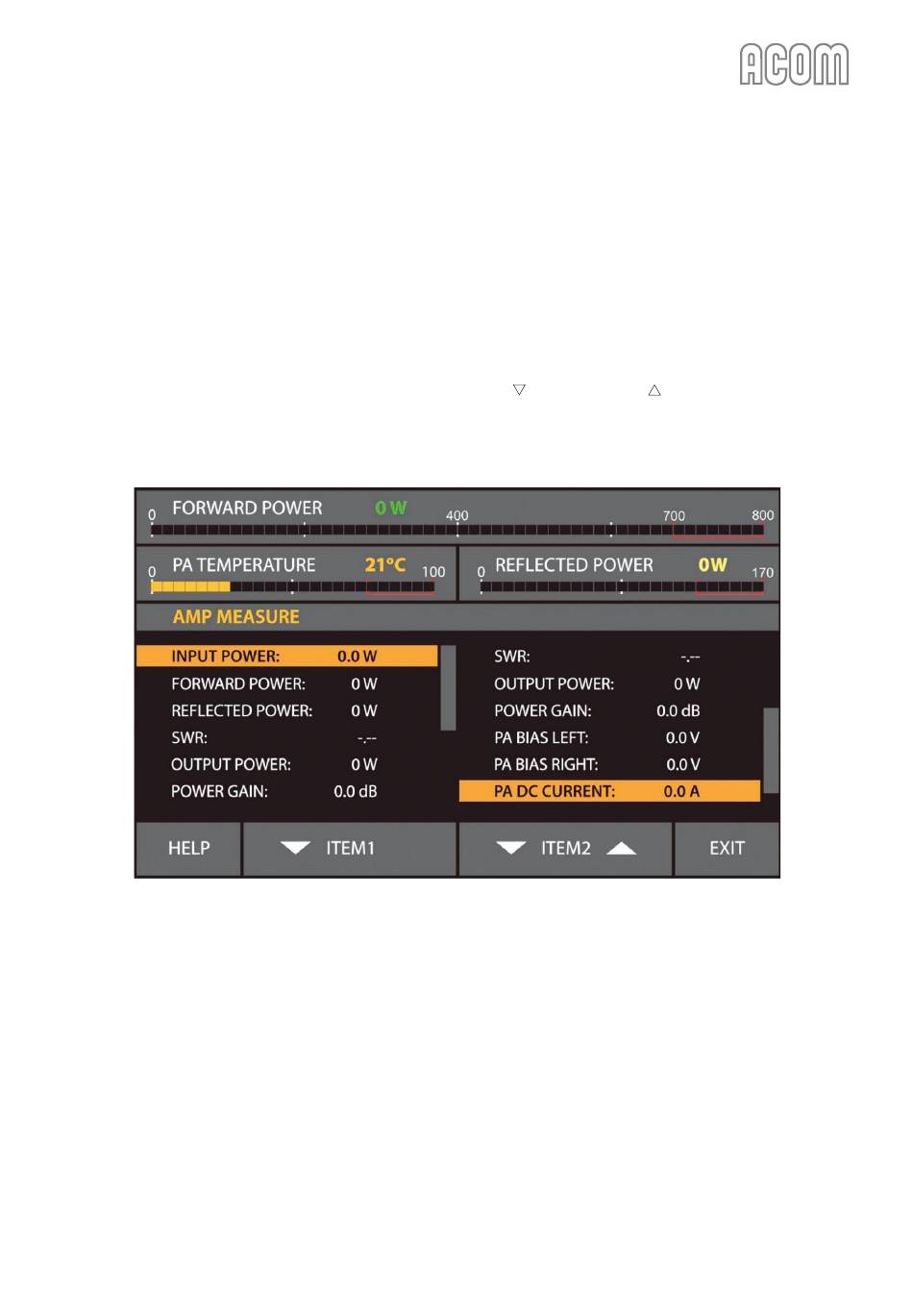

Figure 5-2 Menu AMP MEASURE

screen (see ) in all modes. Here you can constantly observe the values of eleven
Figure 5-1 MENU SELECTION
parameters.
Two identical lists appear on the left and the right halves of the screen, each one containing the same 11
values.
Any value can be selected in each screen half. Using buttons ITEM and ITEM (up and down) select the
desired values. The two selected values will appear also on the basic screen continuously (see field b) on
) - after leaving this menu (EXIT button).
Figure 3-2 Basic screen
Figure 5-2 Menu AMP MEASURE
