User's Manual | ACOM 700S | 1.8-54 MHz Linear Amplifier
b) RS-232 connector
Please, see
Figure 2-1 Rear panel - Connections (4)
This connector may remain unused until you decide to control the amplifier remotely.
Please, see Section
6.1 Remote Control via ACOM eBox
RS-232
Pin Nr.
interface
1
2
3
4
5
D-sub
6
connector,
7
9-pin,
8
female
9
(Rear panel
view)
May 2021
.
Pin name
- Not connected
TxD Transmit Data
RxD Receive Data
- Not connected
GND Ground
DSR Remote Power On
- Not connected
CTS Remote Power On
- Not connected

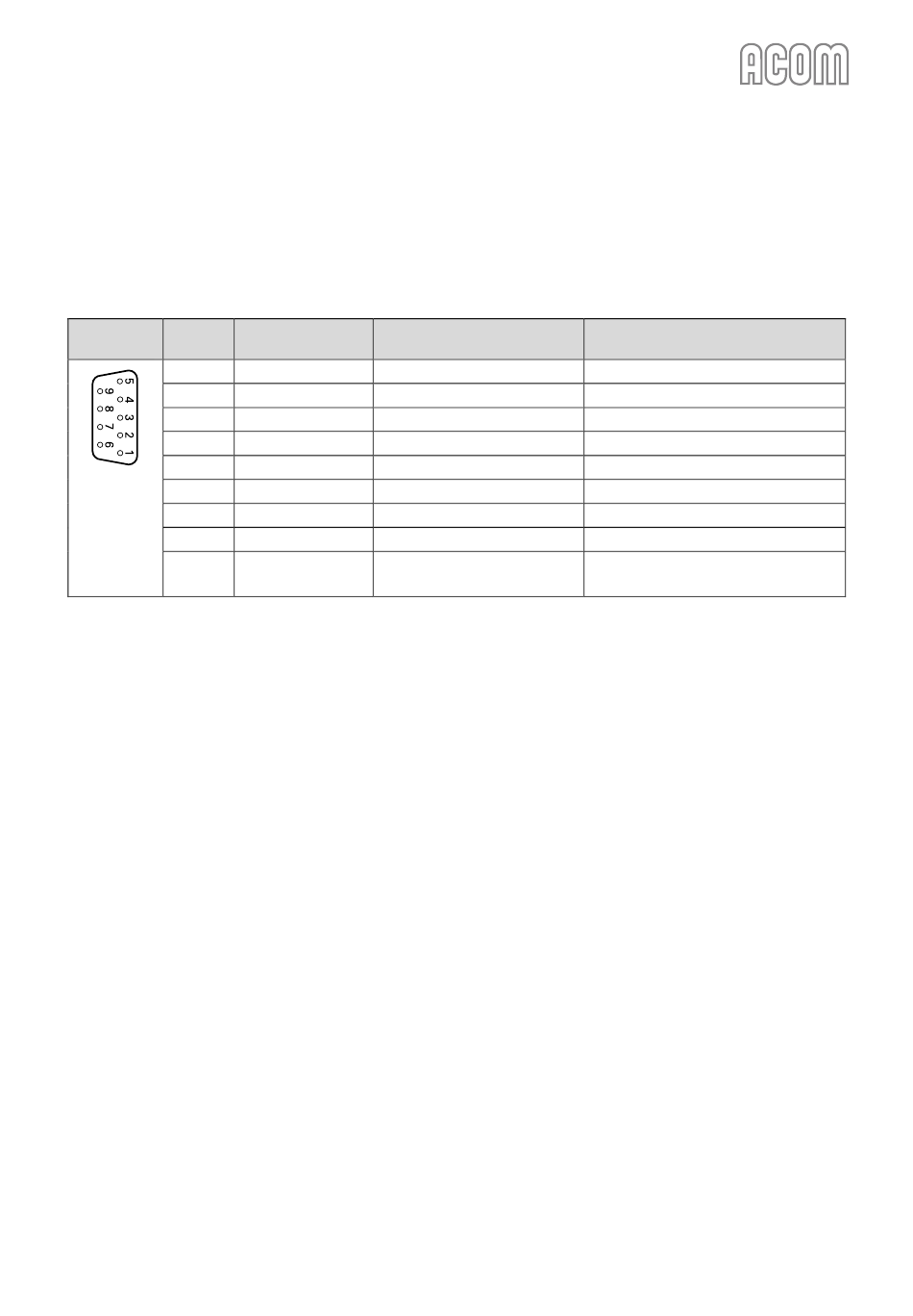

Table 2-2 Signals and pin out of the RS-232 connector

.
Description
-
RS-232 level output
RS-232 level input
-
0 Volt
RS-232 level input
-
RS-232 level input
-
S e c t i o n INSTALLATION | Page 19 of 52
