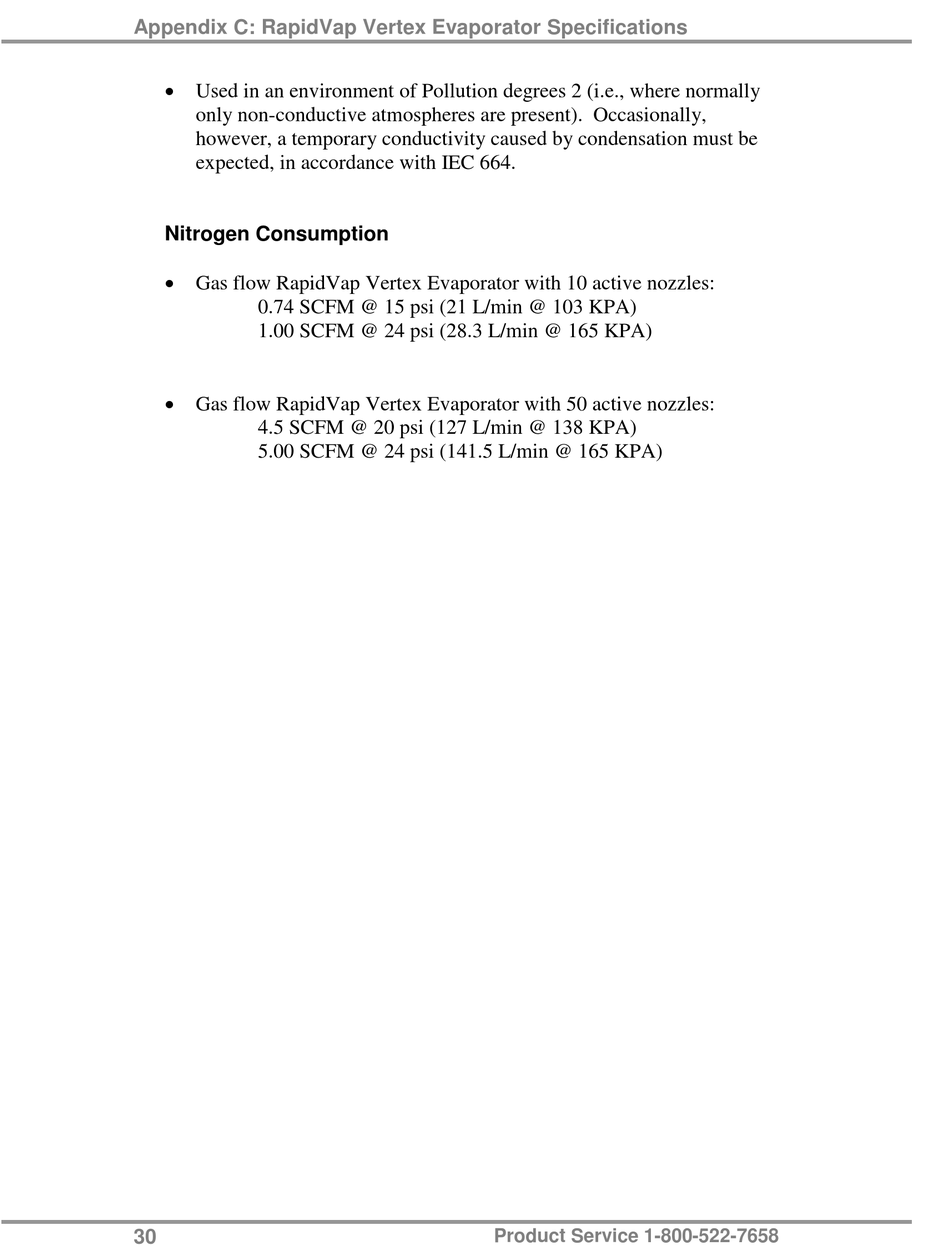

Appendix C: RapidVap Vertex Evaporator Specifications

 Used in an environment of Pollution degrees 2 (i.e., where normally
only non-conductive atmospheres are present). Occasionally,
however, a temporary conductivity caused by condensation must be
expected, in accordance with IEC 664.
Nitrogen Consumption
 Gas flow RapidVap Vertex Evaporator with 10 active nozzles:
0.74 SCFM @ 15 psi (21 L/min @ 103 KPA)
1.00 SCFM @ 24 psi (28.3 L/min @ 165 KPA)
 Gas flow RapidVap Vertex Evaporator with 50 active nozzles:
4.5 SCFM @ 20 psi (127 L/min @ 138 KPA)
5.00 SCFM @ 24 psi (141.5 L/min @ 165 KPA)
