Maintenance
uids. Never touch the glass with bare
hands. Residual oil may cause the
bulb to overheat and burst when lit.
A bulb should be operated only when
installed in a headlight.
僅 If a bulb becomes damaged or
cracked, replace it immediately and
carefully dispose of it.
僅 Wear eye protection when changing a
bulb. Allow the bulb to cool down
before handling it.

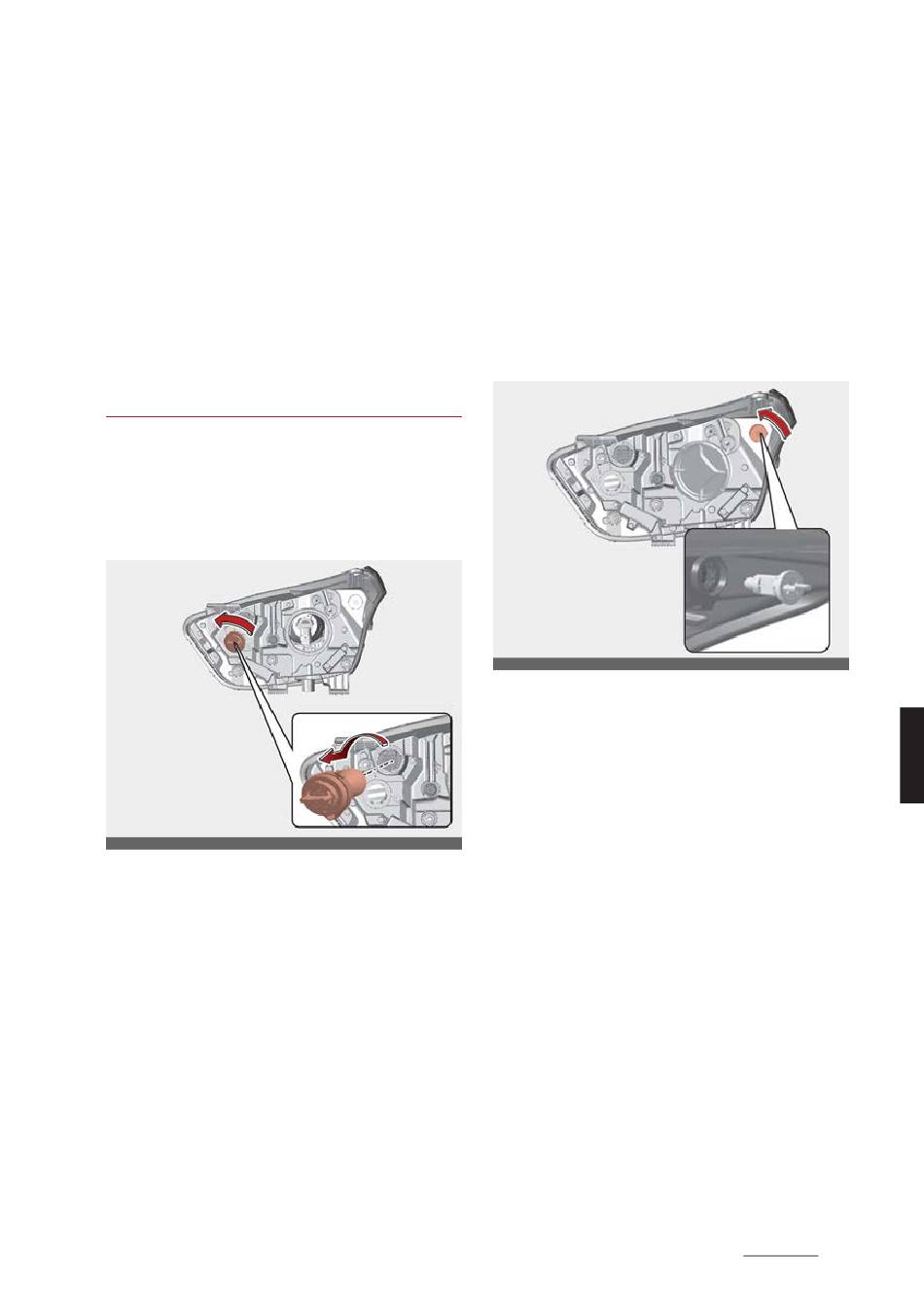

Front turn signal lamp/Position
lamp (Bulb type) bulb replace-
ment
Head lamp - Type A
OBD071217
1. Open the hood.
2. Remove the bulb-socket from the
headlamp assembly by turning the
bulb-socket counterclockwise until
the tabs on the bulb-socket align with
the slots on the headlamp assembly.
3. Remove the bulb from the bulb socket
by pressing it in and rotating it coun-
terclockwise until the tabs on the bulb
align with the slots in the bulb-socket.
Pull the bulb out of the bulb-socket.
4. Insert a new bulb by inserting it into
the bulb-socket and rotating it until it
locks into place.
5. Install the socket in the headlamp
assembly by aligning the tabs on the
bulb-socket with the slots in the
assembly. Push the bulb-socket into
the headlamp assembly and turn the
socket clockwise.
Side marker (Bulb type) bulb
replacement
Headlamp Type A
OBDM071122L
1. Open the hood.
2. Remove the bulb-socket from the
headlamp assembly by turning the
bulb-socket counterclockwise until
the tabs on the bulb-socket align with
the slots on the headlamp assembly.
3. Remove the bulb from the bulb-
socket by pulling it out.
4. Insert a new bulb by inserting it into
the bulb-socket.
5. Install the bulb-socket in the head
lamp assembly by aligning the tabs
on the bulb-socket with the slots in
the headlamp assembly.Push the
bulb-socket into the headlamp
assembly and turn the bulb-socket
clockwise.
Light bulbs
7
7
63
