INSTRUCTIONS FOR USE

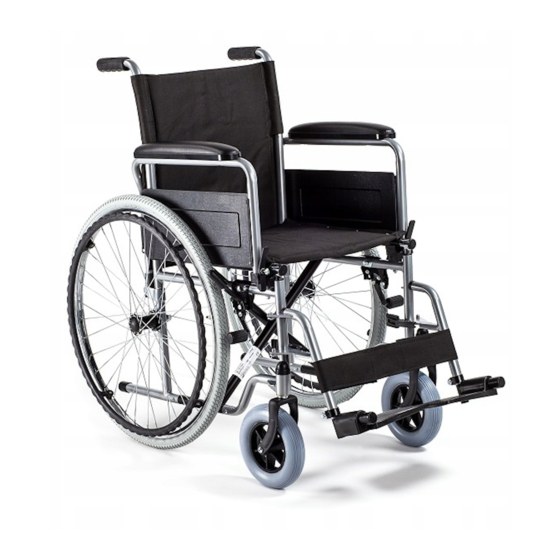

Steel wheelchair Basic
Product code: H011-B
1. Characteristics
The wheelchair is made of powder coated steel frame. It possesses
durable, black, and nylon-cotton seat. The wheelchair is equipped with
flip-up and detachable armrests, available in a long version, pneumatic
or solid rear wheels 24'' in diameter with comfortable, plastic
handrims, and solid front wheels 8'' in diameter made of higher-
strength material resistant to abrasion.
Additional options: solid rubber rear wheels, elevating legrest, cushion,
table, cane holder.
The set includes:
• Frame with seat
• Right footrest with footplate
• Left footrest with footplate
• Protective strap
• Pump
• Set of keys for wheelchair
Assembly/dismantling
Elements of the wheelchair:
a. Hand grip
b. Armrest
c. Locking pin of the armrest
d. Wheel lock
e. Handrim
f. Footrest
g. Assembly pin of the footrest
)
1
Advertisement
Table of Contents
Related Manuals for Timago H011-B
Summary of Contents for Timago H011-B
- Page 1 INSTRUCTIONS FOR USE Steel wheelchair Basic Product code: H011-B 1. Characteristics The wheelchair is made of powder coated steel frame. It possesses durable, black, and nylon-cotton seat. The wheelchair is equipped with flip-up and detachable armrests, available in a long version, pneumatic or solid rear wheels 24’’...
- Page 2 2. Application The wheelchair is designed for people who have problems with unassisted moving and for patients with dysfunctions and reduced mobility. This self propelled wheelchair can also be pushed by an accompanying person. The wheelchair is suitable for indoor and outdoor use.
- Page 3 Step 5. Checking the assembly of wheels Lift the wheelchair slightly and spin the right wheel and then the left one by pulling the handrims and check if the wheels spin properly. On completion of the above activities, the wheelchair is ready to use. FOLDING The wheelchair can be re-folded in order to be transported and stored more easily.
- Page 4 note that the wheel lock only serves to lock the wheels when the wheelchair is at a complete stop. WHEEL LOCKS ADJUSTMENT The correct lock of the wheel locks depends on its adjustment and position. The handle of the wheel lock should be positioned so that the wheel lock shoe blocks the wheel firmly and the lever does not face excessive resistance.
- Page 5 Frame colour silver * depending on seat width 5. Notes Timago International Group does not bear responsibility of improper use of the wheelchair, failure to comply safety regulations and misuse. 6. Cleaning and maintenance Carry out the maintenance of the wheelchair components regularly: •...
- Page 6 The manufacturer checked for compliance with essential medical devices requirements. Our complete line of products is available from our distributors. Learn more at: www.timago.com. Thank you for choosing Timago! Timago International Group Spółka z o.o. i Spółka – Spółka komandytowa ul.
