INSTRUCTIONS FOR USE

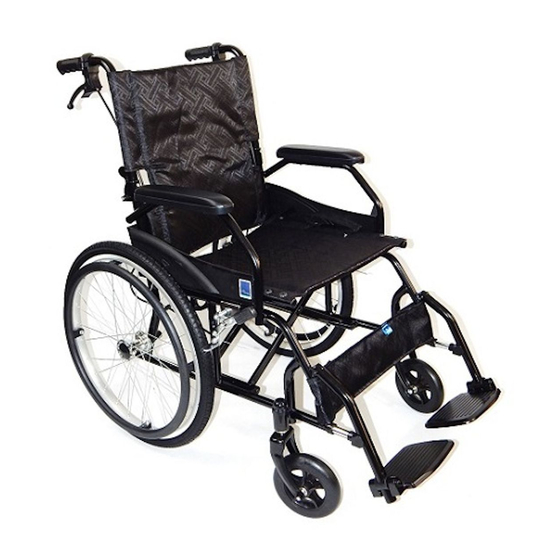

Steel wheelchair
Product code: FS 901
1. Characteristics
The wheelchair is made of powder coated steel frame reinforced with
double cross bar. The wheelchair is equipped with durable, nylon-
cotton seat, attendant brakes, folding backrest, profiled armrests, and
steel swing away footrests with 3-stage legrest angle adjustment. The
wheelchair is supplied with pneumatic rear wheels (20'') with plastic
handrim and solid rubber front wheels 6'' in diameter.
The set includes:
• Frame with seat
• Protective strap
• Pump
In the pocket at the back of backrest:
• Footrest adapter for legrest angle adjustment – 2 pcs
• Set of keys

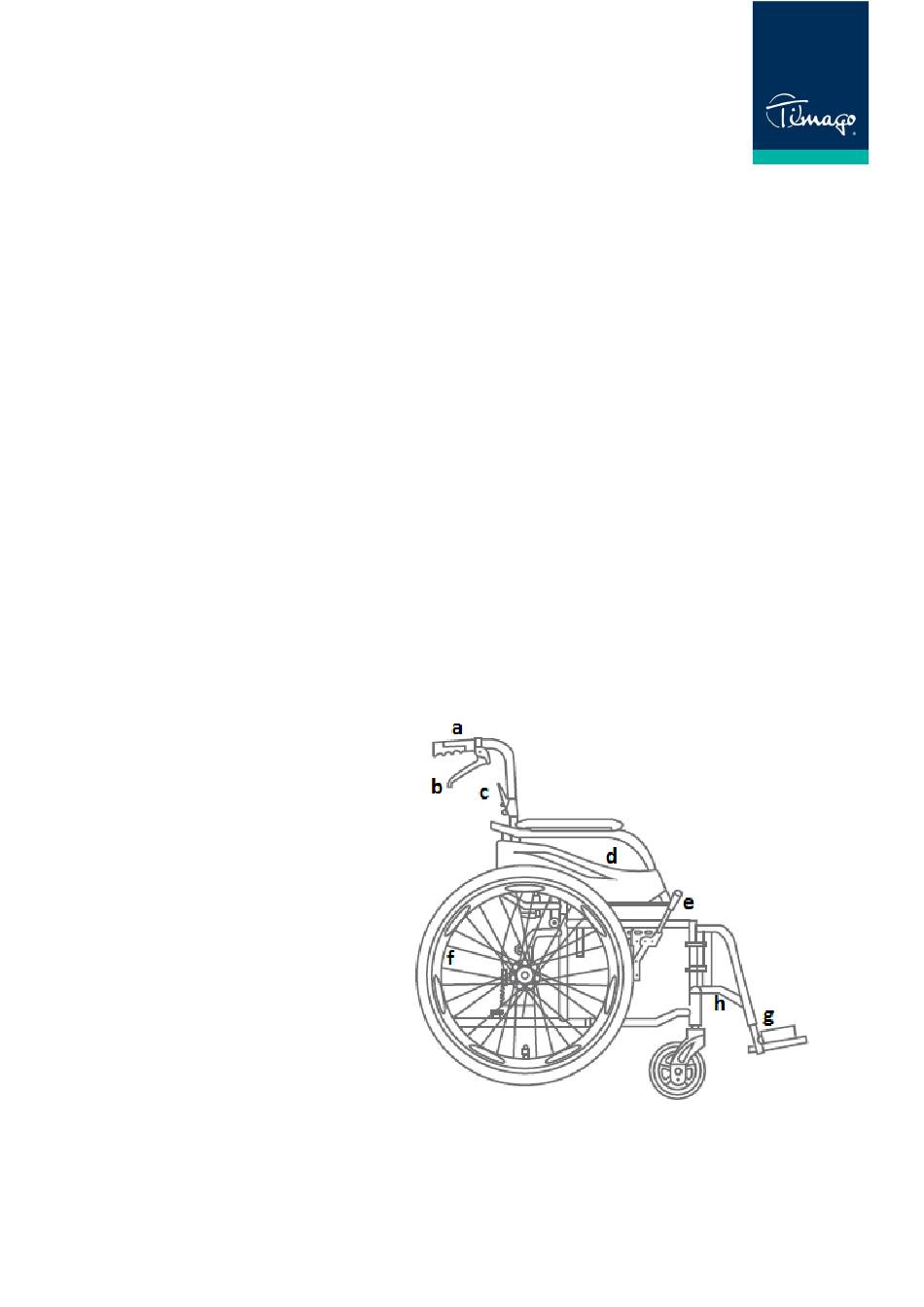

Elements of the wheelchair:
a. Hand grip
b. Attendant brake
c. Backrest lock
d. Armrest
e. Wheel lock
f. Handrim
g. Footrest
h. Footrest adapter
2. Application
The wheelchair is designed for people who have problems with
unassisted moving and for patients with dysfunctions and reduced
mobility. This self propelled wheelchair can also be pushed by the
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Timago FS 901
Summary of Contents for Timago FS 901
- Page 1 INSTRUCTIONS FOR USE Steel wheelchair Product code: FS 901 1. Characteristics The wheelchair is made of powder coated steel frame reinforced with double cross bar. The wheelchair is equipped with durable, nylon- cotton seat, attendant brakes, folding backrest, profiled armrests, and steel swing away footrests with 3-stage legrest angle adjustment.
- Page 2 accompanying person. The wheelchair is suitable for indoor and outdoor use. 3. Assembly Step 1. Unfolding the wheelchair Place the wheelchair on the ground. Firstly, push the footrests downwards. Unfold the wheelchair using the armrests. Then, press the front and rear edge of the seat so that all the elements fit together. Step 2.
- Page 3 • Before folding the frame, swing away the footplates and set them in vertical position (perpendicularly to the ground). • To fold the frame, pull the grips in the seat upwards and lift the footrest upwards. • To fold the backrest, press the backrest locks which are under the handgrips at the back of the backrest and pull the backrest downwards.
- Page 4 • In order to engage stopping lock, squeeze the lever of the brake and in order to release the brake, drop the lever. Perform this activity smoothly and with appropriate force. • The brakes are equipped with wheel lock. To apply it, squeeze the lever of the brake and pull locking element (located at the handle of the brake).
- Page 5 32 cm Frame colour black 5. Notes Timago International Group does not bear responsibility of improper use of the wheelchair, failure to comply safety regulations and misuse. 6. Cleaning and maintenance Carry out the maintenance of the wheelchair components regularly: •...
- Page 6 The manufacturer checked for compliance with essential medical devices requirements. Our complete line of products is available from our distributors. Learn more at: www.timago.com. Thank you for choosing Timago! Timago International Group Spółka z o.o. i Spółka – Spółka komandytowa ul.
