INSTRUCTIONS FOR USE
Steel wheelchair
Product code: H011
1. Characteristics

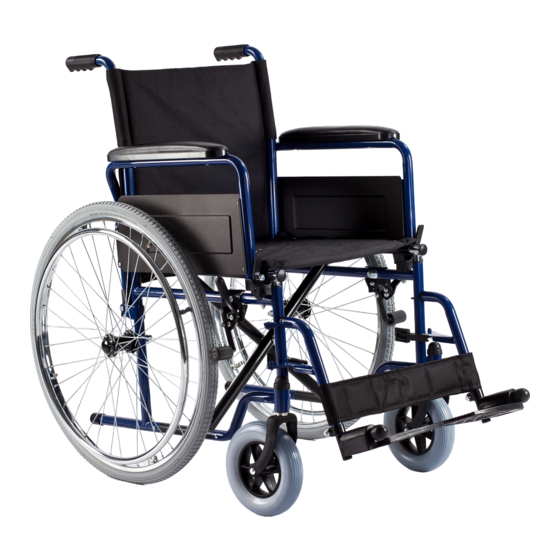

The wheelchair is made of powder coated steel frame. It possesses
durable, black, and nylon-cotton seat and cushion. The wheelchair is
equipped with height adjustable, flip-up armrests. Footrests are
available either in standard (swing away) version or in elevating legrest
version. Rear wheels (24'') consist of steel spokes and are equipped
with pneumatic or solid rubber tyres. Front wheels (8'') are made of
higher-strength rubber resistant to abrasion.
Additional options: solid rubber rear wheels, elevating legrest,
attendant brakes, table.
The set includes:
• Frame with seat
• Right footrest with footplate
• Left footrest with footplate
• Protective strap
• Pump
• Set of keys for wheelchair
Assembly/dismantling
Elements of the
a. Hand grip
b. Armrest with
height adjustment
c. Locking pin of
the armrest
d. Wheel lock
wheelchair:)
1
Advertisement
Table of Contents
Related Manuals for Timago H011
Summary of Contents for Timago H011
- Page 1 INSTRUCTIONS FOR USE Steel wheelchair Product code: H011 1. Characteristics The wheelchair is made of powder coated steel frame. It possesses durable, black, and nylon-cotton seat and cushion. The wheelchair is equipped with height adjustable, flip-up armrests. Footrests are available either in standard (swing away) version or in elevating legrest version.
- Page 2 e. Hand rim f. Quick release g. Footrest h. Assembly pin of the footrest 2. Application The wheelchair is designed for people who have problems with unassisted moving and for patients with dysfunctions and reduced mobility. This self propelled wheelchair can also be pushed by the accompanying person.
- Page 3 Step 4. Assembly of protective strap Put the protective strap on the footrests as it prevents user’s legs from sliding down under the wheelchair from footplates. Note! Do not use the wheelchair without protective strap. On completion of the above activities, the wheelchair is ready to use. FOLDING The wheelchair can be re-folded in order to be transported and stored more easily.
- Page 4 both wheels and check the condition of the tyres in search of abrasions, cuts or surface depletion. • To balance the air pressure in the wheels, twist off the cap of the valve, insert the pump (included in the set) into the valve, and pump the air.
- Page 5 Frame colour silver, dark blue * depending on seat width 5. Notes Timago International Group does not bear responsibility of improper use of the wheelchair, failure to comply safety regulations and misuse. 6. Cleaning and maintenance Carry out the maintenance of the wheelchair components regularly: •...
- Page 6 Manufacture date Serial number Medical device Please read the Note instruction The manufacturer checked for compliance with essential medical devices requirements. Our complete line of products is available from our distributors. Learn more at: www.timago.com. Thank you for choosing Timago!
- Page 7 Timago International Group Spółka z o.o. i Spółka – Spółka komandytowa ul. Karpacka 24/12 43-316 Bielsko-Biała, Polska T.: +48 33 499 50 00 F.: +48 33 499 50 11 E.: info@timago.com Rev. II, date 20.05.2021...
