Extron electronics IPCP Pro Series Setup Manual page 11

All models (single- or dual-NIC)
Each NIC of the control processor is assigned a unique user hardware ID number (MAC address)
(for example, 00-05-A6-05-1C-A0). You may need this address during control processor
configuration. A label that indicates the MAC address is located on the rear or side panel of the unit.
Some models, such as the IPCP Pro 360, offer Power over Ethernet+ (PoE+) output on RJ-45 connectors
labeled "PoE+ Out," which can output a maximum of 30 watts per port. The corresponding Power LED lights
when the port provides power. For details, see the Global Configurator Help file.
ATTENTION:
• Power over Ethernet (PoE) is intended for indoor use only. It is to be connected only to networks or
circuits that are not routed to the outside plant or building.
• L'alimentation via Ethernet (PoE) est destinée à une utilisation en intérieur uniquement. Elle doit
être connectée seulement à des réseaux ou des circuits qui ne sont pas routés au réseau ou au
bâtiment extérieur.

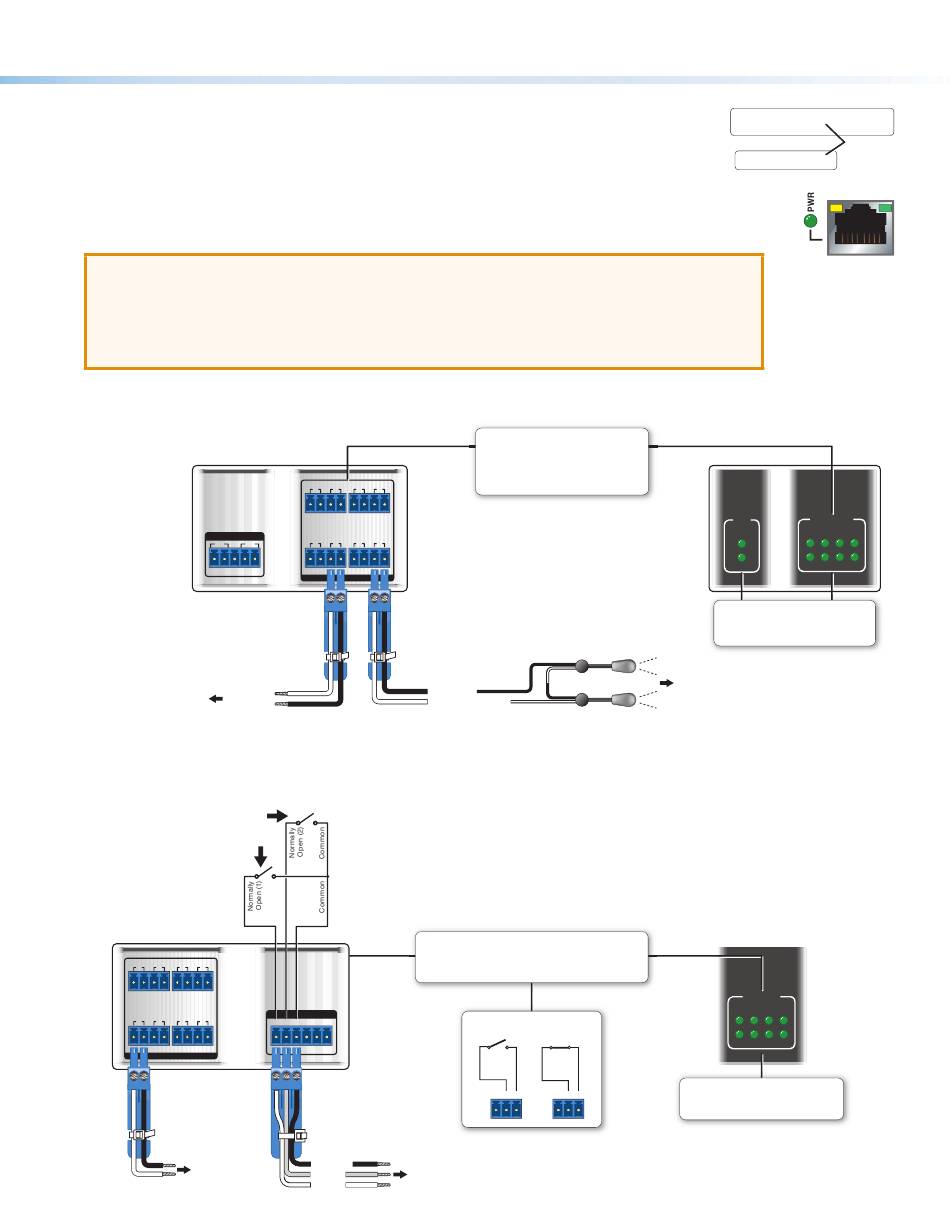

Control, Unidirectional — IR/Serial
Rear Panels
IR/SERIAL
1 2
S G S G
To a Projector,
Panel Display, or the IR or RS-232
Output
Wired IR Remote or
Ground
RS-232 Port of a
Source Device
Control, Unidirectional — Relays
All relays
are
normally
open.
Rear Panels
1 2 3 4
or
5 6 7 8
RELAYS
To Room
Control
Equipment
1 2 3 4
or
S G S G S G S G
5 6 7 8
S G S G S G S G
IR/SERIAL
or
G Ground
S IR Output Signal
Unidirectional
IR
• Connect devices for contact control.
• Do not exceed a total of 24 V at 1 A for each port.
RELAYS
1 2 C 3 4 C
To Room
Common
Control
Relay 2
Equipment
Relay 1
IR/Serial Ports
Output options:
• IR (30 kHz to 300 kHz,
with or without carrier signals)
• Unidirectional RS-232
(-)
(+)
(-)
(-)
(+) (+)
Two Single IR Emitters
Relays
Normally
Closed
Open
1 2 C 1 2 C
00-05-A6-XX-XX-XX
MAC: 00-05-A6-XX-XX-XX
S/N: ####### E######
MAC
Address
MAC: 00-05-A6-XX-XX-XX
S/N: ####### E######
PoE+ OUT
Front Panels
or
IR/SERIAL
IR/S
1 2 3 4
1
2 5 6 7 8
IR/Serial LEDs
Light when signals are transmitted
on the corresponding IR/serial port.
To the IR Receiver of a
Projector, Display, or
Source Device
Front Panels
RELAYS
1 2 3 4
5 6 7 8
Relay LEDs
Light when the corresponding relays
are activated (tied to GND, closed).
11
