Control - Volume - Extron electronics IPCP Pro Series Setup Manual

EBDB MINI
Rear Panel
(or use
an EBDB
10-port hub)
X
+S
ATTENTION:
Do NOT
connect the power pin
to any device that is
already powered by the
IPCP Pro control
processor or by an
additional power supply.
Powered
+S
eBUS
device(s)
Control — Volume
Reference
voltage: ≤10 VDC
V
Rear Panel
Control voltage output:
0 - 10 VDC
VOL
V C G
G Ground (Gnd)
C Control voltage (variable output to amp from IPCP Pro) – This signal controls the amp volume.
V Reference voltage input (from ampli er) – This allows the IPCP Pro to detect when the amp is present.
Example:
Connecting to
Extron Amplifiers
VOL
IPCP Pro
V C G
Rear
Panel
G Ground
C Control voltage
V Reference voltage

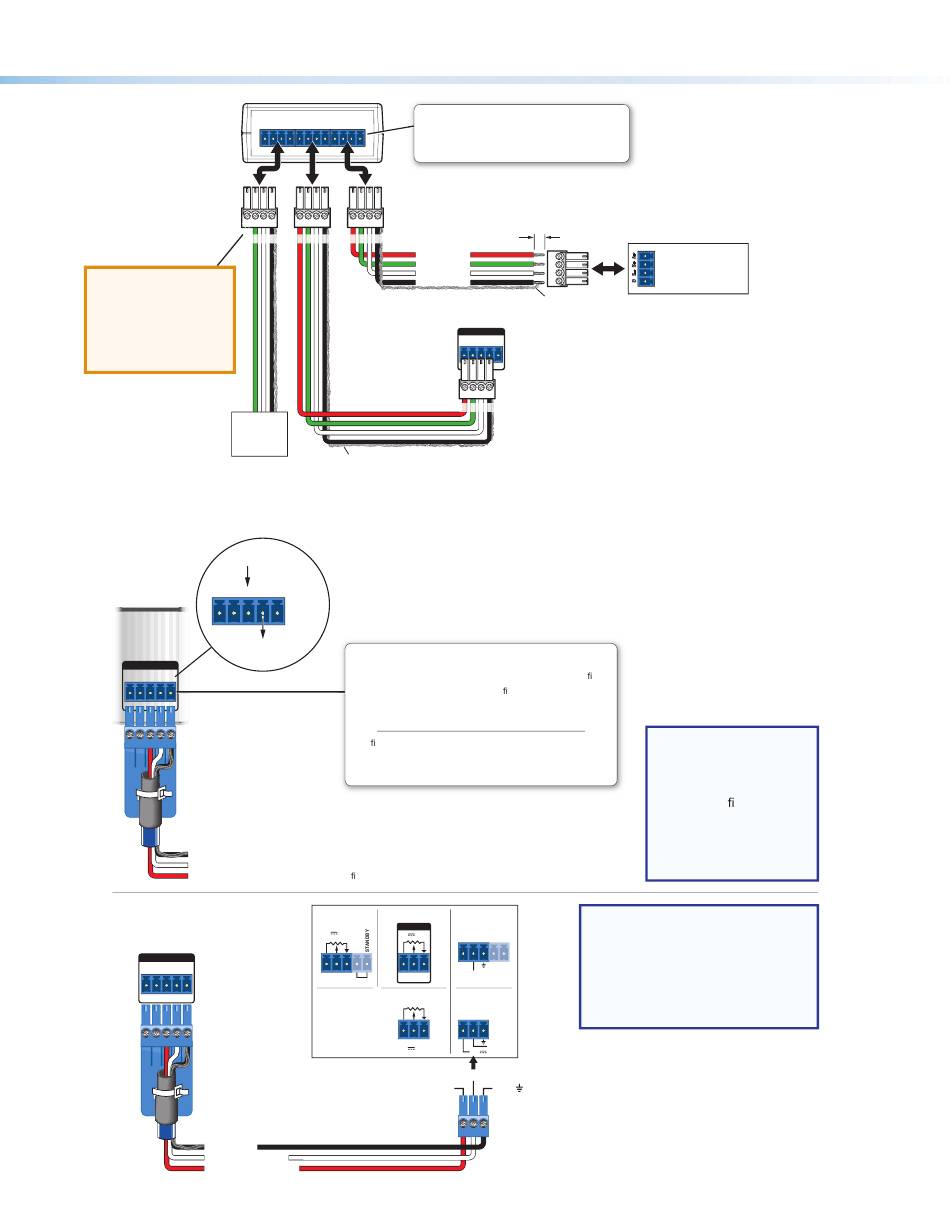

eBUS DISTRIBUTION HUB
• Connect up to four (4) eBUS devices to the
+ V + S - S G + V + S - S G + V + S - S G
EBDB Mini eBUS Distribution Hub.
• Wire the connectors the same at both ends.
-S G +V +S -S G +V +S -S G
+V +12 VDC
+S + Signal
-S - Signal
G Ground
IPCP Pro
Rear Panel
-S G
Tie drain wires to ground.
C G
This port can be used to control the volume and mute or
unmute the audio for Extron half rack width audio ampli ers.
• Connect to an Extron audio ampli er to permit volume
control via touchpanel controls, macros, or schedules.
• Do not exceed 10 VDC input voltage.
Con gure the maximum and minimum voltage limits. Set
Soft Start mode off or on (default). Soft Start mode allows
volume to gradually increase from mute to the previous level
after muting or power-on to prevent loud audio bursts.
XPA 1002 MPA 401 Series
REMOTE
10V 50mA
10V 50mA
G
V C G V C G
MPA 152 Plus
V C G
10V 50mA
V or 10V
eBUS Connections
3/16" (5 mm) Max.
Tie drain wires to ground.
eB US
+V +S -S G
PWR OUT = 6W
+V +S -S G
Volume Control
MPA 181T,
NOTE:
MP 101 Series
the control processor sets output
REMOTE
voltage to 0 VDC, even if the
voltage range (minimum and
10V
VOL/MUTE
maximum voltage limits) has been
set to levels above zero, such as
MPA 152
2 V to 8 V.
REMOTE
VOL/MUTE
10V 50mA
C or VOL/MUTE
G or
eBUS port on an
EBP or other
eBUS endpoint
device
NOTE: Use shielded
cable and place the
control processor as
close as possible to
the ampli er to avoid
picking up background
noise via the cable.
Ideal cable length is
six feet (1.8 m) or less.
When audio mute is active,
13
