Manual
Pos : 2 /D okumentati on allgemein/Ei nband/Ei nband Fronts eite - H andbuc h; CI 2017; mit DocVariablen (Standar d) @ 28\mod_1486477502910_0.doc x @ 405388 @ @ 1
WAGO I/O SYSTEM 750 XTR

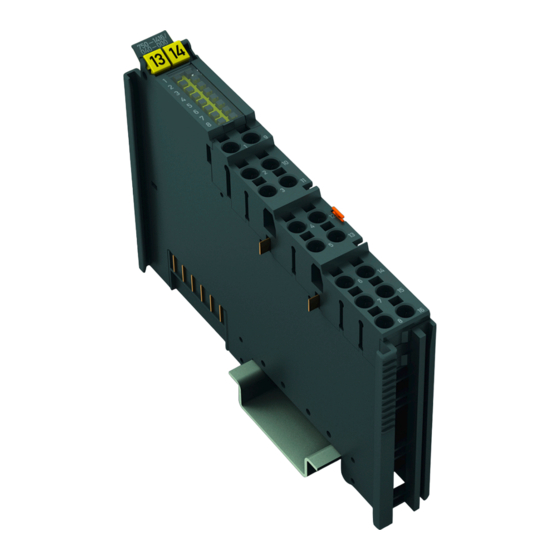

750-1416/040-000
8DI 24 VDC 0.2ms 2-wire XTR
8-Channel Digital Input; 24 VDC; 0.2 ms;
2-Conductor Connection; Extreme
Version 1.1.0
Pos : 3 /Alle Serien (Allgemeine M odul e)/Rec htlic hes, Allgemei nes/Impressum für Standardhandbüc her - allg. Angaben, Ansc hriften, T elefonnummer n und E-Mail-Adres sen @ 3\mod_1219151118203_21.doc x @ 21060 @ @ 1

Advertisement

Chapters

Table of Contents
loading

Summary of Contents for WAGO 750-1416/040-000

  • Page 1 Manual Pos : 2 /D okumentati on allgemein/Ei nband/Ei nband Fronts eite - H andbuc h; CI 2017; mit DocVariablen (Standar d) @ 28\mod_1486477502910_0.doc x @ 405388 @ @ 1 WAGO I/O SYSTEM 750 XTR 750-1416/040-000 8DI 24 VDC 0.2ms 2-wire XTR 8-Channel Digital Input;...
  • Page 2 We wish to point out that the software and hardware terms as well as the trademarks of companies used and/or mentioned in the present manual are generally protected by trademark or patent. WAGO is a registered trademark of WAGO Verwaltungsgesellschaft mbH. === Ende der Liste für T extmar ke Ei nband_vorne === Manual...
  • Page 3: Table Of Contents

    WAGO I/O SYSTEM 750 XTR Table of Contents 750-1416/040-000 8DI 24 VDC 0.2ms 2-wire XTR Pos : 5 /D okumentati on allgemein/Verzeic hnisse/Inhalts verz eichnis - Ü berschrift oG und Verzei chnis @ 3\mod_1219151230875_21.doc x @ 21063 @ @ 1 Table of Contents Notes about this Documentation .............
  • Page 4 Table of Contents WAGO I/O SYSTEM 750 XTR 750-1416/040-000 8DI 24 VDC 0.2ms 2-wire XTR Use in Hazardous Environments ............38 Marking Configuration Examples ............39 7.1.1 Marking for Europe According to ATEX and IECEx ......39 7.1.2 Marking for the United States of America (NEC) and Canada (CEC) ....................
  • Page 5: Notes About This Documentation

    Pos : 11 /Serie 750 ( WAGO-I/O-SYST EM)/Hi nweis e z ur D okumentati on ( alte Struktur)/Gül tigkeits ber eich/Gültig kei tsbereic h D okumentati on I/O-Modul 750-xxxx, ohne Variantenang abe @ 14\mod_1358944037947_21.doc x @ 109346 @ @ 1...
  • Page 6: Symbols

    WAGO I/O SYSTEM 750 XTR 750-1416/040-000 8DI 24 VDC 0.2ms 2-wire XTR Pos : 13.4 /All e Seri en ( Allgemei ne Module)/Ü bers chriften/Ebene 2/Symbol e - Ü berschrift 2 @ 13\mod_1351068042408_21.doc x @ 105270 @ 2 @ 1 Symbols Pos : 13.5.1 /All e Serien ( Allgemei ne Module)/Sicherheits- und sons tige Hi nweis e/Gefahr/Gefahr: _War nung vor Pers onenschäden allgemei n_ - Erläuter ung @ 13\mod_1343309450020_21.doc x @ 101029 @ @ 1...
  • Page 7: Number Notation

    WAGO I/O SYSTEM 750 XTR Notes about this Documentation 750-1416/040-000 8DI 24 VDC 0.2ms 2-wire XTR Additional Information: Refers to additional information which is not an integral part of this documentation (e.g., the Internet). Pos : 13.6 /Dokumentation allgemei n/Glieder ungs elemente/---Seitenwechs el--- @ 3\mod_1221108045078_0.doc x @ 21810 @ @ 1 Pos : 13.7 /All e Seri en ( Allgemei ne Module)/Ü...
  • Page 8: Important Notes

    Pos : 16.6 /Serie 750 (WAGO-I/O-SYST EM)/Wic htige Erläuterungen (al te Str uktur)/Besti mmungsg emäß e Ver wendung/Besti mmungsgemäße Ver wendung 750- xxxx für Geräte - STD - mi t EN 61000-6- 3 @ 3\mod_1224064151234_21.doc...
  • Page 9: Technical Condition Of Specified Devices

    These modules contain no parts that can be serviced or repaired by the user. The following actions will result in the exclusion of liability on the part of WAGO Kontakttechnik GmbH & Co. KG: •...
  • Page 10: 2.1.4.1.2 Packaging

    Important Notes WAGO I/O SYSTEM 750 XTR 750-1416/040-000 8DI 24 VDC 0.2ms 2-wire XTR Environmentally friendly disposal benefits health and protects the environment from harmful substances in electrical and electronic equipment. • Observe national and local regulations for the disposal of electrical and electronic equipment.
  • Page 11: Safety Advice (Precautions)

    Pos : 16.14 /Serie 750 ( WAGO-I/O-SYST EM)/Wichtig e Erl äuter ung en (alte Struktur)/Sic her heits- und s onstige Hi nweis e/Warnung/Warnung: Speisung aus schli eßlich aus SELV-/PELV- Vers orgung ( 24V-XTR-I/O-M odule) @ 29\mod_1493107132163_21.doc...
  • Page 12 Pos : null /Serie 750 (WAGO-I/O-SYST EM)/Wichtige Erläuter ung en (alte Str uktur)/Sic her hei ts- und s onstige Hi nweise/Ac htung/Ac htung: Ei nwandfrei e Kontakti erung z ur Tragsc hiene gewährleisten! @ 34\mod_1550481407638_21.doc...
  • Page 13 Pos : 16.17 /Serie 750 ( WAGO-I/O-SYST EM)/Wichtig e Erl äuter ung en (alte Struktur)/Sic her heits- und s onstige Hi nweis e/Ac htung/Ac htung: XTR - Is olationspr üfung en mit DC durchführen! @ 15\mod_1370843209441_21.doc...
  • Page 14: Device Description

    Pos : 19.2 /Serie 750 (WAGO-I/O-SYST EM)/Ger ätebesc hrei bung (alte Str uktur)/Ei nleitung/I/O-Besc hrei bung/DI/I/O-Beschr eibung 750- 141x 8 DI 2-Leiter (DI und 24 V) Pus h-in C AGE C LAM P @ 15\mod_1370934995007_21.doc...
  • Page 15 Pos : 19.16 /Serie 750 ( WAGO-I/O-SYST EM)/Wichtig e Erl äuter ung en (alte Struktur)/Sic her heits- und s onstige Hi nweis e/Hi nweis/Hinweis: XTR - Er höhte Störfestig keit @ 15\mod_1367496424993_21.doc x @ 118330 @ @ 1...
  • Page 16: View

    Pos : 21 /All e Seri en (Allgemei ne Module)/Ü berschriften/Ebene 2/Ansic ht - Ü berschrift 2 @ 4\mod_1240984217343_21.doc x @ 31958 @ 2 @ 1 View Pos : 22 /Serie 750 ( WAGO-I/O-SYST EM)/Ger ätebesc hrei bung (alte Str uktur)/Ansic ht/D I/Ansic ht 750-141x_0040- xxxx 8 D I 2-Leiter HSS @ 15\mod_1369736961941_21.doc x @ 120682 @ @ 1 Figure 1: View Pos : 23 /Serie 750 ( WAGO-I/O-SYST EM)/Ger ätebesc hrei bung (alte Str uktur)/Ansic ht/Ansicht Pus h-in CageClamp®_Legende mit LEDs @ 15\mod_1370852562803_21.doc x @ 122213 @ @ 1...
  • Page 17: Connectors

    Data Contacts/Local Bus Pos : 27.1 /Serie 750 (WAGO-I/O-SYST EM)/Ger ätebesc hrei bung (alte Str uktur)/Ansc hlüs se/Datenkontakte - Fel dbus koppl er/-c ontroller und Modul e – Abbildung und Besc hrei bung @ 3\mod_1231771259187_21.doc x @ 26002 @ @ 1 Communication between the fieldbus coupler/controller and the I/O modules as well as the system supply of the I/O modules is carried out via the local bus.
  • Page 18: Power Jumper Contacts/Field Supply

    Power Jumper Contacts/Field Supply Pos : 30 /Serie 750 ( WAGO-I/O-SYST EM)/Wic htige Erläuterungen (al te Str uktur)/Sic herheits- und sonstige Hinweis e/War nung/War nung: Speis ung aussc hließlic h aus SELV-/PELV-Versorgung (24V- XTR-I/O-Modul e) @ 29\mod_1493107132163_21.doc x @ 419618 @ @ 1...
  • Page 19: Push-In Cage Clamp ® Connectors

    ® Pos : 34 /Serie 750 ( WAGO-I/O-SYST EM)/Wic htige Erläuterungen (al te Str uktur)/Sic herheits- und sonstige Hinweis e/War nung/War nung: Speis ung aussc hließlic h aus SELV-/PELV-Versorgung (24V- XTR-I/O-Modul e) @ 29\mod_1493107132163_21.doc x @ 419618 @ @ 1...
  • Page 20: Display Elements

    Pos : 37 /All e Seri en (Allgemei ne Module)/Ü berschriften/Ebene 2/Anzeig eel emente - Ü berschrift 2 @ 4\mod_1240984390875_21.doc x @ 31964 @ 2 @ 1 Display Elements Pos : 38 /Serie 750 ( WAGO-I/O-SYST EM)/Ger ätebesc hrei bung (alte Str uktur)/Anz eigeel emente/D I/Anz eigeelemente 750-141x 8 DI @ 7\mod_1274352179347_21.doc x @ 56795 @ @ 1 Figure 5: Display Elements Table 6: Legend for Figure “Display Elements”...
  • Page 21: Schematic Diagram

    Schematic Diagram Pos : 43 /Serie 750 ( WAGO-I/O-SYST EM)/Ger ätebesc hrei bung (alte Str uktur)/Sc hematische Sc hal tbilder/D I/Schematisc hes Sc haltbil d 750-141x_0040- xxxx 8 DI H SS @ 15\mod_1369737634591_21.doc x @ 120700 @ @ 1 Figure 6: Schematic Diagram Pos : 44 /D okumentation allgemei n/Glieder ungs elemente/---Seitenwechs el--- @ 3\mod_1221108045078_0.doc x @ 21810 @ @ 1...
  • Page 22: Technical Data

    Degree of protection IP20 Pos : 46.2 /Serie 750 (WAGO-I/O-SYST EM)/Ger ätebesc hrei bung (alte Str uktur)/Technisc he Daten/VS (Variabl ensteuerung)/Technisc he Daten Vers orgung (VS) DC 24 V - XTR @ 15\mod_1369311347965_21.doc x @ 120278 @ 3 @ 1 3.6.2 Power Supply Table 8: Technical Data –...
  • Page 23: Inputs

    Follow the installation instructions Pos : 46.7 /Serie 750 (WAGO-I/O-SYST EM)/Ger ätebesc hrei bung (alte Str uktur)/Technisc he Daten/VS (Variabl ensteuerung)/Technisc he Daten kli matisc he U mwel tbedi ngungen (VS) - XTR @ 15\mod_1369387559187_21.doc x @ 120360 @ 3 @ 1 Manual Version 1.1.0...
  • Page 24: Climatic Environmental Conditions

    Device Description WAGO I/O SYSTEM 750 XTR 750-1416/040-000 8DI 24 VDC 0.2ms 2-wire XTR 3.6.7 Climatic Environmental Conditions Table 15: Technical Data ‒ Climatic Environmental Conditions Surrounding air temperature, operation −40 °C … +70 °C Surrounding air temperature, storage −40 °C … +85 °C...
  • Page 25: Approvals

    Pos : 49.5 /Dokumentation allgemei n/Glieder ungs elemente/---Leerabs atz-(2Z)--- @ 3\mod_1224662755687_0.doc x @ 24460 @ @ 1 Pos : 49.6 /Serie 750 (WAGO-I/O-SYST EM)/Ger ätebesc hrei bung (alte Str uktur)/Zul ass ung en/Allgemein/Zul. in Vorbereitung I/O-Modul 750- xxxx Allgemei n, ohne Vari antenang abe - Einl eitung @ 4\mod_1241084431984_21.doc x @ 32069 @ @ 1 The following approvals are pending for 750-1416/040-000 I/O modules: Pos : 49.7 /All e Seri en ( Allgemei ne Module)/Z ulassungen/Standardz ulassungen/KC - Kor ea Certi ficate - DIM @ 20\mod_1406291677193_21.doc x @ 160334 @ @ 1...
  • Page 26: Standards And Guidelines

    Standards and Guidelines Pos : 51.1 /Serie 750 (WAGO-I/O-SYST EM)/Ger ätebesc hrei bung (alte Str uktur)/Nor men und Richtlini en/Nor men und Richtlini en I/O-Modul 750- xxxx, ohne Vari antenangabe - Einl eitung @ 7\mod_1274278887584_21.doc x @ 56645 @ @ 1 750-1416/040-000 I/O modules meet the following standards and guidelines: Pos : 51.2 /Serie 750 (WAGO-I/O-SYST EM)/Ger ätebesc hrei bung (alte Str uktur)/Nor men und Richtlini en/Allgemeine N or men XTR 2017 (AT EX und IECEx) @ 29\mod_1488294653976_21.doc x @ 410705 @ @ 1...
  • Page 27: Table 17: Climatic And Mechanical Environmental Conditions And

    WAGO I/O SYSTEM 750 XTR Device Description 750-1416/040-000 8DI 24 VDC 0.2ms 2-wire XTR Table 17: Climatic and Mechanical Environmental Conditions and Shipbuilding Standard Test Value Transport EN 60870-2-2 Ct2(2k4) (except precipitation/water/moisture) Mechanical Environmental Conditions EN 61850-3 Achieved EN 60870-2-2...
  • Page 28: Table 18: Emc - Immunity To Interference

    Pos : 51.5 /Serie 750 (WAGO-I/O-SYST EM)/Ger ätebesc hrei bung (alte Str uktur)/Nor men und Richtlini en/EM V-Nor men I/O-M odul 750- xxxx/0040- 0000, nur Standar dversi on - Ei nlei tung XTR @ 18\mod_1395909426189_21.doc...
  • Page 29 10 m or more. Pos : 51.7 /Serie 750 (WAGO-I/O-SYST EM)/Ger ätebesc hrei bung (alte Str uktur)/Nor men und Richtlini en/Nor men Störauss endung XTR @ 18\mod_1394087664442_21.doc x @ 147358 @ @ 1 Manual...
  • Page 30: Table 19: Emc - Emission Of Interference

    Device Description WAGO I/O SYSTEM 750 XTR 750-1416/040-000 8DI 24 VDC 0.2ms 2-wire XTR Table 19: EMC – Emission of Interference Standard Test Value Enclosure Emission of Interference • EN 61000-6-3 30 dB(µV/m), QP, 30 MHz … 230 MHz • EN 55032 Class B 37 dB(µV/m), QP, 230 MHz …...
  • Page 31: Table 20: Standards And Rated Conditions For Rail Applications (En 50155)

    EMC A or EMC B). Pos : 51.8 /Serie 750 (WAGO-I/O-SYST EM)/Ger ätebesc hrei bung (alte Str uktur)/Nor men und Richtlini en/Nor men und Ei ns atz beding ung en für Bahnanwendungen (EN 50155) XTR @ 28\mod_1486482984774_21.doc x @ 405384 @ @ 1...
  • Page 32: Process Image

    Pos : 53 /All e Seri en (Allgemei ne Module)/Ü berschriften/Ebene 1/Prozes sabbild - Ü berschrift 1 @ 4\mod_1240983067828_21.doc x @ 31942 @ 1 @ 1 Process Image Pos : 54 /Serie 750 ( WAGO-I/O-SYST EM)/Proz ess abbild Lokalbus/D I/Proz ess abbild 750- x4xx 08 D I @ 4\mod_1236259340906_21.doc x @ 28020 @ @ 1 Table 21: Input Bits...
  • Page 33: Mounting

    I/O modules with fewer power contacts. Pos : 57.2 /Serie 750 (WAGO-I/O-SYST EM)/Wic htige Erläuterungen (al te Str uktur)/Sic herheits- und s onstige Hinweise/Vorsic ht/Vorsic ht: Verletz ungsgefahr durc h sc harfkantige M esser kontakte! @ 6\mod_1256193279401_21.doc x @ 43414 @ @ 1 Risk of injury due to sharp-edged blade contacts! The blade contacts are sharp-edged.
  • Page 34: Inserting And Removing Devices

    Pos : 57.10 /Serie 750 ( WAGO-I/O-SYST EM)/Wichtig e Erl äuter ung en (alte Struktur)/Sic her heits- und s onstige Hi nweis e/Ac htung/Ac htung: XTR nic ht unter -20 °C verdrahten oder umstec ken @ 15\mod_1367559895186_21.doc...
  • Page 35: Removing The I/O Module

    (if any) to the fieldbus coupler/controller or to the previous or possibly subsequent I/O module are established. Pos : 57.12 /Serie 750 ( WAGO-I/O-SYST EM)/Monti eren/D emonti eren/XTR-I/O-Modul entfernen @ 28\mod_1486551166032_21.doc x @ 405491 @ 3 @ 1 5.2.2 Removing the I/O Module Remove the I/O module from the assembly by pulling the release tab.
  • Page 36: Connect Devices

    Connect Devices Pos : 60 /Serie 750 ( WAGO-I/O-SYST EM)/Ans chli eßen/Leiter an Pus h-in CAGE CLAMP® ansc hließ en - Ü bersc hrift 2 und T ext @ 6\mod_1258964749000_21.doc x @ 44640 @ 2 @ 1 Connecting a Conductor to the Push-in CAGE CLAMP ®...
  • Page 37: Connection Example

    Connection Example Pos : 63 /Serie 750 ( WAGO-I/O-SYST EM)/Ans chli eßen/Anschl uss beispi ele/Digitalei ngänge/Anschl uss beis pi ele 750- 141x_8D I_2L @ 20\mod_1413189971392_21.doc x @ 165703 @ @ 1 Figure 11: Connection Example with 2 Switches on Channel 1 and 2 Pos : 64 /D okumentation allgemei n/Glieder ungs elemente/---Seitenwechs el--- @ 3\mod_1221108045078_0.doc x @ 21810 @ @ 1...
  • Page 38: Use In Hazardous Environments

    Use in Hazardous Environments Pos : 65.2 /Serie 750 (WAGO-I/O-SYST EM)/Eins atz in Ex- Ber eichen/Ei ns atz ber eich Serie 750 @ 3\mod_1234272230203_21.doc x @ 27500 @ @ 1 The WAGO I/O SYSTEM 750 (electrical equipment) is designed for use in Zone 2 hazardous areas and shall be used in accordance with the marking and installation regulations.
  • Page 39: Marking Configuration Examples

    Marking for Europe According to ATEX and IECEx Pos : 65.6 /Serie 750 (WAGO-I/O-SYST EM)/Eins atz in Ex- Ber eichen/Beis piel bedruc kung ATEX und IEC Ex_TUEV07_2017 @ 14\mod_1360569228625_21.doc x @ 111294 @ @ 1 Figure 12: Marking Example According to ATEX and IECEx Figure 13: Text Detail –...
  • Page 40: Table 22: Description Of Marking Example According To Atex And Iecex

    Use in Hazardous Environments WAGO I/O SYSTEM 750 XTR 750-1416/040-000 8DI 24 VDC 0.2ms 2-wire XTR Table 22: Description of Marking Example According to ATEX and IECEx Marking Description TUEV 07 ATEX 554086 X Approving authority resp. certificate numbers IECEx TUN 09.0001 X...
  • Page 41: Figure 14: Marking Example For Approved Ex I I/O Module According To

    750-1416/040-000 8DI 24 VDC 0.2ms 2-wire XTR Pos : 65.8 /Serie 750 (WAGO-I/O-SYST EM)/Eins atz in Ex- Ber eichen/Beis piel bedruc kung ATEX und IEC Ex_TUEV12_Ex i_2017 @ 14\mod_1360569320118_21.doc x @ 111298 @ @ 1 Figure 14: Marking Example for Approved Ex i I/O Module According to ATEX and IECEx Figure 15: Text Detail –...
  • Page 42: Table 23: Description Of Marking Example For Approved Ex I I/O Module According To Atex And Iecex

    Use in Hazardous Environments WAGO I/O SYSTEM 750 XTR 750-1416/040-000 8DI 24 VDC 0.2ms 2-wire XTR Table 23: Description of Marking Example for Approved Ex i I/O Module According to ATEX and IECEx Marking Description TUEV 12 ATEX 106032 X Approving authority resp.
  • Page 43: Marking For The United States Of America (Nec) And Canada (Cec)

    Figure 16: Marking Example According to NEC Pos : 65.11 /Serie 750 ( WAGO-I/O-SYST EM)/Ei ns atz i n Ex-Bereic hen/Beispi elbedruc kung und Textdetail N EC 500_2017 @ 14\mod_1360580302684_21.doc x @ 111353 @ @ 1 Figure 17: Text Detail – Marking Example According to NEC 500...
  • Page 44: Figure 18: Text Detail - Marking Example For Approved Ex I I/O Module

    750-1416/040-000 8DI 24 VDC 0.2ms 2-wire XTR Pos : 65.13 /Serie 750 ( WAGO-I/O-SYST EM)/Ei ns atz i n Ex-Bereic hen/Beispi elbedruc kung und Textdetail N EC 505_2017 @ 29\mod_1497865583500_21.doc x @ 424739 @ @ 1 Figure 18: Text Detail – Marking Example for Approved Ex i I/O Module According to NEC 505...
  • Page 45: Figure 20: Text Detail - Marking Example For Approved Ex I I/O Modules

    750-1416/040-000 8DI 24 VDC 0.2ms 2-wire XTR Pos : 65.16 /Serie 750 ( WAGO-I/O-SYST EM)/Ei ns atz i n Ex-Bereic hen/Beispi elbedruc kung und Textdetail C EC_2017 @ 29\mod_1497865583297_21.doc x @ 424736 @ @ 1 Figure 20: Text Detail – Marking Example for Approved Ex i I/O Modules According to CEC 18...
  • Page 46: Installation Regulations

    Special Notes including Explosion Protection Pos : null /Serie 750 (WAGO-I/O-SYST EM)/Ei ns atz i n Ex-Bereic hen/Bes onder e Hi nweis e einschli eßlich Expl osionssc hutz _2017 @ 29\mod_1491556994025_21.doc x @ 415448 @ @ 1 The following warning notices are to be posted in the immediately proximity of the WAGO I/O SYSTEM 750 (hereinafter “product”):...
  • Page 47 WAGO I/O SYSTEM 750 XTR Use in Hazardous Environments 750-1416/040-000 8DI 24 VDC 0.2ms 2-wire XTR Explosive atmosphere occurring simultaneously with assembly, installation or repair work must be ruled out. Among other things, these include the following activities • Insertion and removal of components •...
  • Page 48: Special Notes Regarding Ansi/Isa Ex

    Special Notes Regarding ANSI/ISA Ex Pos : null /Serie 750 (WAGO-I/O-SYST EM)/Ei ns atz i n Ex-Bereic hen/AN SI/ISA gemäß U L Fil e E198726_2017 @ 29\mod_1491557259544_21.doc x @ 415451 @ @ 1 For ANSI/ISA Ex acc. to UL File E198726, the following additional requirements apply: •...
  • Page 49: List Of Figures

    WAGO I/O SYSTEM 750 XTR List of Figures 750-1416/040-000 8DI 24 VDC 0.2ms 2-wire XTR Pos : 67 /D okumentation allgemei n/Verz eic hniss e/Abbil dungs verz eic hnis - Übersc hrift oG und Verz eichnis @ 3\mod_1219222916765_21.doc x @ 21080 @ @ 1 List of Figures Figure 1: View ....................16...
  • Page 50: List Of Tables

    List of Tables WAGO I/O SYSTEM 750 XTR 750-1416/040-000 8DI 24 VDC 0.2ms 2-wire XTR Pos : 69 /D okumentation allgemei n/Verz eic hniss e/Tabell enverz eichnis - Übersc hrift oG und Verz eichnis @ 3\mod_1219222958703_21.doc x @ 21084 @ @ 1 List of Tables Table 1: Number Notation ...................
  • Page 51 WAGO I/O SYSTEM 750 XTR 750-1416/040-000 8DI 24 VDC 0.2ms 2-wire XTR Pos : 71 /D okumentation allgemei n/Einband/Einband - Leers eite für durc h 2 teilbare Seitenz ahl (Standarddruc k) @ 3\mod_1219230851078_0.doc x @ 21123 @ @ 1 Manual...
  • Page 52 Pos : 72 /D okumentation allgemei n/Einband/Einband R üc ks eite - alle D okumente; CI 2017 @ 28\mod_1486477503580_21.doc x @ 405394 @ @ 1 WAGO Kontakttechnik GmbH & Co. KG Postfach 2880 • D - 32385 Minden Hansastraße 27 • D - 32423 Minden Phone: +49 571 887 –...
