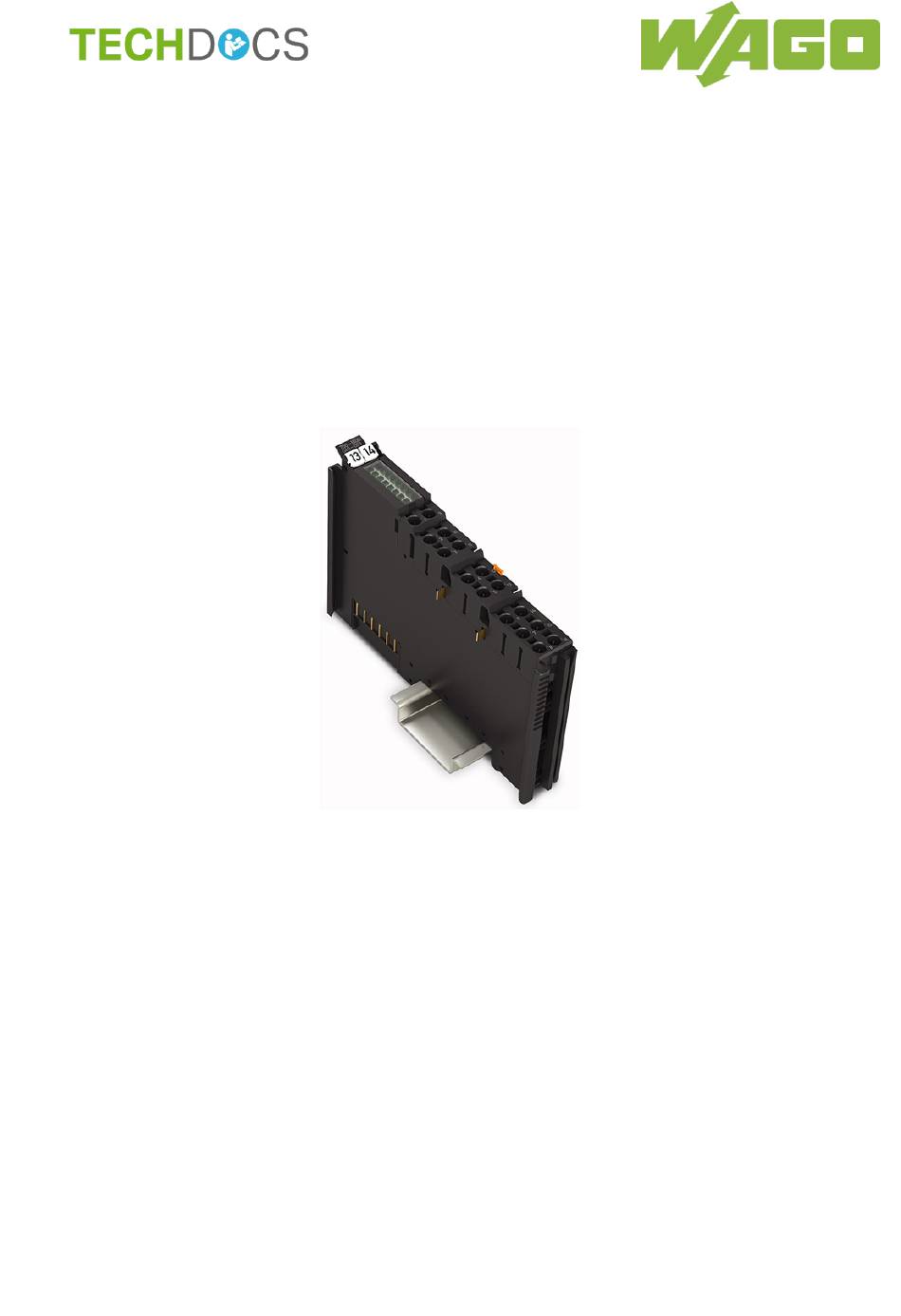

- Page 1 Manual WAGO-I/O-SYSTEM 750 XTR 750-1606/040-000 Potential Distribution 16*0V XTR Potential Distribution; 16-Way 0 V; Extreme Version 1.3.0...
- Page 2 We wish to point out that the software and hardware terms as well as the trademarks of companies used and/or mentioned in the present manual are generally protected by trademark or patent. WAGO is a registered trademark of WAGO Verwaltungsgesellschaft mbH. Manual Version 1.3.0...
-
Page 3: Table Of Contents
WAGO-I/O-SYSTEM 750 XTR Table of Contents 750-1606/040-000 Potential Distribution 16*0V XTR Table of Contents Notes about this Documentation ............. 5 Validity of this Documentation..............5 Copyright ....................5 Symbols ....................6 Number Notation ..................7 Font Conventions ................... 7 Important Notes ..................8 Legal Bases .................... - Page 4 Table of Contents WAGO-I/O-SYSTEM 750 XTR 750-1606/040-000 Potential Distribution 16*0V XTR Use in Hazardous Environments ............33 Marking Configuration Examples ............34 6.1.1 Marking for Europe According to ATEX and IECEx ......34 6.1.2 Marking for the United States of America (NEC) and Canada (CEC) ....................
-
Page 5: Notes About This Documentation
(Potential Distribution 16*0V XTR). The I/O module 750-1606/040-000 shall only be installed and operated according to the instructions in this manual, in the system description for the WAGO-I/O- SYSTEM 750 XTR and in the manual for the used fieldbus coupler/controller. -
Page 6: Symbols
Notes about this Documentation WAGO-I/O-SYSTEM 750 XTR 750-1606/040-000 Potential Distribution 16*0V XTR Symbols Personal Injury! Indicates a high-risk, imminently hazardous situation which, if not avoided, will result in death or serious injury. Personal Injury Caused by Electric Current! Indicates a high-risk, imminently hazardous situation which, if not avoided, will result in death or serious injury. -
Page 7: Number Notation
WAGO-I/O-SYSTEM 750 XTR Notes about this Documentation 750-1606/040-000 Potential Distribution 16*0V XTR Additional Information: Refers to additional information which is not an integral part of this documentation (e.g., the Internet). Number Notation Table 1: Number Notation Number Code Example Note... -
Page 8: Important Notes
2.1.1 Subject to Changes WAGO Kontakttechnik GmbH & Co. KG reserves the right to provide for any alterations or modifications. WAGO Kontakttechnik GmbH & Co. KG owns all rights arising from the granting of patents or from the legal protection of utility patents. -
Page 9: Technical Condition Of Specified Devices
These modules contain no parts that can be serviced or repaired by the user. The following actions will result in the exclusion of liability on the part of WAGO Kontakttechnik GmbH & Co. KG: •... -
Page 10: 2.1.4.1.2 Packaging
Important Notes WAGO-I/O-SYSTEM 750 XTR 750-1606/040-000 Potential Distribution 16*0V XTR • Observe national and local regulations for the disposal of electrical and electronic equipment. • Clear any data stored on the electrical and electronic equipment. • Remove any added battery or memory card in the electrical and electronic equipment. -
Page 11: Safety Advice (Precautions)
WAGO-I/O-SYSTEM 750 XTR Important Notes 750-1606/040-000 Potential Distribution 16*0V XTR Safety Advice (Precautions) For installing and operating purposes of the relevant device to your system the following safety precautions shall be observed: Do not work on devices while energized! All power sources to the device shall be switched off prior to performing any installation, repair or maintenance work. - Page 12 Power from SELV/PELV power supply only! All field signals and field supplies connected to this XTR I/O module (750-1606/040-000) must be powered from SELV/PELV power supply(s)! Do not touch hot surfaces! The surface of the housing can become hot during operation. If the device was operated at high ambient temperatures, allow it to cool off before touching it.
- Page 13 WAGO-I/O-SYSTEM 750 XTR Important Notes 750-1606/040-000 Potential Distribution 16*0V XTR Do not reverse the polarity of connection lines! Avoid reverse polarity of data and power supply lines, as this may damage the devices involved. Avoid electrostatic discharge! The devices are equipped with electronic components that may be destroyed by electrostatic discharge when touched.
-
Page 14: Device Description
750-1606/040-000 Potential Distribution 16*0V XTR Device Description The field-side connection module 750-1606/040-000 is used in combination with the 16-channel digital output modules (e.g. 750-1515/040-000) or the 8-channel output modules with 1-wire connection to provide the 0 V potential for the outputs. -
Page 15: View

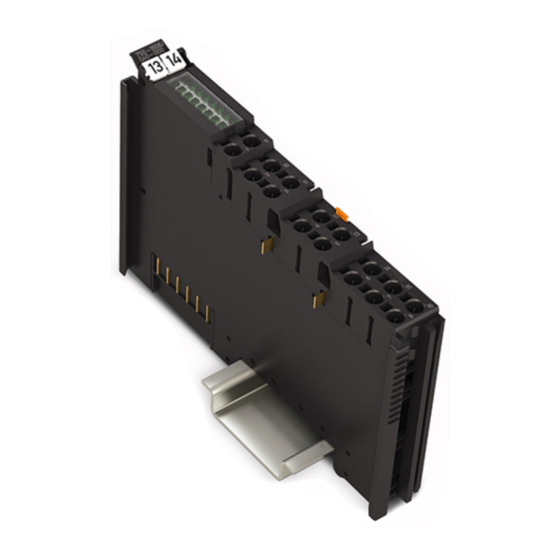

WAGO-I/O-SYSTEM 750 XTR Device Description 750-1606/040-000 Potential Distribution 16*0V XTR View Figure 1: View Table 3: Legend for Figure “View” Pos. Description Details See Section Marking possibility with Mini-WSB Data contacts “Device Description” > “Connectors” ® Push-in CAGE CLAMP connectors “Device Description” > “Connectors”... -
Page 16: Connectors
Device Description WAGO-I/O-SYSTEM 750 XTR 750-1606/040-000 Potential Distribution 16*0V XTR Connectors 3.2.1 Data Contacts/Local Bus Communication between the fieldbus coupler/controller and the I/O modules as well as the system supply of the I/O modules is carried out via the local bus. The contacting for the local bus consists of 6 data contacts, which are available as self-cleaning gold spring contacts. -
Page 17: Power Jumper Contacts/Field Supply
The blade contacts are sharp-edged. Handle the I/O module carefully to prevent injury. Do not touch the blade contacts. The I/O module 750-1606/040-000 has 2 self-cleaning power jumper contacts that supply and transmit power for the field side. The contacts on the left side of the I/O module are designed as blade contacts and those on the right side as spring contacts. -
Page 18: Push-In Cage Clamp ® Connectors
Device Description WAGO-I/O-SYSTEM 750 XTR 750-1606/040-000 Potential Distribution 16*0V XTR ® 3.2.3 Push-in CAGE CLAMP Connectors ® Figure 4: Push-in CAGE CLAMP Connectors ® Table 5: Legend for Figure “Push-in CAGE CLAMP Connectors” Designation Connector Function DC 0 V Output 0 V... -
Page 19: Display Elements
WAGO-I/O-SYSTEM 750 XTR Device Description 750-1606/040-000 Potential Distribution 16*0V XTR Display Elements The I/O module 750-1606/040-000 has no display elements. Operating Elements The I/O module 750-1606/040-000 has no operating elements. Schematic Diagram Figure 5: Schematic Diagram Manual Version 1.3.0... -
Page 20: Technical Data
Device Description WAGO-I/O-SYSTEM 750 XTR 750-1606/040-000 Potential Distribution 16*0V XTR Technical Data 3.6.1 Device Data Table 6: Technical Data – Device Width 12 mm Height (from upper edge of DIN-rail) 62 mm Depth 100 mm Weight 39.3 g Degree of protection IP20 3.6.2... -
Page 21: Mechanical Conditions
WAGO-I/O-SYSTEM 750 XTR Device Description 750-1606/040-000 Potential Distribution 16*0V XTR 3.6.4 Mechanical Conditions Table 11: Technical Data – Mechanical Conditions Vibration resistance Max. 5g Follow the installation instructions 3.6.5 Climatic Environmental Conditions Table 12: Technical Data ‒ Climatic Environmental Conditions Surrounding air temperature, operation −40 °C …... -
Page 22: Approvals
Approvals More information about approvals. Detailed references to the approvals are listed in the document “Overview Approvals WAGO-I/O-SYSTEM 750”, which you can find via the internet under: www.wago.com DOWNLOADS Documentation System Description. The following approvals have been granted to 750-1606/040-000 I/O modules:... -
Page 23: Standards And Guidelines
WAGO-I/O-SYSTEM 750 XTR Device Description 750-1606/040-000 Potential Distribution 16*0V XTR Standards and Guidelines 750-1606/040-000 I/O modules meet the following standards and guidelines: Table 13: Standards and Rated Conditions for Explosion Protection Applications ATEX acc. Directive 2014/34/EU General Requirements EN 60079-0:2012 + A11:2013... -
Page 24: Table 14: Climatic And Mechanical Environmental Conditions And
Device Description WAGO-I/O-SYSTEM 750 XTR 750-1606/040-000 Potential Distribution 16*0V XTR Table 14: Climatic and Mechanical Environmental Conditions and Shipbuilding Standard Test Value Transport EN 60870-2-2 Ct2(2k4) (except precipitation/water/moisture) Mechanical Environmental Conditions EN 61850-3 Achieved EN 60870-2-2 EN 60721-3-1 EN 60721-3-3... -
Page 25: Table 15: Emc - Immunity To Interference
WAGO-I/O-SYSTEM 750 XTR Device Description 750-1606/040-000 Potential Distribution 16*0V XTR The I/O module 750-1606/040-000 meets the following EMC standards as these standards relate to the I/O module: Table 15: EMC – Immunity to Interference Standard Test Value Electrostatic Discharge • EN 61000-4-2 8 kV (contact discharge) •... - Page 26 Device Description WAGO-I/O-SYSTEM 750 XTR 750-1606/040-000 Potential Distribution 16*0V XTR Table 15: EMC – Immunity to Interference Standard Test Value Line Frequency Disturbances • EN 60255-26 Standard not applicable Alternating Components of the Voltage to DC Line Connections • EN 61000-4-17 15 % •...
-
Page 27: Table 16: Emc - Emission Of Interference
WAGO-I/O-SYSTEM 750 XTR Device Description 750-1606/040-000 Potential Distribution 16*0V XTR Table 16: EMC – Emission of Interference Standard Test Value Enclosure Emission of Interference • EN 61000-6-3 30 dB(µV/m), QP, 30 MHz … 230 MHz • EN 55022 Class B 37 dB(µV/m), QP, 230 MHz …... -
Page 28: Table 17: Standards And Rated Conditions For Rail Applications (En 50155)
EN 50121-3-2 5.5 EMC (Emission of Interference, EN 50121-3-2 Immunity to Interference) EN 50121-4 EN 50121-5 9.11 Materials (Fire Protection) EN 45545-2 Hazard level HL3 WAGO is a company certified in accordance with the IRIS quality standard. Manual Version 1.3.0... -
Page 29: Mounting
750-1606/040-000 Potential Distribution 16*0V XTR Mounting Mounting Sequence Fieldbus couplers, controllers and I/O modules of the WAGO-I/O-SYSTEM 750 are snapped directly on a carrier rail in accordance with the European standard EN 60175 (DIN 35). The reliable positioning and connection is made using a tongue and groove system. -
Page 30: Inserting And Removing Devices
Mounting WAGO-I/O-SYSTEM 750 XTR 750-1606/040-000 Potential Distribution 16*0V XTR Inserting and Removing Devices Do not touch hot surfaces! The surface of the housing can become hot during operation. If the device was operated at high ambient temperatures, allow it to cool off before touching it. -
Page 31: Removing The I/O Module
WAGO-I/O-SYSTEM 750 XTR Mounting 750-1606/040-000 Potential Distribution 16*0V XTR Figure 7: Snap the I/O Module into Place (Example) With the I/O module snapped in place, the electrical connections for the data contacts and power jumper contacts (if any) to the fieldbus coupler/controller or to the previous or possibly subsequent I/O module are established. -
Page 32: Connect Devices
Do not connect more than one conductor at one single connection! If more than one conductor must be routed to one connection, these must be connected in an up-circuit wiring assembly, for example using WAGO feed- through terminals. Terminate both solid and stranded or ferruled conductors by simply pushing them ®... -
Page 33: Use In Hazardous Environments
Use in Hazardous Environments 750-1606/040-000 Potential Distribution 16*0V XTR Use in Hazardous Environments The WAGO-I/O-SYSTEM 750 (electrical equipment) is designed for use in Zone 2 hazardous areas and shall be used in accordance with the marking and installation regulations. The following sections include both the general identification of components (devices) and the installation regulations to be observed. -
Page 34: Marking Configuration Examples
Use in Hazardous Environments WAGO-I/O-SYSTEM 750 XTR 750-1606/040-000 Potential Distribution 16*0V XTR Marking Configuration Examples 6.1.1 Marking for Europe According to ATEX and IECEx Figure 10: Marking Example According to ATEX and IECEx Figure 11: Text Detail – Marking Example According to ATEX and IECEx Manual Version 1.3.0... -
Page 35: Table 18: Description Of Marking Example According To Atex And Iecex
WAGO-I/O-SYSTEM 750 XTR Use in Hazardous Environments 750-1606/040-000 Potential Distribution 16*0V XTR Table 18: Description of Marking Example According to ATEX and IECEx Marking Description TUEV 07 ATEX 554086 X Approving authority resp. certificate numbers IECEx TUN 09.0001 X Dust... -
Page 36: Figure 12: Marking Example For Approved Ex I I/O Module According To
Use in Hazardous Environments WAGO-I/O-SYSTEM 750 XTR 750-1606/040-000 Potential Distribution 16*0V XTR Figure 12: Marking Example for Approved Ex i I/O Module According to ATEX and IECEx Figure 13: Text Detail – Marking Example for Approved Ex i I/O Module According to ATEX and... -
Page 37: Table 19: Description Of Marking Example For Approved Ex I I/O Module According To Atex And Iecex
WAGO-I/O-SYSTEM 750 XTR Use in Hazardous Environments 750-1606/040-000 Potential Distribution 16*0V XTR Table 19: Description of Marking Example for Approved Ex i I/O Module According to ATEX and IECEx Marking Description TUEV 12 ATEX 106032 X Approving authority resp. certificate numbers... -
Page 38: Marking For The United States Of America (Nec) And Canada (Cec)
Use in Hazardous Environments WAGO-I/O-SYSTEM 750 XTR 750-1606/040-000 Potential Distribution 16*0V XTR 6.1.2 Marking for the United States of America (NEC) and Canada (CEC) Figure 14: Marking Example According to NEC Figure 15: Text Detail – Marking Example According to NEC 500... -
Page 39: Figure 16: Text Detail - Marking Example For Approved Ex I I/O Module
WAGO-I/O-SYSTEM 750 XTR Use in Hazardous Environments 750-1606/040-000 Potential Distribution 16*0V XTR Figure 16: Text Detail – Marking Example for Approved Ex i I/O Module According to NEC 505 Table 21: Description of Marking Example for Approved Ex i I/O Module According to NEC 505... -
Page 40: Figure 18: Text Detail - Marking Example For Approved Ex I I/O Modules
Use in Hazardous Environments WAGO-I/O-SYSTEM 750 XTR 750-1606/040-000 Potential Distribution 16*0V XTR Figure 18: Text Detail – Marking Example for Approved Ex i I/O Modules According to CEC 18 attachment J Table 23: Description of Marking Example for Approved Ex i I/O Modules According to CEC 18... -
Page 41: Installation Regulations
WAGO-I/O-SYSTEM 750 XTR Use in Hazardous Environments 750-1606/040-000 Potential Distribution 16*0V XTR Installation Regulations For the installation and operation of electrical equipment in hazardous areas, the valid national and international rules and regulations which are applicable at the installation location must be carefully followed. - Page 42 Use in Hazardous Environments WAGO-I/O-SYSTEM 750 XTR 750-1606/040-000 Potential Distribution 16*0V XTR Explosive atmosphere occurring simultaneously with assembly, installation or repair work must be ruled out. Among other things, these include the following activities • Insertion and removal of components •...
-
Page 43: Special Notes Regarding Ansi/Isa Ex
WAGO-I/O-SYSTEM 750 XTR Use in Hazardous Environments 750-1606/040-000 Potential Distribution 16*0V XTR 6.2.2 Special Notes Regarding ANSI/ISA Ex For ANSI/ISA Ex acc. to UL File E198726, the following additional requirements apply: • Use in Class I, Division 2, Group A, B, C, D or non-hazardous areas only •... -
Page 44: List Of Figures
List of Figures WAGO-I/O-SYSTEM 750 XTR 750-1606/040-000 Potential Distribution 16*0V XTR List of Figures Figure 1: View ....................15 Figure 2: Data Contacts ..................16 Figure 3: Power Jumper Contacts ..............17 ® Figure 4: Push-in CAGE CLAMP Connectors ...........18 Figure 5: Schematic Diagram ................19 Figure 6: Insert I/O Module (Example) ..............30... -
Page 45: List Of Tables
WAGO-I/O-SYSTEM 750 XTR List of Tables 750-1606/040-000 Potential Distribution 16*0V XTR List of Tables Table 1: Number Notation ................... 7 Table 2: Font Conventions .................. 7 Table 3: Legend for Figure “View” ..............15 Table 4: Legend for Figure “Power Jumper Contacts” ........17 ®... - Page 46 WAGO Kontakttechnik GmbH & Co. KG Postfach 2880 • D - 32385 Minden Hansastraße 27 • D - 32423 Minden Phone: +49 571 887 – 0 Fax: +49 571 887 – 844169 E-Mail: info@wago.com Internet: www.wago.com...
