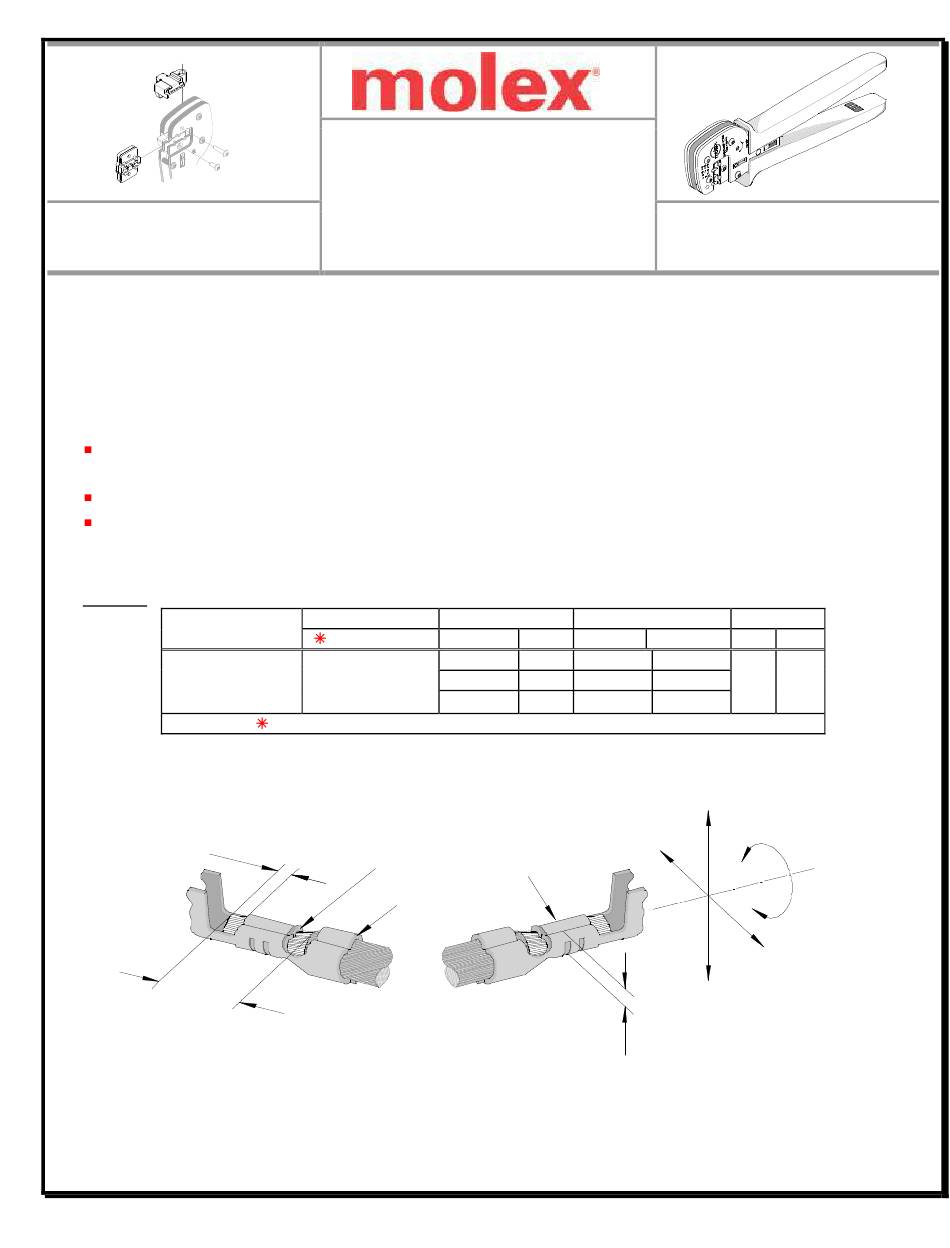

Tool Kit for CSP 6.3 Receptacle Terminal
Tool Kit
Order No. 63825-5770
FEATURES
A full cycle ratcheting hand tool ensures complete crimps
%
Ergonomically designed soft handles
%
Precisely designed crimping profiles with simple contact positioning
%
Easy handling due to outstanding force ratio
%
Tool kits are easily installed into the Hand Crimp Tool or the 63816-0300 Power Crimp Head which is installed
into the 63816-0200 (110 V) or the 63816-0250 (220 V) Battery Powered Tool.
Many different Tool kits can be used with a single Battery Powered Tool.
This tool is IPC/WHMA-A-620 Class 2 and RoHS compliant.
SCOPE
Products: CSP 6.3 Receptacle Terminal, 1.00mm², 2.00mm², and 2.50mm² metric wire.
Terminal Series No.
98891
DEFINITION OF TERMS
BRUSH
STRIP
LENGTH
Doc No: ATS-6382557HM Release Date: 07-31-12
Revision: A
Application Tooling
Specification Sheet
Terminal Order No.
Reel Form Only
98891-1012
Customer to cut off terminal from reel: 0.30mm (.012") maximum Cut-off Tab.
BELL MOUTH
INSULATION CRIMP
▲SEE NOTE
Revision Date: 07-31-12
Wire Size
Insulation Diameter
Wire Style
mm²
mm
IR
1.00
1.99-2.15
IR
2.00
2.50-2.80
IR
2.50
2.65-3.00
CONDUCTOR
CRIMP
CRIMP HEIGHT
UNCONTROLLED COPY
TYPE 4C
Hand Crimp Tool
Order No. 63825-5700
Strip Length
In.
mm
In.
.078-.085
.098-.110
5.50
..217
.104-.118
BEND UP
ROLLING
TWISTING
BEND
DOWN
Page 1 of 8
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for molex 63825-5770
Summary of Contents for molex 63825-5770
- Page 1 Tool Kit for CSP 6.3 Receptacle Terminal TYPE 4C Application Tooling Specification Sheet Tool Kit Hand Crimp Tool Order No. 63825-5770 Order No. 63825-5700 FEATURES A full cycle ratcheting hand tool ensures complete crimps Ergonomically designed soft handles Precisely designed crimping profiles with simple contact positioning...
- Page 2 Pull Force value must exceed the minimum pull force specifications listed. CAUTION: Install only Molex terminals listed above with this tool. Do not crimp hardened objects as damage can occur to the tool or die.
- Page 3 Tool Kit for CSP 6.3 Receptacle Terminal POWER CRIMP HEAD LIFT UP ON THE LOCATOR PUNCHES M4 X 18 LONG BHCS PRESS DOWN ON THE BRASS M4 X 10 LONG PIVOT SHAFT BHCS SWING LOCATOR ANVILS Figure 1 Figure 2 OPEN INSTALLATION To install the Tool Kit into the Power Crimp Head follow the steps below:...
- Page 4 Tool Kit for CSP 6.3 Receptacle Terminal Crimping Terminals 1. Select the desired terminal listed in the preceding charts. 2. Turn the Locator Lock Latch down to unlock. See Figure 3. WIRE AGAINST HANDLE WIRE STOP OPEN TERMINAL WIRE IN TERMINAL JAWS Figure 5 PARTIALLY...
- Page 5 4. Use only the Molex terminals specified for crimping with this tool. CAUTION: Repetitive use of this tool should be avoided. Certification Molex does not certify or re-certify commercial grade hand tools but rather supplies the following guidelines for customers to re-certify hand tools. UNCONTROLLED COPY...
- Page 6 12.7mm (1/2”) long, so there is no crimping of the insulation. Pull the terminal and wire at a rate no faster than 25mm (1.00”) per minute. See the Molex web site for the Quality Crimp Handbook for more information on pull testing.
- Page 7 Tool Kit for CSP 6.3 Receptacle Terminal HAND TOOL PARTS LIST Item Number Order Number Description Quantity 63810-1000 Hand Crimp Frame (Long) 63825-5770 Tool Kit with Locator 63823-0573 Locator Base 63825-5775 Locator (only) M4 X 8mm LONG BHCS RATCHET RELEASE SCREW...
- Page 8 Tool Kit for CSP 6.3 Receptacle Terminal POWER HEAD PARTS LIST Item Order No Engineering No. Description Quantity 63816-0300 63816-0300 Power Crimp Head 63825-5770 63825-5770 Tool Kit M4 by 8 Long BHCS M4 by 18 Long BHCS M4 by 10 Long BHCS Figure 12 http://www.molex.com...
