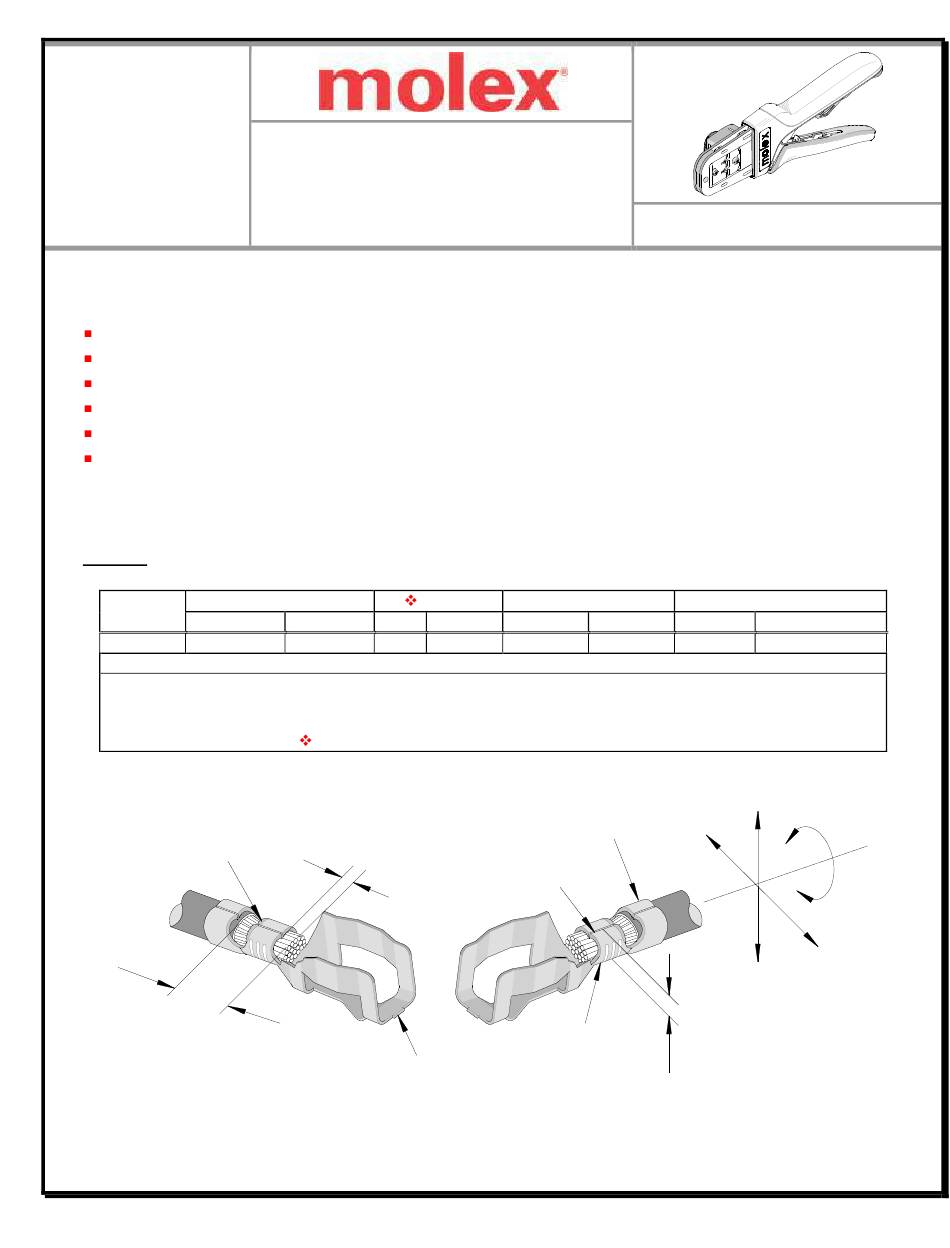

Hand Crimp Tool for Commoning Crimp Terminals
HAND CRIMP
TOOL
FEATURES
A full cycle ratcheting hand tool ensures complete crimps
Ergonomic soft grip handles for comfortable crimping
A precision user-friendly terminal locator wire stop holds terminals in the proper crimping position
Right and Left handed applications
This tool is WHMA-IPCA620 Class 2 compliant as indicated
This tool is RoHS compliant, however RoHS compliant is not required
SCOPE
Products: Commoning Terminals, 28-30 AWG.
Terminal Order No.
Terminal
Series No.
Loose Piece
1457-6
05-02-0092
%
To Achieve IPC-A-620 Class 2 Crimps, the following wire insulation diameter limits are recommended:
DEFINITION OF TERMS
BELL MOUTH
Doc No: ATS-638250500
Revision: A
Application Tooling
Specification Sheet
Wire Size
+
Reel
AWG
05-02-0091
28-30
0.09-.055
+
Customer to cut off terminal from reel: 0.18mm (.007") maximum Cut-off Tab.
1.
28 AWG 0.89mm (.035 inch) UL1061.
2.
30 AWG 0.81mm (.032 inch) UL1061.
For Crimping 24-26 AWG Wire- Use 63823-1200 Hand Crimp Tool.
BRUSH
STRIP
LENGTH
CUT-OFF TAB
Release Date: 02-14-11
Revision Date: 02-14-11
%
Insulation Diameter
mm²
mm
In.
0.90-0.80
.035-.031
INSULATION
CRIMP
SEAM
CONDUCTOR
CRIMP
CONDUCTOR
CRIMP HEIGHT
UNCONTROLLED COPY
TYPE 4D
Order No. 63825-0500
Strip Length
mm
In.
3.96-5.54
.156-.218
BEND UP
ROLLING
TWISTING
BEND
DOWN
Page 1 of 7
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for molex 63825-0500
Summary of Contents for molex 63825-0500
- Page 1 TOOL Application Tooling TYPE 4D Specification Sheet Order No. 63825-0500 FEATURES A full cycle ratcheting hand tool ensures complete crimps Ergonomic soft grip handles for comfortable crimping A precision user-friendly terminal locator wire stop holds terminals in the proper crimping position...
- Page 2 HANDLE WILL SPRING OPEN OPERATION CAUTION: Install only Molex terminals listed above with this tool. Do not crimp hardened objects as damage can occur to the tool or die. LOCATOR IN Open the tool by squeezing the handles together. At the...
- Page 3 Hand Crimp Tool for Commoning Crimp Terminals RELEASE LOCATOR BUTTON LOCATOR TERMINAL PUSHED THRU TOOLING TERMINAL LOCATOR BUTTON PUSHED IN TOOLING Figure 3 PARTIALLY CLOSED PARTIALLY 3. While holding in the locator button, load the terminal into the proper nest CLOSE HANDLE opening in the locator based on the wire gauge or terminal type markings on the hand tooling.
- Page 4 Hand Crimp Tool for Commoning Crimp Terminals Note: A crimp height chart is provided with this manual as Reference Only. Due to the wide range of wires, strands, insulation diameters, and durometers available, actual crimp height measurements may very slightly. An occasional, destructive, pull force test should be preformed to check hand tool crimp.
- Page 5 Hand Crimp Tool for Commoning Crimp Terminals Right or Left Hand Operation This hand tool has an added feature that can be converted from a right handed application to a left handed application. It is necessary to reverse the tooling along with the locator if using the left handed application.
- Page 6 12.7mm (1/2”) long, so there is no crimping of the insulation. Pull the terminal and wire at a rate no faster than 25mm (1.00”) per minute. See the Molex web site for the Quality Crimp Handbook for more information on pull testing.
- Page 7 Hand Crimp Tool for Commoning Crimp Terminals PARTS LIST Item Number Order Number Description Quantity 63825-0500 Hand Crimp Tool Figure 13 63825-0575 Locator Assembly 63810-0104 Spring, Return 63810-0105 Spring, Ratchet RATCHET RELEASE LEVER Figure 13 http://www.molex.com UNCONTROLLED COPY Doc No: ATS-638250500...
