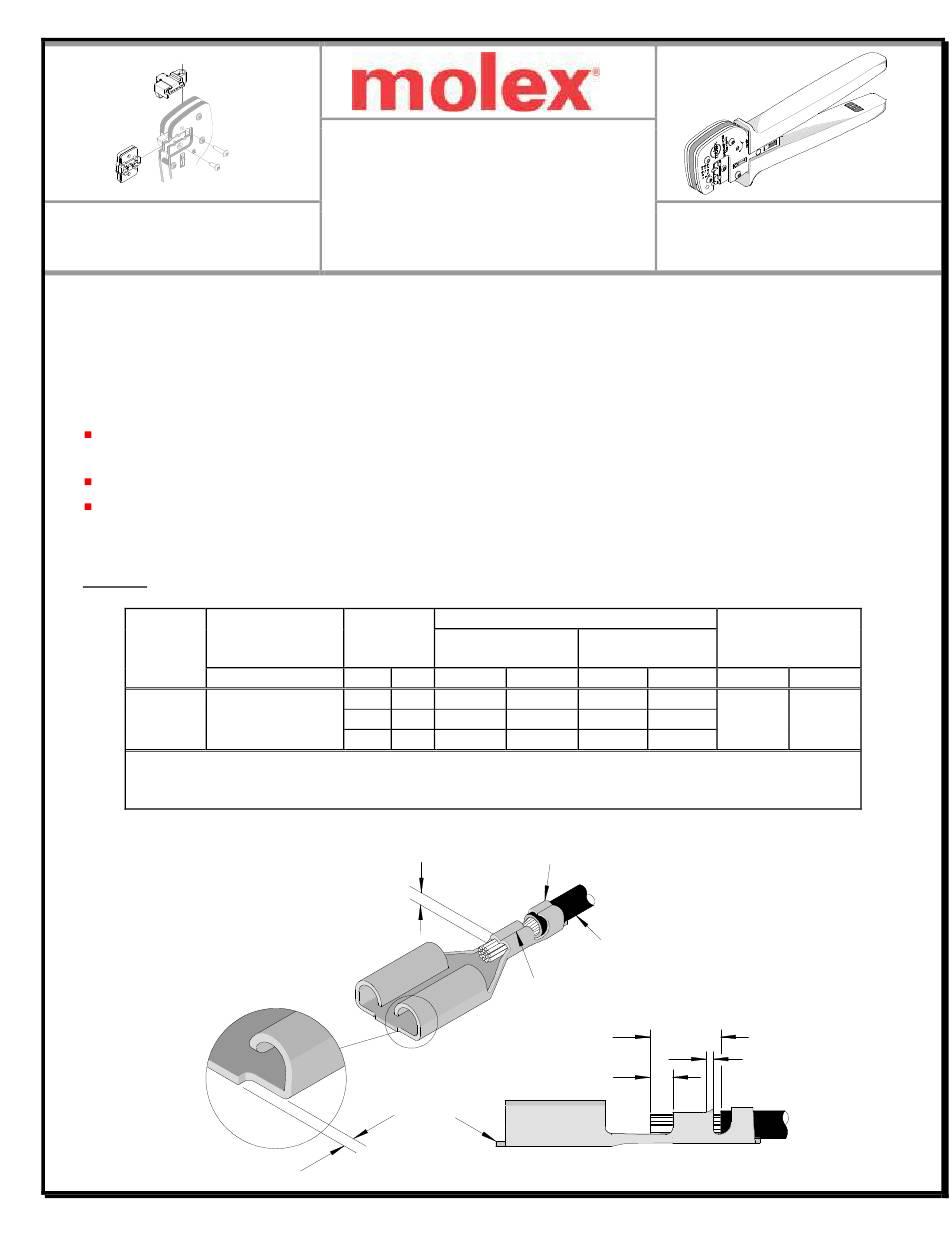

Tool Kit for 250 Slip-in Receptacle Terminals
Tool Kit
Order No. 63825-7570
FEATURES
A full cycle ratcheting hand tool ensures complete crimps
%
Ergonomically designed soft handles
%
Precisely designed crimping profiles with simple contact positioning
%
Easy handling due to outstanding force ratio
%
Tool kits are easily installed into the Hand Crimp Tool or the 63816-0300 Power Crimp Head which is installed
into the 63816-0200 (110 V) or the 63816-0250 (220 V) Battery Powered Tool.
Many different Tool kits can be used with a single Battery Powered Tool.
This tool is IPC/WHMA-A-620 Class 2 and RoHS compliant.
SCOPE
Products: .250 Slip-on Receptacle Terminals for 10-14 AWG Wire.
Terminal Order No.
Terminal
Series No.
Reel Form Only (3) AWG mm²
35725
(1) To achieve optimum IPC-A620 insulation crimps, use this insulation OD range.
(2) Overall insulation OD specification for terminal.
(3) The terminals above are reeled parts only. Customer to cut off terminal from reel: 0.50 mm (.020") maximum
DEFINITION OF TERMS
Doc No: ATS-6382575HM Release Date: 05-17-13
Revision:A
Application Tooling
Specification Sheet
Wire Size
10
5.25 3.80-4.55 .150-.179
35725-2710
12
3.30
35725-2740
14
2.00
CONDUCTOR
CRIMP HEIGHT
FRONT
CUT-OFF TAB
Revision Date: 05-17-13
Insulation Diameter
Terminal Insulation
IPC/WHMA-A620 (1)
Maximum (2)
mm
In.
mm
5.30
3.80
.150
5.30
N/A
N/A
5.30
INSULATION
CRIMP
WIRE
SEAM
BRUSH
UNCONTROLLED COPY
TYPE 4C
Hand Crimp Tool
Order No. 63825-7500
Strip Length
In.
mm
In.
.209
.209
5.20-5.80 .205-.228
.209
STRIP LENGTH
BELL MOUTH
Page 1 of 8
Advertisement
Table of Contents
Related Manuals for molex 63825-7570
Summary of Contents for molex 63825-7570
- Page 1 Tool Kit for 250 Slip-in Receptacle Terminals TYPE 4C Application Tooling Specification Sheet Tool Kit Hand Crimp Tool Order No. 63825-7570 Order No. 63825-7500 FEATURES A full cycle ratcheting hand tool ensures complete crimps Ergonomically designed soft handles Precisely designed crimping profiles with simple contact positioning...
- Page 2 Pull Force value must exceed the minimum pull force specifications listed. CAUTION: Install only Molex terminals listed above with this tool. Do not crimp hardened objects as damage can occur to the tool or die.
- Page 3 Tool Kit for 250 Slip-in Receptacle Terminals Anvils and Punches Installation 1. Insert the Anvils into the bottom slots of the nest. Install the M4 x 10 long BHCS and tighten in place. 2. Insert the Punches into the top slots of the nest. Install the M4 x 18 long BHCS and tighten in place. See Figure 1.
- Page 4 Should such a defect occur, we will repair or exchange the tool kit free of charge. This repair or exchange will not be applicable to altered, misused, or damaged tools. CAUTION: Molex crimp specifications are valid only when used with Molex terminals and tooling. UNCONTROLLED COPY...
- Page 5 12.7mm (1/2”) long, so there is no crimping of the insulation. Pull the terminal and wire at a rate no faster than 25mm (1.00”) per minute. See the Molex web site for the Quality Crimp Handbook for more information on pull testing.
- Page 6 Order No. Description 63810-1050 Hand Crimp Frame (Short) 63810-1000 Hand Crimp Frame (Long) 63825-7570 63816-0200 Battery Power Tool (110 V) 63816-0300 Power Crimp Head 63816-0250 Battery Power Tool (220 V) 63816-0300 Power Crimp Head Applications for the Tool Kit Hand Crimp Tool...
- Page 7 Tool Kit for 250 Slip-in Receptacle Terminals HAND TOOL PARTS LIST Item Number Order Number Description Quantity 63810-1000 Hand Crimp Frame (Long) 63825-7570 Tool Kit with Locator 63811-4773 Locator Base 63825-7575 Locator (only) M4 X 8mm LONG BHCS RATCHET RELEASE SCREW...
- Page 8 Tool Kit with Locator M4 by 8 Long BHCS M4 by 18 Long BHCS M4 by 10 Long BHCS Figure 10 Visit our Web site at http://www.molex.com UNCONTROLLED COPY Doc No: ATS-6382575HM Release Date: 05-17-13 Page 8 of 8 Revision:A Revision Date: 05-17-13...
