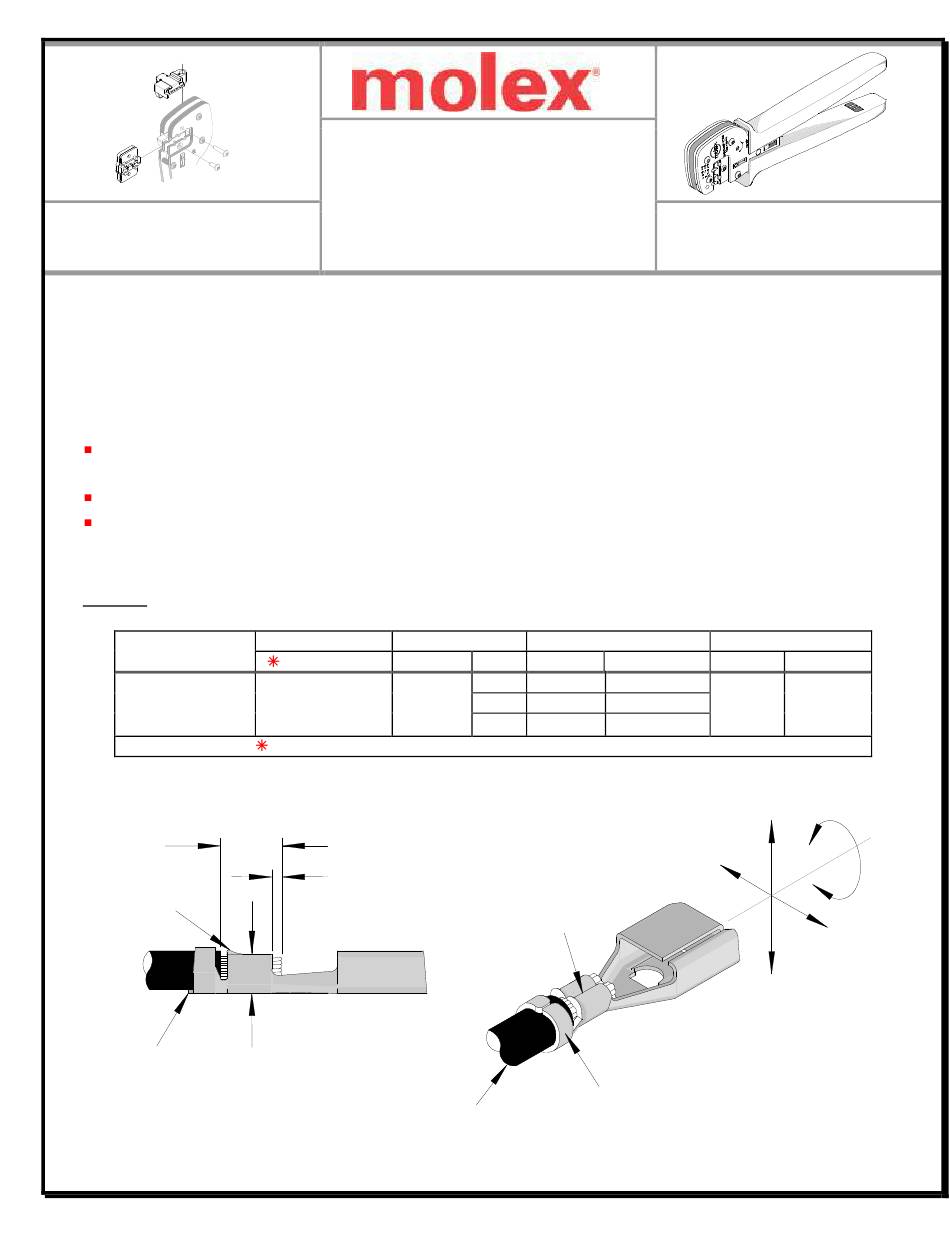

molex 63825-6070 Specification Sheet

Hand Crimp Tool for CSP 6.3 Receptacle Terminal
Tool Kit
Order No. 63825-6070
FEATURES
A full cycle ratcheting hand tool ensures complete crimps
%
Ergonomically designed soft handles
%
Precisely designed crimping profiles with simple contact positioning
%
Easy handling due to outstanding force ratio
%
Tool kits are easily installed into the Hand Crimp Tool or the 63816-0300 Power Crimp Head which is installed
into the 63816-0200 (110 V) or the 63816-0250 (220 V) Battery Powered Tool.
Many different Tool kits can be used with a single Battery Powered Tool.
This tool is IPC/WHMA-A-620 Class 2 and RoHS compliant.
SCOPE
Products: CSP 6.3 Receptacle Terminal, 3mm², 2mm² (double), and 5mm² metric wire.
Terminal Series No.
98891
DEFINITION OF TERMS
BELL MOUTH
CONDUCTOR
CUT-OFF
CRIMP HEIGHT
TAB
Doc No: ATS-6382560HM
Revision: A
Application Tooling
Specification Sheet
Terminal Order No. Wire Size
Reel Form Only Wire Style
98891-1013 T3 ZHID
Customer to cut off terminal from reel: 0.30mm (.012") maximum Cut-off Tab.
STRIP LENGTH
BRUSH
Release Date: 04-26-13
Revision Date: 04-26-13
Insulation Diameter
mm² mm
3 3.0 – 3.2 0.118 – 0.126
2 x 2 2.3 – 2.5 0.090 – 0.098
5 3.7 – 3.9 0.146 – 0.154
SEAM
INSULATION CRIMP
WIRE
▲SEE NOTE
UNCONTROLLED COPY
TYPE 4C
Hand Crimp Tool
Order No. 63825-6000
Strip Length
In. mm In.
5.0 – 5.5 0.20 – 0.22
BEND UP
ROLLING
TWISTING
BEND
DOWN
Page 1 of 8
