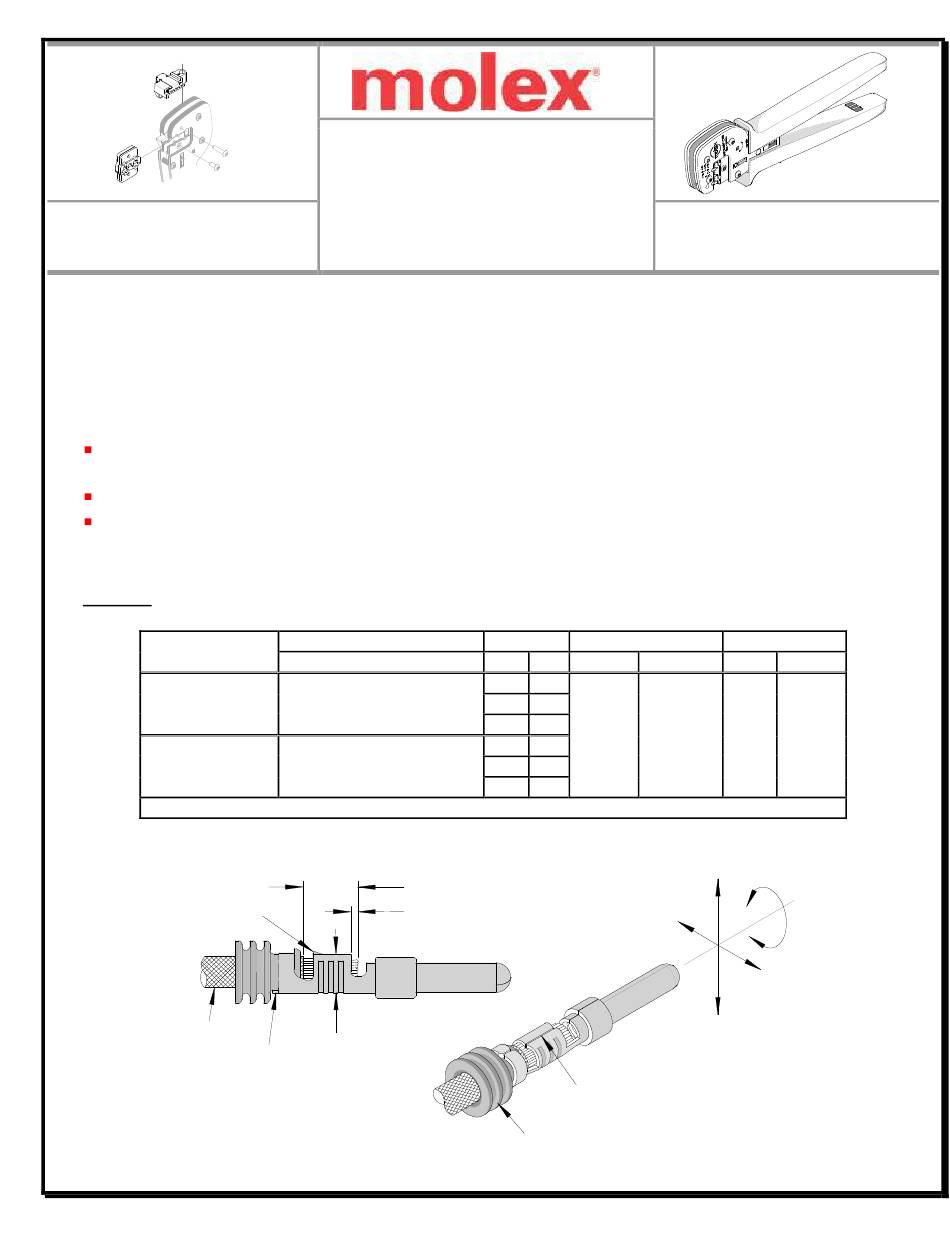

molex 63825-1570 Specification Sheet

Tool kit for 2.80mm (.110") sealed crimp terminal, male and female

Advertisement

Quick Links

Tool Kit for 2.80mm (.110") Sealed Crimp Terminal, Male and Female
Tool Kit
Order No. 63825-1570
FEATURES
A full cycle ratcheting hand tool ensures complete crimps
%
Ergonomically designed soft handles
%
Precisely designed crimping profiles with simple contact positioning
%
Easy handling due to outstanding force ratio
%
Tool kits are easily installed into the Hand Crimp Tool or the 63816-0300 Power Crimp Head which is installed
into the 63816-0200 (110 V) or the 63816-0250 (220 V) Battery Powered Tool.
Many different Tool kits can be used with a single Battery Powered Tool.
This tool is IPC/WHMA-A-620 Class 2 and RoHS compliant.
SCOPE
Products: 2.80mm (.110") Sealed Crimp Terminal, Male and Female, 2.5-4.0mm² wire.
Terminal Series No.
98012
98014
DEFINITION OF TERMS
BELL MOUTH
WIRE
CUT-OFF
Doc No: ATS-6382515HM Release Date: 10-27-11
Revision: A
Application Tooling
Specification Sheet
Terminal Order No.
(1) Available in Reel form only AWG mm²
98012-1302
98014-0300
(1) Customer to cut off terminal from reel: 0.35mm (.014") maximum Cut-off Tab.
STRIP LENGTH
CONDUCTOR
CONDUCTOR
CRIMP
TAB
Revision Date: 10-27-11
Wire Size
Insulation Diameter
mm
-
2.5
-
3.0
-
4.0
2.60-4.90 0.102-0.193 4.7-5.7 .185-.224
-
2.5
-
3.0
-
4.0
BRUSH
SEAM
WIRE SEAL
UNCONTROLLED COPY
TYPE 4C
Hand Crimp Tool
Order No. 63825-1500
Strip Length
in
mm
in
BEND UP
ROLLING
TWISTING
BEND
DOWN
Page 1 of 8

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 63825-1570 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for molex 63825-1570

  • Page 1 Tool Kit for 2.80mm (.110") Sealed Crimp Terminal, Male and Female TYPE 4C Application Tooling Specification Sheet Tool Kit Hand Crimp Tool Order No. 63825-1570 Order No. 63825-1500 FEATURES A full cycle ratcheting hand tool ensures complete crimps Ergonomically designed soft handles Precisely designed crimping profiles with simple contact positioning...
  • Page 2: Installation

    5.25-5.45 .207-.215 ♦This wire seal is a Ford product and not a Molex product. Contact Ford for information on ordering this part. CAUTION: Install only Molex terminals listed above with this tool. Do not crimp hardened objects as damage can occur to the tool or die.
  • Page 3: Operation

    Tool Kit for 2.80mm (.110") Sealed Crimp Terminal, Male and Female Anvils and Punches Installation 1. Insert the Anvils into the bottom slots of the nest. Install the M4 x 10 long BHCS and tighten in place. LIFT UP ON 2.
  • Page 4: Maintenance

    Tool Kit for 2.80mm (.110") Sealed Crimp Terminal, Male and Female 7. Turn the Locator Lock Latch up to lock. Make sure that the terminal is visually centered over the punch. 8. Insert the proper wire with the seal over the terminal. 9.
  • Page 5: Warranty

    4. Use only the Molex terminals specified for crimping with this tool. CAUTION: Repetitive use of this tool should be avoided. Certification Molex does not certify or re-certify commercial grade hand tools but rather supplies the following guidelines for customers to re-certify hand tools. UNCONTROLLED COPY...
  • Page 6 12.7mm (1/2”) long, so there is no crimping of the insulation. Pull the terminal and wire at a rate no faster than 25mm (1.00”) per minute. See the Molex web site for the Quality Crimp Handbook for more information on pull testing.
  • Page 7: Hand Tool Parts List

    Tool Kit for 2.80mm (.110") Sealed Crimp Terminal, Male and Female HAND TOOL PARTS LIST Item Number Order Number Description Quantity 63810-1000 Hand Crimp Frame (Long) 63825-1570 Tool Kit with Locator 63811-4773 Locator Base 63825-1575 Locator (only) M4 X 8mm LONG BHCS...
  • Page 8: Power Head Parts List

    Tool Kit for 2.80mm (.110") Sealed Crimp Terminal, Male and Female POWER HEAD PARTS LIST Item Order No Engineering No. Description Quantity 63816-0300 63816-0300 Power Crimp Head 63825-1570 63825-1570 Tool Kit with Locator M4 by 8 Long BHCS M4 by 18 Long BHCS M4 by 10 Long BHCS Figure 13 http://www.molex.com...
